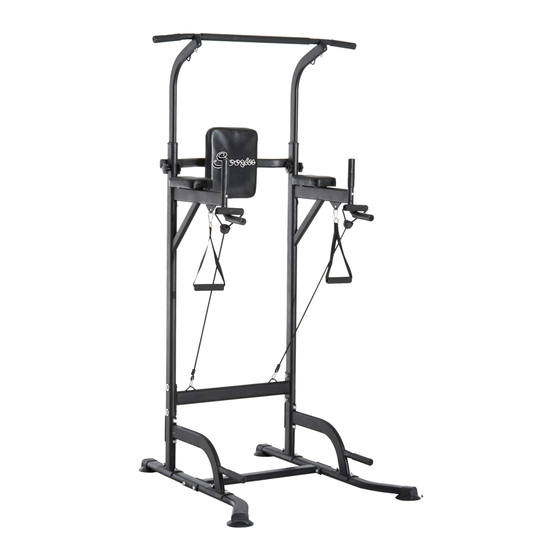

- Page 1 INade036V01_CA A91-056 READ AND SAVE THIS INSTRUCTIONS FOR FUTURE USE ASSEMBLY & INSTRUCTION MANUAL...
- Page 2 Notices before exercise 1. Please read the manual carefully before exercise. 2. Please take warm-up exercise before using the equipment. Be aware of your physical ability and condition. Do not overuse. 3. Before exercise, please carefully examine the equipment make sure it is in good condition.
- Page 3 PART M8*30 M8*45 M8*12 M8*75 M8*45...
- Page 4 EN-Socket Assembling:Take 4 sockets into the two foot bars（Make sure the socket is parallel to the floor.） FR-Assemblage de douilles:Prenez 4 prises dans les deux barres de pied (Assurez- vous que la douille est parallèle au sol.) M8*75 EN-Foot Bar Connecting Pipe Assembling:Fix the foot bar with 4 M8X75mm screw.
- Page 5 M8*45 EN-Supporting bar Assembling:Fix the supporting bar with 4 pcs carriage M8*45mm. FR-Ensemble de barre de support:Fixez la barre de support avec un chariot 4 pièces M8 * 45mm. M8*75 M8*45 EN-Main frame Assembly: 1.Fix the main frame bottom with 4pcs Carriage M8X45mm 2.Fix the main frame and supporting bar with Arc iron and hex(agonal)screw M8x75mm.
- Page 6 M8*45 EN-Main frame connecting pipe Assembly:Fix the main frame connecting pipe with hex(agonal)screw M8X45mm FR-Assemblage du tuyau de raccordement du cadre principal:Fixez le tuyau de raccordement du châssis principal avec la vis hexagonale M8X45mm M8*30 EN-Handle Assembly:Connecting two handles with 4pcs screws. As follow FR-Assemblage poignée:Connexion de deux poignées avec des vis (4pcs).
- Page 7 EN-Armrest Assembly:Fix the armrest to the main frame with 8pcs. FR-Assemblage repose bras:Fixez l'accoudoir au cadre principal avec 8pcs. M8*12 EN-Cushion+cushion bar Assembly: 1.fix the cushion with 4pcs armrest nuts. 2.Fix the cushion to the main frame with 2pcs Hex(agonal)screw M8x12. 3.Install the adjusting screw.
- Page 8 M8*75 EN-Supporting bar&Pull bar Assembly: 1.insert the supporting bar to the main frame with two plastic nuts. 2.Fix the pull bar to the two supporting bar with M8x75mm screw. FR-Assemblage Barre de support et barre de traction 1.Insérez la barre de support sur le cadre principal avec deux écrous en plastique. 2.Fixez la barre de traction sur la barre de support avec une vis M8x80mm.
