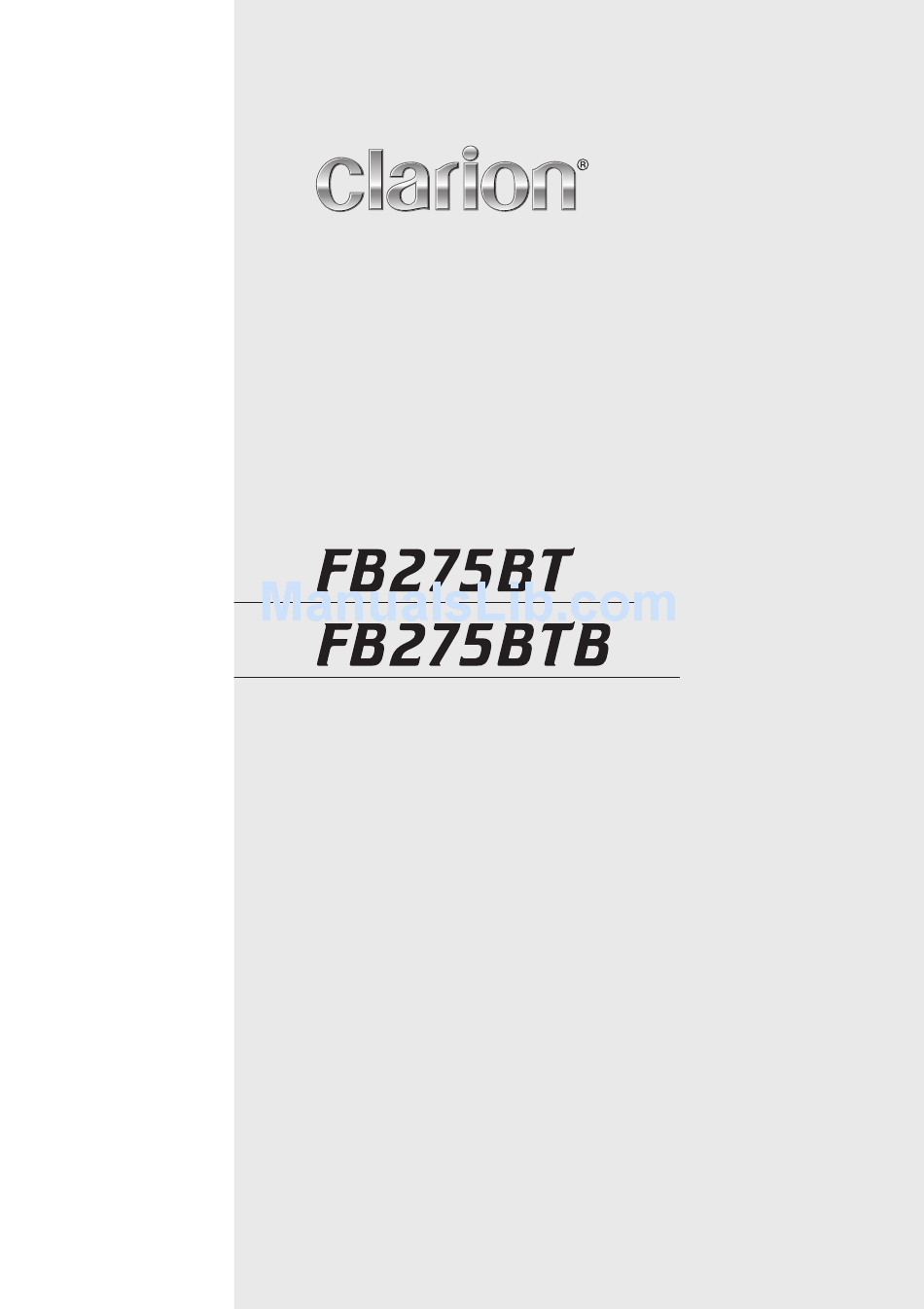

  • Page 1 Ownerʼs manual Mode d'emploi Manual de instrucciones Bluetooth SD/MP3 RECEIVER ® RÉCEPTEUR Bluetooth SD/MP3 ® RECEPTOR Bluetooth SD/MP3 ®...
  • Page 2: Table Of Contents

    For USA and Canada only Dear Customer: Congratulations on your purchase of a Clarion mobile electronic products. We are confident that youʼll enjoy your Clarion experience. There are many benefits to registering your product. We invite you to visit our website at www.clarion.com to register your Clarion product.
  • Page 3: Precautions

    INFORMATION FOR USERS: CHANGES OR MODIFICATIONS TO THIS PRODUCT NOT APPROVED BY THE MANU- FACTURER WILL VOID THE WARRANTY AND WILL VIOLATE FCC APPROVAL. SIG, Inc. and any use of such marks by Clarion Co.,Ltd. is ® FB275BT / FB275BTB...
  • Page 4: Handling Memory Card

    Do not touch the terminals on the back of the card with your fingers. Do not allow dirt, dust or water to enter it. FB275BT / FB275BTB When the card is being read, do not re- move the card. After eject operation, always remove the memory card from the slot;...
  • Page 5: Controls

    Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter. Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre. Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas. FB275BT / FB275BTB / UNIDAD PRINCIPAL Ouvrez le PANNEAU RABATTABLE FENTE DE CARTE MÉMOIRE SD/MMC...
  • Page 6 In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. The screen will recover when it returns to normal temperature. Please take note that reflection of the screen cover may increase due to direct sunlight exposure, thus this might decrease the visibility of the LCD screen. FB275BT / FB275BTB...
  • Page 7: Nomenclature

    SD mode. Press and hold the button for 1.5 seconds or longer to play the first track in the memory card. FB275BT / FB275BTB [ DISP ] button During SD mode, switch the display indication in the following order: Track Name...
  • Page 8: Dcp ( Detachable Control Panel )

    65˚, please do not forcibly push to open fur- ther. 3. Pull the DCP toward you and remove it. 4. Close the HOLD FLAP. FB275BT / FB275BTB Attaching the DCP 1. Insert the right side of the DCP into the main unit.
  • Page 9: Operations

    ∗ Once selected, the preferred display becomes the display default. When a function adjustment such as volume is made, the screen will momentarily switch to that functionʼs display, then revert back to the preferred display several seconds after the adjustment. FB275BT / FB275BTB “ALBUM”...
  • Page 10: Aux Function

    Note: Volume can be adjusted through the unit. Please refer chapter “Common Operations” on page 26 for more operation controls. FB275BT / FB275BTB Radio Operations Listening to the radio ] knob clockwise in- 1. Press the [ SRC ] button and select the Radio mode, then the radio will be on.
  • Page 11: Manual Tuning

    Instant station recall ( ISR ) Instant station recall is a special radio preset that instantly accesses a favorite radio station at a touch of a button. The ISR function even oper- ates with the unit in other modes. FB275BT / FB275BTB ] knob for...
  • Page 12: Mp3 Operations

    ” from all manufacturers. For SD/MMC memory card compatibility, please consult your nearest Clarion dealer for more information. To prevent the accidental loss of data, always back up important data to your computer. Audio files playable on this unit are limited to MP3 files.
  • Page 13: Folder Structure

    2. Tracks are always sorted alphabetically and played in that order. ( Tracks might not always be played in the order displayed on the PC. ) 3. Some noise may occur depending on the type of encoder software used while recording. FB275BT / FB275BTB...
  • Page 14: Loading A Memory Card

    Playback will begin from the first file recorded on the memory card. FB275BT / FB275BTB Notes: Sound will be muted when panel is flipped. “FLIPPED” will be displayed. Always insert the memory card fully by pushing it into the slot.
  • Page 15: Pausing Play

    1. Press the [ DISP ] button to display current title type. 2. To select the next type, press the [ DISP ] button again. The arrangement is shown below. 3. Relevant information will be displayed after showing the title type. FB275BT / FB275BTB...
  • Page 16: Folder Select

    2. Each time the [ ] button is pressed, play- back proceeds to previous track in the reverse direction. FB275BT / FB275BTB Notes: Previous track across multiple sub-folders may not be always return to the previous song you listen as it will return to the last valid MP3 files of the parent...
  • Page 17: Top Function

    2. Press the [ RPT ] button again to cancel track repeat play. The “ ” indicator lights in the display when track repeat play is enabled. Note: Any track/folder selection, card changing and power cycle will cancel track repeat play. CAUTION ” will be displayed. FB275BT / FB275BTB...
  • Page 18: Random Mode

    However, this will depend on folder repeat setting. Any track/folder selection will always perform as next random track/folder. FB275BT / FB275BTB Folder random play This function allows you to play all the tracks al- phabetically in a random folder.
  • Page 19: Introduction To Bluetooth Wireless Technology

    ( AVRCP ) This enables music from Bluetooth to be controlled remotely. AVRCP allows some basic playback control functions such as play/ pause, volume up/down and next/previous track to a Bluetooth audio player. ® FB275BT / FB275BTB ® ® audio player ®...
  • Page 20: What Is Pairing

    You do not have to enter a dedicated pin code for pairing these two devices ( Only applicable to Clarion products such as Aux Bluetooth ter ) , as you do with a mobile phone. However, for other A2DP devices, you may need to enter “0000”...
  • Page 21: Disconnecting Bluetooth

    Please refer “Compatible Devices” on page 31 to make sure your device is compatible. device ® ] button for 1.5 sec- ” indicator lights off. device in Adjustment mode will also ® FB275BT / FB275BTB ®...
  • Page 22: Handsfree Operations

    If no operation is performed for more than 10 seconds, the Edit mode is cancelled and returns to the previous display. FB275BT / FB275BTB Clearing all digits 1. During Telephone Numbers Edit mode, turn the 2. Push and hold the [ 1.5 seconds or longer to clear all digits on the...
  • Page 23: Making A Call

    A call can be made with the last number dialed. When the phone is connected, redial can be performed according to the phone last dialed number. Each phone has its own redial number. If thereʼs no redial number, operation will not be performed. FB275BT / FB275BTB...
  • Page 24 The unit is fitted with an internal microphone that should provide acceptable performance when fitted to vehicles with low levels of background noise. For optimum performance Clarion recom- mends the use of an external microphone fitted as near as possible to the driver.
  • Page 25: Audio Streaming Operations

    Users can stream music from their external audio player to their car stereo wirelessly and listen to the tracks through the carʼs speakers. Please consult your nearest Clarion dealer for more information on the product of wireless au- dio streaming transmitter offered.
  • Page 26: Adjustment Mode

    - 1 . Turn the [ - 1 . emphasizes the bass; turning it counterclock- wise attenuates the bass. FB275BT / FB275BTB Notes: The factory default setting is “0”. The value range is - 7 to + 7. Adjusting the treble Select “TREBLE”.
  • Page 27: Clock Adjustment

    The clock is updated in realtime. ] knob to select “ ” ] knob to select the “24 HR” ] knob. ] button to select the hour ] knob to set the cor- ] button to exit the setting. FB275BT / FB275BTB...
  • Page 28: Display Adjustment

    ( Adjustment level: 0 to 14 ) 1. Select “CONTRAST”. 2. Turn the [ contrast. FB275BT / FB275BTB Adjusting the display and line illumination You can adjust the display illuminations ( Display backlight intensity ) at night ( key illumination on ) .
  • Page 29: Bluetooth Adjustment

    ] knob to edit a char- ] button or push [ ] knob at the last blank ] knob for 1.5 ] knob to select a device ] knob. A delete con- ] knob to select “YES” ] knob to confirm the FB275BT / FB275BTB...
  • Page 30: System Menu

    Checking the unit version 2-1. Select “VERSION”. Restoring to factory default setting This function allows user to restore the unit to the factory default setting. FB275BT / FB275BTB 2-1. Select “FACT. RST”. 2-2. Push the [ firmation is prompted. 2-3. Turn the [ or “NO”.
  • Page 31: Compatible Devices

    Please check your phoneʼs specification for sup- ported profiles. Features supported for each pro- file vary from product to product. To ensure your device will work correctly with this unit, please consult your nearest Clarion dealer for your phone compatibilities. Supported external audio player with Bluetooth wireless technology ®...
  • Page 32: Additional Information

    Read this information before using your car ste- reo. Changes or modifications to this product not ex- pressly approved by Clarion may void the userʼs authority to operate the equipment. Please check for any exceptions, due to national requirements or limitations, in usage of equip-...
  • Page 33: Additional Information

    Emer- gency calls may not be possible on all cellular phone networks or when certain network services and/or phone features are in use. Check with your local service provider. FB275BT / FB275BTB...
  • Page 34: Troubleshooting

    Format SD memory card as FAT12 or FAT16. correct. Incompatible SD/MMC. Please make sure your SD/MMC is supported or consult your nearest Clarion dealer for SD/ MMC compatibility. Those MP3 files may Use MP3 files encoded properly. be corrupted or do not encoded properly.
  • Page 35: Troubleshooting

    ) from the phone again after telephone when audio streaming and telephone function interrupt. are from the same Use Clarion recommends external audio device ( mobile phone ) . player with Bluetooth Audio streaming may or may not resume after...
  • Page 36 If the problem persists, please consult you nearest Clarion dealer for your phone compatibility. Car stereo is connected Disconnect the previous device and reconnect to other device.
  • Page 37: Error Displays

    Please try a few times or dial from phone if necessary. Please make sure your phone supports this feature or consult your nearest Clarion dealer for voice dial compatibility. The user may need to re-connect the phone ( if auto connect is off ) and he will need to communications.
  • Page 38: Specifications

    Bass Control Action ( 100 Hz ) : ±14 dB Treble Control Action ( 10 kHz ) : ±14 dB Line Output ( with A/C 1 kHz, 10 kΩ ) : 1.8 V FB275BT / FB275BTB General Power Supply Voltage: 12 V DC ( 10.8 V to 15.6 V allowable ) , negative...
  • Page 39 Clarion Co., Ltd. PE-8500B All Rights Reserved. Copyright © 2007: Clarion Co., Ltd. 280-8556-01 Printed in Malaysia / Imprimé en Malaisie / Impreso en Malasia...
