5. Select the ON mode for Radio, click Apply and click Connect Radio button (Figure 4-9).

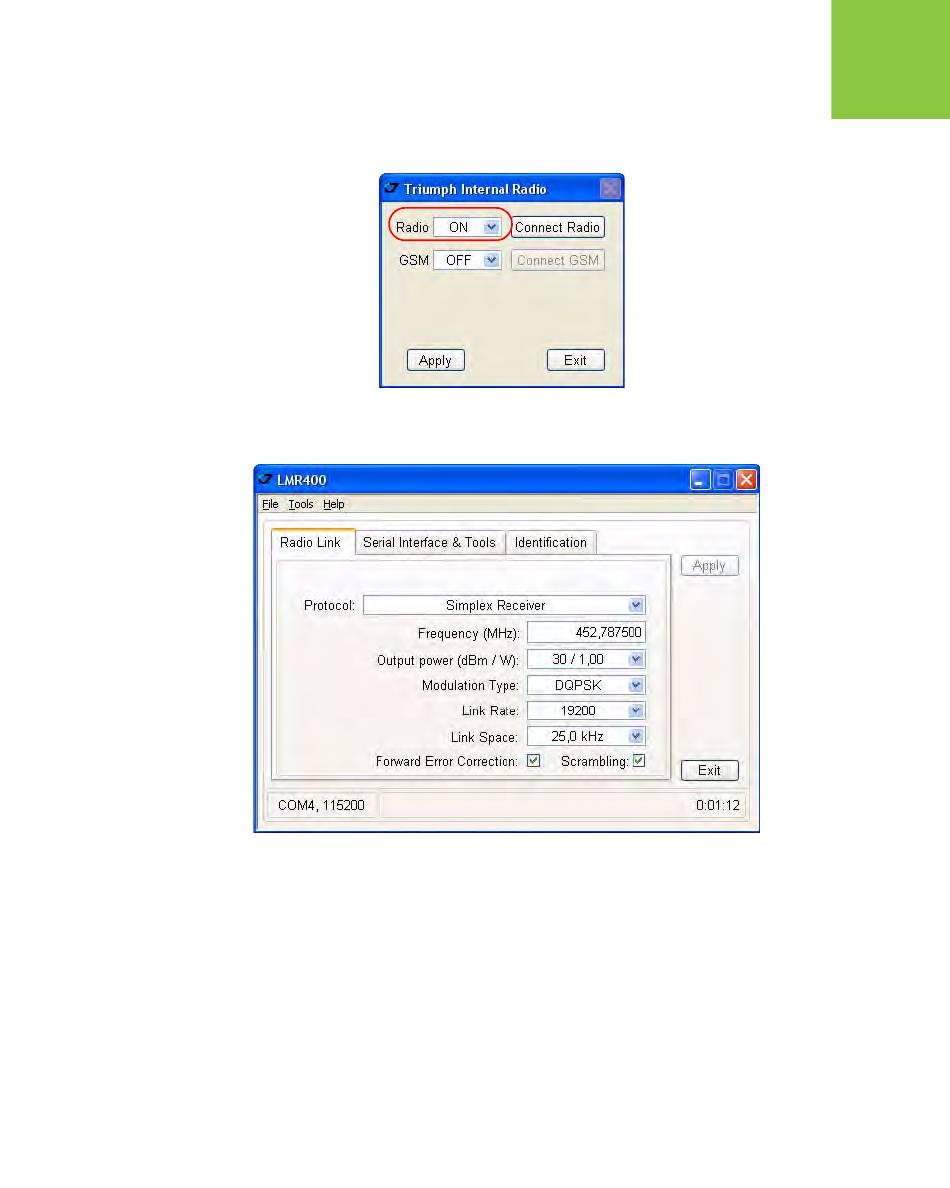

Figure 4-9. ModemVU TRIUMPH Internal Radio selection
6. In the Radio Link tab set the following parameters, and click Apply (Figure 4-10):
• Protocol: Simplex Receiver
• Frequency (MHz): 406 to 470
• Output power (dBm/W): 30/1.00
• Modulation Type: DQPSK
• Link Rate: 19200
• Link Space: 25.0 kHz
• Forward Error Corrections: ON
• Scrambling: ON
7. Quit ModemVU by clicking Exit button.
www.javad.com
Figure 4-10. Radio Link tab settings
Configuration Example
TRIUMPH-1 internal UHF radio as a Rover Configuration
