Configuration Example
HPT402 as a Base Configuration

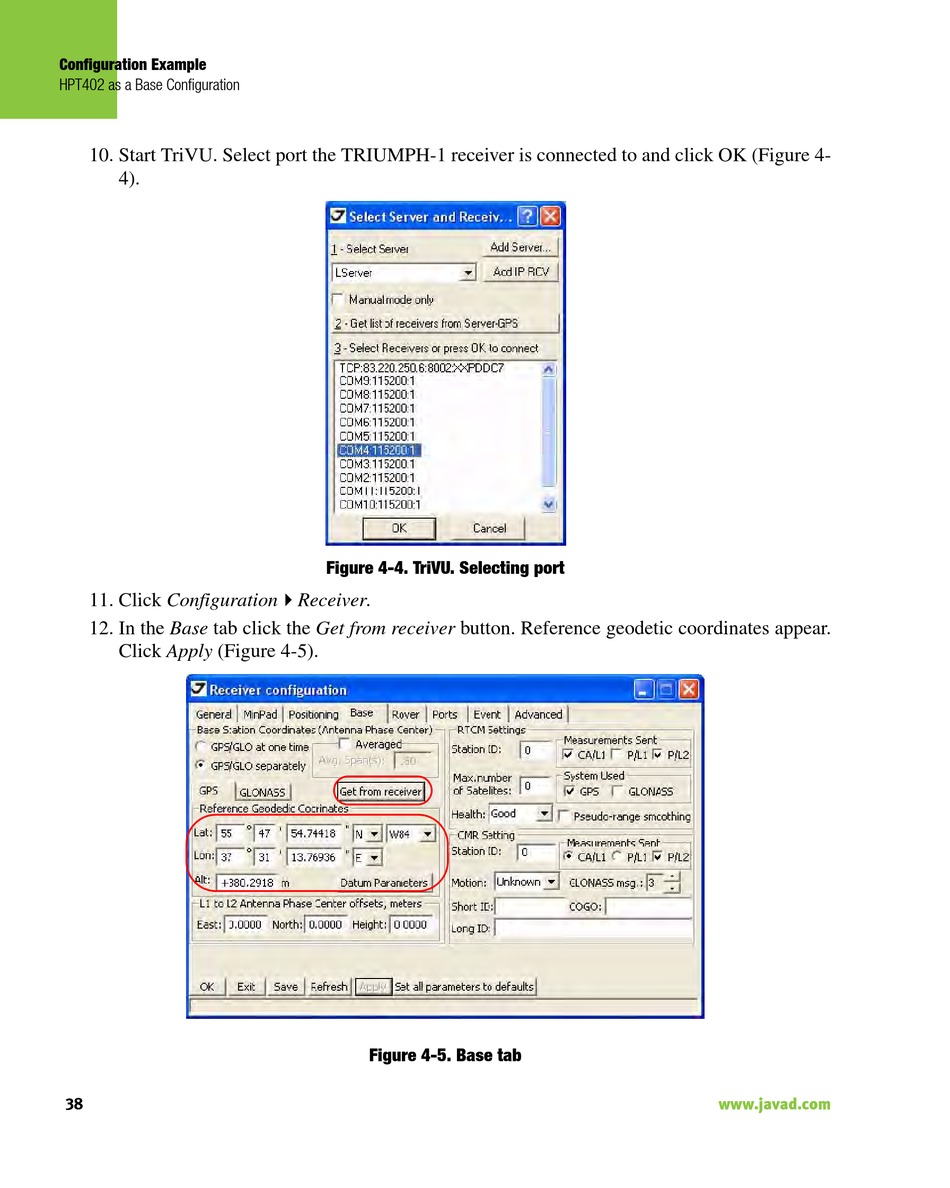

10. Start TriVU. Select port the TRIUMPH-1 receiver is connected to and click OK (Figure 4-
4).
11. Click ConfigurationReceiver.
12. In the Base tab click the Get from receiver button. Reference geodetic coordinates appear.
Click Apply (Figure 4-5).
38
Figure 4-4. TriVU. Selecting port
Figure 4-5. Base tab
