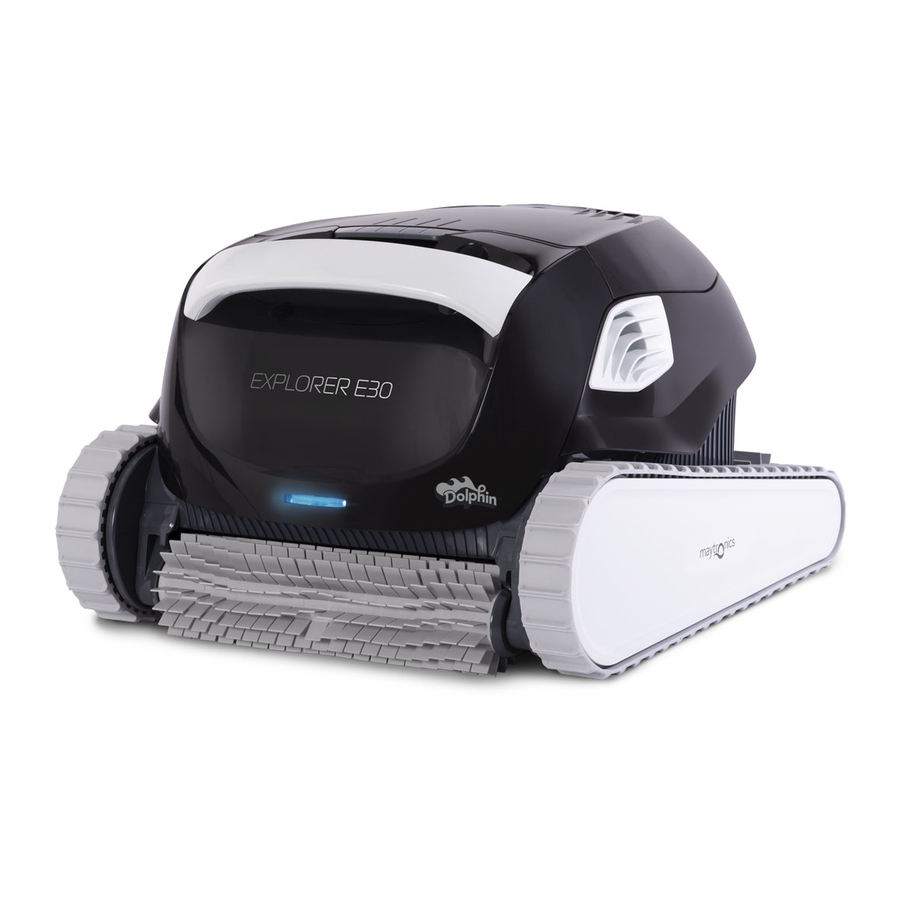

Maytronics Dolphin Explorer E30 Manual
  1. Manuals
  2. Brands
  3. Maytronics Manuals
  4. Swimming Pool Vacuum
  5. Dolphin Explorer E30
  6. User manual

Maytronics Dolphin Explorer E30 Manual

Also See for Dolphin Explorer E30:

Advertisement

Table of Contents
Contents
Maytronics Dolphin Explorer E30 Manual

SPECIFICATIONS

Motor protection: IP 68
Minimum depth: 0.80m / 2.6ft
Maximum depth: 5m / 16.4ft
Digital Power supply
Input: 100-125 AC Volts / 200-230 AC Volts
50-60 Hertz
Output: <30 VDC
IP 54

WARNINGS AND CAUTIONS

Warnings

  • Use the originally supplied power supply only
  • Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth leakage interrupter (ELI)
  • Keep the power supply out of standing water
  • Position the power supply at least 3.5m/12ft away from the edge of the pool
  • Do not enter the pool while the Pool Cleaner is working
  • Unplug the power supply before servicing

Cautions

Use the Pool Cleaner in the following water conditions only:

Chlorine Maximum 4 ppm
pH 7.0-7.8
Temperature 6-34°C / 43-93°F
NaCl Maximum 5000 ppm

POOL CLEANER PARTS

Robotic Pool Cleaner Model Basic 13 / Classic 13/ Classic 13+
Robotic Pool Cleaner Model Basic 13 / Classic 13/ Classic 13+

Power supply options Step 1
Power supply options Step 2
Power supply options

Filtration options Step 1
Filtration options Step 2
Filtration options Step 3
Filtration options

Caddy kit - optional
Caddy kit - optional

USING THE POOL CLEANER

Setup

Before using the Pool Cleaner for the first time, perform the following steps:

  1. Position the power supply so that it is approximately in the middle of the long side of the pool at a distance of min 3.5m/12ft from the pool and placed 11cm/4'' above ground.
    Setup Step 1
  2. Unwind the cable and stretch it out completely so that it has no kinks.
    Setup Step 2
  3. Attach the floating cable to the power supply by inserting it with the notch on the connector (1), lined up with the groove in the socket on the power supply, and turning clockwise (2). Plug in the power supply and leave it in the OFF position (3).
    Setup Step 3

Putting the Pool Cleaner into the pool

  1. Put the Pool Cleaner into the pool. Release the Pool Cleaner and let it sink to the floor of the pool. Make sure that the floating cable is free of any obstructions.
    Putting the Pool Cleaner into the pool Step 1
  2. Turn the power supply ON. The Pool Cleaner will now operate until it has reached the end of the cleaning cycle.
    Putting the Pool Cleaner into the pool Step 2

Indicator Lights - Model Classic 13+ only

Light Indication
Blue blinking Normal operation of the Pool Cleaner
Green blinking Remote-Control or Smartphone communicate with the Pool Cleaner

Indicator lights
Indicator lights.

Removing the Pool Cleaner from the pool

  1. warningTurn OFF and unplug the power supply.
    Removing the Pool Cleaner from the pool Step 1
  2. Using the floating cable, bring the Pool Cleaner to the pool's edge. Using the handle, remove the Pool Cleaner from the pool.
    Removing the Pool Cleaner from the pool Step 2
    warning DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.
  3. Place the Pool Cleaner on the edge of the pool and let the water drain out.
    Removing the Pool Cleaner from the pool Step 3

CLEANING THE DUAL FILTER BASKET

warning Make sure the power supply is switched off and unplugged.

It is highly recommended to clean the filter basket after each cleaning cycle.
Note: Do not let the filter panels dry out before cleaning.

Cleaning after use - removing and cleaning the dual filter basket

  1. Open the filter cover.
    Cleaning after use - removing and cleaning the dual filter basket Step 1
  2. Upon opening the filter cover, the handle will lift independently.
    Cleaning after use - removing and cleaning the dual filter basket Step 2
  3. Lift up the basket.
    Cleaning after use - removing and cleaning the dual filter basket Step 3
  4. Open the latch to release the bottom lid in order to remove the debris.
    Cleaning after use - removing and cleaning the dual filter basket Step 4
  5. Clean the filter basket with a hose.
    Cleaning after use - removing and cleaning the dual filter basket Step 5

Dismantle the 4 ultra-fine filter panels of the outer basket, according to the following steps:

  1. Holding down the handle, remove the inner net basket.
    Periodic filter cleaning – recommended at least once a month Step 1
  2. Dismantle the panels, starting by pressing on panel 1 using your thumbs.
    Periodic filter cleaning – recommended at least once a month Step 2
  3. Continue to dismantle the panels in the order of their numbers: 2 — > 3 — > 4.
    Periodic filter cleaning – recommended at least once a month Step 3
  4. Clean the filter panels with a hose.
    Periodic filter cleaning – recommended at least once a month Step 4
  5. Assemble the filter panels according to the following order: Panel 4 — > 3 — > 2 — > 1.
    Periodic filter cleaning – recommended at least once a month Step 5
  6. Insert the clean filter basket and close the filter cover.
    Periodic filter cleaning – recommended at least once a month Step 6

CLEANING THE IMPELLER

If you notice debris trapped in the impeller:

warning Make sure the power supply is switched off and unplugged.

Clean the debris trapped in the impeller opening, according to the following steps:

  1. CLEANING THE IMPELLER Step 1
  2. CLEANING THE IMPELLER Step 2
  3. CLEANING THE IMPELLER Step 3
  4. CLEANING THE IMPELLER Step 4

Assemble the impeller compartment according to the next steps:

  1. Assemble the impeller Step 1
  2. Assemble the impeller Step 2

OFF-SEASON STORAGE

If the Pool Cleaner will not be in use for an extended period of time, perform the following storage steps:

  • Make sure that no water is left in the Pool Cleaner
  • Thoroughly clean the filter basket and panels and insert in place
  • Roll up the cable so that it has no kinks
  • Store the Pool Cleaner in a protected area out of direct sun / rain / frost, at a temperature of between 5°-45°C / 41°-113°F

OFF-SEASON STORAGE

TROUBLESHOOTING

If the suggested solutions do not solve the problem, please contact your dealer or Service Center.

Symptom Possible reason Corrective action
The power-supply or its switch led are not working.
  • No voltage in the power socket in the wall.
  • The power supply is not switched ON.
  • The power cable is not well connected into the power supply inlet.
  • Check that there is voltage in the power socket in the wall.
  • Check that the power supply is plugged in and turned ON.
  • Check that the power cable is securely connected all the way into the power supply.
  • Turn the power supply off. Wait 30 seconds then turn it back on.
The Pool Cleaner does not move.
  • The floating cable is not well connected into the power supply outlet.
  • An obstacle blocks the impeller, tracks or wheels.
  • Check that the floating cable is securely connected all the way into the power supply.
  • Unplug the power supply. Open the impeller cover and check that nothing is trapped in the impeller. Verify that nothing blocks the tracks or wheels.
The Pool Cleaner is moving in circles.
  • Clogged filter basket.
  • Debris stuck in the impeller-house or impeller-cover.
  • Power supply incorrectly positioned.
  • Algae or pool water is out of Spec.
  • Clean the filter basket.
  • Remove debris stuck in the impeller-house or impeller-cover (according to the drawings).
  • Place power supply in a position so that the Pool Cleaner can freely reach all the pool area.
  • Correct pool and water conditions.
The Pool Cleaner does not turn or moves in one direction only.
  • Debris stuck in the impeller-house or impeller-cover.
  • Remove debris stuck in the impeller-house or impeller-cover (according to the drawings).
The Pool Cleaner moves but does not clean the pool.
  • Clogged filter basket.
  • Debris stuck in the impeller-house or impeller-cover.
  • Clean the filter basket.
  • Remove debris stuck in the impeller-house or impeller-cover (according to the drawings).
The Pool Cleaner cleans only part of the pool.
  • Power supply incorrectly positioned.
  • Not enough floating cable is released for the correct operation of the Pool Cleaner.
  • Place the power supply in a position so that the Pool Cleaner can freely reach all the pool area.
  • Check that there is enough slack in the floating cable for the Pool Cleaner to reach all of the pool.
  • Clean the filter basket.
The floating cable has kinks.
  • Clogged filter basket.
  • Debris stuck in the impeller-house or impeller-cover.
  • Clean the filter basket.
  • Remove debris stuck in the impeller-house or impeller-cover. (according to the drawings).
  • To remove the kinks, stretch the floating cable out completely and let it sit for at least a day in the sun.
The Pool Cleaner doesn't climb the walls.
  • Clogged filter basket.
  • Algae on walls.
  • Unsuitable pH level.
  • Debris stuck in the impeller-house or impeller-cover.
  • Clean the filter basket.
  • Check the level of the chemicals of the water. Improper levels may allow the growth of algae making the walls slippery. If so, adjust the levels and scrub the walls.
  • Remove debris stuck in the impeller-house or impeller-cover (according to the drawings).
