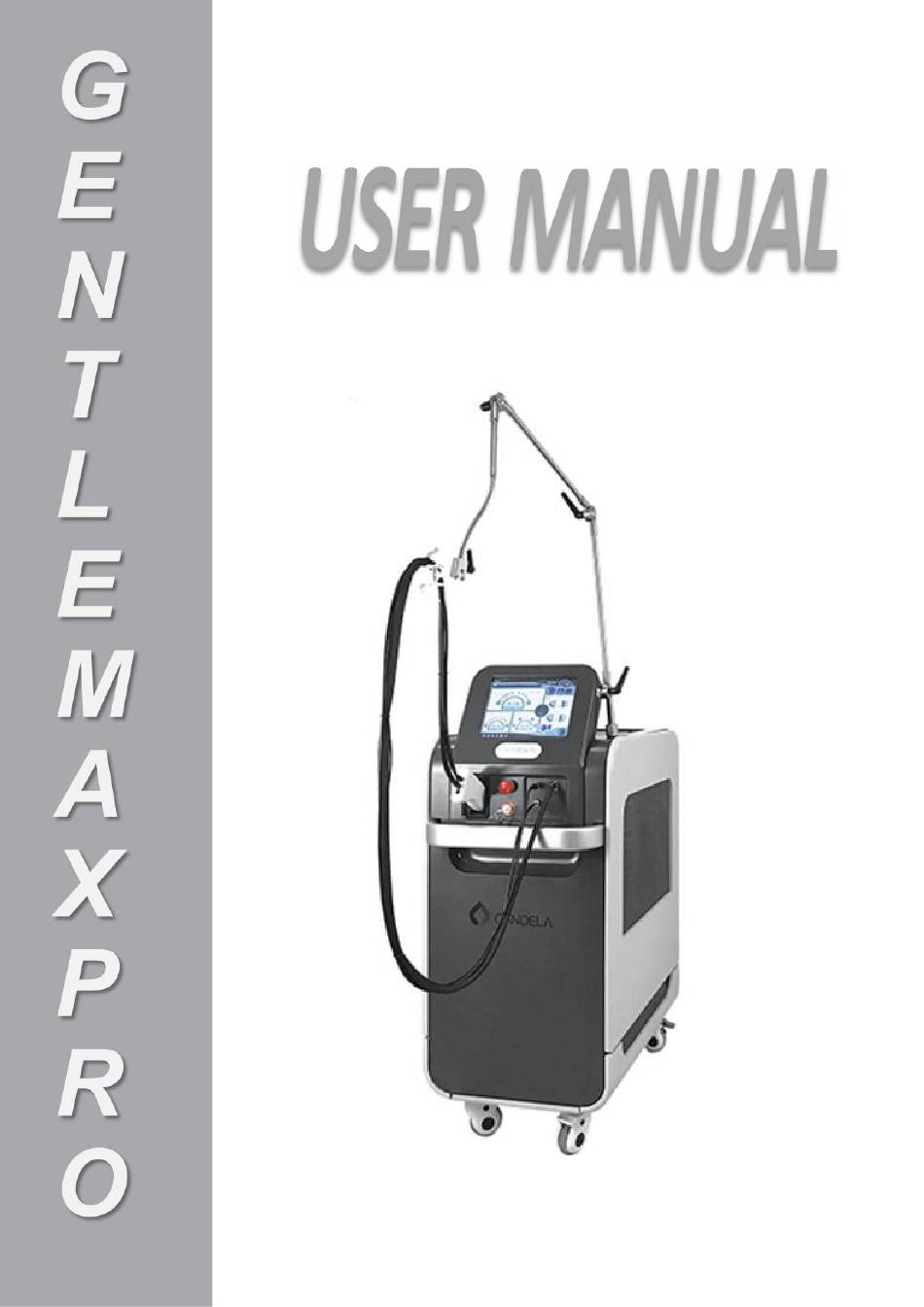

- Page 1 Alexandrite Long Pulse Laser 755nm GENTAL MAX PRO YOU JUST CAN NOT COPYAN ORIGINAL. COPYRIGHTS RESERVED.
- Page 2 Catalog Appearance..........1 1.1 Appearance & Components... Packing list........Safety ..........5 Electric safety......... Optical safety........Safety labels........Specifications........... 8 Laser specification......Headpiece specification....Environment........Assembling..........11 Assembling ......Water-cooling system...... Product Operations Guide......15 System operation......Treatment parameters....... Operation procedure....... Clinical step........Switch off..........

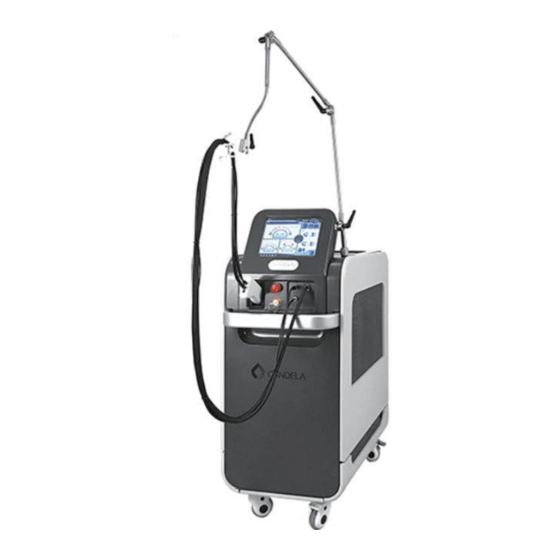

- Page 3 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO 1. Appearance & Components 1.1 Appearance & Components 5. Bracket 8. Headpiece 4.Monitor 3. Right panel 9. Emergency 7. Cooling tubes 10. Key switch 6. Fiber 2. Handrail 12. Finger switch 11. Front panel 1.
- Page 4 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO 13. Cooling liquid storage：to store the cooling liquid 14. Left panel. 15. Cooling device port: to connect a separate cooling device for skin. 16. Handrail. 17. Water tank: to store the cooling water for laser chamber. 18.
- Page 5 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO Packing list Laser bodyX1 Headpiece with cold wind cooling, spot-size 6-18mm Electric cableX1 Foot switchX1 Water chanelX1 KeysX2 GogglesX1 Eye Glasses X1 3 / 32...
- Page 6 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO 2. Safety This article shows the details of safety when operation. The operator and technician must be certified after professional training of safety, know well the requirements of safety and steps to operate the laser. 2.1 Electric safety 1．Make sure the voltage of laser requiring will be adapted by local electricity supply.
- Page 7 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO shooting into. Also, staring for long while, discomfort will be caused. 8. Laser definitely cannot shoot at eyes even goggles and eye-patch are well wearing. 9. The remarkable area should plant a label plate “ Caution of Laser” Safety Labels 1.
- Page 8 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO 5. Water tank label 6. Hot water label 7. Caution, no remove the covers. Caution for Class 4 laser. 7 / 32...
-
Page 9: Specifications
Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO 3 Specifications 3.1 Machine specification 8 / 32... - Page 10 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO Headpiece Candela Gentlemax Pro Items Details Control Monitor 10 inches Digital Real Color LCD Interface Touch Control system Single chip Headpiece Headpiece/spot-size 6-18mm spotsize with cold air coolilng Wave-length 1064nm&755nm Cooling Cooling system...
- Page 11 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO Headpiece: A Headpiece B Headpiece: C A: Spot-size 6- 18mm adjustable; Skin cooling temperature -5 to 5℃; Cold air skin cooling. Environment 1. Air quality： The system should work in a non-corrosive environment. Corrosive substances, such as acids, etc., may damage the surface of the wires and electronic equipment.
- Page 12 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO 4 Assembling Assembling 1. Fiber support arm installation 1. Find the fiber support arm. 2. Fix arm tightly with screws. 3. Adjust the angle and screw it. Inset the arm. 6. Put the headpiece into the 4.
- Page 13 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO 2.Headpiece connection. 1. Take out the cap of fiber and 3. Prepare the finger switch and 2. Fix fiber tightly with screw. insert into the fiber port insert into the port. 8. Prepare the cooling tube and 7.
- Page 14 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO 1. Prepare the electric plug. 2.Insert into the plug. 3.Switch on. Water-cooling system Due to the generated huge heat of the xenon lamp when do treatment, and the treatment handle cooling the skin produce a lot of heat, so the machine needs to add a certain amount of pure water before work.
- Page 15 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO operating room should install air-conditioning equipment to ensure the temperature about 25 ℃ before using the machine; otherwise the water temperature will be a sharp rise in a short time, which will not all shortens the working time of the machine , but also affect the service life of the machine.
- Page 16 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO Monitor Operations Guide This chapter describe the treatment handle of Alex. And Nd Yag laser system, the proposed treatment parameters and operation method. Please make sure to read in detail before using the product. System operation 5.1.1 Start the machine。...
- Page 17 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO Figure 5.1.3 The below page shows the main operating page for parameters adjustment. ( Figure 5. 1.4). Figure 5.1.4 16 / 32...
- Page 18 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO press this button back to wavelength selection page. b. Press this button for applications reference, The page will show the page as below, At this page, the YAG Applications can be selected by, Hair Removal, Diffuse Redness, Vascular Lesions, and Facial Treatment .
- Page 19 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO d. Pulse width selection, By this page, the pulse width can be selected from 10- 100ms. e. Frequency selection, By this page, the frequency can be selected from 0.5-2.0HZ. By this page, the spot-size can be selected by 6mm(diameter), 8mm, 10mm, 12mm, 15mm, 18mm.
- Page 20 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO The difference from YAG, the Alex page, only the energy adjust scale is from 10-60Joules, the others keeps same as YAG. So here we do not explain again for details. 5.2 Treatment parameter Check the “Application”...
- Page 21 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO Clinical treatment Take the 755nm wavelength as an example. 1064nm wavelength is the same, which will not be illustrated here again. 1. Enter the parameters according to different skin type, hair type 2. Removal all make up, clean the skin with water or soap, and take off the jewelry accessories;...
-
Page 22: Routine Maintenance
Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO Routine maintenance Warning: 1.After ten minutes off and pull out the power plug can maintain the machine, do not make the system is in a state of butt cap is unattended, otherwise you will have a personal injury or damage to the system 2.The machine has a high-pressure, non-professional workers do not open the back cover to maintain the machine. - Page 23 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO Tables for routine testing and maintenance Inspection/service Frequency Operator Focus bald clean After each use Clinical departments External routine cleaning and According to the clinical Clinical disinfection protocol departments Checking whether the cable weekly Clinical equipment...
- Page 24 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO Ensure that insurance tube tight in the card slot. Hand pushing Insurance Module, As shown in picture 6.8.4 Connect the power cord Boot testing whether normal boot can or not NOTICE Ensure that the specifications of the new fuse is consistent with the original fuse Replace the cooling water 6.9.1 6.9.2...
- Page 25 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO 6.10 Troubleshooting Trouble shooting Guide 24 / 32...
- Page 26 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO Faulty Handling Fault handling guide The following table lists the some of the possible failure and the user can take measures: The fault The possible reasons Take measur es phenomenon Check whether the power cord connection is Power cord reliable...
- Page 27 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO Replace the power supply, please contact Pow er Failure the authorized maintenance personnel Appropriate to increase energy, can continue The life of the pum p to use Las er ener gy light deplet ion out put is low Water quality is not good High quality water immediately replaced...
- Page 28 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO If you have other trouble, please contact the maintenance department of the Beijing perfectlaser company 27 / 32...
- Page 29 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO Clinical Q-switched skin analyzer laser should be operated by operators who have received professional training, Beijing Perfectlaser company requires the operator who must take the operator professional training. Mechanism of action The principle of selective absorption of light. According to the principle of selective absorption of light, q-switched Nd: YAG specific wavelength of light pulse laser radiation is a high peak, different colors absorb light penetrates the organization of the ultrashort pulse width in ms, and light absorption of pigment, instant results.
- Page 30 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO Physical scars Diabetes, heart disease and patients who have unrealistic expectations patients with cardiac pacing Patients with metal in body (including the braces) There is prosthesis of the facial parts m) It is at skin allergies period Used effective products of the customer to stop at least one month or more to use this machine, and do not use effect type products in the process of laser operation...
- Page 31 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO Acne bloodshot Dimmed: blood clotting Perivascular reddish: local inflammation (two to three days to disappear) d) Vasoconstriction, blood vessel walls collapse (color becomes shallow gradually Within 21 days) Tattoos, tattoo, lip liner, eyeliner: Pigments peeling, skin redness (usually disappear Within 2 hours), the next anti-color (deep skin reactions to the surface.) 8.6.3...
- Page 32 Alexandrite Long Pulse Laser 755nm-GENTAL MAX PRO throughout the process, in order to make adjustments in a timely manner Cleaning operation area after operation. Cold compress about 20 minutes 12) Moisturizing sunscreen Other items If after using native produced blisters or sores on the skin, can use antibiotic ointment or burn ointment blotted out After using the machine within one month, Customers should use high-expansion sunscreen and moisturizing skin care products for care...
