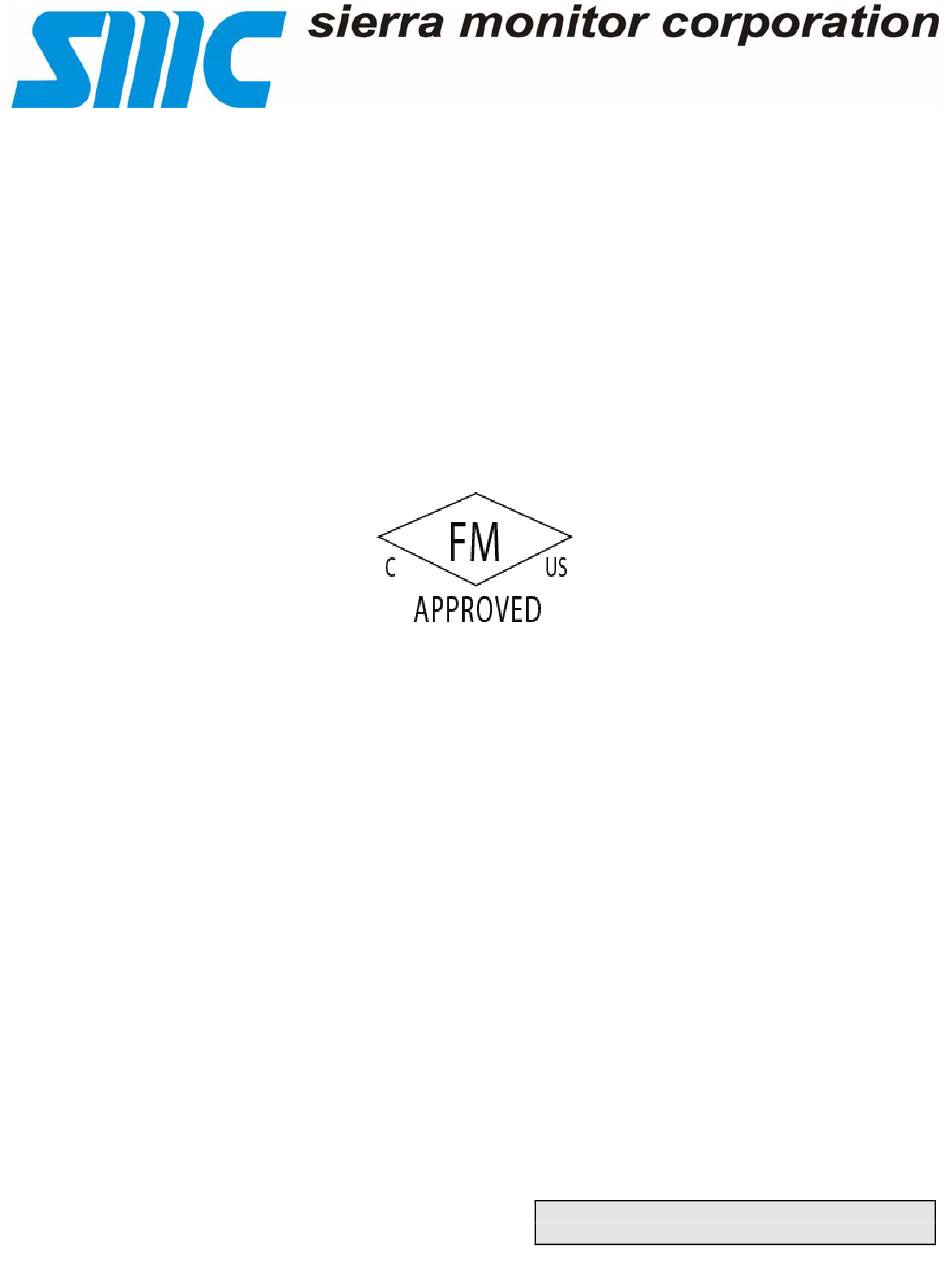

- Page 1 MODEL 4501-XX 2-Wire Series TOXIC GAS SENSOR MODULE APPLICABILITY & EFFECTIVITY Effective for all Model 4501-XX Modules manufactured after September 1, 2006. 4501-04 FM Pending 4501-05 FM Approved 4501-06 FM Pending Instruction Manual Part Number T13022 Rev. A...
- Page 2 Model 4501-XX Toxic Gas Sensor Module FM PERFORMANCE APPROVAL ONLY THE FOLLOWING ITEMS, FUNCTIONS AND OPTIONS ARE FM* APPROVED Model 4501-05 Hydrogen Sulfide Gas Sensor Module Sensor Module Model 4501-05 Sensor Module - Hydrogen Sulfide Calibration Equipment Model 1250-01 Gas Sensor Calibration Kit, Type A Model 1260-05 Hydrogen Sulfide in N2, 25 ppm Gas Cylinder Model 1260-45...
-
Page 3: Table Of Contents
Model 4501-XX Toxic Gas Sensor Module TABLE OF CONTENTS PRODUCT DESCRIPTION ..........................1 GENERAL................................1 MOUNTING CONFIGURATION........................1 THEORY OF OPERATION..........................1 MECHANICAL ..............................2 1.4.1 ENCLOSURE ............................2 1.4.2 TRANSMITTER ELECTRONICS ......................2 1.4.3 SENSOR ASSEMBLY ..........................2 INTERCONNECT WIRING..........................2 POWER REQUIREMENTS ..........................2 CAUTIONS & WARNINGS ..........................4 INTRODUCTION .............................4 GAS SENSOR MODULES - GENERAL......................4 WIRING................................4... - Page 4 Model 4501-XX Toxic Gas Sensor Module 7.4.2 CABLING INSTALLATION ........................16 7.4.3 SENSOR MODULE INSTALLATION .....................16 7.4.4 MOISTURE TRAPS AND RAINSHIELDS....................17 7.4.5 STANDARD VOLTAGES ........................17 INSPECTION AND TROUBLESHOOTING GUIDE ....................17 7.4.6 IF MODULE DOES NOT DISPLAY THE CORRECT PPM GAS ............17 7.4.7 If the module does not display the correct PPM..................17 7.4.8...
-
Page 5: Product Description
Model 4501-XX Toxic Gas Sensor Module 1. PRODUCT DESCRIPTION 1.1 GENERAL The Model 4501-XX Toxic Gas Sensor Module is a 2-wire transmitter with 4-20 mA output and it offers a broad array of features including: • 2-wire loop powered • 180 day calibration interval •... -
Page 6: Mechanical
Model 4501-XX Toxic Gas Sensor Module 1.4 MECHANICAL The sensor module is comprised of the following three primary components: 1.4.1 ENCLOSURE Explosion proof, rain-tight stainless steel electrical housing with three ¾” FNPT conduit hubs. enclosure cover has a viewing window. The 3 conduit hubs combined with the rotatable faceplate enable the user to mount the module in a variety of configurations. - Page 7 Model 4501-XX Toxic Gas Sensor Module Figure 1-1 Model 4501-05 Hydrogen Sulfide Gas Sensor Module– Dimensions Figure 1-2 Model 4501-05 Hydrogen Sulfide Gas Sensor Module– Orientation Options Page: 3...
-
Page 8: Cautions & Warnings
Model 4501-XX Toxic Gas Sensor Module 2. CAUTIONS & WARNINGS 2.1 INTRODUCTION Although the 4501-XX Gas Sensor Module is designed and constructed for installation and operation in industrial applications including hostile environments, caution should be taken to insure that the installation is made in compliance with this instruction manual and that certain procedures and conditions are avoided. -
Page 9: Quick Start
Model 4501-XX Toxic Gas Sensor Module 3. QUICK START 3.1 OVERVIEW The gas sensor module has been supplied factory calibrated and ready for immediate installation and operation. An installer familiar with installation and operation of gas detection products can use this section to begin immediate use of the module. -
Page 10: Installation
Model 4501-XX Toxic Gas Sensor Module 4. INSTALLATION 4.1 SENSOR MODULE LOCATIONS The gas sensor module utilizes a diffusion type sensor which should be located close to either the expected source or destination of the gas hazard. If the gas is heavier than air, the sensor module should be installed within 24 inches of the ground or floor. -
Page 11: Transmitter And Sensor Installation
Model 4501-XX Toxic Gas Sensor Module 1. Remove the transmitter from the module housing by: • Unscrew the two captive panel screws on the faceplate. • Lift the transmitter out of the enclosure. • Unplug the sensor cable from transmitter connector J1. •... -
Page 12: Operation
Model 4501-XX Toxic Gas Sensor Module 5. OPERATION 5.1 INTRODUCTION The 4501-XX Toxic Gas Sensor Module utilizes a visual menu system operated by means of a magnet. A magnet stick is supplied for this purpose. The menu system is used to calibrate the sensor module, and for maintenance and diagnostic procedures. -
Page 13: Main Menu
Model 4501-XX Toxic Gas Sensor Module 5.3 MAIN MENU Function Display Description Reference Mode Switch [M] Enter Switch [E] Switch [▲] Previous Menu Down Switch [▼] Next Menu 4501-XX First screen at power-up, Model and Version XX.XXaA Warm 148 Second screen at start-up, count down of Warm-up XX.XXaA Default Display (example 4501-05) XXX.PPM... -
Page 14: Maintenance Sub-Menu
Model 4501-XX Toxic Gas Sensor Module 5.4 MAINTENANCE SUB-MENU Function Display Description Reference Default Display (example 4501-05) XX PPM Mode CALIB: Down MAINT: Enter Calibration 4 mA Menu Enter Cal: 4mA Banner: Use [ ] or [ ] to change 4mA output, [E] when done A multi-meter should be inserted into the current loop to measure the loop current between the power and the sensor module No gas is required for this step... -
Page 15: Diagnostics Sub-Menu
Model 4501-XX Toxic Gas Sensor Module 5.5 DIAGNOSTICS SUB-MENU Function Display Description Reference Mode Default Display(example 4501-05) XXX PPM Enter Go to previous maintenance menu item CALIB Down MAINT: Down DIAG: DIAG: Enter Enter diagnostics sub-menu RawSig D-RawSig Enter Voltage reading of the output of the sensor element XXXXmV DIAG: Mode... -
Page 16: Notes
Model 4501-XX Toxic Gas Sensor Module 5.5.1 NOTES When selecting the output current requested, an acknowledge message will appear on the screen. Select [E] to accept this message. Whenever a message appears on the screen, select [E] to accept the message. No other action can be taken with messages. -
Page 17: Calibration
Model 4501-XX Toxic Gas Sensor Module 6. CALIBRATION 6.1 CALIBRATION FREQUENCY The sensor module must be calibrated every 180 days. Periodic functional tests are advisable for critical applications and hostile environments. The sensor module microprocessor software includes high-level self checking algorithms which provide continuous sensor diagnostic and self adjustment. - Page 18 Model 4501-XX Toxic Gas Sensor Module 6.3 DIAGNOSTICS SUB-MENU Function Display Description Reference Mode or Sub-Routine A Default Display (example 4501-05) CALIB: Enter CAL 0 PPM Banner: Apply zero gas, [E] when done Operation: Confirm area clear of gas, or apply zero air to sensor. Cal0PPM There is a minimum time to calibrate at 0PPM.
-
Page 19: Service
Model 4501-XX Toxic Gas Sensor Module 7. SERVICE 7.1 SENSOR MODULE CONFIGURATION The gas sensor module is comprised of the following sub-assemblies (Figure 7-1): 4501-XX Gas Sensor Module SPL27077 Enclosure SPM27071 Transmitter Assembly XXXXXXX Sensor Assembly (see Appendix B) XXXXXXX Sensor (see Appendix B) There are no field serviceable components below the sub assembly level. -
Page 20: Transmitter Replacement
Model 4501-XX Toxic Gas Sensor Module TRANSMITTER REPLACEMENT The transmitter assembly should be replaced when it is determined that it is unreliable, noisy or cannot be adjusted for calibration. This may occur due to age, corrosion or failed components. To replace the transmitter assembly: a. -
Page 21: Moisture Traps And Rainshields
Model 4501-XX Toxic Gas Sensor Module • Wiring terminations clean and correct. 7.1.4 MOISTURE TRAPS AND RAINSHIELDS • Conduit seals and drains installed to avoid moisture build up in electronics enclosure. Water accumulation in sensor module enclosures is a major cause of damage and system failures - take precautions to seal electrical conduits and provide moisture traps and drains to avoid water damage •... -
Page 22: Appendices
Model 4501-XX Toxic Gas Sensor Module 8. APPENDICES APPENDIX A: SPECIFICATIONS Specifications: Sensor: 4501-04 4501-05 4501-06 Max. Range (1) 0-1200 PPM 0-100 PPM 0-10 PPM Zero Drift +/- 1 PPM +/- 0.5 PPM +/- 0.5 PPM Repeatability +/- 1 PPM +/- 1 PPM +/- 0.5 PPM Linearity... - Page 23 Model 4501-XX Toxic Gas Sensor Module Warranty: Limited warranty: 2 year specifications subject to change without notice Model Number Gas Type 4501-04-IT <20 <50 4501-05-IT <2 <0.1 <15 4501-06-IT <-10 Page: 19...
-
Page 24: Appendix B: Model Numbers & Parts List
Model 4501-XX Toxic Gas Sensor Module APPENDIX B: MODEL NUMBERS & PARTS LIST Sensor Module 4501-04 Sensor Module 2-wire, CO 4501-05 Sensor Module 2-wire, H2S 4501-06 Sensor Module 2-wire, CI Options 5394-52 Remote Sensor/Display Option 5311-00 Rainshield Calibration Items 1250-01 Gas Sensor Calibration Kit, Type A (CO 1250-03 Gas Sensor Calibration Kit, Type C (Cl... -
Page 25: Appendix C: Limited Warranty
Model 4501-XX Toxic Gas Sensor Module APPENDIX C: LIMITED WARRANTY SIERRA MONITOR CORPORATION warrants its products to be free from defects in workmanship or material under normal use and service for two years after date of shipment. SMC will repair or replace without charge any equipment found to be defective during the warranty period.
