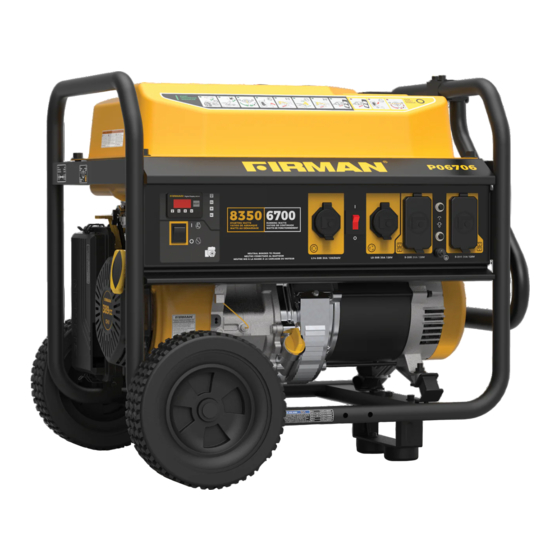

Firman P06706 Operator's Manual

Firman P06706 Operator's Manual

Gasoline portable generator
Hide thumbs

Advertisement

Quick Links

Download this manual

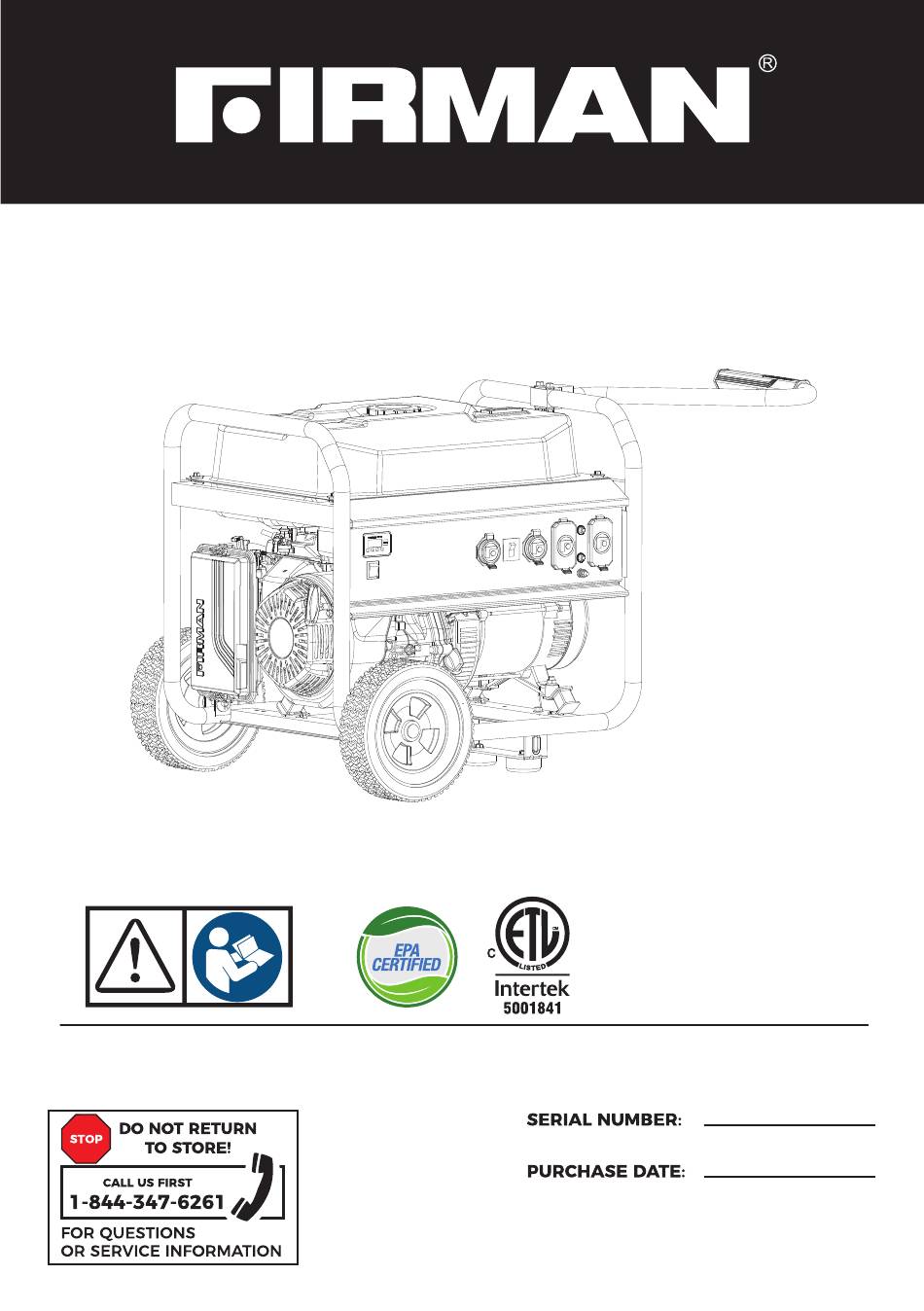

OPERATOR'S MANUAL
GASOLINE PORTABLE GENERATOR
MODEL NUMBER
P06706
Rev Level:00
Record product information to reference when ordering parts or
obtaining warranty coverage.
P/N:367745455 Rev:00

Advertisement

loading

Related Manuals for Firman P06706

Summary of Contents for Firman P06706

  • Page 1 OPERATOR’S MANUAL GASOLINE PORTABLE GENERATOR MODEL NUMBER P06706 Rev Level:00 Record product information to reference when ordering parts or obtaining warranty coverage. P/N:367745455 Rev:00...

  • Page 2: Table Of Contents

    Register your FIRMAN generator online at www.firmanpowerequipment.com INTRODUCTION Thank you for purchasing a FIRMAN generator. You have selected a high-quality, precision engineered generator set designed and tested to give you years of satisfactory service. This generator is designed to run only on unleaded gasoline. This generator is not intended to be run unattended or to supply power to life safety support.

  • Page 3: Introduction

    INTRODUCTION SIGNAL WORDS DANGER WARNING CAUTION NOTICE Indicates a hazard Indicates a hazard Indicates information Indicates a hazard which, if not avoided, considered Important, which, if not avoided, which, if not avoided, could result in minor or but not hazard-related. will result in death or could result in death moderate injury.
  • Page 4 Install a listed transfer switch as soon as possible if this generator will be used to restore power to your home. NOTICE If you have questions about intended use, contact FIRMAN customer service. This portable generator is designed to be used only with FIRMAN authorized parts.
  • Page 5 INTRODUCTION 1. Only use grounded cords marked for outdoor use rated for your loads. To provide power using extension cords Minimum Gauge, Outdoor Rated Total Amperage Up to 50 FT (15m) Up to 13A Up to 15A Up to 20A Up to 30A 2.

  • Page 6: Features And Controls

    5- Fuel Valve 14- Data Decal / Serial Number 6- Air Filter 7- 389cc FIRMAN OHV Engine 8- Recoil Starter *We are always working to improve our products. Therefore, the enclosed product may differ slightly from the image on this page.
  • Page 7 FEATURES AND CONTROLS ⑨ English Customer Service: 1-844-FIRMAN1...
  • Page 8 FEATURES AND CONTROLS English Customer Service: 1-844-FIRMAN1...
  • Page 9 FEATURES AND CONTROLS ⑨ English Customer Service: 1-844-FIRMAN1...
  • Page 10 FEATURES AND CONTROLS Control Panel NOTICE Total power drawn from all receptacles must not exceed the data decal rating. 1. Engine Switch – Engine Switch – Flip the switch to the “ON”(l) position and pull the recoil starter to start the generator.

  • Page 11: Operation

    OPERATION 1.Location DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that could kill you in minutes. You CANNOT smell it, see it, or taste it. Even if you do not smell exhaust fumes, you could still be exposed to carbon monoxide gas. •...
  • Page 12 OPERATION Reduce Risk of Fire WARNING! Exhaust heat/gases could ignite combustibles, structures or damage fuel tank causing a fire, resulting in death or serious injury. • Keep portable generator at least 5 ft. (1.5 m) from any structure, trees or vegetation over 12 in.
  • Page 13 2. Oil and Gasoline Add Engine Oil We recommend using FIRMAN SAE 10W-30 API SJ oil for best performance. Other high-quality detergent oils (API SL or higher) are acceptable. Do not use special additives. Ambient temperature determines the proper oil viscosity for the engine. Use the chart to select the proper oil for the outdoor temperature range expected.
  • Page 14 Make sure the sump is completely full of oil to the upper limit (H). Do not operate engine until oil level issue is corrected. Contact FIRMAN customer service. Add Gasoline WARNING! Fuel and its vapors are extremely flammable which could cause burns or fire resulting in death or serious injury.
  • Page 15 High altitude may cause hard starting, increased fuel consumption and sparkplug fouling. To operate at high altitudes FIRMAN can provide a high altitude carburetor main jet. The alternative main jet and installation instructions can be obtained by contacting customer service.
  • Page 16 OPERATION 3.Starting the Generator 1. Before starting the generator, check for loose or missing parts and for any damage which may have occurred during shipment. Ensure spark plugs, muffler, fuel cap, and air cleaner are all in place. 2. Move portable generator outdoors to safe operating location at least 20 ft. (6m) from any occupied spaces.
  • Page 17 OPERATION 7. Pull the starter cord slowly until resistance is felt and then pull rapidly. 8. Do not over-choke. As soon as engine starts and warms up, move the choke lever to the “RUN” position. 9. Allow portable generator to run at no load for a few minutes to stabilize before plugging in any electrical devices.
  • Page 18 OPERATION 4. Connecting Electrical Loads This portable generator has been pretested and adjusted to handle its full capacity. The voltage is regulated using an automatic voltage regulator (AVR) . Readjusting the AVR will void warranty. WARNING! Generator voltage could cause electrical shock or burn resulting in death or serious injury.
  • Page 19 OPERATION 5. Stopping the generator 1. Turn off and remove all electrical loads. Never stop the generator with electrical devices plugged in and turned on. Never stop the engine by moving the choke to the start position. Let the generator run at no-load for one minute to stabilize internal temperatures of the engine and generator.

  • Page 20: Maintenance - Storage

    Maintenance - Storage MAINTENANCE SCHEDULE Every Daily(Before Initial Every Every ITEM NOTES 100 hours operation) 25 hours 50 hours 250 hours (or annual) Check condition. Adjust gap √ Spark Plug and clean. Replace if necessary. Check oil level. √ Engine Oil Replace.
  • Page 21 (b) Reinstall the drain plug and fill the engine with oil until it reaches the HIGH(H) level on the oil filler dipstick. DRAIN PLUG NOTICE We recommend using FIRMAN SAE 10W-30 API SJ oil for best performance. Other high- quality detergent oils (API SL or higher) are acceptable. See Oil and Gasoline English...
  • Page 22 Maintenance - Storage Air Filter Maintenance (a) Carefully remove foam air filter element and wash it with liquid detergent and water only. Squeeze dry in a clean cloth. (b) Saturate foam air filter element with clean engine oil and squeeze in a clean cloth to remove excess oil.
  • Page 23 Maintenance - Storage A- Spark plug B- Spark plug boot ( c) Inspect spark plug for damage and clean with a wire brush before reinstalling. Replace if damaged. (d) Adjust the electrode gap to 0.028 - 0.031 in. (0.7 - 0.8 mm). (e) Seat spark plug in position and thread by hand to prevent cross threading.
  • Page 24 3. Carefully remove the carbon deposits from the spark arrester screen with a wire brush. 4. Replace the spark arrester if it is damaged. If replacement parts are required, make sure to use only FIRMAN original equipment replacement parts. 5. Position the spark arrester in the muffler and attach with the screws.
  • Page 25 Maintenance - Storage Long Term Storage It is important to prevent gum deposits from forming in essential fuel system components such as the carburetor, fuel hoses or tank during storage. Ethanol-blended fuels (called gasohol, ethanol or methanol) attract moisture, which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage.

  • Page 26: Troubleshooting- Specifications

    2. Dirty air cleaner. Engine shuts down when 3. Fill crankcase to proper level or place. 3. Low oil level. running. generator on level surface. For all other issues, contact authorized dealer or FIRMAN customer service. English Customer Service: 1-844-FIRMAN1...
  • Page 27 Troubleshooting – Specifications SPECIFICATIONS Model P06706 Starting Watts 8375 6700 Running Watts* Rated AC Voltage 120/240V Rated Fequency 60Hz Phase Single Voltage Regulator Power Factor Alternator Type Brushed Engine FIRMAN Engine Type Single Cylinder, 4-Stroke OHV Air Cooled Displacement 389cc...
  • Page 28 PARTS DIAGRAM AND PART LIST P06706 PARTS DIAGRAM English Customer Service: 1-844-FIRMAN1...
  • Page 29 389cc ENGINE PARTS DIAGRAM English Customer Service: 1-844-FIRMAN1...

  • Page 30: Parts Diagrams - Parts Lists - Wiring Diagram

    P06701 Portable Generator Qty. Qty. Description NO. Part Number Description NO. Part Number 44.3 336713561 Flange. Bolt M6×25 357713500 FIRMAN 389cc Engine 44.4 336723555 Nut M6 357713501 Rubber Cap B 357713535 Axle Pin 357713524 Build Up,fore-cover A 357713514 Flat Washer Ø10 336713528 Flange.
  • Page 31 Parts Diagrams - Parts Lists - Wiring Diagram FIRMAN 389cc Engine Description Qty. Description Qty. NO.Part Number NO.Part Number 357723587 Crankcase Subassembly. 357723550 Plate, Carburetor Insulator 357723501 Bolt, Drain Plug 357723551 Gasket, Carburetor 357723502 Washer,Drain Bolt 357723588 Carburetor 357723503 Sensor, Engine Oil...
  • Page 32 Parts Diagrams - Parts Lists - Wiring Diagram Wiring Diagram English Customer Service: 1-844-FIRMAN1...

  • Page 33: Service - Warranty

    FIRMAN GENERATOR will register the warranty upon receipt of your Warranty Registration Card and a copy of your sales receipt from one of FIRMAN’s retail locations as proof of purchase. Please submit your warranty registration and your proof of purchase within ten(10) days of the date of purchase.
  • Page 34 Limits of Implied Warranty and Consequential Damage FIRMAN disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANT ABLILITY OR FITNESS FOR A PARTICULAR PURPOSE.
  • Page 35 If any such part fails during the period of warranty coverage, the part will be repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced under the warranty will be warranted for the remaining warranty period.
  • Page 36 Service – Warranty (8) Throughout the emissions warranty period defined in Subsection (b)(2), FIRMAN will maintain a supply of warranted parts sufficient to meet the expected demand for such parts. (9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the owner.
  • Page 37 FIRMAN POWER EQUIPMENT INC. 8716 W LUDLOW DR. SUITE 6 PEORIA, AZ 85381 All rights reserved. Any reprinting or unauthorized use 1-844-347-6261 without the written permission is expressly prohibited. P/N:367745455 Rev:00 WWW.FIRMANPOWEREQUIPMENT.COM...
