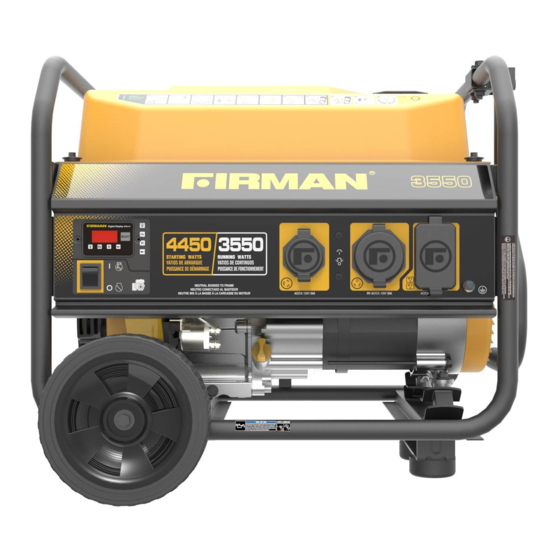

Firman P03602 Owner's Manual
  1. Manuals
  2. Brands
  3. Firman Manuals
  4. Portable Generator
  5. P03602
  6. Owner's manual

Firman P03602 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNER'S MANUAL
PORTABLE GENERATOR
Read all safety precautions and instructions carefully
IMPORTANT:
before operating equipment.
Ensure engine is stopped and level before performing
any maintenance or service.
Record product information to reference when ordering parts or
obtaining warranty coverage.
Serial Number:
Purchase Date:
DO NOT RETURN TO
STORE!
CALL US FIRST!
CUSTOMER HOTLINE
1-844-347-6261
FOR QUESTIONS OR SERVICE
INFORMATION
MODEL NUMBER
P03602
Rev Level:00
P/N:336745450
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P03602 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Firman P03602

Summary of Contents for Firman P03602

  • Page 1 ® OWNER’S MANUAL PORTABLE GENERATOR MODEL NUMBER P03602 Rev Level:00 Read all safety precautions and instructions carefully IMPORTANT: before operating equipment. Ensure engine is stopped and level before performing any maintenance or service. Record product information to reference when ordering parts or obtaining warranty coverage.

  • Page 2: Table Of Contents

    Table of Contents SAFETY PRECAUTIONS ....3 Trouble Shooting .....24 UNPACKING THE GENERATOR.

  • Page 3: Important Safety Information

    Save these original instructions for future reference. This manual covers operation and maintenance of the FIRMAN generators. All information in this publication is based on the latest production information available at the time of approval for printing.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. WARNING Certain components in this product and related accessories contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
  • Page 5 WHEN STARTING EQUIPMENT • Ensure spark plug, muffler, fuel cap, and air cleaner are in place. • DO NOT crank engine with spark plug removed. WHEN OPERATING EQUIPMENT • DO NOT operate this product inside any building, carport, porch, mobile equipment, marine applications, or enclosure.
  • Page 6 • When using generator for backup power, WARNING notify utility company. Unintentional sparking • Use a ground fault circuit interrupter (GFCI) could cause fire or in any damp or highly conductive area, electric shock resulting such as metal decking or steel work. in death or serious •...

  • Page 7: Unpacking The Generator

    NOTE: 1. Axle pin ....... . .2 Improper treatment of generator could damage 2.

  • Page 8: Removal Of Shipping Supports

    REMOVAL OF SHIPPING SUPPORTS 1. Before filling the engine oil, tip the generator Before you can run your new generator, follow back onto its recoil frame end as indicated in these simple instructions: this picture. Place the generator on the flattened The following items must be removed before cardboard box or other protective surface.

  • Page 9: Assembly

    ASSEMBLY Install the Handle The generator requires some assembly priorto 1. Place the handle K over the mounting channel usage. If problem arise when assembling the on the frame. generator, call 1-844-347-6261. 2. Secure the handle to the frame using the two handle flange bolts H(M8x45).

  • Page 10: Controls And Features

    2- 5.0 Gallon Capacity Fuel Tank 10- Oil Filler Cap 3- Fuel Cap 11- Outlet Cover 4- Choke Lever 12- Control Panel 5- Fuel Valve 13- Handle 6- Air Filter 7- 208cc FIRMAN OHV Engine 8- Recoil Starter Page 09...

  • Page 11: Control Panel

    Control Panel NOTE: Total power drawn from all receptacles must not exceed the name plate rating. 120V, 20A Duplex – (NEMA 5-20R) 20 amps Engine Switch – Flip the switch to the “On” of current may be drown from the receptacle. position and pull the recoil starter to start However, total power drawn must be kept the generator.

  • Page 12: Specifications

    TORCH F6RTC/NGK BPR6ES/CHAMPION RN9YC AN IMPORTANT MESSAGE ABOUT TEMPERATURE: Your Firman Power Equipment product is designed and rated for continuous operation at ambient temperatures up to 40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to 50°C (122°F) for short periods. If the product is exposed to temperatures outside this range during storage, it should be brought back within this range before operation.

  • Page 13: Add Engine Oil

    4.Using oil funnel, slowly pour contents of ADD ENGINE OIL provided oil bottle into oil fill opening to the [CAUTION] "H" mark on dipstick. Be careful do not overfill. Overfilling with oil could cause the DO NOT attempt to crank or start the engine engine to not start or hard starting.

  • Page 14: Add Fuel

    To alleviate high fuel expansion. altitude issues other than the natural 3.Install fuel cap and let any spilled fuel power loss, FIRMAN can provide a high evaporate before starting engine or wipe up altitude carburetor main jet. The alternative any spilled gasoline.

  • Page 15: Grounding

    Customer Support. Installation instructions are also available in the Connections for standby power to a building's Technical Bulletin area of the FIRMAN internet site. electrical system must be made by a qualified The part number and recommended minimum electrician.

  • Page 16: Operation

    5. OPERATION • Operate this product ONLY outside far away Generator Location from windows, doors and vents to reduce the risk of carbon monoxide gas from WARNING accumulating and potentially being drawn Make sure you review each warning in order to towards occupied spaces.

  • Page 17: Starting The Engine

    7. Pull the starter cord slowly until resistance is Starting the Generator felt and then pull rapidly. 1. Before starting the generator, check for loose or missing parts and for any damage which may have occurred during shipment. 2. Check oil level and fuel. 8.

  • Page 18: Connecting Electrical Loads

    Connecting Electrical Loads electrical system, consult your local utility company or a qualified electrician. Connections This unit has been pretested and adjusted to must isolate generator power from utility handle its full capacity. Before starting the power and must comply with all applicable laws generator, disconnect all load.

  • Page 19: Low Oil Shutdown

    If oil level is between LOW and HIGH mark on dipstick: 1.DO NOT try to restart the engine. 2.Contact an Authorized FIRMAN Service Dealer. 3.DO NOT operate engine until oil level is corrected. If oil level is below LOW mark on dipstick: 1.Add oil to bring level to HIGH mark.

  • Page 20: Maintenance And Storage

    MAINTENANCE AND STORAGE MAINTENANCE SCHEDULE Every Daily(Before Initial Every 100 hours ITEM NOTES operation) 25 hours 50 hours (or annual) Check condition. Adjust gap √ Spark Plug and clean. Replace if necessary. √ Check oil level. Engine Oil √ √ Replace.

  • Page 21: Engine Maintenance

    • Use fresh and high quality lubricating oil to the ENGINE MAINTENANCE specified quantity. If contaminated or deteriorated oil is used or To prevent accidental starting, remove and the quantity of the engine oil is not sufficient, ground spark plug wire before performing any the engine damage will result and its life will be service.

  • Page 22: Spark Plug Maintenance

    Spark Plug Maintenance CLEANING FUEL STRAINER Changing the spark plug will help your engine Dirt and water in the fuel are removed by the fuel to start easier and run better. strainer. (a) Remove the spark plug cap. (b) Remove spark plug using provided wrench. (a) Remove the strainer cup and throw away water and dirt.

  • Page 23: Inspect Muffler And Spark Arrester

    • DO NOT touch hot parts and AVOID hot exhaust CAUTION gases. • Failure to clean the spark arrester will result in Allow equipment to cool before touching. degraded engine performance. • Keep at least 5 feet (1.5 m) of clearance on all sides of generator including overhead.

  • Page 24: Service And Storage

    WARNING SERVICE AND STORAGE Generator exhaust contains odourless and INFREQUENT SERVICE colourless carbon monoxide gas. If the unit is used infrequently, difficult starting To avoid accidental or unintended ignition of may result. To eliminate hard starting, follow your generator during periods of storage, the these instructions: following precautions should be followed: 1.

  • Page 25: Trouble Shooting

    7. TROUBLE SHOOTING Problem Cause Correction 1. Circuit breaker is open. 1. Reset circuit breaker. 2. Fault in generator. 2. Contact authorized service facility. Engine is running, but no 3. Poor connection or defective cord 3. Check and repair. AC output is available. set.

  • Page 26: Parts Diagram And Parts List

    PARTS DIAGRAM AND PART LIST PARTS DIAGRAM Page 25...

  • Page 27: Parts List

    PARTS LIST Qty. Qty. NO. Part Number Description NO. Part Number Description 335713600 Engine Subassembly 335713640 Flg. Bolt M6×20 335713601 Build Up, fore-cover B 335713641 Fuel Gauge Assy. 335713602 Build Up, fore-cover A 335713642 Screw M5×10 335713603 Rotor Comp. 335713643 Fuel Gauge Display 335713604 Stator Assy...

  • Page 28: Service Information

    PRODUCT SERVICE FIRMAN GENERATOR will register the warranty upon DEPARTMENT AT receipt of your Warranty Registration Card and a copy of your sales receipt from one of FIRMAN's 1-844-347-6261 retail locations as proof of purchase. Please submit or at www.firmangenerators.com your warranty registration and your proof of purchase within ten (10) days of the date of purchase.

  • Page 29: Contact Information

    FIRMAN parts. Limits of Implied Warranty and Consequential Damage FIRMAN disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN...
  • Page 30 If any such part fails during the period of warranty coverage, the part will be repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced under the warranty will be warranted for the remaining warranty period.
  • Page 31 This Emission Control Systems Warranty shall not cover any of the following: (a) Consequential damages such as loss of time, inconvenience, loss of use of the engine or equipment, etc. (b) Diagnosis and inspection fees that do not result in eligible warranty service being performed. FIRMAN POWER EQUIPMENT INC. Page 30...
  • Page 32 P/N:336745450 Rev 00...
