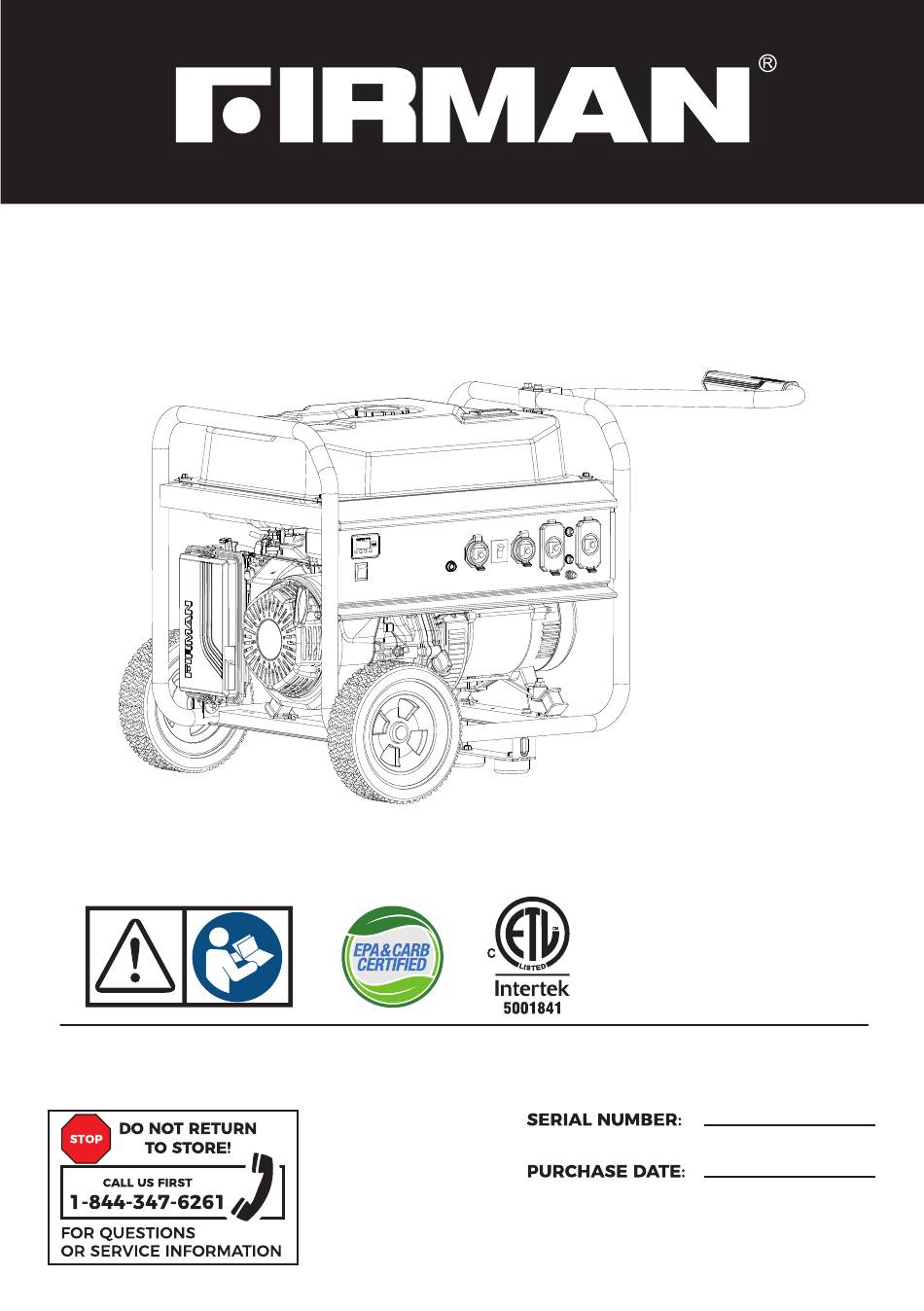

- Page 1 OPERATOR’S MANUAL GASOLINE PORTABLE GENERATOR NÚMERO DE MODELO P06705 Rev Nivel: 02 Record product information to reference when ordering parts or obtaining warranty coverage. P/N:367743001 Rev 00...
-
Page 2: Table Of Contents
. INTRODUCTION Thank you for purchasing a FIRMAN generator. You have selected a high-quality, precision engineered generator set designed and tested to give you years of satisfactory service. This generator is designed to run only on unleaded gasoline. This generator is not intended to be run unattended or to supply power to life safety support. -
Page 3: Signal Words
INTRODUCTION SIGNAL WORDS DANGER WARNING CAUTION NOTICE Indicates a hazard Indicates a hazard Indicates information Indicates a hazard which, if not avoided, considered Important, which, if not avoided, which, if not avoided, could result in minor or but not hazard-related. will result in death or could result in death moderate injury. -
Page 4: System Ground
Install a listed transfer switch as soon as possible if this generator will be used to restore power to your home. NOTICE If you have questions about intended use, contact FIRMAN customer service. This portable generator is designed to be used only with FIRMAN authorized parts. - Page 5 INTRODUCTION 1. Only use grounded cords marked for outdoor use rated for your loads. To provide power using extension cords Minimum Gauge, Outdoor Rated Total Amperage Up to 50 FT (15m) Up to 13A Up to 15A Up to 20A Up to 30A 2.
-
Page 6: Features And Controls
5- Fuel Valve 14- Data Decal / Serial Number 6- Air Filter 7- 389cc FIRMAN OHV Engine 8- Recoil Starter *We are always working to improve our products. Therefore, the enclosed product may differ slightly from the image on this page. - Page 7 FEATURES AND CONTROLS ⑨ English Customer Service: 1-844-FIRMAN1...
- Page 8 FEATURES AND CONTROLS English Customer Service: 1-844-FIRMAN1...
- Page 9 FEATURES AND CONTROLS ⑨ English Customer Service: 1-844-FIRMAN1...
-
Page 10: Control Panel
FEATURES AND CONTROLS Control Panel Total power drawn from all receptacles must not exceed the data decal rating. NOTICE 1. Engine Switch – Engine Switch – Flip the switch to the “ON”(l) position and pull the recoil starter to start the generator. -
Page 11: Operation
OPERATION 1. Location DANGER! Engine exhaust contains carbon monoxide, a poisonous gas that could kill you in minutes. You CANNOT smell it, see it, or taste it. Even if you do not smell exhaust fumes, you could still be exposed to carbon monoxide gas. Operate portable generator only outdoors, at least 20 ft.(6 m) from occupied spaces with exhaust pointed away to reduce the risk of carbon monoxide accumulating. - Page 12 OPERATION Reduce Risk of Fire WARNING! Exhaust heat/gases could ignite combustibles, structures or damage fuel tank causing a fire, resulting in death or serious injury. Keep portable generator at least 5 ft. (1.5 m) from any structure, trees or vegetation over 12 in.
-
Page 13: Add Engine Oil
2. Oil and Gasoline Add Engine Oil We recommend using FIRMAN SAE 10W-30 API SJ oil for best performance. Other high-quality detergent oils (API SJ or higher) are acceptable. Do not use special additives. Ambient temperature determines the proper oil viscosity for the engine. Use the chart to select the proper oil for the outdoor temperature range expected. -
Page 14: Low Oil Shutdown
Make sure the sump is completely full of oil to the upper limit (H). Do not operate engine until oil level issue is corrected. Contact FIRMAN customer service. Add Gasoline WARNING! Fuel and its vapors are extremely flammable which could cause burns or fire resulting in death or serious injury. -
Page 15: Operation At High Altitude
High altitude may cause hard starting, increased fuel consumption and sparkplug fouling. To operate at high altitudes FIRMAN can provide a high altitude carburetor main jet. The alternative main jet and installation instructions can be obtained by contacting customer service. -
Page 16: Starting The Generator
OPERATION 3. Starting the Generator 1. Before starting the generator, check for loose or missing parts and for any damage which may have occurred during shipment. Ensure spark plugs, muffler, fuel cap, and air cleaner are all in place. 2. Move portable generator outdoors to safe operating location at least 20 ft. (6m) from any occupied spaces. - Page 17 OPERATION 7. Pull the starter cord slowly until resistance is felt and then pull rapidly. 8. Do not over-choke. As soon as engine starts and warms up, move the choke lever to the “RUN” position. 9. Allow portable generator to run at no load for a few minutes to stabilize before plugging in any electrical devices.
-
Page 18: Connecting Electrical Loads
Press the reset button until it locks in the depressed position. If the GFCI does not reset as described do not use the receptacles. Call FIRMAN customer service. If GFCI trips while in use, reset and test the outlet. Electric cords laying on the ground with worn insulation may trip the GFCI, only use cords in good condition. -
Page 19: Surge Protection
OPERATION Do not use generator with electrical cords which are worn, frayed, bare or otherwise damaged. Do not operate generator in the rain or wet weather. Do not run indoors to avoid wet conditions. Do not handle generator or electrical cords while standing in water, while barefoot, or while hands or feet are wet. - Page 20 Call emergency services. You may have carbon monoxide poisoning. CO Alert fault occured*. See FIRMAN authorized service dealer. Yellow • • • • * Yellow light will blink for five seconds at the startup of generator to show CO ALERT is functioning properly.
-
Page 21: Stopping The Generator
OPERATION 5. Stopping the generator 1. Turn off and remove all electrical loads. Never stop the generator with electrical devices plugged in and turned on. Never stop the engine by moving the choke to the start position. Let the generator run at no-load for one minute to stabilize internal temperatures of the engine and generator. -
Page 22: Maintenance - Storage
Maintenance - Storage MAINTENANCE SCHEDULE Every Daily(Before Initial Every Every ITEM NOTES 100 hours operation) 25 hours 50 hours 250 hours (or annual) Check condition. Adjust gap √ Spark Plug and clean. Replace if necessary. Check oil level. √ Engine Oil Replace. -
Page 23: Engine Maintenance
(b) Reinstall the drain plug and fill the engine with oil until it reaches the HIGH(H) level on the oil filler dipstick. DRAIN PLUG NOTICE We recommend using FIRMAN SAE 10W-30 API SJ oil for best performance. Other high- quality detergent oils (API SJ or higher) are acceptable. See Oil and Gasoline English... -
Page 24: Spark Plug Maintenance
Maintenance - Storage Air Filter Maintenance (a) Carefully remove foam air filter element and wash it with liquid detergent and water only. Squeeze dry in a clean cloth. (b) Saturate foam air filter element with clean engine oil and squeeze in a clean cloth to remove excess oil. -
Page 25: Maintenance Valve Clearance
Maintenance - Storage A- Spark plug B- Spark plug boot ( c) Inspect spark plug for damage and clean with a wire brush before reinstalling. Replace if damaged. (d) Adjust the electrode gap to 0.028 - 0.031 in. (0.7 - 0.8 mm). (e) Seat spark plug in position and thread by hand to prevent cross threading. -
Page 26: Generator Maintenance
3. Carefully remove the carbon deposits from the spark arrester screen with a wire brush. 4. Replace the spark arrester if it is damaged. If replacement parts are required, make sure to use only FIRMAN original equipment replacement parts. 5. Position the spark arrester in the muffler and attach with the screws. -
Page 27: Long Term Storage
Maintenance - Storage Long Term Storage It is important to prevent gum deposits from forming in essential fuel system components such as the carburetor, fuel hoses or tank during storage. Ethanol-blended fuels (called gasohol, ethanol or methanol) attract moisture, which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. -
Page 28: Troubleshooting- Specifications
3. Low oil level. running. generator on level surface. Engine shuts down and 1. Contact authorized FIRMAN yellow CO fault light 1. CO system fault service facility. blinking. For all other issues, contact authorized dealer or FIRMAN customer service. English Customer Service: 1-844-FIRMAN1... - Page 29 Troubleshooting – Specifications SPECIFICATIONS Model P06705 Starting Watts 8375 6700 Running Watts* Rated AC Voltage 120/240V Rated Fequency 60Hz Phase Single Voltage Regulator Power Factor Alternator Type Brushed Engine FIRMAN Engine Type Single Cylinder, 4-Stroke OHV Air Cooled Displacement 389cc...
- Page 30 PARTS DIAGRAM AND PART LIST P06705 PARTS DIAGRAM English Customer Service: 1-844-FIRMAN1...
- Page 31 389cc ENGINE PARTS DIAGRAM English Customer Service: 1-844-FIRMAN1...
-
Page 32: Parts Diagrams - Parts Lists - Wiring Diagram
Parts Diagrams - Parts Lists - Wiring Diagram P06705 Portable Generator Qty. Qty. NO. Part Number Description NO. Part Number Description 367718301 Engine Subassembly 357713528 Fuel Tank Assy 336713548 357713501 Rubber Cap B 49.1 Fuel Filter, Wire Mesh 49.2 357713528... - Page 33 Parts Diagrams - Parts Lists - Wiring Diagram FIRMAN 389cc Engine Qty. NO. Part Number Description Qty. NO. Part Number Description 336718310 Flg. Bolt M6×8 357723528 Exhaust Valves Stud Bolt 357723577 Grip,starter 357723530 Flg. Bolt M10×80 336728300 Handle Core Gasket, Cylinder Head Cover...
- Page 34 Parts Diagrams - Parts Lists - Wiring Diagram Wiring Diagram English Customer Service: 1-844-FIRMAN1...
-
Page 35: How To Order Replacement Parts
FIRMAN will also register the warranty upon receipt of your Warranty Registration Card and a copy of your sales receipt from one of FIRMAN’s retail locations as proof of purchase. Please submit your warranty registration and your proof of purchase within ten(10) days of the date of purchase. -
Page 36: Installation, Use And Maintenance
Limits of Implied Warranty and Consequential Damage FIRMAN disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANT ABLILITY OR FITNESS FOR A PARTICULAR PURPOSE. -
Page 37: Emission Control System Warranty
If any such part fails during the period of warranty coverage, the part will be repaired or replaced by FIRMAN at no charge to the owner. Any such part repaired or replaced under the warranty will be warranted for the remaining warranty period. - Page 38 Service – Warranty (8) Throughout the emissions warranty period defined in Subsection (b)(2), FIRMAN will maintain a supply of warranted parts sufficient to meet the expected demand for such parts. (9) Any replacement part may be used in the performance of any warranty maintenance or repairs and must be provided without charge to the owner.
- Page 39 FIRMAN POWER EQUIPMENT INC. 8644 W. LUDLOW DR. PEORIA, AZ 85381 All rights reserved. Any reprinting or unauthorized use without the written permission is expressly prohibited. 1-844-347-6261 P/N:367743001 Rev:00 WWW.FIRMANPOWEREQUIPMENT.COM...
