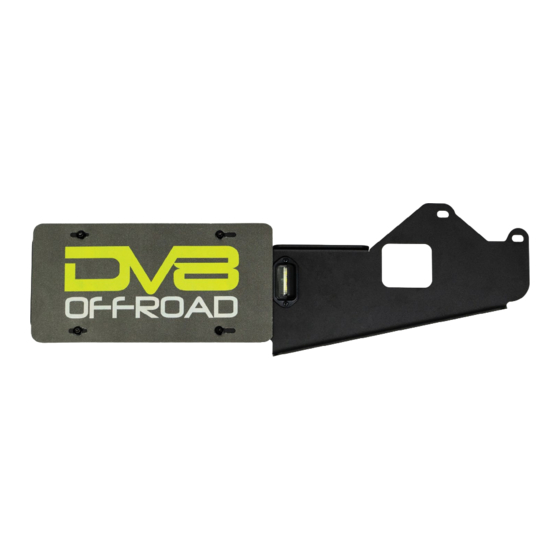

LICENSE PLATE
BRACKET
2020+ FORD BRONCO
LPBR-03
TOOLS
REQUIRED
-Lug Nut Tool
-4mm Allen Bit
-13mm Socket
-10mm Wrench
-Philips Head Screw Driver
-Electrical Crimping Tool
-Scissors or Snips
-Trim Piece Removal Tool
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful-minor
wiring required
Read and understand all
PRODUCT
INSTALLATION
TIME
- 2 Hours
Time to install this should only
take about two hours
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Table of Contents
Related Manuals for DVB LPBR-03
Summary of Contents for DVB LPBR-03

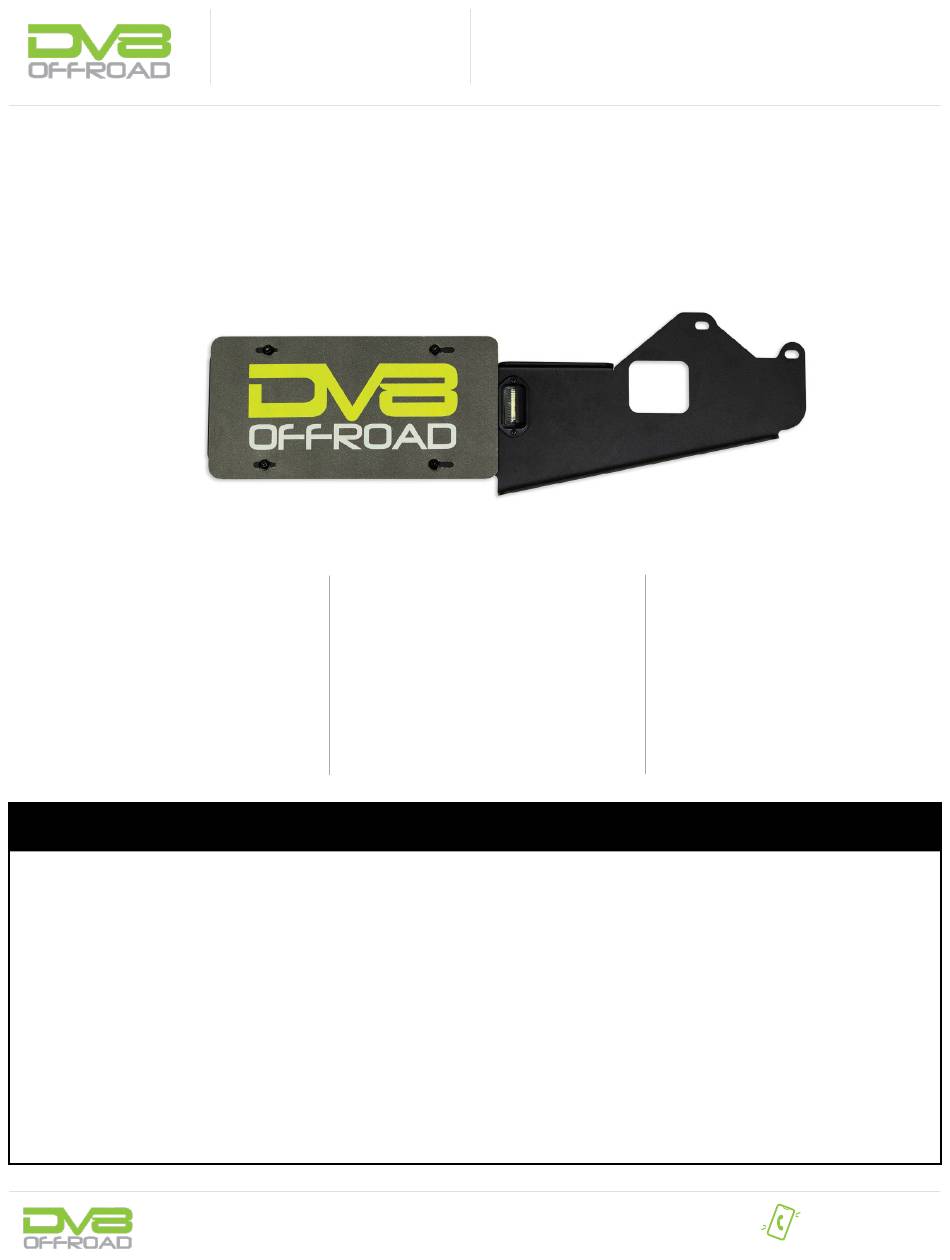

- Page 1 6400 SYCAMORE CANYON BLVD. PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM LICENSE PLATE BRACKET 2020+ FORD BRONCO LPBR-03 TOOLS REQUIRED SKILL LEVEL TIME REQUIRED -Lug Nut Tool - Novice/Intermediate - 2 Hours -4mm Allen Bit - 1 (you) to 2 persons...
- Page 2 INSTALLATION MANUAL STEP 1 Begin by unpacking all items and inspect- ing for missing pieces or damage. If you have any concerns, please contact the com- pany the product was purchased from. HARDWARE INCLUDED (4) M6x14 Allen Head Bolts (2) M4x15 (1) M6x20 Tapered Allen (2) M4 Flat Washers Head...
- Page 3 INSTALLATION MANUAL STEP 4 Peel the paper off the provided foam and install onto the license plate light by sliding the wires through the foam. STEP 5 Install the license plate light onto the brack- et with the light facing the license plate. Use the provided M4x15 hardware with a Philips head screwdriver.
- Page 4 INSTALLATION MANUAL STEP 7 Moving to the Bronco, remove the lug nuts from the spare tire carrier using a lug nut tool and remove the spare tire. Note: Assistance is recommended for removing the spare tire to prevent injury or damage. STEP 8 Remove the two factory bolts on the bottom driver corners of the spare tire carrier using...
- Page 5 INSTALLATION MANUAL STEP 10 To run the wire behind the spare tire carrier and through the vent in the tailgate it may be necessary to loosen one or two additional bolts of the tire carrier to create clearance for the wire. STEP 11 Open the tailgate and remove the trim piece of the interior of the tailgate using a trim...
- Page 6 INSTALLATION MANUAL STEP 12 Feed the wire through the vent in the tailgate while reaching inside the tailgate and feeding out of either of the “accessory ready” holes. You may choose to secure the wire to the existing wiring loom with zip ties for a cleaner feel.
- Page 7 INSTALLATION MANUAL STEP 15 Partially remove a section of the weather- stripping along the bottom of the trunk, near to the driver side of the vehicle and feed the wire through. Replace the weatherstripping and all interior trim panels when finished. Finish running the wire behind the bumper to where factory license plate light wiring is located.
- Page 8 INSTALLATION MANUAL STEP 18 Double check fitment and all hardware is secure. Congratulations, you are finished with the install of your License Plate Relocation Kit. NEED HELP? 855-680-9595...
