IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
B.
Foot
5 pcs.
Carton 2000-301-FB80 is also needed for assembly.
home
2000-30 FB
2-
Sofa
C.
Side
1 pc.
F.
Seat Cushion
2 pcs.
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
80
888-680-7460
D.
Side
1 pc.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 2000-302-FB80
Summary of Contents for Homestyles 2000-302-FB80

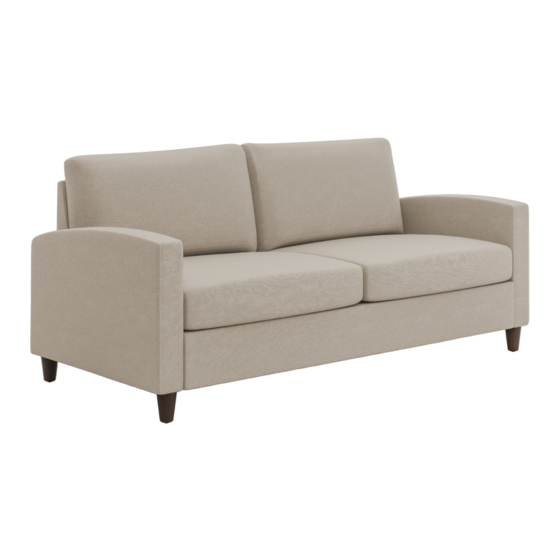

- Page 1 2000-30 FB Sofa IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble.
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Metal Slot STEP 1 Attach Base (A) to Side (C) by sliding metal slots into position. (See Figure 1) Attach Side (D) to unit by sliding metal slots into position. Figure 1 STEP 2 Attach Feet (B) to unit, then tighten.
- Page 3 Assembly Instructions / 3 3 Back Cover Metal Slot Latch STEP 3 Attach Back (E) to unit by sliding metal slots into position. Lock Back (E) in position with latches. (See Figure 2) Attach back cover to back of unit. (See Figure 3) Figure 2 Figure 3 STEP 4...
- Page 4 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
