Whirlpool WTW500CMW Quick Start Manual

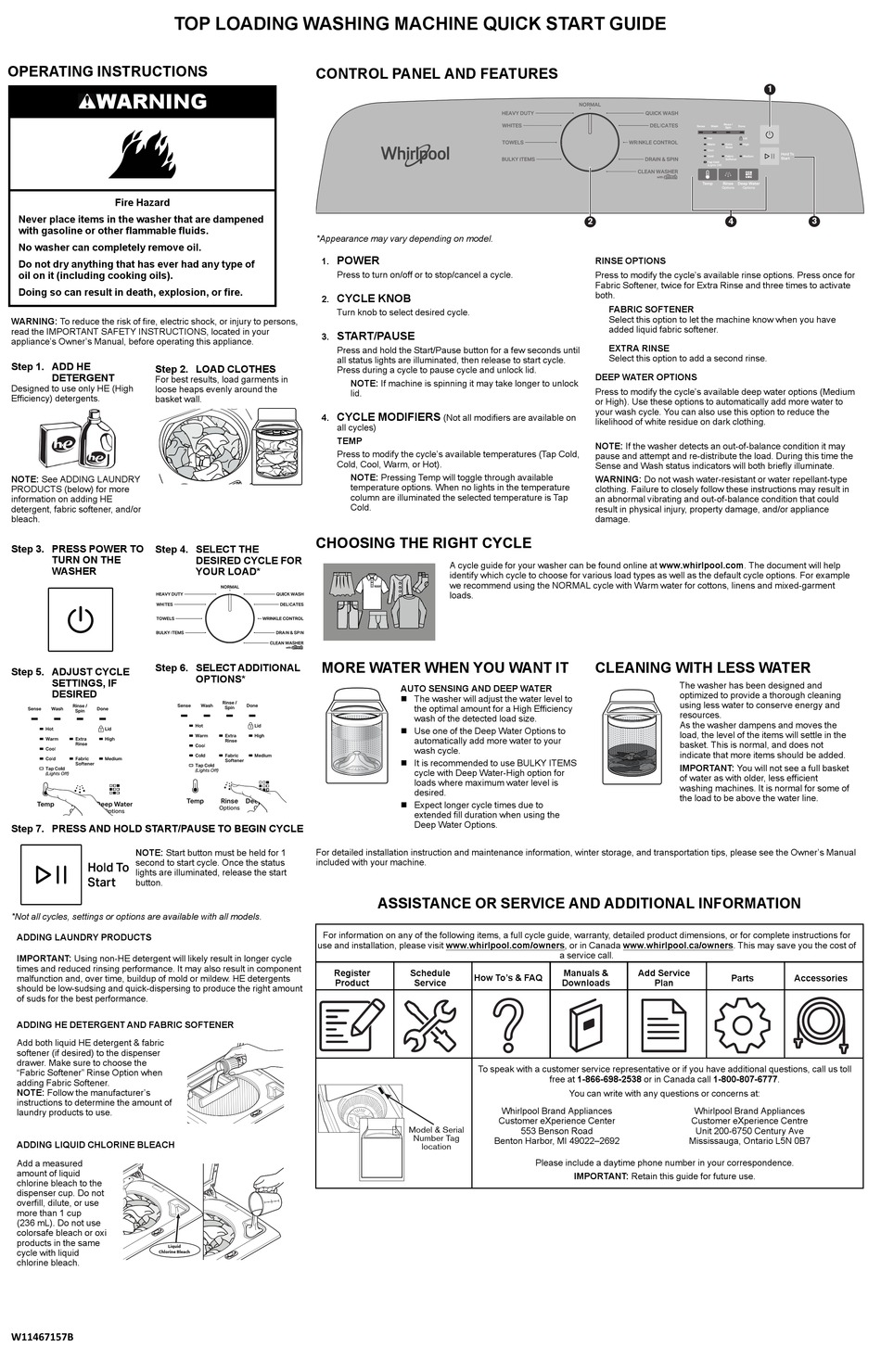

TOP LOADING WASHING MACHINE QUICK START GUIDE
OPERATING INSTRUCTIONS
WARNING
Fire Hazard
Never place items in the washer that are dampened
with gasoline or other flammable fluids.
No washer can completely remove oil.
Do not dry anything that has ever had any type of
oil on it (including cooking oils).
Doing so can result in death, explosion, or fire.
WARNING: To reduce the risk of fire, electric shock, or injury to persons,
read the IMPORTANT SAFETY INSTRUCTIONS, located in your
appliance's Owner's Manual, before operating this appliance.
Step 1. ADD HE
Step 2. LOAD CLOTHES
DETERGENT
For best results, load garments in
Designed to use only HE (High
loose heaps evenly around the
Efficiency) detergents.
basket wall.
NOTE: See ADDING LAUNDRY
PRODUCTS (below) for more
information on adding HE
detergent, fabric softener, and/or
bleach.
Step 3. PRESS POWER TO Step 4. SELECT THE
TURN ON THE
WASHER
Step 6. SELECT ADDITIONAL
Step 5. ADJUST CYCLE
SETTINGS, IF
DESIRED
Step 7. PRESS AND HOLD START/PAUSE TO BEGIN CYCLE
NOTE: Start button must be held for 1
second to start cycle. Once the status
lights are illuminated, release the start
button.
*Not all cycles, settings or options are available with all models.
ADDING LAUNDRY PRODUCTS
IMPORTANT: Using non-HE detergent will likely result in longer cycle
times and reduced rinsing performance. It may also result in component
malfunction and, over time, buildup of mold or mildew. HE detergents
should be low-sudsing and quick-dispersing to produce the right amount
of suds for the best performance.
ADDING HE DETERGENT AND FABRIC SOFTENER
Add both liquid HE detergent & fabric
softener (if desired) to the dispenser
drawer. Make sure to choose the
"Fabric Softener" Rinse Option when
adding Fabric Softener.
NOTE: Follow the manufacturer's
instructions to determine the amount of
laundry products to use.
ADDING LIQUID CHLORINE BLEACH
Add a measured
amount of liquid
chlorine bleach to the
dispenser cup. Do not
overfill, dilute, or use
more than 1 cup
(236 mL). Do not use
colorsafe bleach or oxi
products in the same
Liquid
cycle with liquid Chlorine Bleach
chlorine bleach.
W11467157B
CONTROL PANEL AND FEATURES
*Appearance may vary depending on model.
POWER
1.
Press to turn on/off or to stop/cancel a cycle.
CYCLE KNOB
2.
Turn knob to select desired cycle.
START/PAUSE
3.
Press and hold the Start/Pause button for a few seconds until
all status lights are illuminated, then release to start cycle.
Press during a cycle to pause cycle and unlock lid.
NOTE: If machine is spinning it may take longer to unlock
lid.
CYCLE MODIFIERS
4.
all cycles)
TEMP
Press to modify the cycle's available temperatures (Tap Cold,
Cold, Cool, Warm, or Hot).
NOTE: Pressing Temp will toggle through available
temperature options. When no lights in the temperature
column are illuminated the selected temperature is Tap
Cold.
CHOOSING THE RIGHT CYCLE
DESIRED CYCLE FOR
YOUR LOAD*
MORE WATER WHEN YOU WANT IT
OPTIONS*
For detailed installation instruction and maintenance information, winter storage, and transportation tips, please see the Owner's Manual
included with your machine.
For information on any of the following items, a full cycle guide, warranty, detailed product dimensions, or for complete instructions for
use and installation, please visit www.whirlpool.com/owners, or in Canada www.whirlpool.ca/owners. This may save you the cost of
Register
Product
(Not all modifiers are available on
A cycle guide for your washer can be found online at www.whirlpool.com. The document will help
identify which cycle to choose for various load types as well as the default cycle options. For example
we recommend using the NORMAL cycle with Warm water for cottons, linens and mixed-garment
loads.
AUTO SENSING AND DEEP WATER
� The washer will adjust the water level to
the optimal amount for a High Efficiency
wash of the detected load size.
� Use one of the Deep Water Options to
automatically add more water to your
wash cycle.
� It is recommended to use BULKY ITEMS
cycle with Deep Water-High option for
loads where maximum water level is
desired.
� Expect longer cycle times due to
extended fill duration when using the
Deep Water Options.
ASSISTANCE OR SERVICE AND ADDITIONAL INFORMATION
Schedule
How To's & FAQ
Service
To speak with a customer service representative or if you have additional questions, call us toll
Whirlpool Brand Appliances
Customer eXperience Center
Model & Serial
553 Benson Road
Number Tag
Benton Harbor, MI 49022–2692
location
Please include a daytime phone number in your correspondence.
2
RINSE OPTIONS
Press to modify the cycle's available rinse options. Press once for
Fabric Softener, twice for Extra Rinse and three times to activate
both.
FABRIC SOFTENER
Select this option to let the machine know when you have
added liquid fabric softener.
EXTRA RINSE
Select this option to add a second rinse.
DEEP WATER OPTIONS
Press to modify the cycle's available deep water options (Medium
or High). Use these options to automatically add more water to
your wash cycle. You can also use this option to reduce the
likelihood of white residue on dark clothing.
NOTE: If the washer detects an out-of-balance condition it may
pause and attempt and re-distribute the load. During this time the
Sense and Wash status indicators will both briefly illuminate.
WARNING: Do not wash water-resistant or water repellant-type
clothing. Failure to closely follow these instructions may result in
an abnormal vibrating and out-of-balance condition that could
result in physical injury, property damage, and/or appliance
damage.
CLEANING WITH LESS WATER
The washer has been designed and
optimized to provide a thorough cleaning
using less water to conserve energy and
resources.
As the washer dampens and moves the
load, the level of the items will settle in the
basket. This is normal, and does not
indicate that more items should be added.
IMPORTANT: You will not see a full basket
of water as with older, less efficient
washing machines. It is normal for some of
the load to be above the water line.
a service call.
Manuals & Add Service
Downloads Plan
free at 1-866-698-2538 or in Canada call 1-800-807-6777.
You can write with any questions or concerns at:
Whirlpool Brand Appliances
Customer eXperience Centre
Unit 200-6750 Century Ave
Mississauga, Ontario L5N 0B7
IMPORTANT: Retain this guide for future use.
1
3
4
