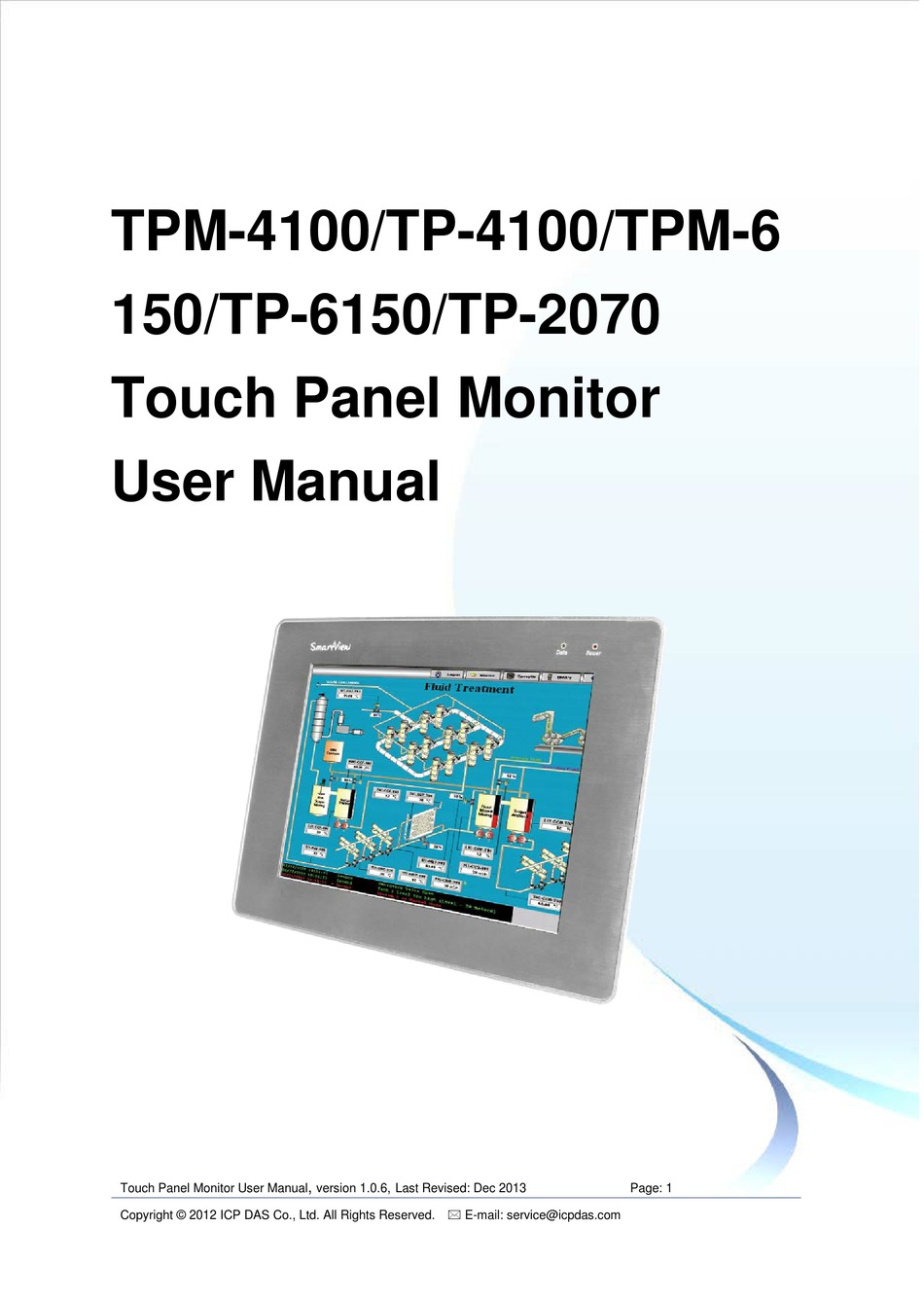

TPM-4100/TP-4100/TPM-6
150/TP-6150/TP-2070
Touch Panel Monitor
User Manual
Touch Panel Monitor User Manual
Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com
,
version 1.0.6, Last Revised: Dec 2013
Page: 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartView TPM-4100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICP DAS USA SmartView TPM-4100

Summary of Contents for ICP DAS USA SmartView TPM-4100

  • Page 1 TPM-4100/TP-4100/TPM-6 150/TP-6150/TP-2070 Touch Panel Monitor User Manual Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 1 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
  • Page 2  Warranty All products manufactured by ICP DAS are under warranty regarding defective materials for a period of one year, beginning from the date of delivery to the original purchaser.  Warning ICP DAS assumes no liability for any damage resulting from the use of this product. ICP DAS reserves the right to change this manual at any time without notice.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents ..........3 1. Introduction ..........5 1.1. Features ..............7 1.2. Specifications ............. 8 1.3. Dimension ..............11 1.4. I/O interfaces ............19 1.5. Companion CD ............22 1.6. System Setup ............23 1.6.1. System Configuration ......... 23 1.6.2.
  • Page 4 2.2.1.3. Uninstalling the XP-8000-CE6 ..51 2.2.1.4. Other Windows CE6.0 Devices ... 53 2.2.2. Serial Touch Driver ........54 2.2.2.1. Installation for XP-8000-CE6 ..55 2.2.2.2. Configuration for XP-8000-CE6 ... 58 2.2.2.3. Uninstalling the XP-8000-CE6 ..60 2.2.2.4. Other Windows CE 6.0 Device ..62 2.3.

  • Page 5: Introduction

    1. Introduction This chapter provides an overview of the TPM-4100/TP-4100/TPM-6150 /TP-6150/TP-2070 and its components. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 5 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...

  • Page 6: Package List

    The TPM-4100/TP-4100/TPM-6150/TP-6150/TP-2070 Panel Mount Monitor includes a standard TFT LCD screen with a rugged aluminum front bezel resolution and a wide operating temperature range. The TPM-4100/TP-4100/TPM-6150/TP-6150/TP-2070 is also guaranteed to integrate with ICP DAS PAC control systems, such as WP-8000 series and the XP-8000 series.

  • Page 7: Features

     Wide operating temperature range Mode name Operating temperature TP-2070 -20~+70 °C TPM-4100/TP-4100 -20~+70 °C TPM-6150/TP-6150 -20~+70 °C  Aluminum front bezel design that is ideal for rugged applications  LED backlight technology  Supports the IP65 standard for protection against dust and water Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013...

  • Page 8: Specifications

    1.2. Specifications The table below is a summary of the specifications of the touch panel, and lists the accessories that are supported by the touch panel. Specifications Model TP-2070 Display Size 7” Resolution 800 x 480 Luminance 400 cd/m2 Touch screen 4-wire, analog resistive;...
  • Page 9 Model TPM-4100 TP-4100 Display Size 10.4” Resolution 800 x 600 Max. colors 16.7 M Luminance 400 cd/m2 4-wire, analog resistive 5-wire, analog resistive Touch screen Light Transmission: 80% Light Transmission: 80% Contrast ratio 500:1 Viewing angle (H/V) 140/130 Backlight life (hrs)
  • Page 10 Model TPM-6150 TP-6150 Display Size 15” Resolution 1024 x 768 Max. colors 16.7 M Luminance 400 cd/m2 Touch screen 5-wire, analog resistive Light Transmission: 80% Contrast ratio 500:1 Viewing angle (H/V) 140/130 Backlight life (hrs) 50,000 Touchscreen function Combo RS-232 & USB interface Input signal VGA (analog RGB) MMI (Man Machine Interface)

  • Page 11: Dimension

    1.3. Dimension TP-2070 (Unit: mm) Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 11 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
  • Page 12 Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 12 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
  • Page 13 TPM-4100 (Unit: mm) Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 13 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
  • Page 14 Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 14 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
  • Page 15 TP-4100 (Unit: mm) Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 15 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
  • Page 16 Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 16 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
  • Page 17 TP-6150 (Unit: mm) Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 17 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
  • Page 18 TPM-6150 (Unit: mm) Available soon. Under construction Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 18 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...

  • Page 19: I/O Interfaces

    1.4. I/O interfaces TP-2070 TPM-4100 Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 19 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
  • Page 20 TP-4100 TP-6150 Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 20 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
  • Page 21 TPM-6150 Under construction Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 21 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...

  • Page 22: Companion Cd

    1.5. Companion CD This package includes a companion CD that contains a collection of documentation and device drivers. An outline of the folder structure is illustrated below. Driver Win_XP_7 Touch Driver for Windows 2K/XP/2003/2008/Vista/7 CD:\[Model] Win_XP_Embedded XP-8000 device Touch Driver for the XP-8000 series Other XP Embedded device Touch Driver Other CE5.0 device...

  • Page 23: System Setup

    1.6. System Setup This section gives details regarding system configuration and adjustment and mounting options. 1.6.1. System Configuration Front Panel Controls TPM-4100 TP-4100 TP-2070 TP-6150 TPM-6150 Under construction Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 23...

  • Page 24: Osd Menu Functions

    Control Function Adjust V-Position, H-Position, Clock and Clock and Clock-Phase Turns OSD main menu on or off Selects adjustment item Selects adjustment item counter-clockwise Decreases the value of the adjustment item 1. Increases the value of the adjustment item 2. Enter the adjustment item OSD Menu Functions Control Description...

  • Page 25: Display Modes

    Move the OSD position vertically on the screen. When the ▲ button is pressed, the OSD control menu will move to the top side OSD.V of the screen. Likewise, when the ▼ button is pressed, the OSD control menu will move to the lower side.
  • Page 26 60/70/75/85 XP-8x4x 1024 x 768 Don’t care 800 x 600 Don’t care XP-8x4x-CE6 1290 x 1024 TP-2070: not support TP-4100/TPM-4100: 60/70/75 1152 x 864 TP-2070: 70/75 TP-4100/TPM-4100: 60/70/75 1024 x 768 60/70/75 800 x 600 60/70/75 640 x 480 60/70/75 The following display modes are supported for other devices.
  • Page 27 37.8 KHz 60.3 Hz 46.9 KHz 75 Hz 1024 x 768 48.3 KHz 60 Hz 56.4 KHz 70 Hz 60.0 KHz 75 Hz Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 27 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...

  • Page 28: Panel Mounting

    1.6.2. Panel Mounting Insert the mounting brackets. Screw the mounting bracket to the unit. Eight locations are available for attaching four mounting clamps to secure the unit. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 28 Copyright ©...
  • Page 29 Panel thickness up to 6 mm. Refer to Sec.1.3 for default information regarding the dimensions of the panel. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 29 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...

  • Page 30: Touch Driver Setup

    2. Touch Driver Setup This chapter provides a overview that describes the steps required for installing, uninstalling, and configuring the touch driver. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 30 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...

  • Page 31: Windows Ce 5.0

    2.1. Windows CE 5.0 This section describes how to install, calibrate and uninstall the touch driver for the WP-8000 series and WP-5000 series, and gives details of how to obtain drivers for other CE5 devices. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 31 Copyright ©...

  • Page 32: Usb Touch Driver

    2.1.1. USB Touch Driver Two USB touch drivers are available. The first is for WP-8000 series modules and WP-5000 series modules of ICP DAS PAC controllers, and the second is for other Windows CE5.0 systems. WP-8000 series: WP-8131/WP-8431/WP-8831, WP-8141/WP-8441/WP-8841 WP-8137/WP-8437/WP-8837, WP-8147/WP-8447/WP-8847 WP-8139/WP-8431/WP-8839, WP-8141/WP-8441/WP-8849 WP-8136/WP-8431/WP-8836, WP-8141/WP-8441/WP-8846 WP-5000 series:...

  • Page 33: Installation For Winpac-8000 And Winpac-5000

    1. Copy the driver from the CD-ROM to the WinPAC. The “PenMount_USB_TOUCH_Vyyyymmdd.CAB” driver file can be obtained from: Model Driver path TP-2070 CD:\TP-2070 \Driver\WinCE\V5.0\WP-8000 and WP-5000 device TPM-4100/TP-4100 CD:\TPM-4100_TP-4100\Driver\WinCE\V5.0\WP-8000 and WP-5000 device\ TPM-6150/TP-6150 CD:\TPM-6150_TP-6150 \Driver\WinCE\V5.0\WP-8000 and WP-5000 device Or go to the “\System_Disk\External_device_driver\” folder on the WinPAC.

  • Page 34: Configuration For Winpac-8000 And Winpac-5000

    2.1.1.2. Configuration for WinPAC-8000 and WinPAC-5000 Calibration 1. From the “Start” menu, click “Programs””USB_TOUCH” ”PenMount””Calibration”. 2. Follow the instructions on the screen to begin calibration. 3. Once calibration has been completed, from the “Start” menu, click ”Programs”Open the “WinPAC Utility”, and then click the “Save and Reboot”...
  • Page 35 Simulating the Right Mouse Button 1. From the Start menu, click “Programs””USB_TOUCH” ”PenMount””RightButton”. 2. Show a screen below (Left picture) Click the “mouse”  Turn into right picture. Become Click the “mouse” 3. Click any object: Click “My device” to test if the function of “RightButton” works.

  • Page 36: Uninstalling The Winpac-8000 And Winpac-5000

    2.1.1.3. Uninstalling the WinPAC-8000 and WinPAC-5000 The following procedure describes how to uninstall the PenMount USB touch driver. 1. From the “Start” menu, click “Programs””USB_TOUCH” ”PenMount””Uninstall”. 2. A warning pop-up will be displayed asking you to confirm the uninstall request. Click the “Yes” button to uninstall the driver. 3.

  • Page 37: Other Windows Ce5.0 Devices

    The driver for use with other windows CE5.0 devices can be obtained from: Model Driver path TP-2070 CD:\TP-2070 \Driver\WinCE\V5.0\Other CE5.0 device TPM-4100/TP-4100 CD:\TPM-4100_TP-4100\Driver\WinCE\V5.0\Other CE5.0 device\ TPM-6150/TP-6150 CD:\TPM-6150_TP-6150 \Driver\WinCE\V5.0\Other CE5.0 device or go to the PenMount website to download the latest driver: http://www.penmount.com/down_2_1.php...

  • Page 38: Serial Touch Driver

    2.1.2. Serial Touch Driver Two serial touch drivers are available. The first is for WP-8000 series modules and WP-5000 series modules of ICPDAS PAC controllers, and the second is for other Windows CE5.0 systems. WP-8000 series: WP-8131/WP-8431/WP-8831, WP-8141/WP-8441/WP-8841 WP-8137/WP-8437/WP-8837, WP-8147/WP-8447/WP-8847 WP-8139/WP-8431/WP-8839, WP-8141/WP-8441/WP-8849 WP-8136/WP-8431/WP-8836, WP-8141/WP-8441/WP-8846 WP-5000 series:...

  • Page 39: Installation For Winpac-8000 And Winpac-5000

    2.1.2.1. Installation for WinPAC-8000 and WinPAC-5000 The following procedure describes how to install the PenMount serial touch driver. Note that the default COM port for serial touch driver is COM4. There is a RS-232 cable in the shipping package (Sec.1). The user can directly use this cable to connect the monitor with COM4 of WinPAC-8000 to use serial touch driver to do a touch operation by serial way.
  • Page 40 Model Driver path TP-2070 CD:\TP-2070 \Driver\WinCE\V5.0\WP-8000 and WP-5000 device TPM-4100/TP-4100 CD:\TPM-4100_TP-4100\Driver\WinCE\V5.0\WP-8000 and WP-5000 device\ TPM-6150/TP-6150 CD:\TPM-6150_TP-6150 \Driver\WinCE\V5.0\WP-8000 and WP-5000 device Or go to the “\System_Disk\External_device_driver\” folder on the WinPAC. 2. Double-click the “ ” file. PenMount_Serial_TOUCH_Vyyyymmdd(PM6000R).CAB 3. Show one of two dialogs below. Just click “OK” button to continue installation.

  • Page 41: Configuration For Winpac-8000 And Winpac-5000

    2.1.2.2. Configuration for WinPAC-8000 and WinPAC-5000 Calibration 1. From the “Start” menu, click “Programs””Serial_TOUCH” ”PenMount””Calibration”. 2. Follow the instruction on the screen to begin calibration. 3. Once calibration has been completed, from the “Start” menu, click ”Programs”Open the “WinPAC Utility”, and then click the “Save and Reboot”...
  • Page 42 Changing the COM Port 1. From the “Start” menu, click “Programs””Serial_TOUCH” ”PenMount””SetCOM”. 2. In the pop-up dialog, select the COM Port you wish to use as default and click the “Set” button to save the changes. 3. From the “Start” menu, click ”Programs”Open the “WinPAC Utility”, and then click the “Save and Reboot”...

  • Page 43: Uninstalling The Winpac-8000 And Winpac-5000

    2.1.2.3. Uninstalling the WinPAC-8000 and WinPAC-5000 The following procedure describes how to uninstall the PenMount serial touch driver. 1. From the “Start” menu, click “Programs””Serial_TOUCH” ”PenMount””Uninstall” 2. A warning pop-up will be displayed asking you to confirm the uninstall request. Click the “Yes” button to uninstall the driver. 3.

  • Page 44: Other Windows Ce5.0 Devices

    2.1.2.4. Other Windows CE5.0 Devices The driver can be obtained from: Model Driver path TP-2070 CD:\TP-2070 \Driver\WinCE\V5.0\Other CE5.0 device TPM-4100/TP-4100 CD:\TPM-4100_TP-4100\Driver\WinCE\V5.0\Other CE5.0 device\ TPM-6150/TP-6150 CD:\TPM-6150_TP-6150 \Driver\WinCE\V5.0\Other CE5.0 device or go to PenMount website to download the latest driver: http://www.penmount.com/down_2_1.php Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013...

  • Page 45: Windows Ce 6.0

    2.2. Windows CE 6.0 This section describes how to install, calibrate and uninstall the touch driver for the XP-8000-CE6 series, and gives details of how to obtain drivers for other CE6 devices. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 45 Copyright ©...

  • Page 46: Usb Touch Driver

    2.2.1. USB Touch Driver Two USB touch drivers are available. The first is for XP-8000-CE6 series modules of ICP DAS PAC controllers and, and the second is for other Windows CE6.0 systems. XP-8000-CE6 series: 1. Using the ATOM CPU: XP-8141-Atom-CE6/XP-8341-Atom-CE6/XP-8741-Atom-CE6 XP-8147-Atom-CE6/XP-8347-Atom-CE6/XP-8747-Atom-CE6 XP-8149-Atom-CE6/XP-8349-Atom-CE6/XP-8749-Atom-CE6 2.

  • Page 47: Installation For Xp-8000-Ce6

    1. Copy the driver from the CD-ROM to the XP-8000-CE6. The “PenMount_USB_TOUCH_Vxx_yyyymmdd_XPAC_CE6.CAB” driver file can be obtained from: Model Driver path TP-2070 CD:\TP-2070\Driver\WinCE\V6.0\XP-8000-CE6 device\ TPM-4100/TP-4100 CD:\TPM-4100_TP-4100\Driver\WinCE\V6.0\XP-8000-CE6 device\ TPM-6150/TP-6150 CD:\TPM-6150_TP-6150\Driver\WinCE\V6.0\XP-8000-CE6 device\ Or go to the “\System_Disk\External_device_driver” folder on the XP-8000-CE6. 2. Double-click the “...
  • Page 48 Using the ATOM CPU Using the LX800 CPU 4. Once the installation has been completed, a dialog will be displayed advising that the system needs to be rebooted. Click the “OK” button to reboot the XP-8000-CE6. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 48 Copyright ©...

  • Page 49: Configuration For Xp-8000-Ce6

    2.2.1.2. Configuration for XP-8000-CE6 Calibration 1. From the “Start” menu, click “Programs””USB_TOUCH” ”PenMount””Calibration”. 2. Following the instructions on the screen to begin calibration. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 49 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
  • Page 50 Simulating the Right Mouse Button For details of how to simulate right mouse button functions, please refer to the process described in “Simulating the Right Mouse Button” in Sec. 2.1.1.2 Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 50 Copyright ©...

  • Page 51: Uninstalling The Xp-8000-Ce6

    2.2.1.3. Uninstalling the XP-8000-CE6 The following procedure describes how to uninstall the PenMount USB touch driver. 1. From the “Start” menu, click “Settings””Control Panel”. 2. Double click the “Remove Programs” icon and select “ICPDAS USB PenMount” from the “Programs” panel in the “Remove Programs” dialog box and then click the “Remove”...
  • Page 52 3. Once the uninstallation process is complete, a dialog will be displayed requesting that you reboot the system. Click the “Yes” button to reboot immediately or click the “No” button if you intend to reboot at a later time. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 52 Copyright ©...

  • Page 53: Other Windows Ce6.0 Devices

    The driver can be obtained from: Model Driver path TP-2070 CD:\TP-2070\Driver\WinCE\V6.0\Other CE6.0 device\ CD:\TPM-4100_TP-4100\Driver\WinCE\V6.0\Other CE6.0 device\ TPM-4100/TP-4100 TPM-6150/TP-6150 CD:\TPM-6150_TP-6150\Driver\WinCE\V6.0\Other CE6.0 device\ or go to the PenMount website to download the latest driver: http://www.penmount.com/down_2_1.php Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 53 Copyright ©...

  • Page 54: Serial Touch Driver

    2.2.2. Serial Touch Driver Two serial touch drivers are available. The first is for XP-8000-CE6 series modules of ICPDAS PAC controllers and the second is for other Windows CE6.0 systems. XP-8000-CE6 series: 1.Using ATOM CPU XP-8141-Atom-CE6/XP-8341-Atom-CE6/XP-8741-Atom-CE6 XP-8147-Atom-CE6/XP-8347-Atom-CE6/XP-8747-Atom-CE6 XP-8149-Atom-CE6/XP-8349-Atom-CE6/XP-8749-Atom-CE6 2.Using LX800 CPU XP-8041-CE6/XP-8341-CE6/XP-8741-CE6 XP-8047-CE6/XP-8347-CE6/XP-8747-CE6 XP-8049-CE6/XP-8349-CE6/XP-8749-CE6...

  • Page 55: Installation For Xp-8000-Ce6

    Model Driver path TP-2070 CD:\TP-2070\Driver\WinCE\V6.0\XP-8000-CE6 device\ TPM-4100/TP-4100 CD:\TPM-4100_TP-4100\Driver\WinCE\V6.0\XP-8000-CE6 device\ Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 55 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
  • Page 56 TPM-6150/TP-6150 CD:\TPM-6150_TP-6150\Driver\WinCE\V6.0\XP-8000-CE6 device\ Or go to the “\System_Disk\External_device_driver” folder on the XP-8000-CE6. 2. Double click the “ ” file PenMount_Serial_TOUCH_Vxx_yyyymmdd_XPAC_CE6(PM6000R).CAB Tips & Warnings The driver (*.cab) file can only be used once. If you attempt to use it to install driver a second time, a warning dialog with a message similar to “<filename>is not a valid Windows CE Setup file”...
  • Page 57 4. Once the installation has been completed, a dialog will be displayed advising that the system needs to be rebooted. Click the “OK” button to reboot the XP-8000-CE6. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 57 Copyright ©...

  • Page 58: Configuration For Xp-8000-Ce6

    2.2.2.2. Configuration for XP-8000-CE6 Calibration 1. From the “Start” menu, click “Programs””Serial_TOUCH” ”PenMount””Calibration” 2. Follow the instruction on the screen to begin calibration. You will be presented with one of two screens depending on the CPU you are using. If you are using the LX800 CPU, the screen will look like this.
  • Page 59 Change the COM Port 1. From the “Start” menu, click “Programs””Serial_TOUCH” ”PenMount””SetCOM”. 2. Just choose the COM portClick “Set” buttonClick “Yes” button to reboot the system. The baudrate for the touch monitor is 19200 bps, so please don’t modify the baudrate of touch driver. Simulating Right Mouse Button For details of how to configure right mouse button simulation, please refer to the process describes in “Simulating the Right Mouse Button”...

  • Page 60: Uninstalling The Xp-8000-Ce6

    2.2.2.3. Uninstalling the XP-8000-CE6 The following procedure describes how to uninstall the PenMount serial touch driver. 1. From the “Start” menu, click “Settings””Control Panel”. 2. Double click the “Remove Programs” icon and select “ICPDAS Serial PenMount” from the “Programs” panel in the “Remove Programs” dialog box and then click the “Remove”...
  • Page 61 3. Once the uninstallation process is complete, a dialog will be displayed requesting that you reboot the system. Click the “Yes” button to reboot immediately or click the “No” button if you intend to reboot at a later. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 61 Copyright ©...

  • Page 62: Other Windows Ce 6.0 Device

    The driver can be obtained from: Model Driver path TP-2070 CD:\TP-2070\Driver\WinCE\V6.0\Other CE6.0 device\ CD:\TPM-4100_TP-4100\Driver\WinCE\V6.0\Other CE6.0 device\ TPM-4100/TP-4100 TPM-6150/TP-6150 CD:\TPM-6150_TP-6150\Driver\WinCE\V6.0\Other CE6.0 device\ or go to the PenMount website to download the latest driver: http://www.penmount.com/down_2_1.php Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 62 Copyright ©...

  • Page 63: Windows Xp Embedded

    2.3. Windows XP Embedded The touch driver for XP embedded is a universal driver. USB and Serial both use the same driver. 2.3.1. Universal Driver Two universal touch drivers are available. The first is for XP-8000 series modules of ICP DAS PAC controller, and the second is for other Windows XP embedded system. XP-8000 series: 1.Using ATOM CPU XP-8141-Atom/XP-8341-Atom/XP-8741-Atom...

  • Page 64: Installation For Xp-8000

    2.3.1.1. Installation for XP-8000 The following procedure describes how to install the PenMount universal touch driver. There is a RS-232 cable in the shipping package (Sec.1). The user can directly use this cable to connect the monitor with COM5 of XP-8000 to use universal touch driver to do a touch operation by serial way.
  • Page 65 TPM-4100/TP-4100 CD:\TPM-4100_TP-4100\Driver\Win_XP_Embedded\XP-8000 device\ TPM-6150/TP-6150 CD:\TPM-6150_TP-6150\Driver\Win_XP_Embedded\XP-8000 device\ 2. Executing XPAC Utility to disable EWF on desktop. 3. Double click Setup.exe in the driver’s folder. 4. Click “Next” button to continue installation. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 65 Copyright ©...
  • Page 66 5. Click “I Agree” button. 6. Click “Install” button to install driver to destination folder. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 66 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
  • Page 67 Tips & Warnings If a screen appears that shows “Found New Hardware Wizard”. Do not use this hardware wizard. Press Cancel. If a screen appears that shows “Hardware Installation”. Please press “Continue Anyway”. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 67 Copyright ©...
  • Page 68 7. Click “Finish” button. 8. Restart XP-8000. 9. Connect USB or serial cable to XP-8000(USB and serial can not be used simultaneously). If the USB or serial touch doesn’t work, please follow the steps below. a. From the “Start” menu, click “Programs””PenMount Universal Driver””PenMount Control Panel”.
  • Page 69 USB touch Serial touch c. If search is successful, USB or serial touch driver has been installed. 10. Executing XPAC Utility to enable EWF on desktop. 11. Restart XP-8000. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 69 Copyright ©...

  • Page 70: Configuration For Xp-8000

    2.3.1.2. Configuration for XP-8000 Calibration 1. From the “Start” menu, click “Programs””PenMount Universal Driver” ”PenMount Control Panel”. 2. Check if the pattern “PenMount 6000 USB” or “PenMount 6000 RS232” shows. If yes, select a device and click “Configure” button. If no, refer to Sec.2.3.1.1.
  • Page 71 Click here to calibrate 4. Executing XPAC Utility to disable EWF to save setting on desktop. 5. Restart XP-8000. 6. Executing XPAC Utility to enable EWF on desktop. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 71 Copyright ©...
  • Page 72 7. Restart to XP-8000 for the changes to take effect. Change the COM Port For serial touch driver Method1: The touch driver will detect all com port to find what com port connects to serial touch screen monitor automatically when XP-8000 reboots every time. Method2: Please refer to the Step 9 of Sec.2.3.1.1 to detect again.
  • Page 73 2. Click “Right Button Icon” 3. Show a screen below (Left picture) Click the “mouse”  Turn into right picture. 4. Click any object: Click “My computer” to test if the “Right Button Icon” function work. If the screen below shows, the “Right Button Icon” function works.

  • Page 74: Uninstall For Xp-8000

    2.3.1.3. Uninstall for XP-8000 The following procedure describes how to uninstall the PenMount universal touch driver. 1. Executing XPAC Utility to disable EWF to start to save setting. 2. From the “Start” menu, click “Programs””PenMount Universal Driver” ”Uninstall”. 3. Click “Yes” button. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 74...
  • Page 75 4. Click “Yes” button to reboot. 5. After reboot, executing XPAC Utility to enable EWF on desktop. 6. Restart XP-8000. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 75 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...

  • Page 76: Other Windows Xp Embedded Devices

    The driver can be obtained from: Model Driver path TP-2070 CD:\TP-2070\Driver\Win_XP_Embedded\Other XP Embedded device\ CD:\TPM-4100_TP-4100\Driver\Win_XP_Embedded\Other XP TPM-4100/TP-4100 Embedded device\ TPM-6150/TP-6150 CD:\TPM-6150_TP-6150\Driver\Win_XP_Embedded\Other XP Embedded device\ or go to the PenMount website to download the latest driver: http://www.penmount.com/down_2_1.php Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013...

  • Page 77: Windows Xp/7

    2.4. Windows XP/7 The touch driver for 2k/XP/2003/2008/Vista/7 is a universal driver. USB and Serial both use the same driver. 2.4.1. Universal Driver This section describes how to install, calibrate and uninstall the universal driver for 2k/XP/2003/2008/Vista/7. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 77 Copyright ©...

  • Page 78: Installation

    1. Copy the driver from the CD-ROM to your device. The touch driver can be obtained from: Model Driver path TP-2070 CD:\ TP-2070\Driver\Win_XP_7\ TPM-4100/TP-4100 CD:\TPM-4100_TP-4100\Driver\Win_XP_7\ TPM-6150/TP-6150 CD:\ \Driver\Win_XP_7\ TPM-6150_TP-6150 2. Connect USB or serial cable to your device (USB and serial can not be used simultaneously).
  • Page 79 6. Click “Install” button to install driver. 7. Click “Finish” to finish installation. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 79 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...
  • Page 80 Tips & Warnings When the system first detects a touch monitor, a screen appears that shows “Unknown Device”. Do not use this hardware wizard. Press Cancel. 8. If the USB or serial touch doesn’t work, following the steps below: a. From the “Start” menu, click “All Programs””PenMount Windows Universal Driver””Utility””PenMount Control Panel”.
  • Page 81 b. “Device” tabclick “Refresh” button to search USB or serial touch screen monitor if search is successful, “PenMount 6000 USB” or “PenMount 6000 RS232” will show. USB touch Serial touch c. If search is successful, the USB or serial touch driver has been installed.

  • Page 82: Configuring

    2.4.1.2. Configuring Calibration 1. From the “Start” menu, click “All Programs””PenMount Windows Universal Driver””Utility””PenMount Control Panel”. 2. Check if the pattern ”PenMount 6000 USB” or “PenMount 6000 RS232” shows. If yes, select a device and click “Configure” button. If no, refer to Sec.2.4.1.1.
  • Page 83 Click here to calibrate Change the COM Port For serial touch driver Method1: The touch driver will detect all com port to find what com port connects to serial touch screen monitor automatically when PC reboots every time. Method2: Please refer to the Step 8 of Sec.2.4.1.1 to detect again. Simulating Right Mouse Button For details of how to configure right mouse button simulation, please refer to the process describes in “Simulating the Right Mouse Button”...

  • Page 84: Uninstall

    Uninstall 2.4.1.3. The following procedure describes how to uninstall the PenMount universal touch driver. 1. XP:StartAll ProgramsPenMount Windows Universal DriverUninstall. Win7: Control PanelProgramsPrograms and Features 2. Click “Next” button. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 84 Copyright ©...
  • Page 85 3. Click “Uninstall” button. 4. Click “Finish” button to reboot. Touch Panel Monitor User Manual version 1.0.6, Last Revised: Dec 2013 Page: 85 Copyright © 2012 ICP DAS Co., Ltd. All Rights Reserved.  E-mail: service@icpdas.com...

  • Page 86: Appendix A. Revision History

    Description 1.0.2 August 2012 First release 1.0.3 September 2013 1. Modify specifications about TP-4100/TPM-4100 2. Modify the name of serial driver for WinPAC-8000 and WinPAC-5000 3. Add “Tips & Warnings” to Step6 in Sec.2.3.1.1 1.0.4 September 2013 Add related description of “TP-3070”...
