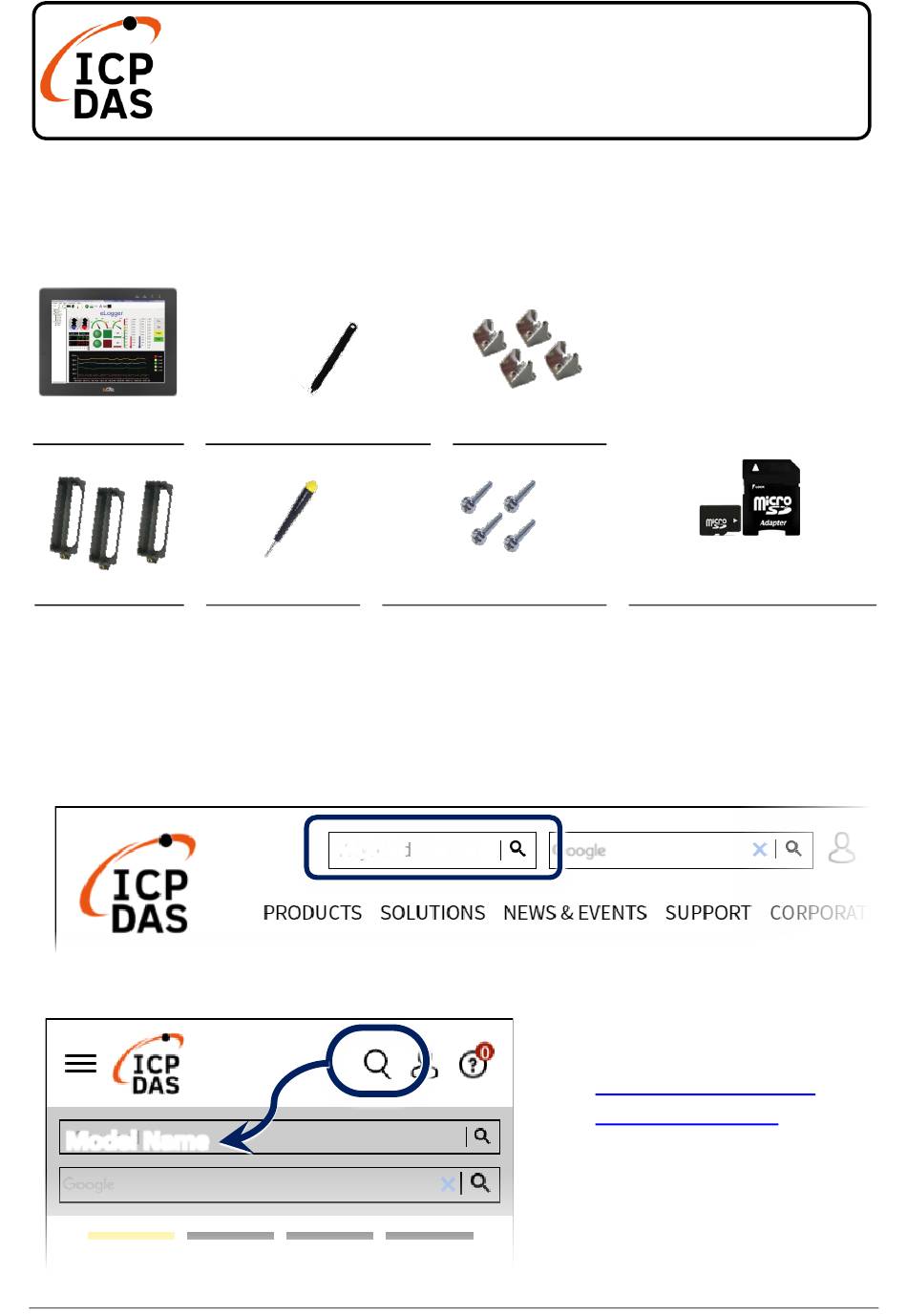

Apart from this guide, this package includes following items:
VP-4238-CE7
I/O Slot Lid*3
Resources
How to search for drivers, manuals and spec information from ICP DAS website.
For Desktop Browser
For Mobile Web
Model Name
Stylus Pen
Screwdriver
Model Name
VP-4238-CE7 Quick Start
Panel clip * 4
M4 x 30L Screw * 4
v2.2, Apr. 2023
microSD card and
SD/microSD adapter
Technical Support
service@icpdas.com
www.icpdas.com
P1
Advertisement
Related Manuals for ICP DAS USA VP-4238-CE7
Summary of Contents for ICP DAS USA VP-4238-CE7
- Page 1 VP-4238-CE7 Quick Start v2.2, Apr. 2023 Packing List Apart from this guide, this package includes following items: VP-4238-CE7 Stylus Pen Panel clip * 4 microSD card and Screwdriver M4 x 30L Screw * 4 SD/microSD adapter I/O Slot Lid*3 Resources How to search for drivers, manuals and spec information from ICP DAS website.
- Page 2 Setting up ViewPAC Ensure that the rotary switch is set to the “0” position. Connect the positive terminal (+) of the power supply to the terminal PWR and the negative terminal (-) of the power supply to the P.GND. The input range of power supply is +12 to +48 V Connect the USB mouse or USB keyboard to the USB port.
- Page 3 Use PAC Utility to Manage the ViewPAC Double-click the shortcut of “PAC Utility” on the desktop. Configure IP address (DHCP), FTP Server, auto execution files…, etc. Reboot the ViewPAC to save all changes.
-
Page 4: Change The Language
Change the Language Select “Start”, choose “Settings”, click “Control Panel”, and then click Regional Settings. Click “User Interface Language” tab, drop down to select the language, and click OK. Run the PAC Utility, and then reboot the PAC to save all changes. -
Page 5: Version Identification
Version Identification The match version rules for Workbench and Runtime: Workbench 11.0 Runtime Ver. 2.xx (factory default) • with 1.08 1.xx • Workbench with Runtime Ver. Figure for Version confirmation 11.0 2.xx Workbench Runtime Ver. 1.08 1.xx Workbench Runtime Ver. ※There’s no version number on the top-left window. - Page 6 Download the Latest Win-GRAF Workbench V11 Along with the Runtime win-graf Key in “ ” into Search Box at ICP DAS home page. Find and download Win-GRAF Workbench V11 from the “Software download” Tab. Restore Old Version Win-GRAF Runtime (1.xx) Win-GRAF runtime 2.xx does not fully support files compiled by...
- Page 7 “Win-GRAF_Installer_Old.Zip” Copy file into pen drive or micro SD card, and unzip it. Install the runtime Open the file folder “Win-GRAF_Installer_Old” from pen drive or micro SD card. Capture as below: According to different CPUs, different execution files have to be selected: •...
- Page 8 Ethernet Port (Workbench Port) Settings Win-GRAF runtime (2.xx) or above version can set the Ethernet port. 1100 Keep it as default . After setting, click “Set” button and reboot Win-GRAF Runtime to save the changes.
