Quick Links
Packing List

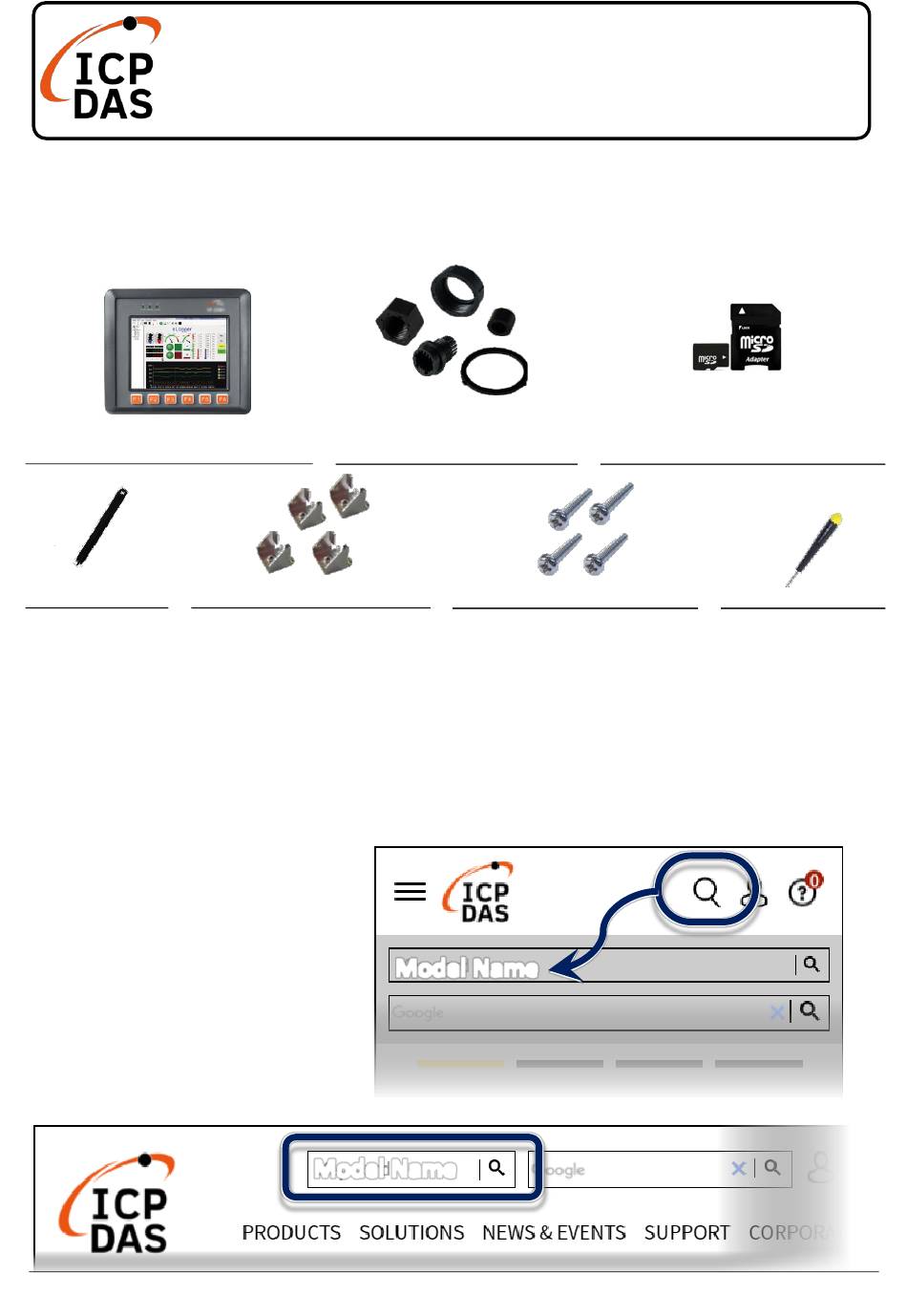

In addition to this guide, the package includes the following items:

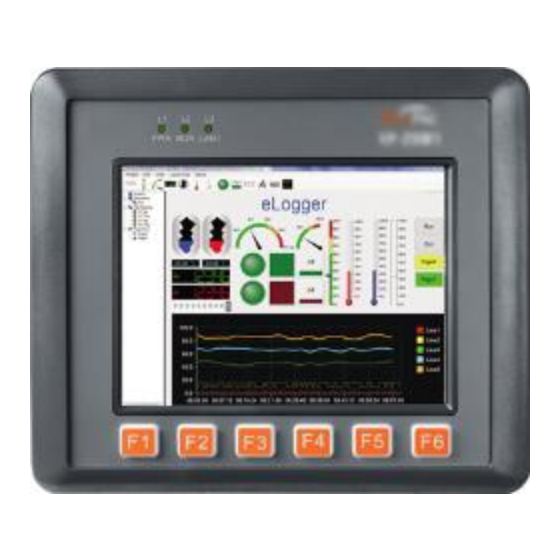

VP-1231-CE7
Touch Pen
Technical Support
service@icpdas.com
www.icpdas.com
For Desktop Web
RJ-45 Waterproof
Assembly
Panel clip *4
Resources
How to search for drivers, manuals and
spec information on ICP DAS website.
For Mobile Web
Model Name
Model Name
VP-1231-CE7 Quick Start
v1.2, September 2023
M4 x 30L Screw * 4
microSD Card and
microSD to SD Adapter
Screw Driver
P1
Advertisement
Related Manuals for ICP DAS USA VP-1231-CE7
Summary of Contents for ICP DAS USA VP-1231-CE7
- Page 1 VP-1231-CE7 Quick Start v1.2, September 2023 Packing List In addition to this guide, the package includes the following items: RJ-45 Waterproof microSD Card and VP-1231-CE7 Assembly microSD to SD Adapter Touch Pen Panel clip *4 M4 x 30L Screw * 4...
-
Page 2: Inserting The I/O Module
Inserting the I/O Module There is a top case on each I/O socket. Before inserting the I/O module you first need to remove it. Unlock the top case of the I/O slot and then remove it. Hold the I/O module vertically and align the socket and then carefully press the I/O module onto the socket. - Page 3 Mounting the VP-1231-CE7 The VP-1231-CE7 can be mounted on a panel of maximum thickness 5 mm. Adequate access space can be available at the rear of the instrument panel for wiring and servicing purposes. Tips & Warnings To ensure proper ventilation for the...
- Page 4 Insert the panel mounting clips into the upper and lower ventilation holes Screw the panel mounting clips to the panel. Tips & Warnings Recommended Screw Torque: 3.4 ~ 4.5 kgf-cm.
-
Page 5: Changing The User Interface Language
Before starting any installation, be sure that the switch is placed in the “0” position. The VP-1231-CE7 provides a variety of communication interface to suit a range of application. Here is a simple application for using the VP-1231-CE7. Place the rotary switch in position 0, Normal mode. - Page 6 VP-1231-CE7 for changes to take effect Using PAC Utility to Manage the VP-1231-CE7 The PAC Utility is a collection of the VP-1231-CE7 system tool that allows users to manage and configure the VP-1231-CE7 quickly and easily.
- Page 7 Configure IP address (DHCP), FTP Server, Auto Execution files…, etc Reboot the VP-1231-CE7 Using DCON Utility Pro to Configure the I/O Module DCON Utility Pro allows users to configure and manage the I/O modules via Ethernet or serial ports (RS-232/RS-485).
- Page 8 Click the button Configure the communication settings Click the button Click the module name to configure the I/O module...
