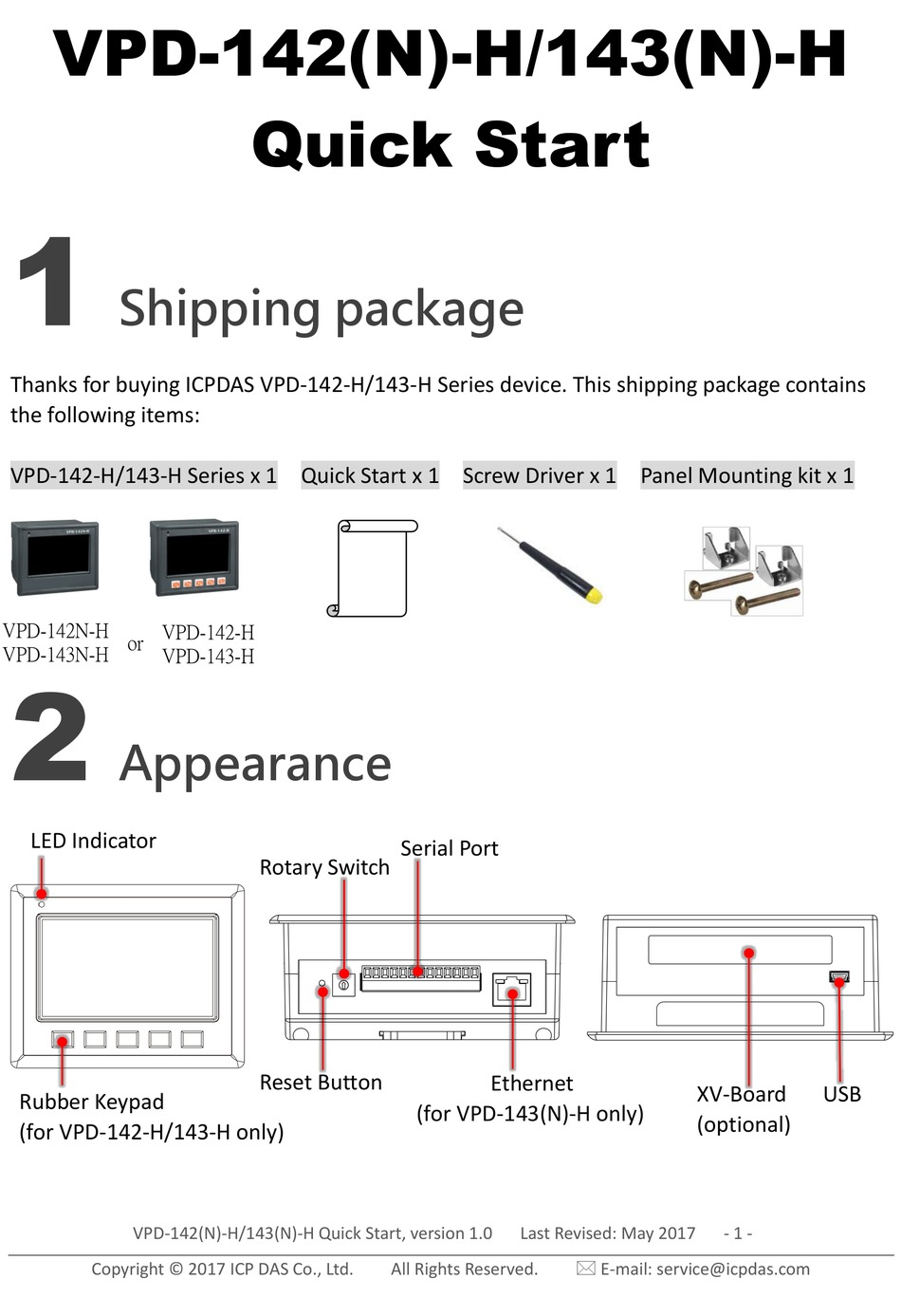

VPD-142(N)-H/143(N)-H
1

Shipping package

Thanks for buying ICPDAS VPD-142-H/143-H Series device. This shipping package contains
the following items:
VPD-142-H/143-H Series x 1 Quick Start x 1 Screw Driver x 1 Panel Mounting kit x 1

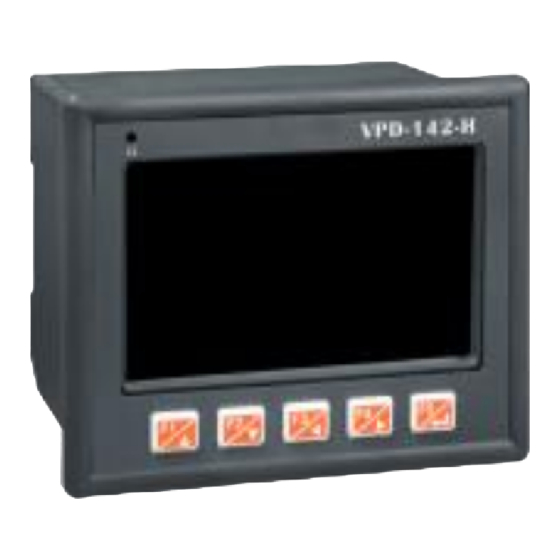

VPD-142N-H
VPD-142-H
or
VPD-143N-H
2
VPD-143-H

Appearance

LED Indicator
Rubber Keypad
(for VPD-142-H/143-H only)
VPD-142(N)-H/143(N)-H Quick Start, version 1.0
Copyright © 2017 ICP DAS Co., Ltd.
Quick Start
Serial Port
Rotary Switch
Reset Button
(for VPD-143(N)-H only)
All Rights Reserved.
Ethernet
Last Revised: May 2017
 E-mail: service@icpdas.com
XV-Board
USB
(optional)
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VPD-142-H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICP DAS USA VPD-142-H

Summary of Contents for ICP DAS USA VPD-142-H

  • Page 1 VPD-142(N)-H/143(N)-H Quick Start Shipping package Thanks for buying ICPDAS VPD-142-H/143-H Series device. This shipping package contains the following items: VPD-142-H/143-H Series x 1 Quick Start x 1 Screw Driver x 1 Panel Mounting kit x 1 VPD-142N-H VPD-142-H VPD-143N-H VPD-143-H...
  • Page 2 Pin Assignment The pin assignments: Description The positive data line of the RS-485 network The negative data line of the RS-485 network The common ground of the RS-232 RxD2 The pin of received data of the RS-232 TxD2 The pin of transmitted data of the RS-232 The positive data line of the RS-485 network The negative data line of the RS-485 network Ground pin...
  • Page 3 First Use of the VPD-142/143-H Connect wires as the figure or prepare an Ethernet cable which will be used to supply power through PoE if there’s a RJ-45 Ethernet port on it. And set the rotary switch to zero (At this point, the power is not yet supplied). PoE Switch Use a flat-head VDC (+12~+48V)
  • Page 4 Screw the panel mounting clips to the panel. (Mounting Screw: M4 x 30L) The DIN-rail Mounting of VPD-142(N)-H/143(N)-H Related Information  VPD-142(N)-H/142(N)-H Product Page: http://www.icpdas.com/root/product/solutions/hmi_touch_monitor/touchpad/vpd-142-h.html  Documents, such as the user manuals, the API references, etc.: ftp://ftp.icpdas.com/pub/cd/touchpad/document/english/  Free Development Software, HMIWorks v2.10.10 or above: ftp://ftp.icpdas.com/pub/cd/touchpad/setup/ If you have any questions, please feel free to contact us via email at: service@icpdas.com,...
  • Page 5 VPD-142(N)-H/143(N)-H 快速入門指南 檢查配件 感謝您購買泓格的 VPD-142(N)-H/143(N)-H 產品。產品包裝內應包含下列配件: VPD-142-H/143-H 系列 x 1 入門指南(本文件) x 1 螺絲刀 x 1 面板安裝組件 x 1 VPD-142N-H VPD-142-H 或 VPD-143N-H VPD-143-H 外觀 LED 指示燈 序列埠 旋轉開關 重啟按鈕 乙太網路孔 I/O 擴充卡 橡膠鍵盤 (VPD-143(N)-H 僅有) XV-Board (選購品) (VPD-142-H/143-H 僅有) VPD-142(N)-H/143(N)-H Quick Start, version 1.0...
  • Page 6 腳位定義 序列埠腳位定義: 說明 RS-485 網路的正訊號線 RS-485 網路的負訊號線 RS-232 的接地端 RxD2 RS-232 的接收資料腳位 TxD2 RS-232 的傳送資料腳位 RS-485 網路的正訊號線 RS-485 網路的負訊號線 RS-232 的接地端 RxD1 RS-232 的接收資料腳位 TxD1 RS-232 的傳送資料腳位 連到電源的接地端 直流電壓輸入 (範圍：+12 V ~ +48 V) F.G. 機架接地，F.G. (連接到內部的 EMI 或 ESD 保護電 路)，請接到大地。...
  • Page 7 第一次使用 VPD-142/143-H 1. 如左圖所示，將電源和接地線連接完成。或是若有 RJ-45 的乙太網路接孔，可以準備一條網路線，透過乙太網 (PoE) otary Switch 路供電 。然後將旋轉開關(R )轉到 0(此 時尚未供電)。 PoE Switch 使用一字起子來 VDC (+12 ~ +48V) 配置旋轉開關 外部供電器 2. 開始供電給 VPD-142(N)-H/143(N)-H ， 等待約數秒的開機時間 ， 接著可以看到 VPD-142(N)-H/143(N)-H 執行出貨預附的程式 如圖所示。 3. 試著按一下 VPD-142(N)-H/143(N)-H 螢幕上面的圖示， VPD-142(N)-H/143(N)-H 會切到其他的頁面。 建立第一個軟體專案 在建立...
  • Page 8 硬體安裝 VPD-142(N)-H/143(N)-H 的面板安裝(Panel Mounting) 於上下方的通風口， 插入面板固定鋁夾 使用 M4 x 30L 螺絲釘， 鎖緊固定面板及鋁夾 VPD-142(N)-H /143(N)-H 導軌安裝(DIN-rail Mounting) 參考資訊  VPD-142(N)-H/143(N)-H 產品網頁: http://www.icpdas.com/root/product/solutions/hmi_touch_monitor/touchpad/vpd-142-h_tc.html  相關文件，如使用手冊、API 函數手冊…等: http://ftp.icpdas.com/pub/cd/touchpad/document/chinese/  免費開發軟體，HMIWorks 版本 2.10.10 或以上版本: ftp://ftp.icpdas.com/pub/cd/touchpad/setup/ 如有任何問題歡迎聯繫我們，我們將會為您提供完善的咨詢服務: E-mail: service@icpdas.com, service.icpdas@gmail.com VPD-142(N)-H/143(N)-H Quick Start, version 1.0 Last Revised: May 2017 - 8 - ...
