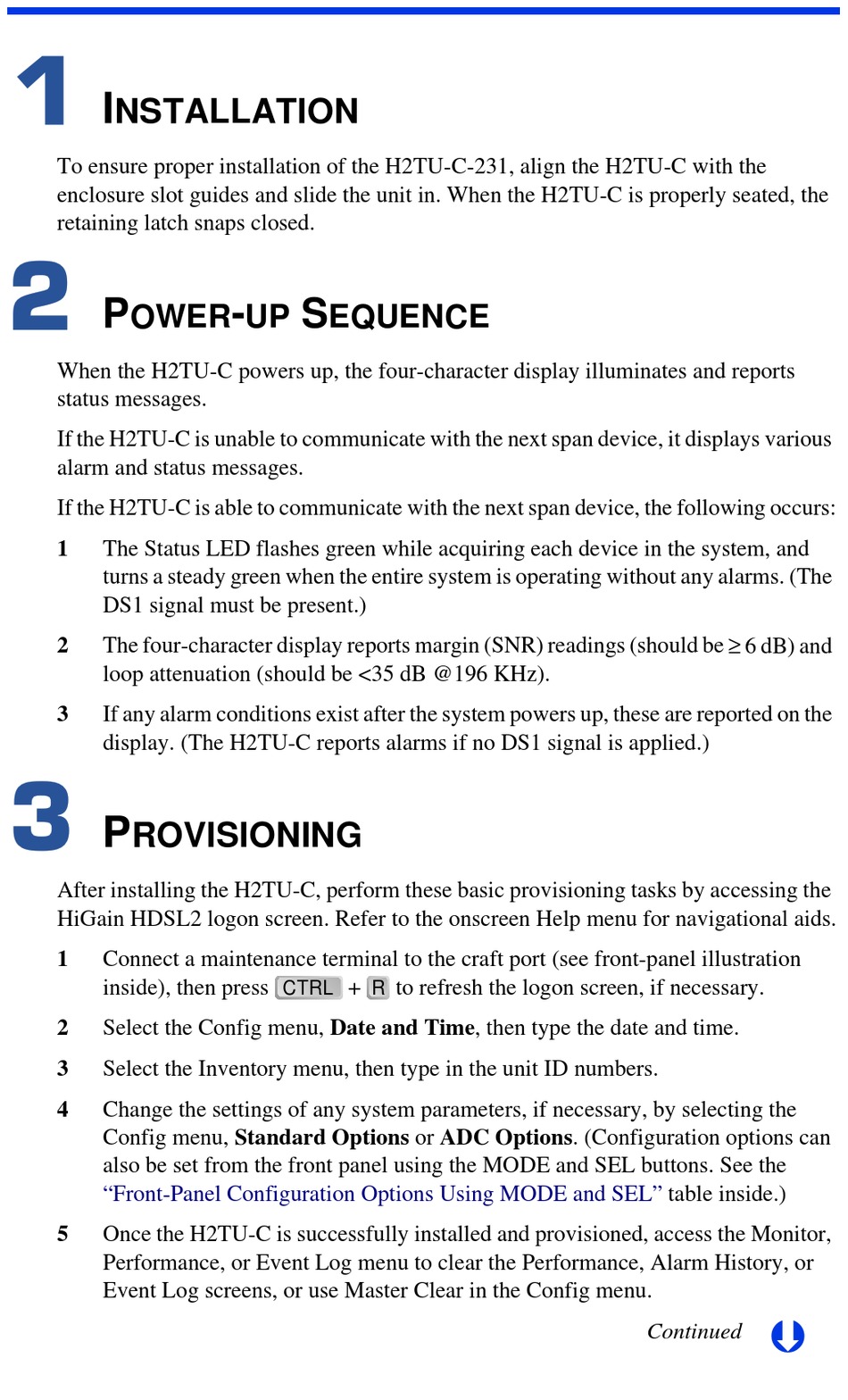

I
NSTALLATION
To ensure proper installation of the H2TU-C-231, align the H2TU-C with the
enclosure slot guides and slide the unit in. When the H2TU-C is properly seated, the
retaining latch snaps closed.
P
OWER
When the H2TU-C powers up, the four-character display illuminates and reports
status messages.
If the H2TU-C is unable to communicate with the next span device, it displays various
alarm and status messages.
If the H2TU-C is able to communicate with the next span device, the following occurs:
1 The Status LED flashes green while acquiring each device in the system, and
turns a steady green when the entire system is operating without any alarms. (The
DS1 signal must be present.)
The four-character display reports margin (SNR) readings (should be ≥ 6 dB) and
2
loop attenuation (should be <35 dB @196 KHz).
3 If any alarm conditions exist after the system powers up, these are reported on the
display. (The H2TU-C reports alarms if no DS1 signal is applied.)
P
ROVISIONING
After installing the H2TU-C, perform these basic provisioning tasks by accessing the
HiGain HDSL2 logon screen. Refer to the onscreen Help menu for navigational aids.
1 Connect a maintenance terminal to the craft port (see front-panel illustration
inside), then press
2 Select the Config menu, Date and Time, then type the date and time.
3 Select the Inventory menu, then type in the unit ID numbers.
4 Change the settings of any system parameters, if necessary, by selecting the
Config menu, Standard Options or ADC Options. (Configuration options can
also be set from the front panel using the MODE and SEL buttons. See the
"Front-Panel Configuration Options Using MODE and SEL"
5 Once the H2TU-C is successfully installed and provisioned, access the Monitor,
Performance, or Event Log menu to clear the Performance, Alarm History, or
Event Log screens, or use Master Clear in the Config menu.
- S
UP EQUENCE
CTRL R
+ to refresh the logon screen, if necessary.
table inside.)
Þ
Continued
