- Page 1 Radio Transmitter spectrum 3 M BE-SP3M-V2-4(FCC).doc [ Word 2000 ] FL/US/MB Page 1 / 22 – Radio Control for the Constructional and Industrial Use Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany Information and specifications subject to change without notice. 2003-02-12...
- Page 2 German trademark. © 2002 – 12 , HBC-radiomatic GmbH , D-74564 Crailsheim No part of any software or of the present document may be reproduced in any manner whatsoever without the expressed written permission of HBC-radiomatic GmbH.
-
Page 3: Table Of Contents
Maintenance .................19 In the Event of a Fault................19 Technical Data................20 Dimensions and Operating Elements ........... 21 Certification and Approvals ............22 Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany Information and specifications subject to change without notice. 2003-02-12... -
Page 4: Description

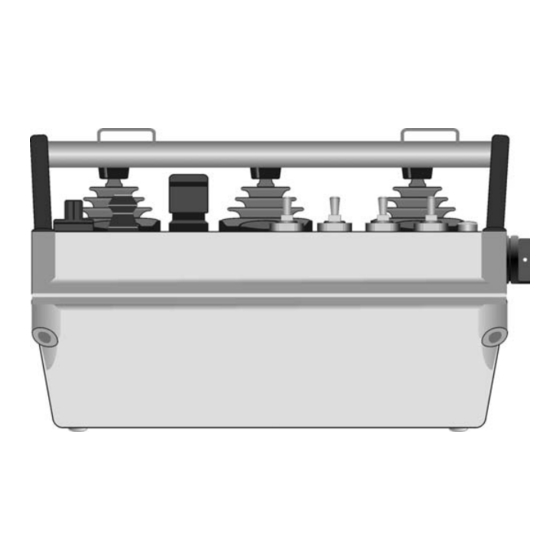

BE-SP3M-V2-4(FCC).doc[ Word 2000 ] FL/US/MB Description The spectrum 3 M transmitter is designed to transmit command instructions for controlling constructional, industrial and mobile cranes, hoists and machines. Depending on the type and version selected, up to 64 digital + 8 proportional control commands plus the integrated STOP commands are available to the operator. -
Page 5: Safety Instructions
Pay attention to the comments and instructions given. Ignoring the information provided may permanently impair the reliability and operability of the equipment. Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany Information and specifications subject to change without notice. 2003-02-12... -
Page 6: General Safety Instructions
! A defective transmitter may only be repaired by qualified and competent personnel. Use only original spare parts of HBC-radiomatic GmbH. The use of any other spares will render the technical inspectorate approval invalid as well as substantially impede operative safety. -
Page 7: Operator Safety Instructions
As you are no longer in the crane and can no longer sense the starting of the crane movements as distinctly, crane reactions will appear sluggish or dull. Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany Information and specifications subject to change without notice. 2003-02-12... -
Page 8: Operation
If the discharged battery is not replaced by a charged one, the transmitter will be automatically switched OFF after a few minutes. Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany 2002-12-03 Information and specifications subject to change without notice. -
Page 9: Automatic Switch-Off ( Apo Function )
Due to the above, a clearly visible indicator lamp should be installed on the crane – possibly a flashing one. Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany Information and specifications subject to change without notice. 2003-02-12... -
Page 10: Battery And Battery Charger
Protect battery contacts against short circuits. Always use the protective cap included. We recommend to recharge batteries that have not been used for a certain time, before putting them into operation. Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany 2002-12-03 Information and specifications subject to change without notice. -
Page 11: Flg 110 Battery Charger
When installing the battery charger into a vehicle it must be connected via the ignition switch, i.e. charging is prevented when the ignition key is in the off position. Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany Information and specifications subject to change without notice. 2003-02-12... -
Page 12: Special Operating Modes ( Optional )
After turning ON the transmitter (set key switch to "ON" position and do not forget to unlock STOP pushbutton), the receiver automatically resets the system to the new frequency selected in less than a second. Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany 2002-12-03 Information and specifications subject to change without notice. -
Page 13: Option "Pitch - Catch
In addition, a lamp that can be mounted on the crane will indicate when the receiver is busy (busy display). Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany Information and specifications subject to change without notice. 2003-02-12... -
Page 14: Option Tandem Operation
It is possible, however, to operate only one "master" and one "slave" transmitter. In this case, only the "master" transmitter is able to control both cranes in tandem operation. Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany 2002-12-03 Information and specifications subject to change without notice. - Page 15 The extra key supplied with transmitter 2 must therefore be deposited at a superior, authoritative position and only be handed out in clarified cases. Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany Information and specifications subject to change without notice. 2003-02-12...
-
Page 16: Option Infrakey
The range of the infrared beam is max. approx. 20 meters (66 feet) and the angle of radiation is 34°. To activate infrakey, press the "(Crane) On" pushbutton on the transmitter. Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany 2002-12-03 Information and specifications subject to change without notice. -
Page 17: Infrakey Set-Up
6. Affix the "INFRAKEY OK" sticker above the set-up pushbutton The focus I infrakey receiver can now recognize the transmitter's exclusive security telegram. Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany Information and specifications subject to change without notice. 2003-02-12... -
Page 18: Fault Correction
− The battery defective. − Ensure that the recharging process runs correctly. − Check the transmitter functions using a fully charged or replacement battery. Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany 2002-12-03 Information and specifications subject to change without notice. -
Page 19: Maintenance
HBC-radiomatic GmbH – Customer Services / Repair Service – Tel.: +49 ( 0 ) 79 51 – 3 93 - 800 Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany Information and specifications subject to change without notice. 2003-02-12... -
Page 20: Technical Data
312 x 160 x 185 mm ( 12.3 x 6.3 x 7.3 " ) approx. 3,0 kg ( 6.6 lb. ) Weight Protection class IP 55 ( Nema 4 ) Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany 2002-12-03 Information and specifications subject to change without notice. -
Page 21: Dimensions And Operating Elements
Operating Instructions Radio Transmitter spectrum 3 M BE-SP3M-V2-4(FCC).doc [ Word 2000 ] FL/US/MB Page 21 / 22 Dimensions and Operating Elements Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany Information and specifications subject to change without notice. 2003-02-12... -
Page 22: Certification And Approvals
Operating Instructions Radio Transmitter spectrum 3 M Page 22 / 22 BE-SP3M-V2-3.DOC [ Word 2000 ] FL/US Certification and Approvals Radio Control System HBC-radiomatic GmbH • D-74564 Crailsheim • Germany 2002-12-03 Information and specifications subject to change without notice.
