Operating Instructions
Radio Transmitter micron 5-3
BE-MICR5-3_V2-1.DOC [ Word 2000 ] US
Page 1 / 18
HBC
– Radio Control
R
a
d
i
o
T
r
a
n
s
m
i
t
t
e
r
m
i
c
r
o
n
5
-
3
R
a
d
i
o
T
r
a
n
s
m
i
t
t
e
r
m
i
c
r
o
n
5
-
3
Radio Control System
HBC-radiomatic GmbH • D -74564 Crailsheim • GERMANY
Information and specifications subject to change without notice.
02-13-2002
Advertisement
Table of Contents
Related Manuals for HBC-Radiomatic micron 5-3
Summary of Contents for HBC-Radiomatic micron 5-3
- Page 1 FCC ID: NO9M50004 Operating Instructions Radio Transmitter micron 5-3 BE-MICR5-3_V2-1.DOC [ Word 2000 ] US Page 1 / 18 – Radio Control Radio Control System HBC-radiomatic GmbH • D -74564 Crailsheim • GERMANY Information and specifications subject to change without notice. 02-13-2002...
- Page 2 Tel. +49 ( 0 ) 79 51 – 3 93 - 0 Fax +49 ( 0 ) 79 51 – 3 93 – 50 E-mail: info@radiomatic.com http://www.hbc-radiomatic.com HBC-radiomatic GmbH is not liable for any misprints or errors! – All rights reserved. ™ radiomatic is a registered German trademark. ©...
-
Page 3: Table Of Contents
In the Event of a Fault ..............13 Technical Data ................14 Dimensions..................15 Accessories..................16 Certificates and Approvals ............17 Radio Control System HBC-radiomatic GmbH • D -74564 Crailsheim • GERMANY Information and specifications subject to change without notice. 02-13-2002... -
Page 4: Description

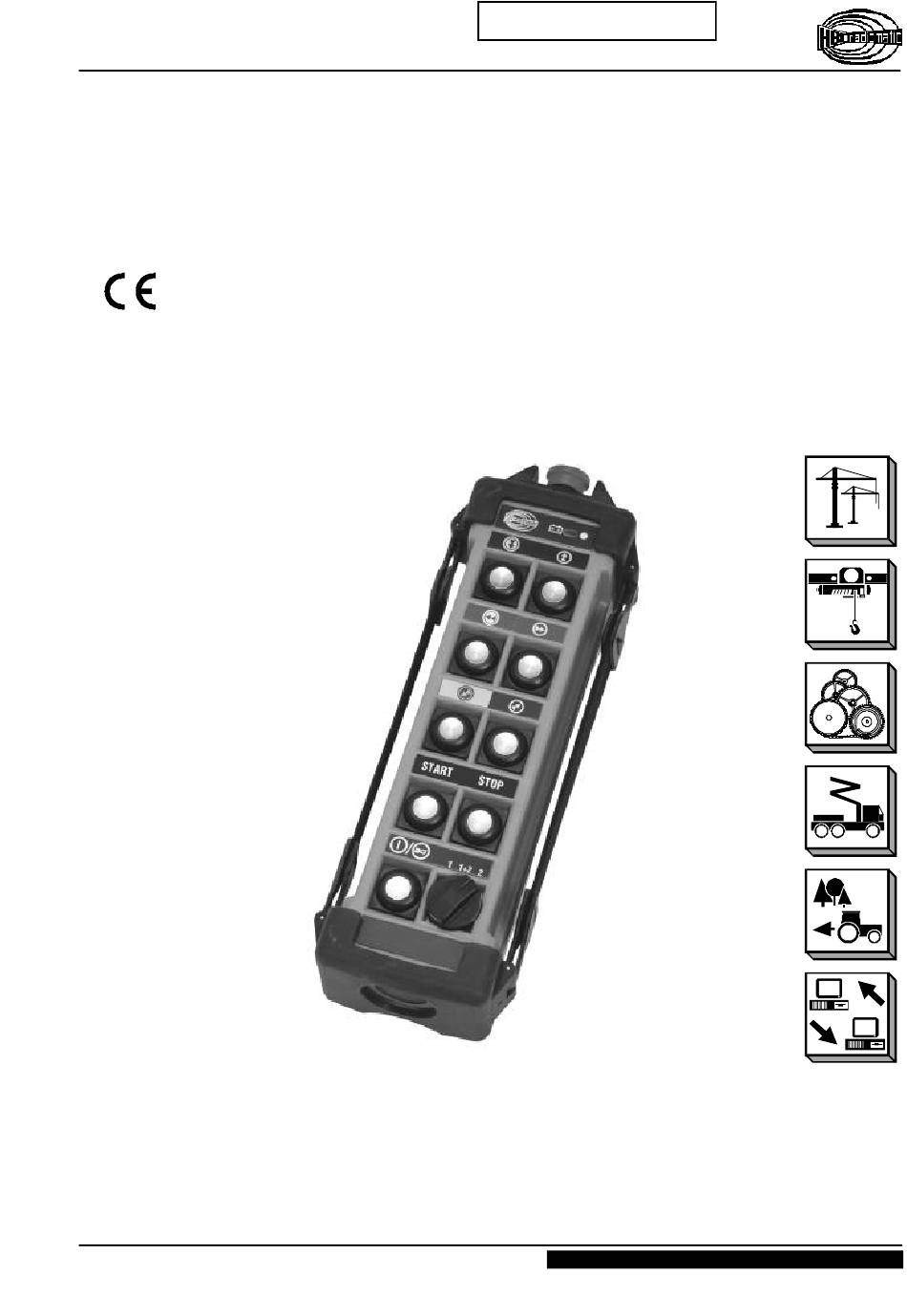

BE-MICR5-3_V2-1.DOC [ Word 2000 ] US Description The micron 5-3 transmitter is designed to transmit command instructions for controlling industrial cranes and hoists as well as operating machines and plants. Depending on the type and version selected, up to 14 control commands plus the integrated safety commands are available to the operator. -
Page 5: Safety Instructions
Pay attention to the comments and instructions given. Ignoring the information provided may permanently impair the reliability and operability of the equipment. Radio Control System HBC-radiomatic GmbH • D -74564 Crailsheim • GERMANY Information and specifications subject to change without notice. 02-13-2002... -
Page 6: General Safety Instructions
Use the transmitter cautiously and properly. In particular when using a transmitter to radio control a machine or crane for the first time. Radio Control System HBC-radiomatic GmbH • D -74564 Crailsheim • GERMANY 02-13-2002 Information and specifications subject to change without prior notice. -
Page 7: Operator Safety Instructions
The system must be reactivated before the crane or machine can react to control commands ! This feature hinders any uncontrolled or unwanted crane or machine movement, should the radio link be interrupted. Radio Control System HBC-radiomatic GmbH • D -74564 Crailsheim • GERMANY Information and specifications subject to change without notice. 02-13-2002... -
Page 8: Operation
Should the operator switch OFF the transmitter with the STOP push button À, release the STOP push button and restart the transmitter according to the instruction above. Radio Control System HBC-radiomatic GmbH • D -74564 Crailsheim • GERMANY 02-13-2002 Information and specifications subject to change without notice. -
Page 9: Frequency Selector (Scanner)
The receiver automatically resets the system to the new frequency selected in less than a second. Battery compartment Radio Control System HBC-radiomatic GmbH • D -74564 Crailsheim • GERMANY Information and specifications subject to change without notice. 02-13-2002... -
Page 10: Transmitter Inscription
Please note: The push buttons in the fourth line are solely reserved for and may not be used for other commands ! Radio Control System HBC-radiomatic GmbH • D -74564 Crailsheim • GERMANY 02-13-2002 Information and specifications subject to change without notice. -
Page 11: Battery And Battery Charger
– Use the charger at room temperature (20 °C or 68 °F) and protect it from extreme heat (direct sun). Radio Control System HBC-radiomatic GmbH • D -74564 Crailsheim • GERMANY Information and specifications subject to change without notice. 02-13-2002... -
Page 12: Fault Correction
− Battery defective. − Ensure that recharging process runs correctly. − Check transmitter functions using a fully charged or replacement battery. Radio Control System HBC-radiomatic GmbH • D -74564 Crailsheim • GERMANY 02-13-2002 Information and specifications subject to change without notice. -
Page 13: Maintenance
HBC-radiomatic GmbH – Customer Services / Repair Service – Tel.: +49 ( 0 ) 79 51 – 3 93 - 800 Radio Control System HBC-radiomatic GmbH • D -74564 Crailsheim • GERMANY Information and specifications subject to change without notice. 02-13-2002... -
Page 14: Technical Data
255 x 64 x 50 mm ( 9.8 x 2.5 x 2.2 " ) Weight approx. 450 g ( 1.0 lb. ) Protection class IP 55 ( Nema 4 ) Radio Control System HBC-radiomatic GmbH • D -74564 Crailsheim • GERMANY 02-13-2002 Information and specifications subject to change without notice. -
Page 15: Dimensions
BE-MICR5-3_V2-1.DOC [ Word 2000 ] US Page 15 / 18 Dimensions 31.379 STOP START 31.292 64 mm (2.5 ") 56 mm (2.2 ") Radio Control System HBC-radiomatic GmbH • D -74564 Crailsheim • GERMANY Information and specifications subject to change without notice. 02-13-2002... -
Page 16: Accessories
Transmitter labels micron 3 / 5, sheet 4 [ 31.385 ] G-900211 Self-adhesive foil DIN, colored D-900051 Self-adhesive foil SEB, colored D-900052 Radio Control System HBC-radiomatic GmbH • D -74564 Crailsheim • GERMANY 02-13-2002 Information and specifications subject to change without notice. -
Page 17: Certificates And Approvals
Operating Instructions Radio Transmitter micron 5-3 BE-MICR5-3_V2-1.DOC [ Word 2000 ] US Page 17 / 18 Certificates and Approvals Radio Control System HBC-radiomatic GmbH • D -74564 Crailsheim • GERMANY Information and specifications subject to change without notice. 02-13-2002... - Page 18 Operating Instructions Radio Transmitter micron 5-3 Page 18 / 18 BE-MICR5-3_V2-1.DOC [ Word 2000 ] US Radio Control System HBC-radiomatic GmbH • D -74564 Crailsheim • GERMANY 02-13-2002 Information and specifications subject to change without notice.
