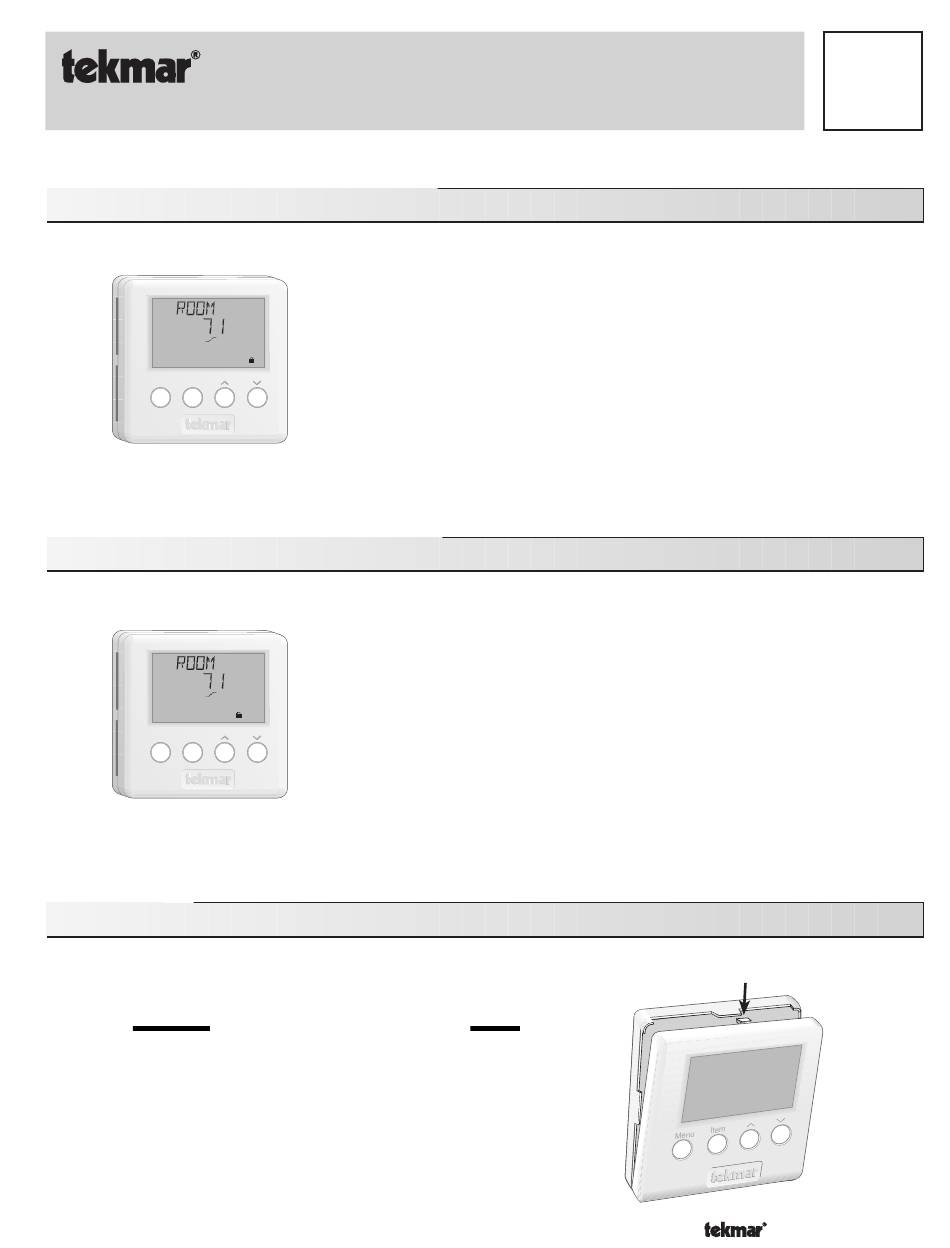

Tekmar 062 Data Brochure

- Data Brochure
Room Temperature Units (RTU) 062 and 063

Room Temperature Unit (RTU) 062

View
UnOcc 1
Menu Item

Room Temperature Unit (RTU) 063

View
UnOcc 1
Menu Item

Installation

STEP ONE REMOVING THE FRONT COVER
Place a small screwdriver or similar object into the small slot located in
the top of the RTU enclosure. Push the screwdriver down against the
plastic tab and pull the top of the front cover so that it pivots around the
bottom edge of the RTU. The back cover provides the base to which the
front of the RTU mounts. Store the front of the RTU in a safe place until
wiring must be completed.

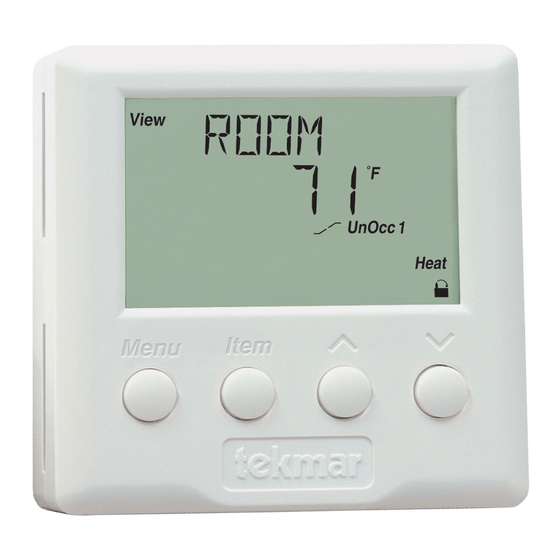

The tekmar Room Temperature Unit (RTU) 062 consists of an air temperature sensor, a
liquid crystal display (LCD) and four buttons. These buttons and the LCD are used to set
° F
and view the desired room temperature. The RTU's LCD displays the current
room temperature, the outdoor air temperature and a number of other items.
Heat
The 062 can only be used with tekmar controls that are tekmar Net™ capable (tN1 or
tN1/tN2) terminals. The items that the 062 displays depends on the type of tekmar control
that the RTU is connected to. To determine the exact items that are displayed by the
RTU, refer to the Data Brochure for the control that the 062 is to be used with. In cases
where a restricted temperature range is required, the RTU's range can be limited by
changing the access level of the RTU.
The tekmar Room Temperature Unit (RTU) 063 consists of one internal air sensor, three
remote temperature sensor inputs, a liquid crystal display (LCD) and four buttons. These
° F
buttons and the LCD are used to set and view the desired room temperature. The RTU's
LCD displays the current room temperature, the outdoor air temperature, temperatures
Heat
at the remote air or slab sensors, and a number of other items.
The 063 can only be used with tekmar controls that are tekmar Net ™ capable (tN1 or
tN1/tN2 terminals). The items that the 063 displays depends on the type of tekmar control
that the RTU is connected to. To determine the exact items that are displayed by the
RTU, refer to the Data Brochure for the control that the 063 is to be used with.
In cases where a restricted temperature range is required, the RTU's range can be limited
by changing the access level of the RTU.
1 of 4
D 062
06/99
Push tab and
remove cover
