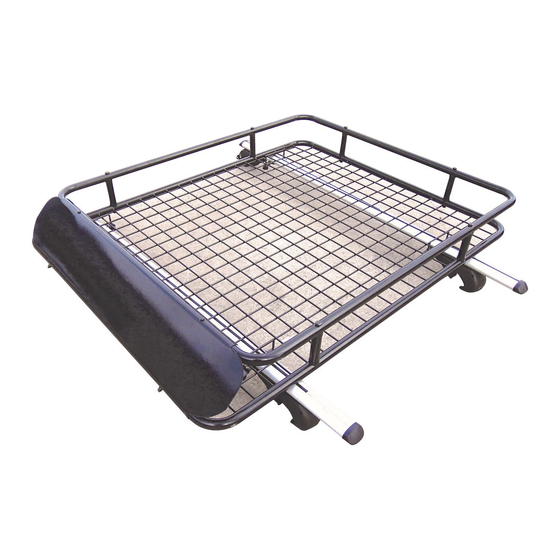

Cargo Roof Tray
Thank you for purchasing this Cargo Roof Tray from Streetwize.
This product is intended for use as an additional storage option for
vehicles. It is ideal for oversized items or items that are awkwardly
shaped. This Cargo Roof Tray is suitable for family weekend getaways,
road trips, staycations and off road adventures.
Please Note: This Cargo Roof Tray is designed to fit onto the roof bars
(not included). Please ensure your vehicle is fitted with suitable roof
bars. There should be a minimum of 700mm between each roof bar.
Also, please check the maximum load capacity of your vehicle.
Important: To ensure safe and secure fit of the roof cargo tray to your
vehicle's roof bars, the roof bars should have a max width of 93mm,
and max height of 33mm.
Before using this product, please read through all the information and
health & safety guidance in this document.
SWCRT
Advertisement
Table of Contents
Related Manuals for Streetwize SWCRT
Summary of Contents for Streetwize SWCRT
- Page 1 Cargo Roof Tray Thank you for purchasing this Cargo Roof Tray from Streetwize. This product is intended for use as an additional storage option for vehicles. It is ideal for oversized items or items that are awkwardly shaped. This Cargo Roof Tray is suitable for family weekend getaways, road trips, staycations and off road adventures.
- Page 2 Contents Elements For Assembling Roof Tray Elements For Attaching Roof Tray To Roof Bars Roof Tray Assembly Instructions Attaching The Roof Tray To Your Vehicle’s Roof Bar Health & Safety Guidelines Spare Parts Technical Specification...
- Page 3 Elements For Assembling Roof Tray Number Diagram Description Main frame of roof basket 1 Main frame of roof basket 2 Metal plate for front of roof tray Half saddle washer Metal spacer tube Lock Nut (M8) Screw (M8) Screw (M6) Lock Nut (M6) Washer (M6)
- Page 4 Elements For Attaching Roof Tray To Roof Bars Number Diagram Description Washer (M6) U Bolt Securing Nut Securing Plate Roof Tray Assembly Instructions F I G U R E 1 1. Firstly, remove all the product elements from its packaging and dispose of the packaging in the correct manner.
- Page 5 4. Then, carefully place the top roof frame basket frame (1) upside down on the floor, with the threaded assembled metal spacer facing upwards. 5. With the base steel mesh tray (2), align the screws coming through metal spacers with the pre-drilled holes on the base tray.
- Page 6 Attaching The Roof Tray To Your Vehicle’s Roof Bar Important: To safely attach the roof tray to your vehicle, you will need TWO people to lift the tray and position onto your vehicle. This helps to prevent any damage/scratches to your vehicle.
- Page 7 If you require any technical support or spare parts for your product within the warranty period, please contact us on support@streetwizeaccessories.com and provide the product name and supplier code (see Technical Specifications) along with the technical query and proof of purchase. Technical Specfications Streetwize Cargo Roof Tray Product Name Supplier Code SWCRT 65Kg...
- Page 8 Streetwize: Ashburton Road West, Trafford Park, Manchester M17 1RY For Product Support: For Trade Enquiries: E: support@streetwizeaccessories.com E: sales@streetwizeaccessories.com T: +44 (0)161 447 8597 T: +44 (0)161 447 8580 www.streetwizeaccessories.com EU Registered Address: Ace Supply Co (Europe) Ltd, 25 Herbert Place, Dublin 2,...
