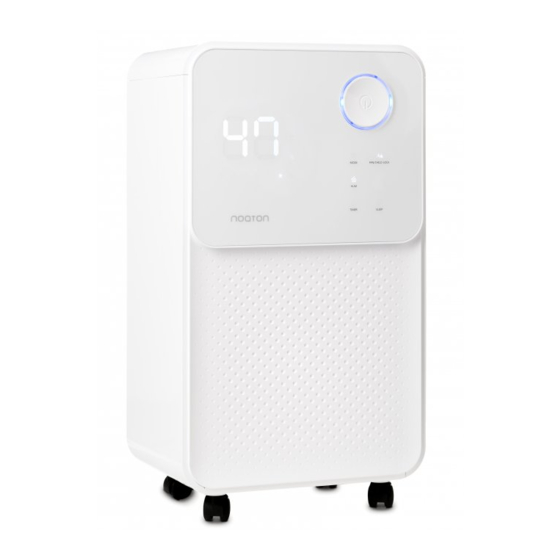

Noaton DF 4114 Instruction Manual

Air dehumidifier
Hide thumbs Also See for DF 4114:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
Noaton DF 4114
Air dehumidifier

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF 4114 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Noaton DF 4114

Summary of Contents for Noaton DF 4114

  • Page 1 INSTRUCTION MANUAL Noaton DF 4114 Air dehumidifier...
  • Page 2 Read the instructions for use. Read the relevant section in this User Guide before any use. This product must not be disposed of with other household waste at the end of its useful period, but must be taken to a collection point designated for the recycling of electrical equipment.

  • Page 3: Table Of Contents

    Table of Contents Safety Instructions ..........................4 Warning in relation to R290 refrigerant ..................5 Features ..............................6 Parameters ..........................7 Appearence ..........................9 Before starting ............................10 Filter installation......................... 10 Proper placement ..........................10 Functions (Control Panel) ........................11 Switching on the dehumidifier ......................

  • Page 4: Safety Instructions

    Safety instructions Read the instructions carefully before using the dehumidifier. 1. Install the unit on a level and solid floor to reduce vibration or noise. 2. Never immerse the unit in water or other liquids. 3. Never use the instrument if the cable or other connector is damaged or something unusual occurs. In this case, please contact customer service.

  • Page 5: Warning In Relation To R290 Refrigerant

    Warning in relation to R290 refrigerant This equipment is designed to use only R290 (propane) refrigerant, which is hermetically sealed under pressure in the refrigeration circuit. Repairs to this equipment may only be carried out by a specially trained service technician in accordance with national legislation relating to flammable substances! Do not tamper with the cooling circuit, pierce it or expose it to higher temperatures.

  • Page 6: Features

    Features Powerful dehumidification Using compressor technology, this dehumidifier removes excessive humidity in the room. Compact and portable design The simple design of the dehumidifier and its low weight guarantee very easy and effortless handling. Low temperature operation, automatic defrost If the ambient temperature is between 5 degrees Celsius and 16 degrees Celsius, the unit will automatically defrost at regular intervals.

  • Page 7: Parameters

    Parameters Power source 220V-240V/50Hz 180W (30℃,80%RH) Energy consumption 156W (27℃,60%RH) 0.95 A (30℃,80%RH) Rated current 0.88 A (27℃,60%RH) 13.5 L/den (32℃, 90%RH) 12 L/den (30℃,80%RH) Dehumidification capacity 6.8 L/den(27℃,60%RH) 1.781 Power efficiency (27℃,60%RH) Min. 40 dB Noise level Max. 44 dB Air flow max.
  • Page 8 Automatic shutdown when the tank is full Automatic humidity maintenance Restart and preserve settings during a power failure 0-24 h Timer (delayed start, delayed shutdown) Division of the device 280*200*500mm Division of the package 330*250*565mm Weight of the device 12 kg Weight of the package 13 kg Drain through hose...

  • Page 9: Appearence

    Appearance Air outlet Control panel Front cover Wheels Built-in handle Grill with pre-filter for air intake + carbon filter Hose outlet hole Water tank...

  • Page 10: Before Starting

    Before starting Filter installation 1. Remove the carbon filter from the plastic bag. 2. Remove the air intake pre-filter grille. 3. Insert the filter on the inside of the grille, the filter is inserted correctly if the black (carbon) side faces out of the unit.

  • Page 11: Functions (Control Panel)

    Features (Control panel) Switching on the dehumidifier When the unit is first plugged in, a beep sounds and "--" appears on the display. The device then enters standby mode. When the "on/off" button is pressed, the button will light up and the display will show the current ambient humidity and start in sunny mode (automatically maintaining 60% RH and high fan speed).

  • Page 12: Humidity Settings

    Humidity settings Press the humidity button ("HUM") and select the target humidity using the same button (each single press increases the humidity by 5%). Full tank indicator When the water tank is full, the "full tank" light will turn red and the device will beep 3 times to alert the user to empty the water tank.

  • Page 13: Button Control

    Button control Turn-on/Turn-off First start up – press the "on/off" button to turn on, the operation light around this button will light up and the unit will be set in sunny mode (automatically maintaining 60% RH and high fan speed). If the ambient humidity is less than 60% RH when the unit is first turned on, dehumidification will not start.

  • Page 14: Mode Button („Mode")

    Mode button („MODE“) Press once to switch from one mode to the other, then the corresponding indicator lights up. Sunny mode: The default target humidity is 60% when the machine is running, and the target humidity can be set, but the mode will turn off when it is changed. Rain mode: the default target humidity is 40% when the machine is running and the target humidity can be set, but the mode will turn off when it is changed.

  • Page 15: Indicators

    Indicators Ambient humidity indicator When the dehumidifier is switched on, the light ring around the on/off button appears in different colours according to the current and ambient humidity. Colour Ambient humidity Status (flashing) (lit) Blue 0% - 39% Defrosting Green 40% - 59% 60% - 100% The water tank is almost full...

  • Page 16: Continuous Hose Outlet

    Continuous hose outlet Water is collected in the tank, if you want to use a continuous drain hose, proceed as follows: 1. Remove the water tank. 2. Attach the drain hose (included) to the hose connection (10 mm diameter). Always make sure that the hose is pointing downwards and is not blocked or kinked.

  • Page 17: Memory Functions

    Memory functions • When the power cord is disconnected from the mains or when the power fails and the power is reconnected, the dehumidifier will operate in pre-shutdown mode. The timer setting will be cancelled. • Press the on/off button to turn the dehumidifier off and then turn it back on by pressing the same button.

  • Page 18: Storage

    Storage If the dehumidifier will not be used for a long period of time, please follow these instructions: Turn off the machine and remove the plug from the socket. Empty the tank and completely drain it and the dehumidifier. To ensure that the inside of the unit is completely dry, place it in a dry place for 2-3 days.

  • Page 19: Disposal

    Is the machine placed on a Place the device on a flat surface flat surface? Loud sound when running Are the filters clogged? Clean the filters according to the instructions Disconnect the device and reconnect Problem with the humidity if the problem persists, contact sensor professional service.
