Noaton DF 4114 Instruction Manual

Hide thumbs Also See for DF 4114:

Advertisement

Quick Links

Download this manual

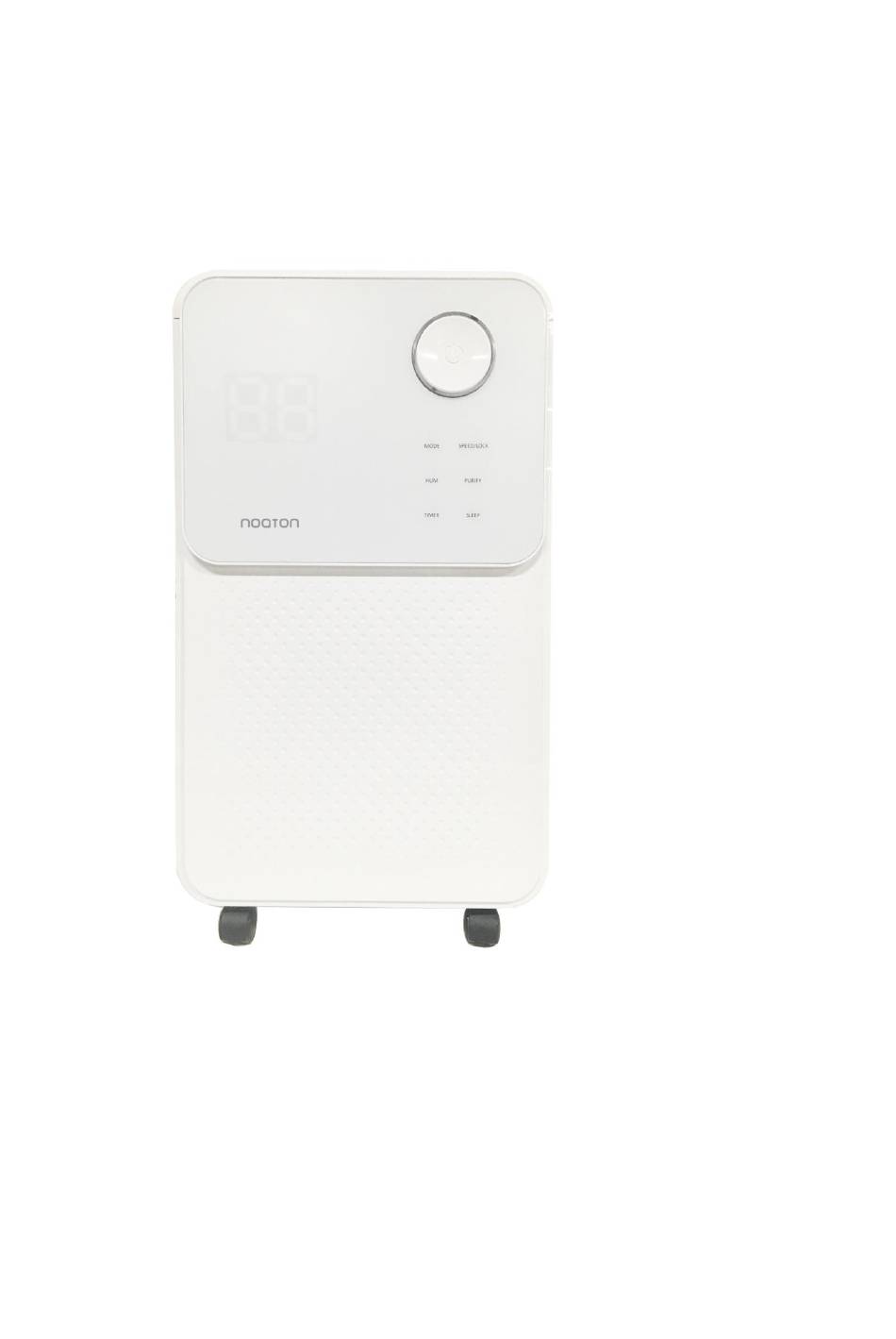

INSTRUCTION MANUAL

Noaton DF 4114
Please keep this manual carefully for further reference!
Thank you for selecting our super quality dehumidifier. Please be sure to
read this manual carefully before using it. Any questions, please contact
the professional service for help. Keep the manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DF 4114 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Noaton DF 4114

Summary of Contents for Noaton DF 4114

  • Page 1: Instruction Manual

    INSTRUCTION MANUAL Noaton DF 4114 Please keep this manual carefully for further reference! Thank you for selecting our super quality dehumidifier. Please be sure to read this manual carefully before using it. Any questions, please contact the professional service for help. Keep the manual for future reference.
  • Page 2 The dehumidifier will remove excess moisture from the air, creating a comfortable environment for your home and Office. Its compact design allows you to easily move it to every room. CONTENTS CONTENTS ................... 1 COUTIONS ..................2 PERFORMANCE................3 TECHNICAL PARAMETER ............... 4 APPERANCE.
  • Page 3 MAINTENANCE ................7 TROUBLESHOOTING ..............8...
  • Page 4 CAUTIONS Please read the operating instructions carefully before using your dehumidifier for the first time. Install the unit on flat and hard floor to diminish vibration or noise. Never immerse the unit in water or other liquids. Never operate the unit if the cable or other connector is damaged, or something abnormal may happen, please call customer service for help.
  • Page 5 by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. 12. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard 13.
  • Page 6 Low temperature working, automatic defrosting When the ambient temperature is greater than or equal to 5 degrees Celsius and less than or equal to 16 degrees Celsius, the machine will perform automatically defrosting at regular intervals. During the defrosting period, the compressor will not work but the fans will still work.
  • Page 7 PARAMETER Power Supply 220V-240V/50Hz 190W(30℃,80%) Power Consumption 156W(27℃,60%) 0.9A(30℃,80%) Rated Current 0.75A(27℃,60%) 14.7L/Day(30℃,80%RH Dehumidify Capacity 6.8L/Day(27℃,60%) 1.81 EF(26℃,60%RH) ≤36dB(A) Noise Air Circulation 120m Water Tank Refrigerant /Charge R134a/105g Working Temp. 5ºC-35ºC Recommend Room Size 15~25m²(height=2.6m) Control Type Screen Touch Auto Defrost Optional Air Purify Function with Ionizer Optional Tank Full Auto Stop...
  • Page 8 Auto Restart & Stop Function Timer 0-24hr Body Size 280*200*500mm Pack Size 330*250*565mm Net Weight 12kg Gross Weight 13kg...
  • Page 9 APPERANCE Air Outlet Control panel Front Cover Castor Built-in Handle Filter Continuous Drainage Outlet Water Tank...
  • Page 10 OPERATRIONS Dehumidifier Starting When the machine is plugged in for the first time, the buzzer sounds and the display shows “--”. And then the machine enters standby mode at this time. After pressing the power button, power button lights up and the current ambient humidity is displayed on the screen, then the dehumidifier begins running.
  • Page 11 high wind operation with the default target humidity of 60%. According to the ambient humidity, the compressor determines whether to run. Humidity Adjustment Press the humidity button to select the target humidity you need . At this time, the compressor operation condition depends on the current room humidity and dehumidifier you set.
  • Page 12 Clear the Water Tank 1. Grasp the hand position at the bottom of the tank and pull the tank out of the body. 2. 2. Empty the water in the tank.

  • Page 13: Power Button

    Button Operation Power Button In the standby state, press the power button to turn on, the operation indicator lights up and the default fan speed is high, at the same time the negative ion/UV light turning on, and the default humidity is 60% when the dehumidifier begins running.
  • Page 14 Purify Button Press this button to turn on or off the purification function. Timer Button Press the timer button to set the 0-24 hour timing function. The interval is 1 hour. Each time you press this button, the value increased 1 hours and then the corresponding timing value is displayed on the screen.
  • Page 15 again to exit the sleep mode. Mode Button Sunny day mode - Rainy day mode - continuously drying mode cycle, press once to switch the mode from one to another, the corresponding indicator lights up. In sunny mode: The default target humidify is 60% when machine running and the target temperature can be adjusted.
  • Page 16 Indicator...
  • Page 17 Power Indicator When the power cord is plugged in, after the dehumidifier turned on, the light ring around the power button will display different colors according to the current humidity and status. Ambient humidity <60%, it shows blue 60% = ambient humidity <80%, it turns green ambient humidity ≥...
  • Page 18 hen you set the wind speed to Sunny day mode, the Sunny mode indicator lights up. When you set the wind speed to rainy day mode, the rainy day mode indicator lights up. When you set the wind speed to continuously drying mode, the continuously drying mode indicator lights up.
  • Page 19 steel balls, Chemically treated dustproof cloth, Gasoline, benzene, thinners or other solvents chemically treated, as they may damage the water tank and cause leaking. 3. When putting in the water tank, push the water tank into the machine with both hands and put it in right position. If the tank is not in right position, the machine will not turn on or start up.
  • Page 20 and the water cannot flow fluently, which will lead to leakage. Take out the water tank...
  • Page 21 Put back the water tank and Connect the pipe put the pipe in right position Clearing dehumidifier Filter cleaning 1. Turn up the handle 2. Remove the filter frame 3. Remove the filter 4. Clean the filter: Use a vacuum cleaner to gently absorb the dust on the screen surface.
  • Page 22 Dehumidifier storage When you are not using the product for a long time and intend to store it, please pay attention to the following steps: 1. Empty the water in the water tank and wipe the water droplets on bottom of inside machine. 2.
  • Page 23 following figure...

  • Page 24: Troubleshooting

    Troubleshooting 1. Compressor running and stop conditions When the ambient temperature <5°C，or Ambient temperature> 38°C, or the humidity sensor fails, the compressor does not work: When 5°C ≤ Ambient temperature ≤ 16°C, the compressor automatically defrosts at intervals; during the defrosting, the compressor does not work, The fan still works.
  • Page 25 2. BEFORE CALLING FOR SERVICE Before contacting professional service, review this list. It may save your expense and time. This list includes common occurrences that are not the result of a defect in workmanship or materials. Problem Possible Cause Solution Connect to a functioning outlet and No power supply switch on...
  • Page 26 Without air intake Is the filter clogged? Wash the filter Is the machine put in the plat Put the machine in plat ground Loud noise when place? running Is the filter clogged? Wash the filter Connection mouth pull out and Humidity sensor problem connect it again, or change the sensor.
