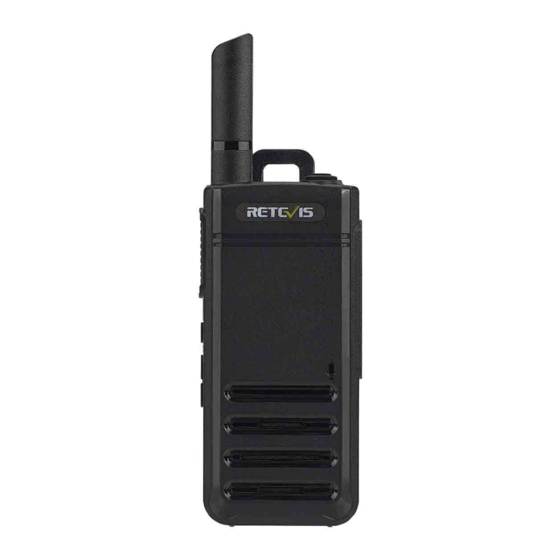

Retevis RB39 User Manual

Hide thumbs

Advertisement

Quick Links

RB39
USER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the RB39 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Retevis RB39

Summary of Contents for Retevis RB39

  • Page 1 RB39 USER’S MANUAL...

  • Page 2: Table Of Contents

    Contents Warning --------------------------------------------------------------------------------01 Charging precautions ---------------------------------------------------------------01 Function Operations ----------------------------------------------------------------01 LED indicators -----------------------------------------------------------------------02 Optional Functions ------------------------------------------------------------------02 Technical Specifications -----------------------------------------------------------04 Factory default settings ------------------------------------------------------------05 WARNING ----------------------------------------------------------------------------06...

  • Page 3: Warning

    Warning Please read this manual carefully before using this walkie-talkie. ・Please do not charge this walkie-talkie in areas that are flammable, explosive and where radio communication is prohibited (e.g. petrol stations, gas stations, airports, etc.). ・Please do not operate this walkie-talkie without a licence in areas where it is prohibited by government law. ・Please make sure that the walkie-talkie is protected from sunlight and avoid placing it near any heating device.

  • Page 4: Led Indicators

    LED indicators LED indicator Walkie-talkie working status Green light flashes slowly (5sec) Standby status Green light flashes slowly (200ms) Scan Status Red light is always on Being transmited Green light is always on Being received Red light flashes quickly Programming software is being operated to read data from the radio Green light flashes quickly Programming software is being operated to write data to the radio Red light flashes quickly...
  • Page 5 This radio supports the Call Tone function. When the radio is in standby, double-clicking the [PTT] button will send a call tone. During the sending process, the local speaker can hear the call tone, and other radio on the same channel can receive the call tone. Steps：...

  • Page 6: Technical Specifications

    •The programmable keys can also be preset to the Compandor function in the programming software (CPS), and Compandor function can be switched on or off by pressing and holding the programmable key. 16. Monitor •Monitoring can be set on/off via the programming software (CPS) (menu ticked as always on, default unchecked).

  • Page 7: Factory Default Settings

    Adjacent channel selectivity ≥60dB Current Standby 70mA, working 220mA Reference Frequency 26.000MHz Inter-modulation ≥60dB Spurious ≥55dB Audio distortion <5% Audio power <500mW Factory default settings FCC-RB39 CH NO. Frequency（MHz） Code(Hz) Power 462.5625 67.0 High 462.5875 118.8 High 462.6125 127.3 High 462.6375 131.8...
  • Page 8 Your Retevis two-way radio has a RF Exposure Product Label. Also, your Retevis user manual, or separate safety booklet includes information and operating instructions required to control your RF exposure and to satisfy compliance requirements.
  • Page 9 —Consult the dealer or an experienced radio/TV technician for help. CE Requirements: •(Simple EU declaration of conformity) Shenzhen Retevis Technology Co., Ltd. declares that the radio equipment type is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and the WEEE Directive 2012/19/EU;...
  • Page 10 When operating in front of the face, worn on the body, always place the radio in a Retevis approved clip, holder, holster, case, or body harness for this product. Using approved body-worn accessories is important because the use of Non-Retevis approved accessories may result in exposure levels, which exceed the IEEE/ICNIRP RF exposure limits.

  • Page 11: Warning

    •The adapter shall be installed near the equipment and shall be easily accessible Approved Accessories •This radio meets the RF exposure guidelines when used with the Retevis accessories supplied or designated for the product. Use of other accessories may not ensure compliance with the RF exposure guidelines and may violate regulations.
  • Page 12 1.This guarantee card should be kept by the user, no replacement if lost. 2.Most new products carry a two-year manufacturer’s warranty from the date of purchase. Further details, pls read http://www.retevis.com/after-sale/ 3.The user can get warranty and after-sales service as below: ・Contact the seller where you buy.
  • Page 13 Shenzhen Retevis Technology Co.,Ltd. 7/F, 13-C, Zhonghaixin Science&Technology Park, No.12 Ganli 6th Road, Jihua Street, Longgang District, Shenzhen, China Web:www.retevis.com E-mail:kam@retevis.com Facebook:facebook.com/retevis MADE IN CHINA...
  • Page 14 说明书要求 尺寸：120*160mm 印刷：黑白印刷 装订：胶黏订 纸张材质：双胶纸 本页无需印刷...
