- Page 1 SYMPHONY DANTE NETWORK AUDIO MUSICIAN’S TWIN HEADPHONE & MICROPHONE AMPLIFIER SYSTEM PRODUCT DETAILS 6 BROOKS PLACE, MAIDSTONE, KENT, ME14 1HE. ENGLAND. TEL: +44 (0) 1622 753662 Visit our Website at www.glensound.co.uk FAX: +44 (0) 1622 762330...
- Page 2 Glensound Electronics Ltd Thank you for choosing a new Glensound product. All rights reserved. Information contained in this manual is subject to change without notice, if in doubt please contact us for the latest product information. If you need any help with the product then we can be contacted at: Glensound Electronics Ltd 1 –...
-
Page 3: Product Warranty
PRODUCT WARRANTY: All equipment is fully tested before dispatch and carefully designed to provide you with trouble free use for many years. We have a policy of supporting products for as long as possible and guarantee to be able to support your product for a minimum of 10 years. For a period of one year after the goods have been despatched the Company will guarantee the goods against any defect developing after proper use providing such defects arise solely from faulty materials or... - Page 4 Emissions: EN55103.1 Immunity: EN55103.2 WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT REGULATIONS 2006 (WEEE) Glensound Electronics Ltd is registered for business to business sales of WEEE in the UK our registration number is: WEE/JJ0074UR RoHS DIRECTIVE EC directive 2002/95/EC restricts the use of the hazardous substances listed below in electrical and electronic equipment.
-
Page 5: Table Of Contents
GLENSOUND SYMPHONY Handbook Contents Issue 1, November 2016 Description Page No. Contents PRODUCT WARRANTY: ............................ 3 OVERVIEW ................................6 BLOCK DIAGRAM ............................... 7 PANEL LAYOUT & FUNCTIONS........................8 CONNECTING THE INFERNO TO A DANTE NETWORK ................13 Getting Dante Controller ..........................13 Connecting Symphonys To The Network .................... -
Page 6: Overview
The Symphony is designed to be mounted on a microphone stand and when done will present the musician operator with easy access to the headphone mixer/ monitoring controls and also the talkback circuit. The set up controls for setting the microphone amplifiers gain, phantom power &... -
Page 7: Block Diagram
Phantom On/ Off Controlled By Micro +48V REMOTE CONTROLLED GAIN MIC AMP MIC AMP GAIN Ethernet Phy Control Data To/ From Micro Control Data To/ From Micro DOWN Bi Directional High PoE Take Off DANTE Speed Multiplexed Digital Audio FPGA ETHERNET SWITCH +3.3V +12V... -

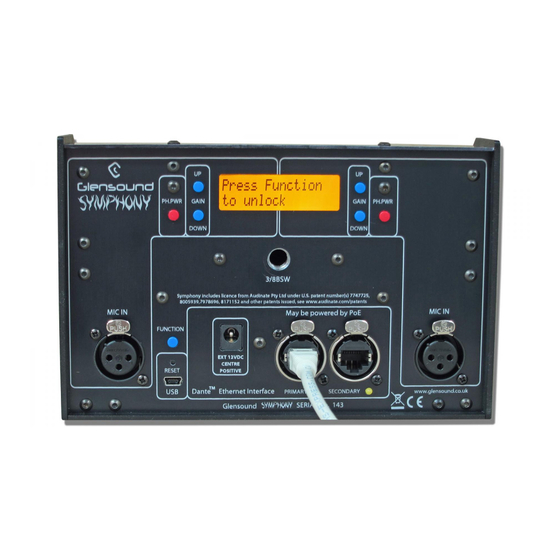

Page 8: Panel Layout & Functions
PH.PWR GAIN GAIN PH.PWR DOWN DOWN 3/8BSW Symphony includes licence from Audinate Pty Ltd under U.S. patent number(s) 7747725, 8005939,7978696, 8171152 and other patents issued, see www.audinate.com/patents MIC IN MIC IN May be powered by PoE FUNCTION EXT 12VDC CENTRE... - Page 9 The standard 3/8BSW (British Standard Whitworth) is a standard thread size used by many microphone stands. The threaded hole in the Symphony is mounted in a steel bar and is designed for supporting the unit while mounted onto a microphone stand.
- Page 10 11. USB Socket This is used for connecting a PC to the inferno for updating its firmware. 12. Reset Switch Only use if advised to by support. Page 10 of 16...
- Page 11 (20) is operated then the output of the talkback microphone is routed to the Dante network. 14. Power On LED The green power on LED indicates that the Symphony is receiving power and that it is turned on and running. Page 11 of 16...
- Page 12 15. Mix Level Controls These 3 potentiometers (marked MIX 1, MIX 2 and MIX 3) adjust the headphone mix level (volume) of the associated input circuit being received across the Dante network. Each ‘MIX’ has an associated stereo input being received from the Dante network.
-
Page 13: Connecting The Inferno To A Dante Network
Symphonys can be connected to the network that you are going to use for your audio distribution simply by plugging in either or both of the network connections on the rear. Once connected to the network it will be possible to see the Symphony from within the Dante controller and route its’ audio circuits. -
Page 14: Running Dante Controller
The format used for the factory name is: ‘Symphony-serial-141-of63e2’ Where ‘Symphony-serial-141’ refers to the Glensound product i.e. Symphony and its serial no (in this case 103) and ‘of63e2’ refers to the units Dante Brooklyn II module and its MAC address. -
Page 15: Updating Firmware
UPDATING FIRMWARE 1. General The Symphony is a complex digital audio system comprising of a DSP and several Micro Controllers. All these items run software and may need to be occasionally updated. 2. Single File One single update file contains all the updated software for the internal devices. -
Page 16: Wiring Information
3: MATE/ NEGATIVE/ MIC - RING SLEEVE STANDARD HEADPHONE WIRING: TIP: A/ LEFT Ear RING: B/ RIGHT Ear SLEEVE: Common/ Earth Symphony External DC power input: 2.5mm Barrel, Centre +Ve, 9 to 15 Volts, 1 Amp Page 16 of 16...
