In the "LoRaWAN Gateway Device Rules
splitted in two: "Uplink Rules" for the data to be received from LoRaWAN and mapped to PROFINET side and "Downlink Rules" for the data to
be written from PROFINET to LoRaWAN side.

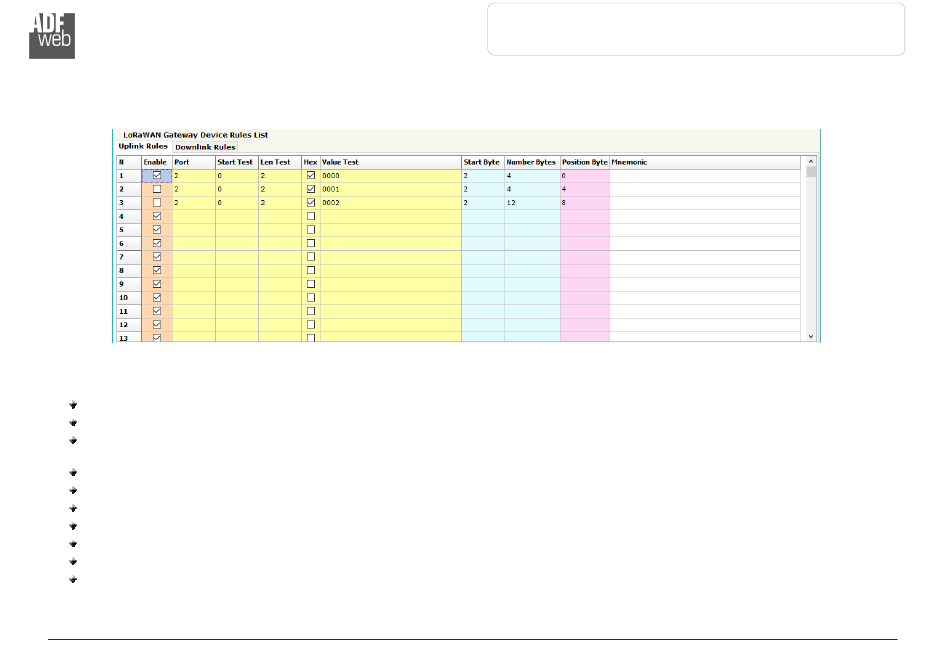

Figure 4b: "Uplink Rules" table
The means of the fields in the window "Uplink Rules" are the following:
If the field "Enable" is checked, the LoRaWAN rule is enabled;
In the field "Port" the port used for LoRaWAN communication is defined;
In the field "Start Test" it is possible to define the starting byte to check (offset inside the LoRaWAN message) for recognizing
specific LoRaWAN messages from end device (optional);
In the field "Len Test" the number of bytes to check from the starting one is defined (optional);
If the field "Hex" is checked, the data inside the LoRaWAN message is defined as Hex string (optional);
In the field "Value Test" the data to look for inside the test bytes is defined (optional);
In the field "Start Byte" the starting byte to save from the LoRaWAN message (offset) is defined;
In the field "Number Bytes" the number of consecutive bytes to save from starting byte is defined;
In the field "Position Byte" the address of PROFINET array where mapping the data from LoRaWAN is defined;
In the field "Mnemonic" a description of the LoRaWAN rule is defined.
ADFweb.com S.r.l.
List", the list of rules to get LoraWAN data from selected end device is defined. The table is
