10
EN
To assure safety, make sure all units are turned off before making any connections.
We recommend that you use the AC Power Adapter/Charger.
When connecting a cable with a core filter attached, be sure to plug the connector equipped
with the core filter into the video camera.
Do not make any connections to the video camera's DV OUT connector.

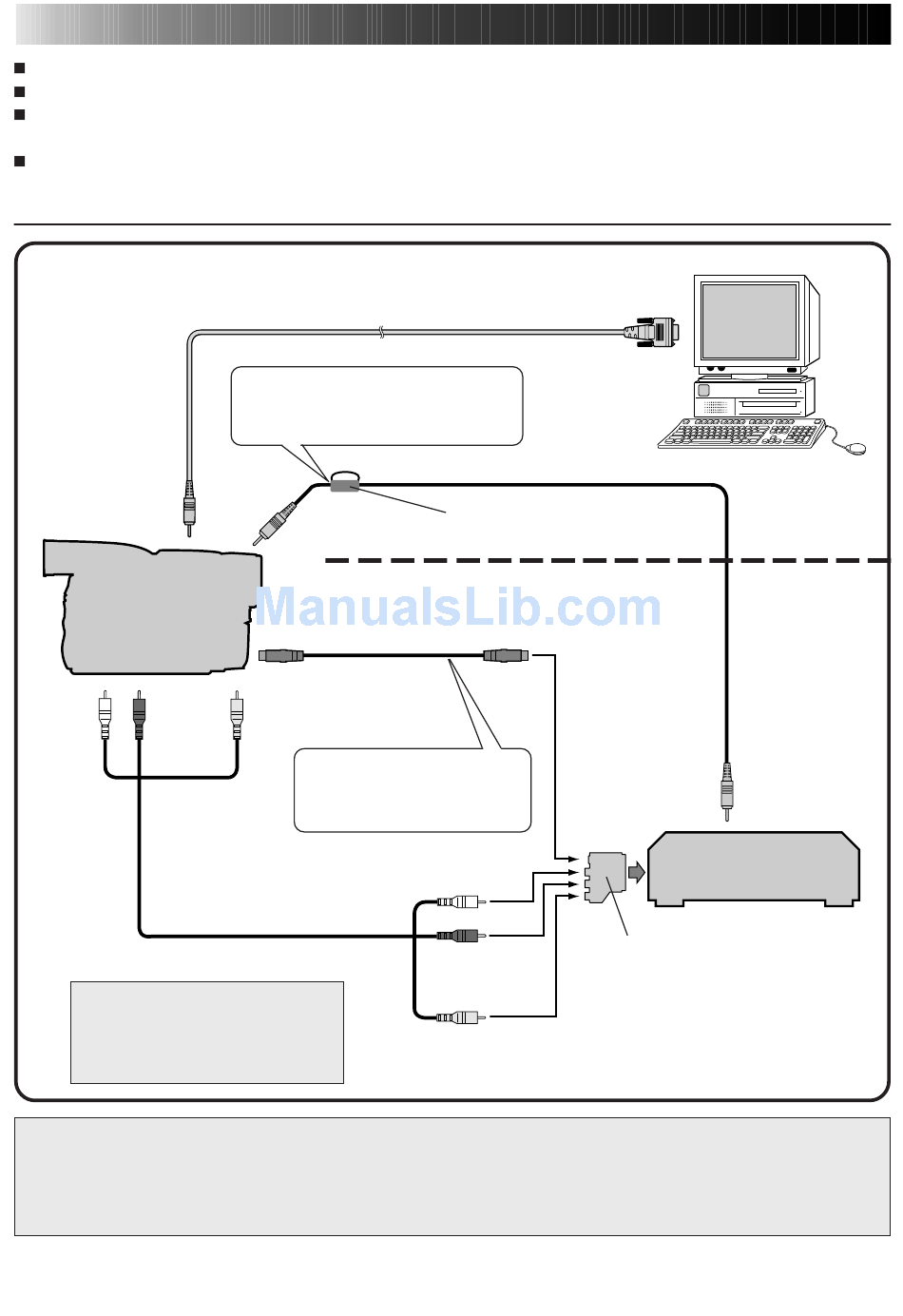

WHEN CONNECTED TO A VCR EQUIPPED WITH A JLIP JACK
When JLIP Video Capture is used:
To PC jack
Video Camera
White to Red to
AUDIO AUDIO
L R
NOTE:
The JLIP cable can only be
used with JVC VCRs equipped
with a JLIP jack.
NOTE:
The JLIP cable is optional. Be sure to use the following:
•JLIP cable: PEAC0453
Consult your nearest JVC Technical Support Centre for details about availability (see page 20).
PC connection cable (provided)
Attach the core filter provided
with your video camera, referring
to its instruction manual.
To JLIP jack
When JLIP Video Producer is used:
S-VIDEO cable
To S OUT jack
Yellow to
VIDEO
Connect this if the video
source unit has an S-Video
input jack.
AUDIO/VIDEO cable
To COM port
(RS-232C)
Core filter
To S-VIDEO
input jack
White to
AUDIO L
If your VCR has a SCART
Red to
connector, use the cable
AUDIO R
adapter.
Yellow to
VIDEO
CONNECTIONS
PC
JLIP cable
To JLIP jack
VCR
(Recording deck)
