Summary of Contents for Spectrum AR7350

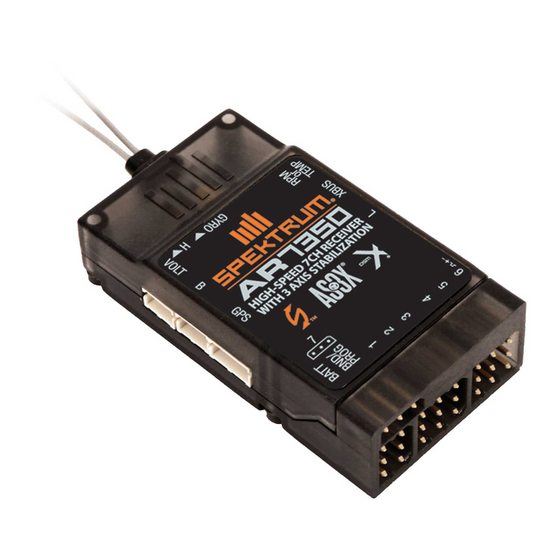

- Page 1 AR7350 User Guide AR7350 Bedienungsanleitung Guide de L’utilisateur - AR7350 AR7350 Guidea Dell’utente...
-
Page 2: Warranty Registration
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury. -
Page 3: Specifications
Resolution: 2048 Compatibility: All DSM2 and DSMX Aircraft Transmitters and Module Systems Binding The AR7350 receiver must be bound to the transmitter before it will operate. Binding is the process of teaching the receiver the specific code of the transmitter so it will only connect to that specific transmitter. 1. Connect at least one remote receiver to the main receiver. - Page 4 2 inches away from the main receiver’s antenna using double-sided foam tape. Using the AR7350 Receiver With AS3X By default, AS3X technology is turned off in AR7350 receivers. Before activating AS3X, you will need to properly install the receiver in the aircraft and download the AS3X application to your mobile device.
-
Page 5: Programming Smartsafe
Setting the Failsafe Positions The Receiver features two types of failsafe: SmartSafe and Preset Failsafe. SmartSafe SmartSafe failsafe is recommended for most aircraft. ™ When the transmitter and receiver are turned on, the receiver connects to the transmitter and normal control of all channels occurs. If loss of signal occurs, SmartSafe moves the throttle channel to its preset failsafe position (low throttle) that was set during binding. -
Page 6: Advanced Range Testing
• Receiver battery pack (number of cells, capacity, cell type, state of charge) • The ESC’s capability to deliver current to the receiver in electric aircraft • The switch harness, battery leads, servo leads, regulators etc. The AR7350 has a minimum operational voltage of 3.5 volts; it is highly recommended the power system be tested per the guidelines below. Recommended Power System Test Guidelines If a questionable power system is being used (e.g. small or old battery, ESC that may not have a BEC that will support high-current draw, etc.), it is... - Page 7 Flight Log (SPM9540 Optional) The Flight Log is compatible with the AR7350. The Flight Log displays overall RF link performance as well as the individual internal and external receiver link data. Additionally it displays receiver voltage.
- Page 8 Frequently Asked Questions on Spektrum 2.4GHz 1. Q: After I’ve bound the receiver to my transmitter, which do I turn on first when I want to fly? A: E ither one. Every DSM 2.4GHz transmitter has a GUID (Globally Unique Identifier) code imbedded in its signal. When you bind a DSM receiver to your transmitter, this GUID code is stored in the receiver. If you turn the receiver on before the transmitter, you don’t have to worry about it responding to another transmitter.
-
Page 9: Year Limited Warranty
1-YEAR LIMITED WARRANTY What this Warranty Covers - Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship for a period of 1 year from the date of purchase. What is Not Covered - This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) - Page 10 our website at www.horizonhobby.com, submit a Product Support Inquiry at https:// horizonhobby.quickbase.com/db/bghj7ey8c?a=GenNewRecord, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative. Inspection or Services - If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number.
-
Page 11: Warranty And Service Contact Information
Warranty and Service Contact Information Country of Horizon Hobby Contact Information Address Purchase Horizon Service Center servicecenter.horizonhobby. (Repairs and com/RequestForm/ Repair Requests) United 4105 Fieldstone Rd Horizon Product www.quickbase.com/db/ States of Champaign, Illinois, Support bghj7ey8c?a=GenNewRecord America 61822 USA (Product Techni- 888-959-2305 cal Assistance) sales@horizonhobby.com... -
Page 12: Eu Compliance Statement
EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the EMC Directive. A copy of the EU Declaration of Conformity is available online at: http://www.horizonhobby.com/content/support-render-compliance. Instructions for disposal of WEEE by users in the European Union This product must not be disposed of with other waste. - Page 13 © 2016 Horizon Hobby, LLC DSM, DSM2, DSMX, QuickConnect, ModelMatch, STi, Hangar 9, AS3X, SmartSafe and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. JR is a registered trademark of JR Americas.
