Summary of Contents for Spectrum SR410
- Page 1 SR410 Instruction Manual...
-
Page 2: Warranty Registration
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury. -
Page 3: Specifications

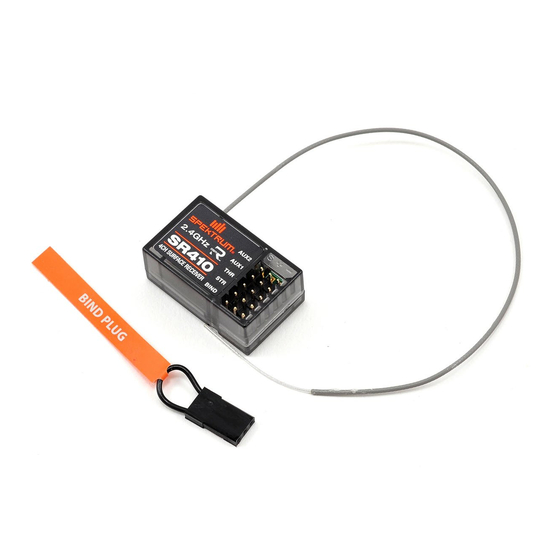

SR410 Instruction Manual The Spektrum™ SR410 4-channel DSMR® Sport Surface receiver is compat- ible with all Spektrum DSMR surface transmitters. The SR410 receiver is NOT compatible with DSM® or DSM2® transmitters. Specifications Type: DSMR Dimensions (LxWxH): 1.30 x .80 x .53 in (32.8 x 20.3 x 13.5mm) Channels: 4 Weight: 0.25 oz (7.2 g) - Page 4 Powering the receiver with a separate receiver pack Receiver Throttle Servo Steering Servo Battery Powering the receiver with an ESC To Motor Battery Electronic Speed Control Receiver Steering Servo Binding Receiver to Transmitter In order to operate, the receiver must be bound to the transmitter. Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifier) code of a single specific transmitter.
-
Page 5: Year Limited Warranty
2.4GHz Troubleshooting Guide Problem Possible Cause Solution The system Your transmitter and receiver Move transmitter 8 to 12 will not con- are too close together feet from receiver nect You are around metal objects Move to an area with less metal The model selected is not the Check model selected and... -
Page 6: Warranty Services
What is Not Covered This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modi- fication of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, or (vi) Product not compliant with applicable... - Page 7 that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call 877.504.0233 toll free to speak to a Product Support representative. Inspection or Services If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number.
- Page 8 Warranty, Service and Customer Service Contact Information Country of Purchase Horizon Hobby Address Phone Number/Email Address United Horizon Service 4105 Fieldstone Rd 877-504-0233 States of Center Champaign, Illinois Online Repair Request: America (Electronics and 61822 USA visit www.horizonhobby.com/ engines) service Horizon Product 4105 Fieldstone Rd 877-504-0233...
-
Page 9: Compliance Information For The European Union
Compliance Information for the European Union Declaration of Conformity (in accordance with ISO/IEC 17050-1) No. HH2012110404 Product(s): SPM SR410 4-Channel Receiver Item Number(s): SPMSR410 Equipment class: The object of declaration described above is in conformity with the require- ments of the specifications listed below, following the provisions of the European R&TTE directive 1999/5/EC:... - Page 11 ©2012 Horizon Hobby, Inc. DSM, DSM2, DSMR and the Horizon Hobby logo are trademarks or registered trademarksof Horizon Hobby, Inc. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Created 10/12 37720 SPMSR410...
