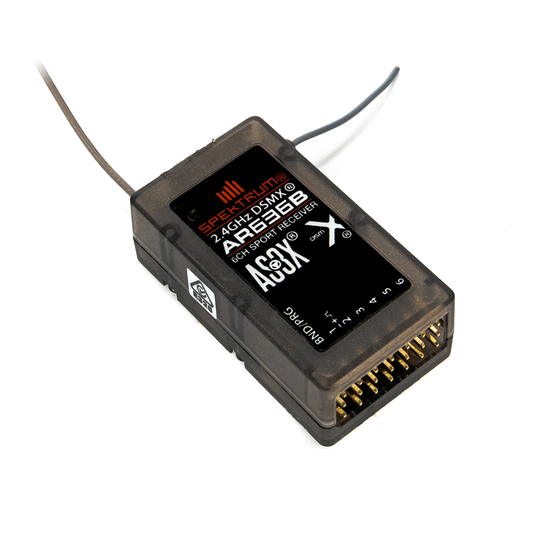

- Page 1 AR636B User Guide AR636B Bedienungsanleitung Guide de L’utilisateur - AR636B AR636B Guidea Dell’utente...
-
Page 2: Warranty Registration
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com or towerhobbies.com and click on the support or resources tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability... - Page 3 (Bind, Programming port) Binding The AR636B receiver must be bound to the transmitter before it will operate. Binding is the process of teaching the receiver the specific code of the transmitter so it will only connect to that specific transmitter.
- Page 4 (see Receiver Installation below). Using the AR636B Receiver With AS3X By default, AS3X technology is turned off in AR636B receivers. Before activating AS3X, you will need to properly install the receiver in the aircraft and download the Spektrum Programmer to your mobile device.
- Page 5 Important: Y-Harnesses and Servo Extensions When using a Y-harness or servo extensions in your installation, it’s important to use standard, non-amplified Y-harnesses and servo extensions. Amplified Y-harnesses and servo extensions will cause the servos to operate erratically or not function at all. Setting the Failsafe Positions The Receiver features two types of failsafe: SmartSafe and Preset Failsafe.
- Page 6 • The ESC’s capability to deliver current to the receiver in electric aircraft • The switch harness, battery leads, servo leads, regulators etc. The AR636B has a minimum operational voltage of 3.5 volts; it is highly recommended the power system be tested per the guidelines on next page.
- Page 7 Flight Log (SPM9540 Optional) The Flight Log is compatible with the AR636B. The Flight Log displays overall RF link performance as well as the individual internal and external receiver link data. Additionally it displays receiver voltage. ModelMatch Technology ™ Some Spektrum transmitters offer a patent pending feature called ModelMatch.
-
Page 8: Year Limited Warranty
1-YEAR LIMITED WARRANTY What this Warranty Covers - Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship for a period of 1 year from the date of purchase. ... - Page 9 questions and service you in the event that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative.
-
Page 10: Warranty And Service Contact Information
Warranty and Service Contact Information Country of Horizon Hobby Contact Information Address Purchase Horizon Service Center servicecenter.horizonhobby.com/ (Repairs and Repair RequestForm/ Requests) 2904 Research Horizon Product productsupport@horizonhobby.com. United States of Rd. Champaign, Support America Illinois, 61822 (Product Technical 877-504-0233 Assistance) websales@horizonhobby.com Sales 800-338-4639... -
Page 11: Compliance Information For Canada
Compliance Information for Canada IC ID: 6157A-AMRX21 CAN ICES-3 (B)/NMB-3(B) This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1)this device may not cause interference, (2)this device must accept any interference, including interference that may cause undesired operation of the device. - Page 12 © 2020 Horizon Hobby, LLC DSM, DSM2, DSMX, the DSMX logo, AirWare, Hangar 9, AS3X, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. IOS is a trademark or registered trademark of Cisco in the U.S.
