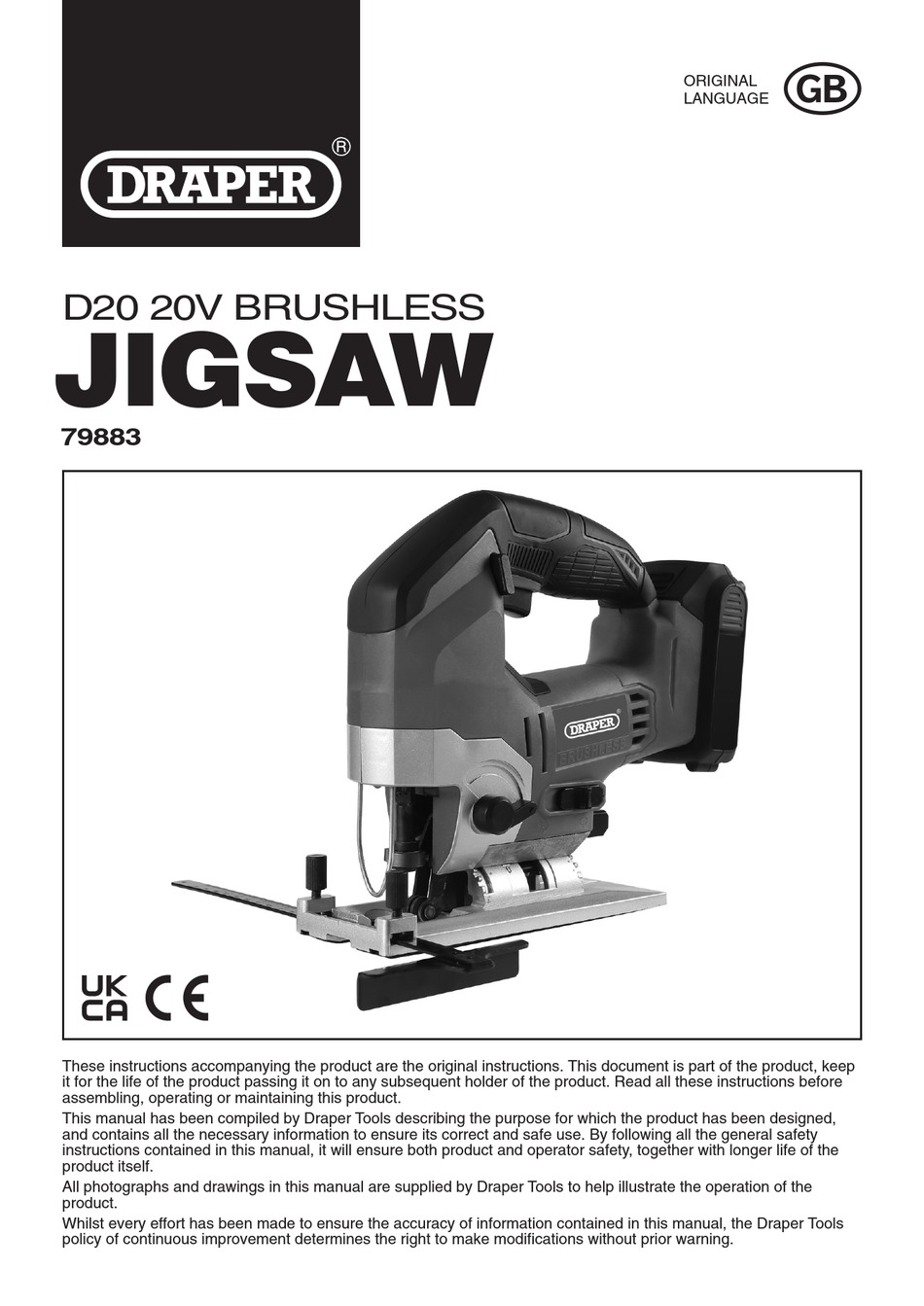

D20 20V BRUSHLESS
JIGSAW
79883
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
ORIGINAL
LANGUAGE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper D20

Summary of Contents for Draper D20

  • Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    TITLE PAGE INTRODUCTION: USER MANUAL FOR: D20 20V Brushless Jigsaw Stock No: 79883. Part No: D20JS. REVISIONS: Date first published August 2021. As our user manuals are continually updated, users should make sure that they use the very latest version.

  • Page 3: Table Of Contents

    CONTENTS TABLE OF CONTENTS TITLE PAGE INTRODUCTION: ......................2 REVISIONS: ......................... 2 UNDERSTANDING THIS MANUALS SAFETY CONTENT: ......... 2 COPYRIGHT © NOTICE: ..................... 2 CONTENTS TABLE OF CONTENTS ....................3 WARRANTY WARRANTY ......................... 4 INTRODUCTION SCOPE ......................... 5 SPECIFICATION ......................5 HANDLING AND STORAGE ..................

  • Page 4: Warranty 3.1 Warranty

    This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period.

  • Page 5: Introduction

    INTRODUCTION SCOPE This hand held power tool is designed to cut wood and mild steel materials. As part of our core range, this product is suitable for enthusiasts and tradespeople alike. Any application other than that it was intended for, is considered misuse. SPECIFICATION Stock No.

  • Page 6: Health And Safety Information

    HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE Warning! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 7: Cordless Jigsaw Safety Warnings

    HEALTH AND SAFETY INFORMATION g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
  • Page 8 HEALTH AND SAFETY INFORMATION 8) Make sure the blade is not contacting the workpiece before the switch is turned on. 9) Keep hands away from moving parts. 10) Do not leave the tool running. Operate the tool only when hand-held. 11) Always switch off and wait for the blade to come to a complete stop before removing the blade from the workpiece.

  • Page 9: Technical Description

    TECHNICAL DESCRIPTION IDENTIFICATION (10) (1) Lock on button. (7) Dust extraction outlet. (2) Switch trigger. (8) Base plate. (3) Orbital/pendulum speed adjustment (9) Anti-splinter guard. switch. (10) Bevel cutting adjustment locking bolt. (4) Parallel guide locking bolt. (5) Parallel guide. (6) Quick change blade clamp.

  • Page 10: Unpacking And Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 11: Preparing The Jigsaw

    PREPARING THE JIGSAW BLADE INSTALLATION AND REPLACEMENT – FIGS.1–2 − Before installing the jigsaw blade, make sure that the blade clamp lever (6) is in the released position. − To install the jigsaw blade, insert the blade (teeth facing forward) into the blade holder. The lever moves to the fixed position and the blade is locked.

  • Page 12: Operation

    OPERATION SWITCH ACTION – FIG.3 − To turn on the tool, press the lock/unlock button (1). The tool goes into standby mode. To start the tool, pull the switch trigger (2). To stop the tool, release the switch trigger, and the tool goes back into standby mode.

  • Page 13: General Cutting

    BASIC JIGSAW OPERATIONS GENERAL CUTTING Important: Always wear safety goggles. Important: Due to the shape of the body, this machine can be operated with only one hand, but for reasons of safety it is strongly advised to keep both hands on the machine during use. Note: Applying pressure on the blade can overload the motor and result in damage.

  • Page 14: Parallel Guide

    − Contact Draper Tools for details of the comprehensive range of professional CE marked face masks available – all conforming to EN specifications.

  • Page 15: Maintenance And Troubleshooting

    10. MAINTENANCE AND TROUBLESHOOTING 10.1 MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. Avoid blocking the air inlets and vacuum the ventilation slots regularly.

  • Page 16: Optional Accessories

    11. OPTIONAL ACCESSORIES 11.1 OPTIONAL ACCESSORIES A full range of accessories are available from Draper Tools. Please visit our website for details: www.drapertools.com – 16 –...

  • Page 17: Disposal

    12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •...

  • Page 18: Explanation Of Symbols

    13. EXPLANATION OF SYMBOLS 13.1 EXPLANATION OF SYMBOLS Read the instruction manual. Bayonet fitting jigsaw blade. Wear face mask and safety Class II construction glasses. (Double insulated). WEEE – Waste Electrical & Electronic Equipment. Wear ear defenders. Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish.
  • Page 19 NOTES – 19 –...
  • Page 20 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.

This manual is also suitable for:

D20js79883
