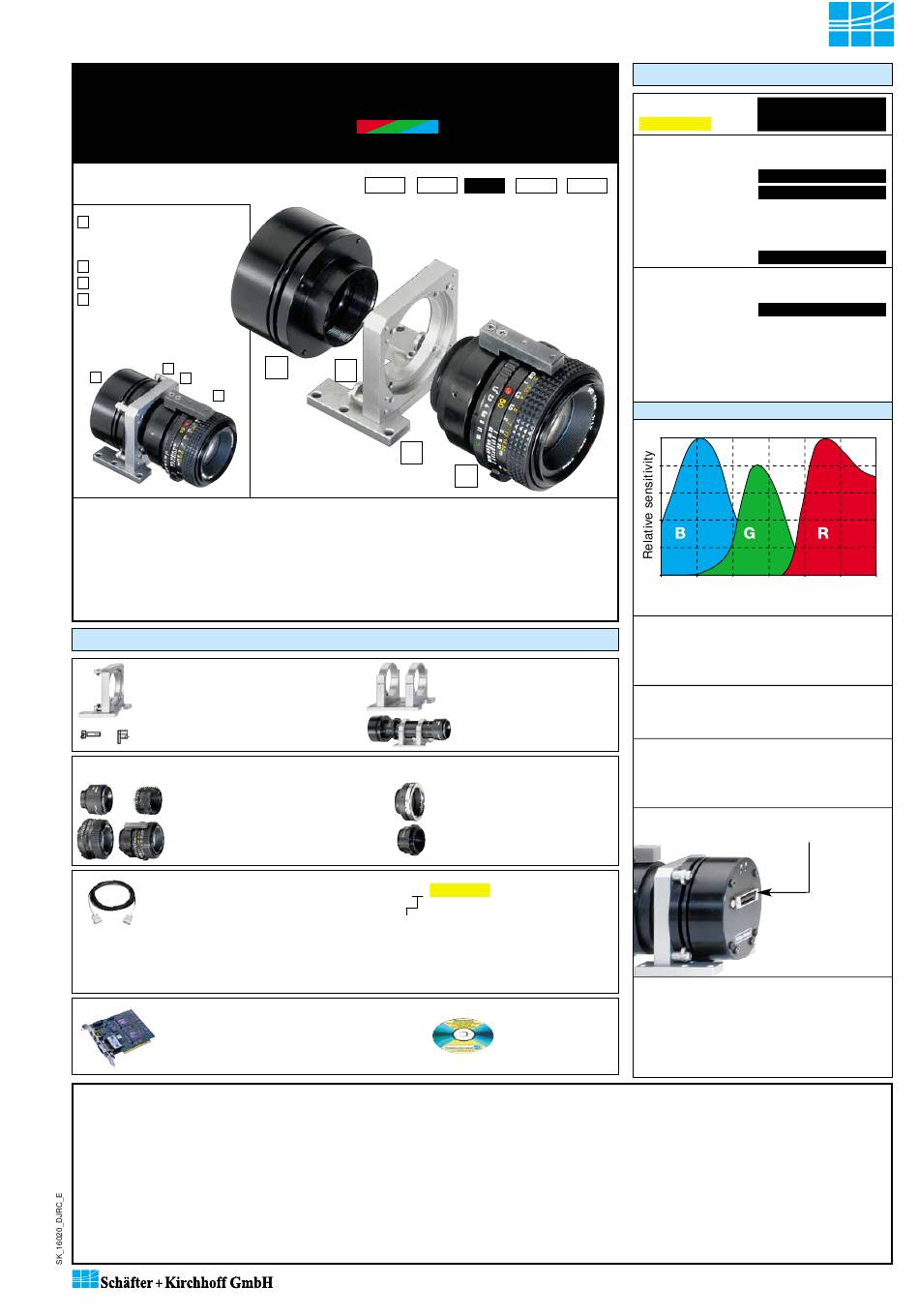

Schäfter+Kirchhoff DJRC Series Manual

www.SuKHamburg.de · eMail: info@SuKHamburg.de
CCD LineScanCamera Digital Color
SK 16020 DJRC
Triple-Line-Sensor, 5340xred, 5340xgreen, 5340xblue
Camera Family DJRC
CCD line scan camera
1
SK 16020 DJRC
mounting:
Camera mount SK5105
2
Clamp set SK5102
3
Photo lens with
4
blocking bridge
3
1
2
4
Characteristics
• Digital camera 8 Bit, Color
• Triple-Line-Sensor
• 5340 x red, 5340 x green, 5340 x blue
• Line frequency up to 0.92 kHz
Accessories (optional)
Camera Mount SK 5105 Order Code
Wrap resistant construction for mounting
the CCD Line Scan Camera.
Optional: Clamp set SK 5102 Order Code
to lock the CCD Line Scan Camera in
arbitrary rotation.
Lenses
- high resolution Enlarging and
Macro Lenses
- high speed Photo Lenses
- Lenses including blocking brid-
ge for locking focal and apertu-
re setting.
Cable set SK9019 for
digital CCD Line Scan Cameras
of the series XSD, DPD, DPT, DJR,
DJRC etc.
36-filament shielded cable for camera control
and video signals. Standard: 3m cable length,
one- or two-sided Centronics connector (fema-
le).
PC-Interface SK 9192 D Order Code
Interface for digital CCD Line Scan Cameras
PCI-Bus, preprocessing on-board:
Shading Correction, Windowing, Thresholding
external Synchronisation (LineSync, FrameSync)
Content
Characteristic, Performance, Optional Accessories . . . . . . . . . . . . 1
1. Technical Specifications of the DJRC Series . . . . . . . . . . . . . . . 2
2. Handling Details of the Line Scan Camera . . . . . . . . . . . . . . . . . 2
3. Connecting and Control Signals . . . . . . . . . . . . . . . . . . . . . . . . 3
Pin Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Voltage Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Digital Control Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
4. Exposure and Integration Control . . . . . . . . . . . . . . . . . . . . . . . .4
Kieler Str. 212, D-22525 Hamburg - Tel: +49 (0)40 8539 97 0 - Fax: +49 (0)40 853997 79 - eMail: info@SuKHamburg.de - Web: http://www.SuKHamburg.de
8100 10944
1
3
2
• very light-sensitive
• LVDS interface
• low power consumption
• Round housing Ø 65 mm
Mounting Console SK5105-2
for the adaption of the macro
lens, extension rings ZR...,
Adapters
Lens Adapter AOC-...
for adaptation of photo lenses
with bayonet mount
Focus Adapter FA22-...
for adaptation of enlangement
and macro lenses.
SK9019.3 FF Order Code
FF = Connector two-sided (female)
F = Connector one-sided (female)
3 = 3 m (standard cable length)
5 = 5 m cable length
x = cable length coustom made
Software
Page
Schäfter
16020 16080 32040
4
focus adapter FA22-40 and
the CCD Line Scan Camera
SK91PCI-WIN *
SK91PCI-LX **
System software,
drivers, libraries
* Windows, ** Linux
5. Pixel Arrangement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
6. Generating an Image - Scan a Surface . . . . . . . . . . . . . . . . . . . . 6
7. Timing Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
8. Blooming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
9. Gain / Offset - Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
10. References and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
11. Dimension Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
12. Sensor Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Kirchhoff
+
Performance Specifications
Camera Type: SK 512 XSD
SK 16020 DJRC
Order Code
Physical Characteristics
Sensor: CCD linear
Type ILX 548K
Pixel Number: 3 x 5340
Pixel Size: 4 µm x 4 µm
Pixel Distance: 4 µm
Line Distance: 32 µm
Active Length: 21,36 mm
Operating Ranges
Pixel Frequency: maximum 15 MHz
Line Frequency: maximum 0.92 kHz
minimum 0.05 kHz
Integration Time: minimum 1.09 ms
maximum 20 ms
Dynamic Range: 1 : 1000 (rms)
Spectral Range: 400 - 700 nm
Typical Spectral Responsivity
1.0
0.0
400 500 600
Wavelength (nm)
Input Control Signals
Master Clock
StartOfScan (SOS)
Output Signals
Video Signal: 8 Bit digital
Interface: LVDS
Power Supply
Voltage: +5 V, +15 V,
-15 V
Power Consumption: 3 W
Connector
Mini Centronics 36 pin-male
Cable Connector:
Series Harting Bellows
Type: 6013 036 5100
Others:
Operating Temp.: + 5°C ... + 45 °
Size: Ø 65mm
x 51mm
Weight: 0.2 kg
Lens Thread: M 40 x 0.75
700
