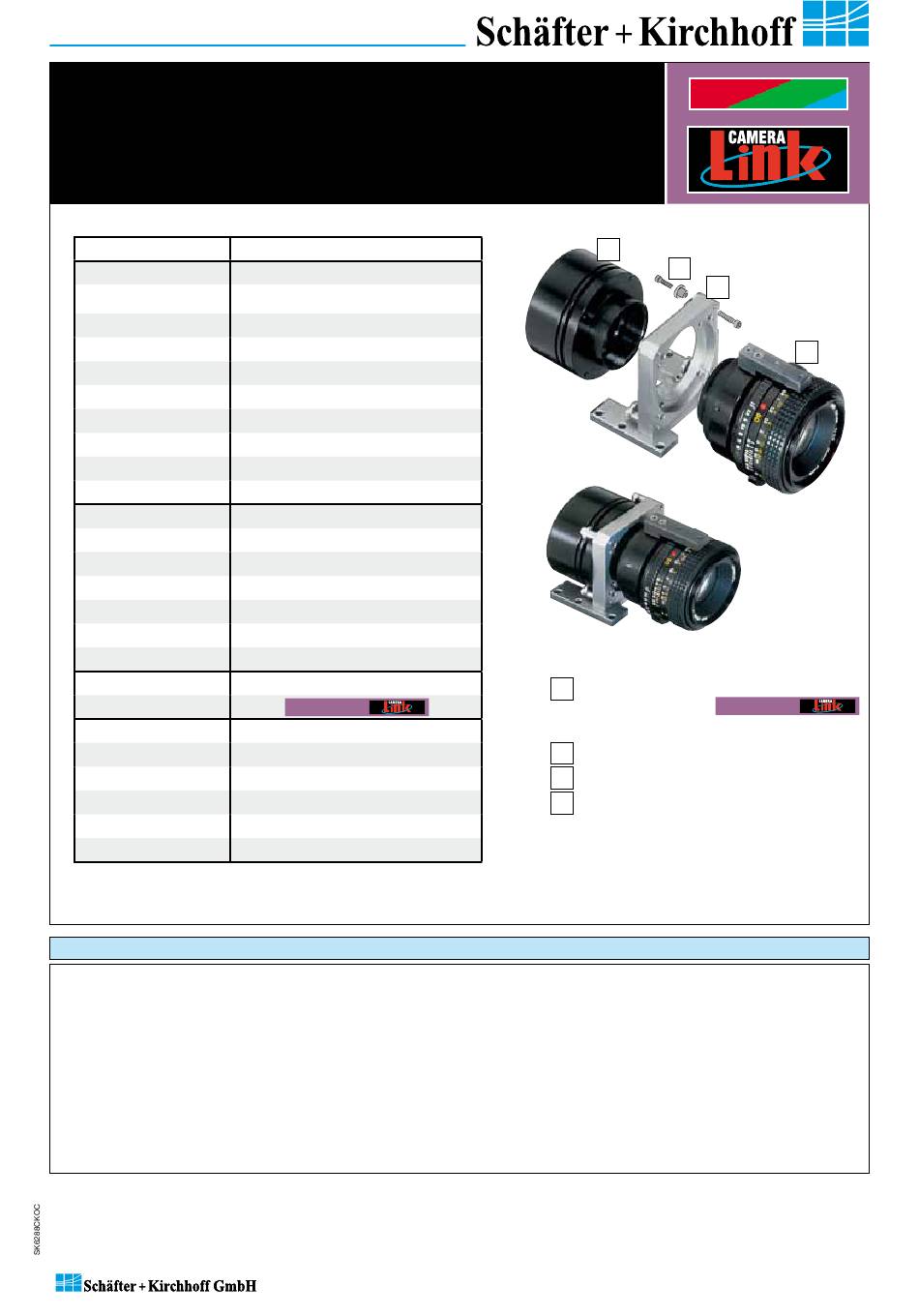

Line Scan Camera SK6288CKOC Manual (v. 10.2011)
Color Line Scan Camera
SK6288CKOC
3 x 2096 pixels, 14 µm x 14 µm, 60/30 MHz pixel frequency
Camera
Sensor
Type
Pixel number
Pixel size
Pixel spacing
Line spacing (B-G-R)
Active length
Anti-Blooming
Integration Control
CDS
1
Pixel frequency
Line frequency max
Line frequency min
Integration time max
Integration time min
Dynamic range
Spectral range
Video signal
Interface
Voltage
Power consumption
Casing (W x H x D)
Objective mount
Weight
Working temperature
1)
CDS = Correlated Double Sampling. Noise-reduction technology, increase of photosensitivity.
2)
Longer exposure times are possible in trigger mode "exposure active".
Contents
Section
1.
Introducing the SK6288CKOC Color Camera
2.
3.
4.
Kieler Str. 212, 22525 Hamburg, Germany
SK6288CKOC
Triple Line Sensor
KLI-2113
3 x 2096 (B-G-R)
14 µm x 14 µm
14 µm
29.3 mm
no
yes
yes
60 / 30 MHz
9.28 kHz
0.05 kHz
2
20 ms
0.010 ms
1:2500 (1 MHz, no Integration control)
400-700 nm
8-bit / 12-bit
Interface:
+5 V, +15 V
3.5 W
65 mm x 65 mm x 73 mm
M45 x 0.75
0.2 kg
+5°C to +45°C
Page Section
Tel: +49 40 85 39 97-0
•
1
Smart line scan camera
1
SK6288CKOC
with
2
Clamp set SK5102
3
Mounting bracket SK5105
4
Photo lens Nikon AF 1:1.4/f'=50 mm,
M45x0.75 thread, with locking bridge
for fixing focus and aperture
5.
2
2
6.
7.
3
4
8.
4
9.
5
5
Fax: +49 40 85 39 97-79
info@SuKHamburg.de
•
•
2
3
4
Interface:
Page
6
7
8
10
11
11
www.SuKHamburg.de
•
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Schäfter+Kirchhoff SK6288CKOC
Summary of Contents for Schäfter+Kirchhoff SK6288CKOC
-
Page 1: Table Of Contents
Line Scan Camera SK6288CKOC Manual (v. 10.2011) Color Line Scan Camera SK6288CKOC 3 x 2096 pixels, 14 µm x 14 µm, 60/30 MHz pixel frequency Camera SK6288CKOC Sensor Triple Line Sensor Type KLI-2113 Pixel number 3 x 2096 (B-G-R) Pixel size 14 µm x 14 µm... -
Page 2: Connections And I/O Signals
Line Scan Camera SK6288CKOC Manual (v. 10.2011) 1. Introducing the SK6288CKOC Color Line Scan Camera The successful use of the line scan camera requires that supplies operating program Schäfter+Kirchhoff ® the complete optical system is properly set up, especially SkLineScan for certified grabber boards, including µEnable... -
Page 3: Interface
Line Scan Camera SK6288CKOC Manual (v. 10.2011) 3. Interface Camera control Signal Name Type Description TRIG1 RS644 CC1 - Synchronization input (SOS) CC2 - Start Integration period in dual synchro modus TRIG2 RS644 (only cameras with Integration Control) CLK_IN RS644... -
Page 4: Camera Control And Skclconfig
Line Scan Camera SK6288CKOC Manual (v. 10.2011) 4. Camera Control and SkCLConfig The configuration program SkCLConfig is shipped with all frequency, via the serial connector of the CameraLink interface. Schäfter+Kirchhoff cameras and enables the adjustment of The software uses the clser***.dll supplied with the Camera Link line scan camera parameters, such as gain, offset and pi xel grabber board or a choice is made from the installed clser*.dll... -
Page 5: Illumination And Exposure
= passive pixels of the sensor f = pixel frequency The maximum line frequency of the SK6288CKOC camera is 9.28 kHz and the programmable exposure period ranges from 0.11 ms to 20.0 ms. The minimum exposure period is the time interval between two... -
Page 6: 112 Μm
PC and subsequently optical resolutions. The SK6288CKOC color line scan camera reallocated correctly. has 3 x 2096 pixel triple line sensors of red, green and blue. -
Page 7: Control Signals And Timing Diagram
'SOS' signals to be read out from the line The frequency of the 'SOS' signal determines the number of camera. The SK6288CKOC camera requires 6464 clock pulses lines that are read per second. On the rising edge of this signal, for a line scan to be read out completely. -
Page 8: Sensor Performance Specifications
Line Scan Camera SK6288CKOC Manual (v. 10.2011) 7. Sensor Performance Specifications Producer: Eastman Kodak Company Type: KLI-2113 Data source: Kodak Digital Science KLI-2113 Image Sensor - Technical Data Representative Characteristics Test conditions: T = 25°C, f = 2 MHz, t =1.066 msec... - Page 9 Line Scan Camera SK6288CKOC Manual (v. 10.2011) Electro-optical Characteristics Page...
-
Page 10: Dimensions
Line Scan Camera SK6288CKOC Manual (v. 10.2011) 8. Dimensions Line scan cameras with CameraLink interface Casing group: AC2, AC3 CCD line scan camera, digital Ø 65 62.5 M40x0.75 6 12.7 Lens thread: (AC2) M40x0.75 Data Power Pixel No.1 Distance to sensor: 19.5 mm... -
Page 11: Warranty
Line Scan Camera SK6288CKOC Manual (v. 10.2011) 9. Warranty 10. Accessories This manual has been prepared and Mounting bracket reviewed as carefully as possible but SK5105 Order Code no warranty is given or implied for any Warp-resistant construction for mounting the line... - Page 12 Line Scan Camera SK6288CKOC Manual (v. 10.2011) Kieler Str. 212, 22525 Hamburg, Germany Tel: +49 40 85 39 97-0 Fax: +49 40 85 39 97-79 info@SuKHamburg.de www.SuKHamburg.de • • • •...
