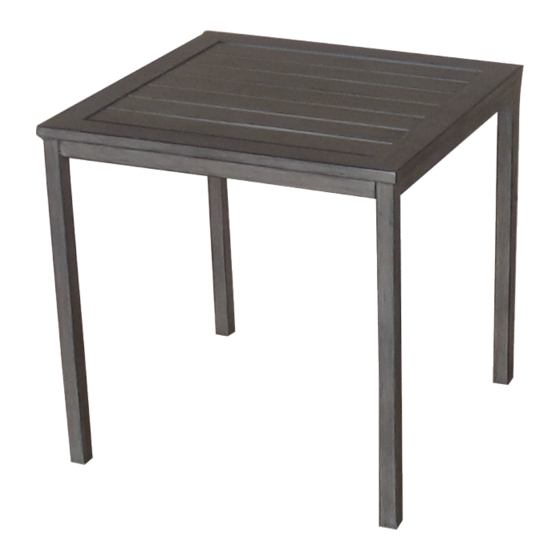

Courtyard Creations TMS21LE Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

PARTS LIST

PART
DESCRIPTION
NO.
1
TMS21LE-CS05-1
2
TMS21LE-CS04-1
3
TMS21LE-CS09-1
4
62TMS21LEQ101
Attention:
Make sure that each bolt needed for all steps matches the
corresponding figure to ensure proper assembly.

Step 1:

Place the table top (#1) onto a non-abrasive surface, such as a
carpet, with its underside facing upwards. Fasten the legs (#2)
to the underside of the table top (#1) rim by using bolts (#5).
Keep the bolts loose. See Figure 1.
Note:
The arrow marks on the legs (#2) should coincide with Figure 1
to ensure proper assembly.
Use the correct bolts as indicated. Do not tighten any of the bolts until the table is completely
!
assembled.
Do not sit or stand on this table.
!
Do not discard of any of the packaging until you have checked that you have all of the parts
!
and fittings required.
!
Keep children away during assembly. This item contains small parts that can be swallowed by
children. Children should always be under direct adult supervision while using this product.
!
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
E-2
INTENDED FOR RESIDENTIAL USE ONLY.
TMS21LE
PART Q'TY
1
TABLE TOP
2
LEG
1
SUPPORT 1
1
SUPPORT 2
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
PAGE 1 OF 2
PART
DESCRIPTION
NO.
5
17C02A0712001YX
6
17C40A0705001YX
7
17KAA0101----Y4
8
17KAC3101----Y3
FIGURE 1
5
2
35
COURTYARD CREATIONS INC.
PART Q'TY
4
BOLT M6*35
4
BOLT M6*15
1
HEX. KEY
WRENCH 4MM
1
HEX. KEY
WRENCH 10MM
2
1
#5 BOLT M6*35
