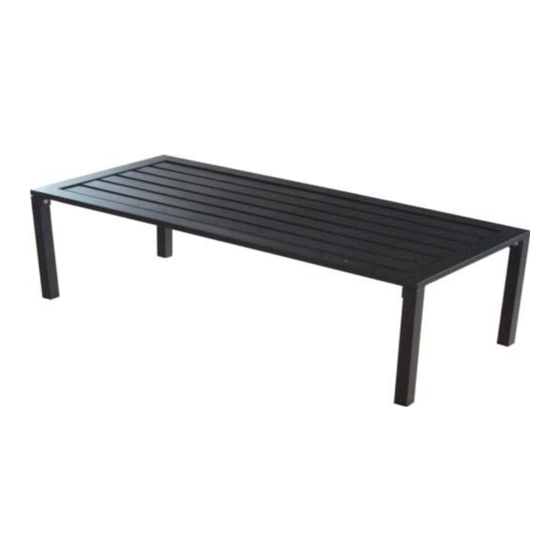

Courtyard Creations TMS41LB-WM Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

PARTS LIST

PART
MATERIAL CODE
NO.
1 TMS41LB-CS01
2
TMS41LB-CS02

Step 1:

Place the table top (#1) onto a non-abrasive surface,
such as a carpet, with its underside facing upwards.
Fasten the legs (#2) to the underside of the table top
(#1) rim by using bolts (#3).
bolts have been tightened completely and cover
them with bolt caps (#4).
Use the correct bolts as indicated. Do not tighten any of the bolts until is completely assembled.
Do not sit or stand on this table.
Do not discard of any of the packaging until you have checked that you have all of the parts and
fittings required.
Keep children away during assembly. This item contains small parts that can be swallowed by
children. Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
Quote following FQC NO. when contacting service center.
INTENDED FOR RESIDENTIAL USE ONLY.
TMS41LB
PART Q'TY
TABLE TOP
LEG
Make sure that all of the
See Figure 1.
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DON'T RETURN TO STORE!
STOP
PAGE 1 OF 2
-WM
3
17C02A0755131Y4
1 4 18000337006
5
4 17KAA0201----Y4
FIGURE 1
2
2
BOLT M6*14
HEX.KEY WRENCH 6MM
3
4
1
COURTYARD CREATIONS INC.
8
8
1
4
2
2
