INSTALLATIONS INSTRUCTIONS
INSTALLATION INSTRUCTIONS
NOTE:
1
Contact us immediatly if you see inconsistencies.
Remove all contents from the package and check for completeness.
Call immediately if you see inconsistencies.
Phone: (1-800-626-5771)
website: www.franke.us/ks
email: ks-customservice.us@franke.com

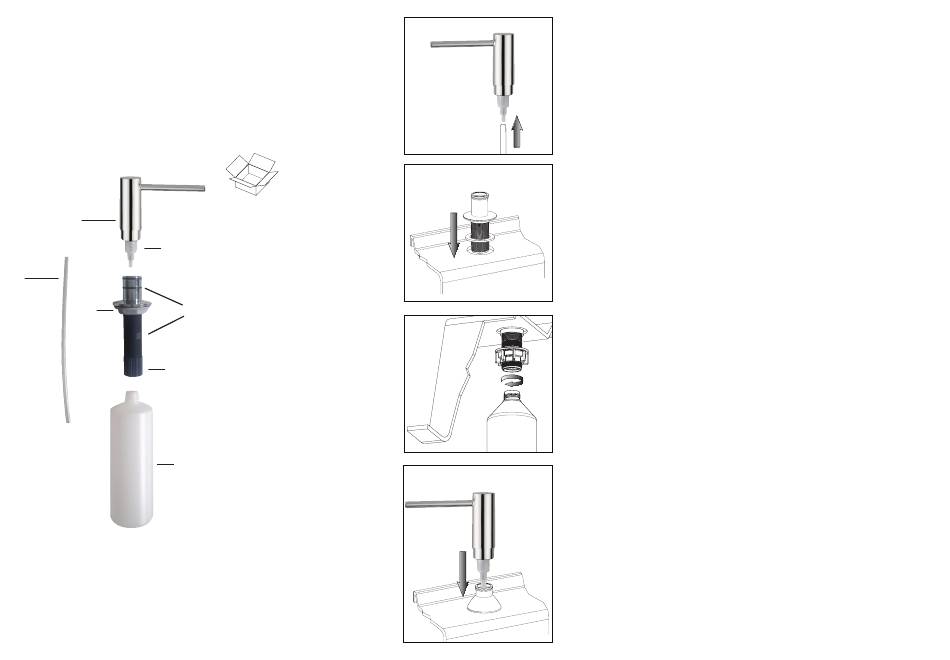

CONTENTS IN BOX
2
1
4
3
2
5
1
3
5
6
6
7
1 - Dispensing Head 5 - Mounting Nut
2 - Pump 6 - Connecting sleeve
3 - Fill Tube 7 - Bottle
4 - Base assembly
(includes washer and shank)
NOTE:
(1-800-626-5771)
or visit
www.frankeksd.com
info.fks@franke.com
Package Contents:
1 - Fill Tube
2 - Dispensing Head
(Pre assembled with pump)
3 - Mounting Washer (Rubber)
4 - Base Flange
5 - Mounting Nut
6 - Bottle
4
Installation Tools:
None
1
FIG. 1
FIG. 2
FIG. 3
FIG. 4
INSTALLATIONS INSTRUCTIONS
1. Remove all contents from package and check for
completeness.
2. Cut a 1-1/8" hole in the desired position in the
mounting surface if one isn't available
3. Connect fill tube (3) to pump (2) in dispensing
head (1) as shown in Figure 1 and sit aside
4. Unscrew connecting sleeve (6) from base
assembly shank (4) and remove mounting nut (5)
5. Insert base assembly (4) into the hole as shown
Figure 2
6. Screw mounting nut (5) and connecting sleeve (6)
onto base assembly shank (4)
7. Screw bottle into connecting sleeve (6) as show in
Figure 3
8. Fill bottle from top with soap or lotion
Tip: to minimize clogging, fill bottle 1/3 with water
and 2/3 soap and mix well using fill tube.
9. Insert dispensing head (1) with fill tube (2) into the
base assembly (4) as shown in Figure 4
10. Pump dispensing head several times until soap/lotion
is discharged
