Summary of Contents for Franke SD6000

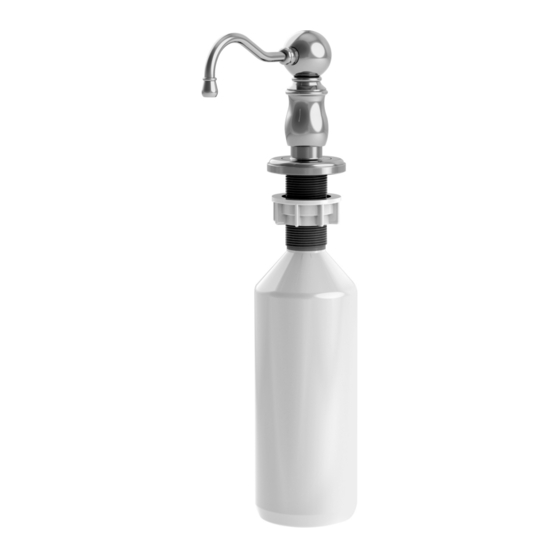

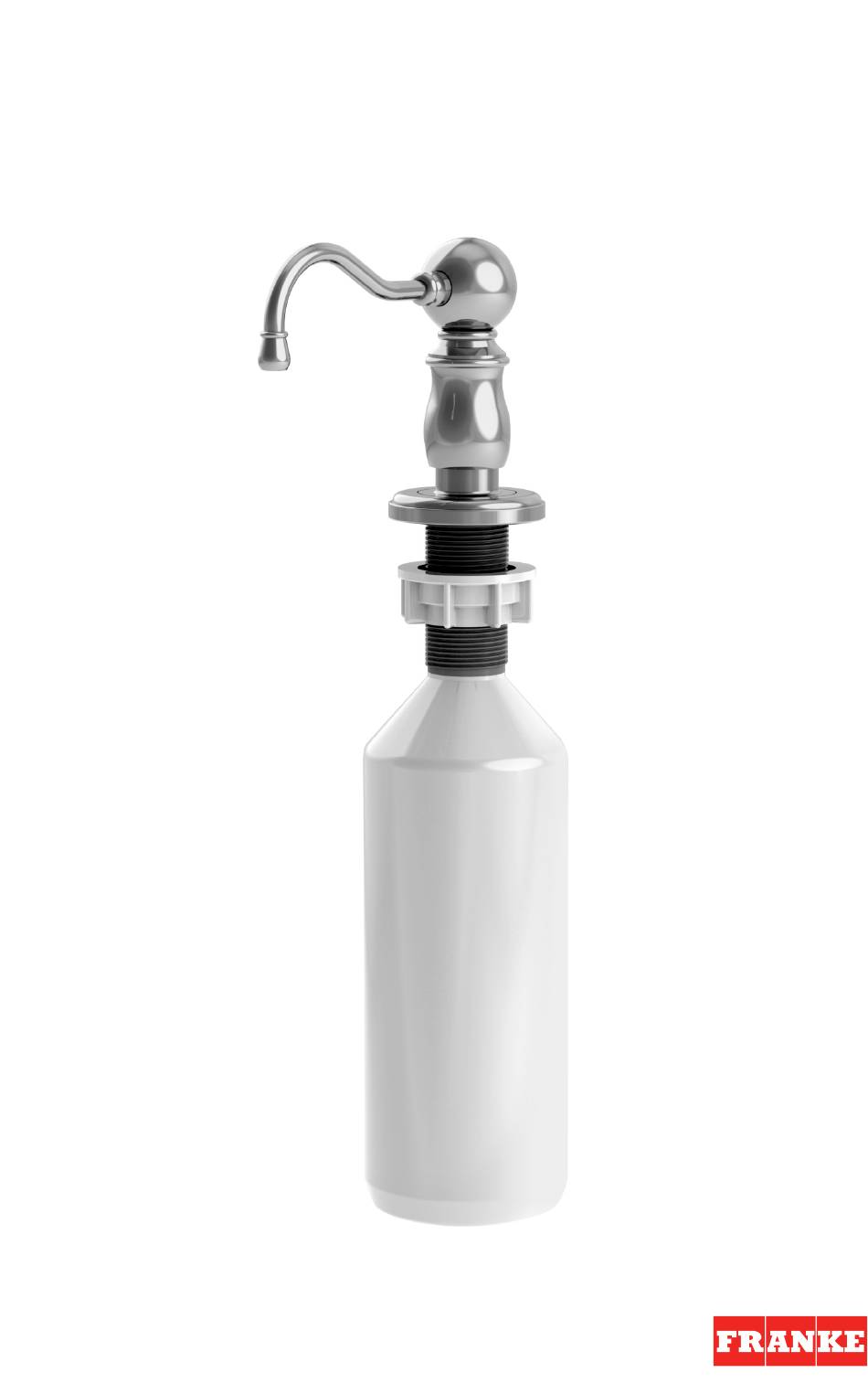

- Page 1 INSTALLATION GUIDE Soap Dispenser - SD6000, SD7000 KITCHEN MAKE IT WONDERFUL SYSTEMS Rev 1 - 12/11/2015...
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS Remove all contents from the package and check for completeness. NOTE: Call immediately if you see inconsistencies. (1-800-626-5771) or visit www.frankeksd.com Package Contents: 1 - Dispensing Head (Pre assembled with pump) 2 - Fill Tube 3 - Mounting Shank Assembly 4 - Base Flange with Washer 5 - Mounting Nut 6 - Bottle... - Page 3 Installation Ensure proper hole is in place for the Dispensing Dispenser. This Dispenser is designed head to mount into a 1-3/8” (35mm) Pump mounting hole. Product will arrive with dispensing head already mounted in base flange. Fill tube Remove the dispensing head assembly from the base flange assembly.
- Page 4 Installation Insert the dispensing head assembly with assembled fill tube into the base flange and bottle and point the discharge of the dispensing head towards the front of the sink, or to the desired location. Pump dispensing head several times until soap/lotion is discharged through the head.
- Page 5 Usage With the bottle full, press the Dispensing Head to discharge soap/ lotion. Remove pressure from the Dispensing Head, and it will return to the original position, and it can be pumped again. Continue pumping until desired amount of soap/lotion is discharged.
-
Page 6: Replacement Parts
MAINTENANCE With normal use, maintenance should not be necessary. Should there be an extended period where the dispenser is not used, it is possible the soap/lotion could harden and prevent proper discharge. In this event, submerge the entire Dispensing Head with Pump into hot water for several minutes. - Page 7 Franke accepts no liability for such damages. The Franke warranty is limited to the above conditions and to the war- ranty period specified herein and is exclusive. Franke DISCLAIMS all other warranties, expressed or implied, including the IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
- Page 8 Franke Consumer Products Inc., Kitchen Systems Division 800 Aviation Parkway Smyrna, TN 37167 Phone: 1-800-626-5771 Fax: 1-888-685-0007 www.frankeksd.com...
