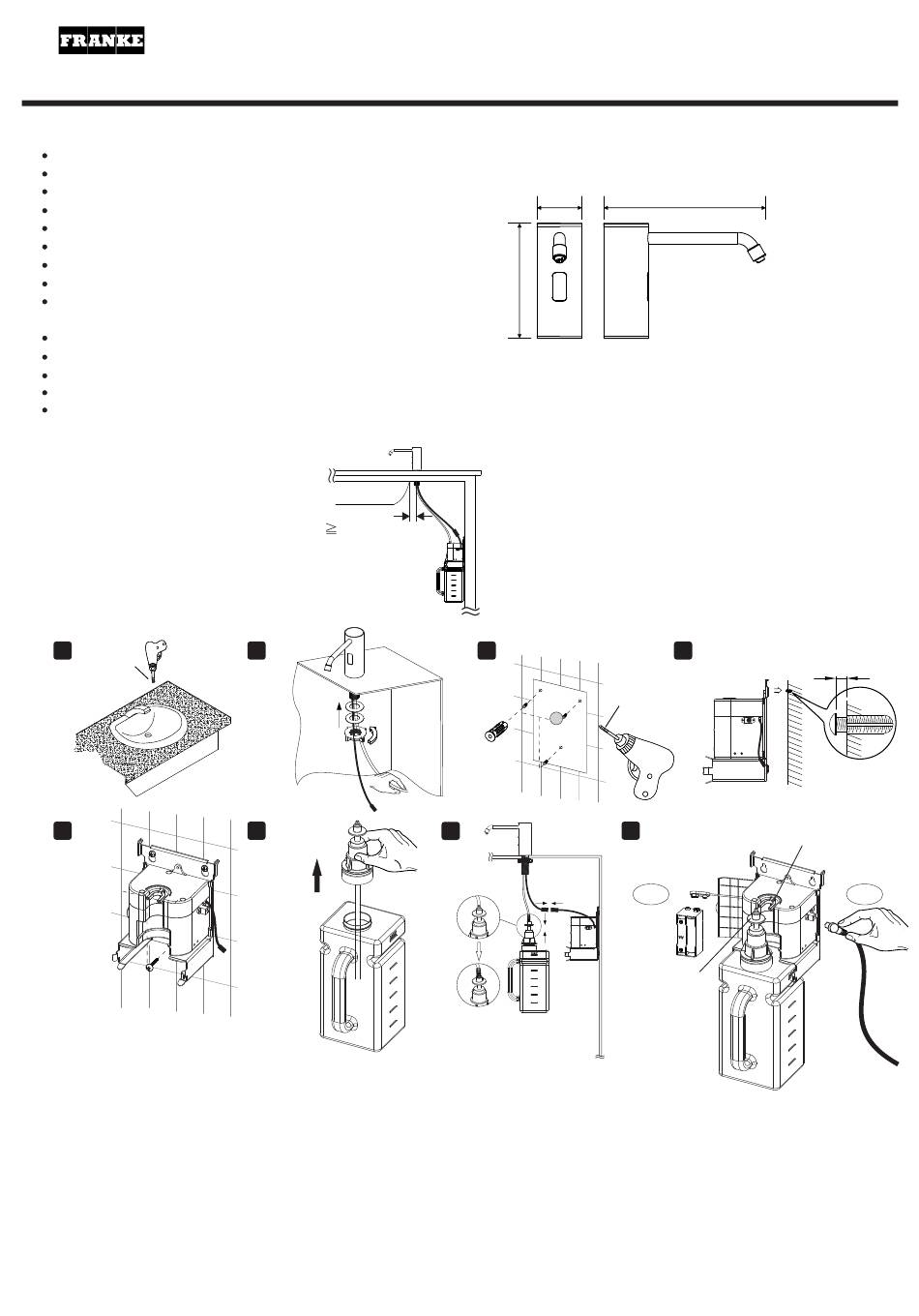

Franke SD01-002SF Quick Start Manual

Touch-free Deck-mounted
Soap Dispenser

1. SPECIFICATIONS:

Soap Tank Capacity: 1500 ml (50.7 fl oz)
Adaptor Type Required: 6 VAC Plug-In Adaptor
Battery Type Required: Alkaline (1.5V) AA size, Qty 4
Battery Life Estimated: 20,000 cycles or 1 year
Room Temperature: 5~40 °C (41~104 °F)
Dispensing Volume: 0.6~0.8 ml (0.02~0.026 fl oz)
Applicable Viscosity Range: 1~5 cP (1~5 mPas)
Operation Mode: Automatic
Sensor range approximately 15 +/-2 cm.
A blinking green light means the soap tank is empty.
A blinking red light means the battery is low (#5.2V).
A solid green light means the wrong kind of soap has been used.
Soap dispenser will dispense once every 48 hours if there is no action in between to avoid a clog of the tip.
After connecting to the power or refilling the soap, it will continue dispensing soap for a maximum of 10 times
till the user removes hands.

2. RECOMMENDED INSTALLATION:

3. INSTALLATION STEPS:
1
1" [ 25 mm] Ø
5
1. Drill a 1 Ø25 mm] hole (drawing 1).
" [
2. Put the soap dispenser through the hole (drawing 2).
Place the rubber washer & nylon washer in the thread on the shaft.
Use the nut to fasten the soap dispenser.
3. Make sure the soap rubber tube can touch the wall in order to find the best position to install the control box assembly. Ensure the length
of tubing is long enough to allow the reservoir bottle to be easily removed.
4. Put the mounting template in the best installation position on the wall according to the position of the holes in the mounting template.
Then drill 3 holes 9/32 [7 mm] and put the 3 wall plugs in the holes (drawing 3).
"
5. Put two fixing screws into the top wall plugs, but leave a 1/4
control box assembly can hang properly (drawing 4).
6. When the control box assembly has been hung on the wall, fasten the third screw into the bottom wall plug (drawing 5).
7. Pull up the soap pump, fill with the foam soap and then push down the soap pump until you hear it snap into place (drawing 6).
13/16" [20 mm] 1-3/16" [30 mm]
2
rubber
nylon
Touch the Mounting template
to find the best position for installing
6
1-1/2"
[ Ø 38.1 mm]
3-53/64"
[97.1 mm]
3
7
A
B
[6 mm] space between the head of the screw and wall, so the
"
MODEL SD01-002SF
:
SD01-002CF
5-23/64"
[136.1 mm]
4
9/32" [7 mm]
8
pump actuator
DC
plate
1/4" [6 mm]
AC
1
