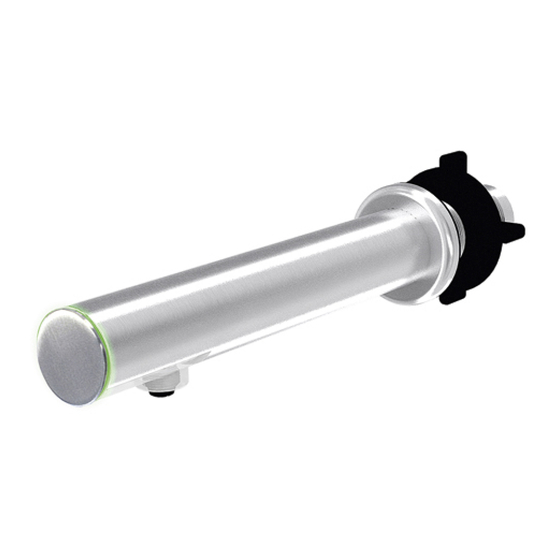

Franke SD01-001SFL Quick Start Manual

Touch-free Wall-mounted
Soap Dispenser

1. SPECIFICATIONS:

Soap Tank Capacity: 1500 ml (50.7 fl oz)
Adaptor Type Required: 6 VAC Plug-In Adaptor
Room Temperature: 5~40 °C (41~104 °F)
Dispensing Volume: 0.6~0.8 ml (0.02~0.026 fl oz)
Applicable Viscosity Range: 1~5 cP (1~5 mPas)
Operation Mode: Automatic
Sensor range approximately 10 +/-2 cm.
A solid green light indicates the dispenser is on standby, ready to dispense soap.
A solid red light indicates wrong type of soap or motor failure.
A flash of red every 2 seconds indicates the soap tank is empty.
A quickly flashing red (5 times per second) indicates that the sensor is blocked.
After connecting to power or refilling soap tank, the dispenser will continue dispensing soap for a maximum of 10 times
until the user removes hands.
Soap dispenser will dispense once every 48 hours if there is no action in between to avoid a clog of the tip.

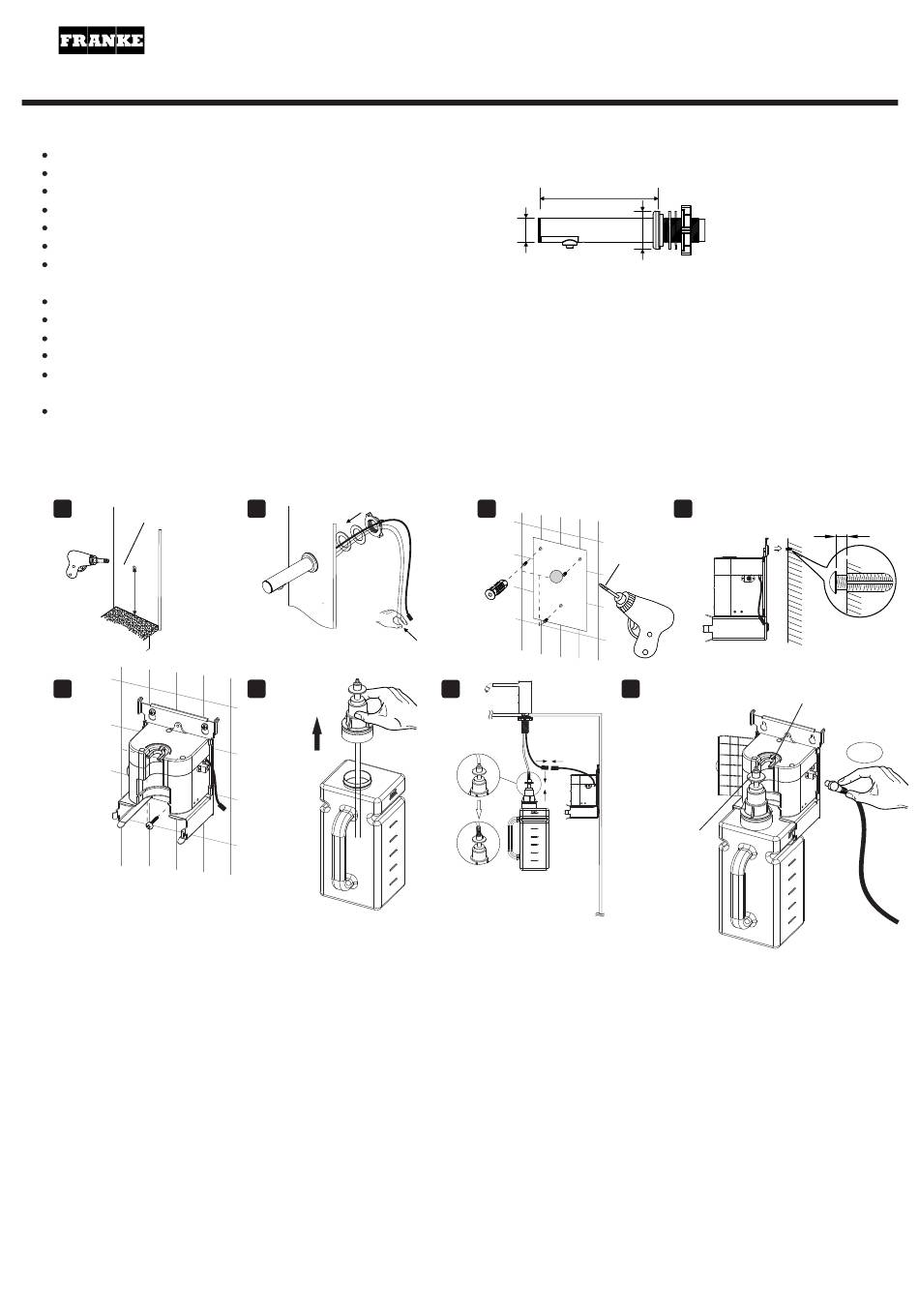

2. INSTALLATION STEPS:
1
Wall
1" [25 mm]
From deck to the
center of hole
5.9" [150 mm]
5
1. Drill a 1" [Ø25 mm] hole in the wall or backsplash (drawing 1).
2. Put the soap dispenser through the hole (drawing 2).
Place the rubber washer & nylon washer in the thread on the shaft.
Use the nut to fasten the soap dispenser.
3. Make sure the soap rubber tube can touch the wall in order to find the best position to install the control box assembly. Ensure the length
of tubing is long enough to allow the reservoir bottle to be easily removed.
4. Put the mounting template in the best installation position on the wall according to the position of the holes in the mounting template.
Then drill 3 holes 9/32 [7 mm] and put the 3 wall plugs in the holes (drawing 3). "
5. Put two fixing screws into the top wall plugs, but leave a 1/4
control box assembly can hang properly (drawing 4).
6. When the control box assembly has been hung on the wall, fasten the third screw into the bottom wall plug (drawing 5).
7. Pull up the soap pump, fill with the foam soap and then push down the soap pump until you hear it snap into place (drawing 6).
8. Connect the wires of the soap dispenser to the wire of the control box assembly (drawing 7).
Connect the tube of the soap dispenser to the connector on the soap pump, and push the spring to the bottom as shown
on the image (drawing 7).
9. Push the soap tank into the track. Make sure the soap pump plate is under the pump actuator before you put back the soap tank,
so the soap dispenser can work properly (drawing 8).
10. Plug in an AC adapter to supply power (drawing 8). Installation finished.
2
nylon
rubber
Touch the Mounting template
to find the best position for installing
6
"
4-15/16"
[125 mm]
1"
Ø
[ 25.4 mm]
3
7
A
B
[6 mm] space between the head of the screw and wall, so the
MODEL SD01-001SFL
:
SD01-001CFL
1-9/16"
[40 mm]
4
9/32" [7 mm]
8
pump actuator
plate
1/4" [6 mm]
AC
1
