INSTALLATION GUIDE
Soap Dispenser - SD2400, SD2460, SD2480
KITCHEN
SYSTEMS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD2400 and is the answer not in the manual?

Questions and answers

Related Manuals for Franke SD2400

Summary of Contents for Franke SD2400

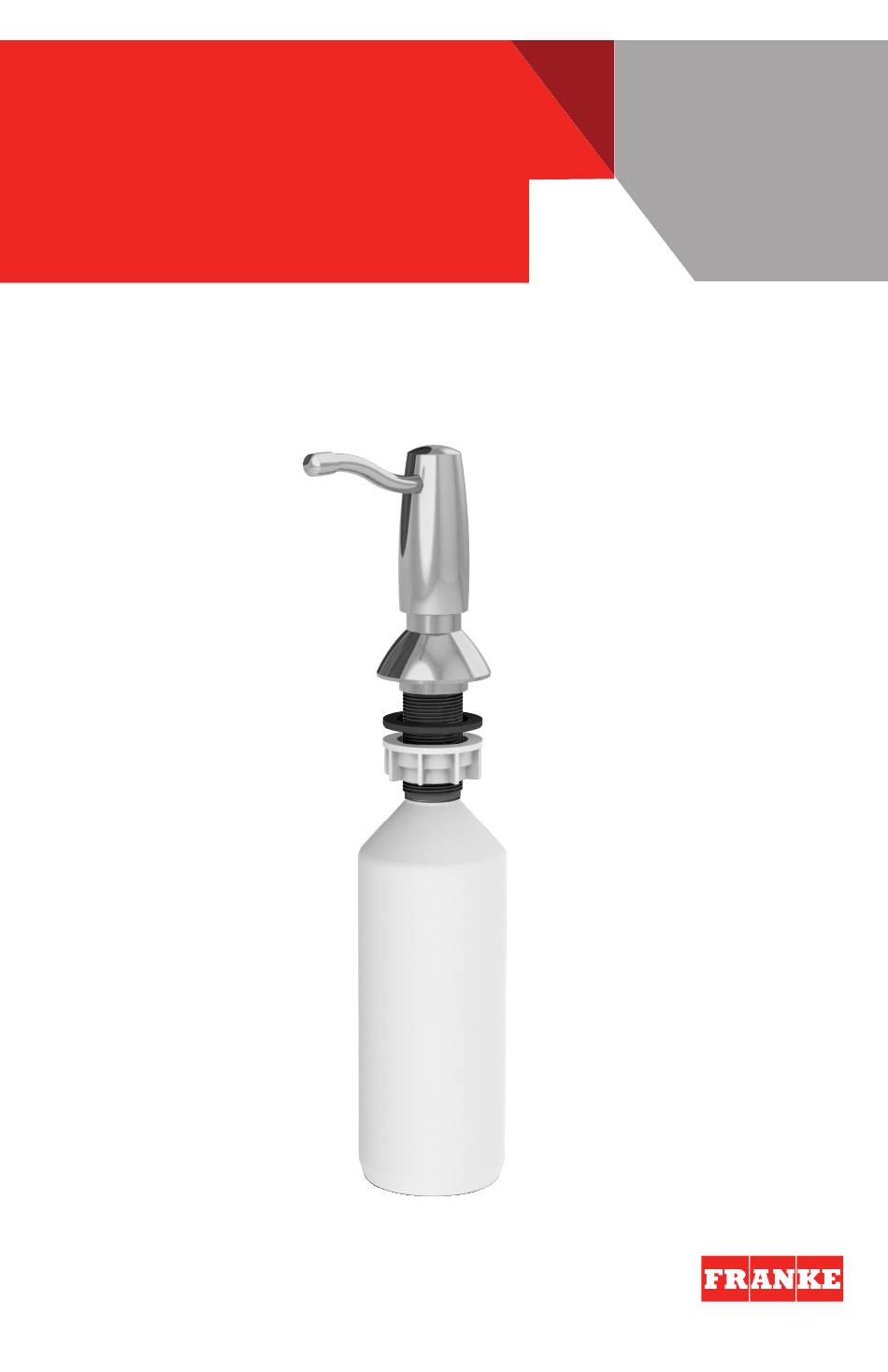

  • Page 1 INSTALLATION GUIDE Soap Dispenser - SD2400, SD2460, SD2480 KITCHEN SYSTEMS...

  • Page 2: Installation Instructions

    Remove all contents from the package and check for completeness. NOTE: Call immediately if you see inconsistencies. (1-800-626-5771) or visit www.frankeksd.com info.fks@franke.com Package Contents: 1 - Fill Tube 2 - Dispensing Head (Pre assembled with pump) 3 - Mounting Washer (Rubber)

  • Page 3: Installation

    Installation Ensure proper hole is in place for the Dispensing Dispenser. This Dispenser is designed head to mount into a 1-3/8” (35mm) mounting hole. Pump Product will arrive with dispensing head already mounted in base flange. Fill tube Remove the dispensing head assembly from the base flange assembly.
  • Page 4 Installation Insert the dispensing head assembly with assembled fill tube into the base flange and bottle and point the discharge of the dispensing head towards the front of the sink, or to the desired location. Pump dispensing head several times until soap/lotion is discharged through the head.
  • Page 5 Usage With the bottle full, press the Dispensing Head to discharge soap/ lotion. Remove pressure from the Dispensing Head, and it will return to the original position, and it can be pumped again. Continue pumping until desired amount of soap/lotion is discharged.

  • Page 6: Maintenance

    MAINTENANCE With normal use, maintenance should not be necessary. Should there be an extended period where the dispenser is not used, it is possible the soap/lotion could harden and prevent proper discharge. In this event, submerge the entire Dispensing Head with Pump into hot water for several minutes.

  • Page 7: Limited Lifetime Warranty

    Franke accepts no liability for such damages. The Franke warranty is limited to the above conditions and to the war- ranty period specified herein and is exclusive. Franke DISCLAIMS all other warranties, expressed or implied, including the IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
  • Page 8 Franke Consumer Products Inc., Kitchen Systems Division 3050 Campus Drive, Suite 500, Hatfield, PA 19440 Phone: +1-215-822-6590 or 1-800-626-5771 Fax: +1-215-822-5873 www.frankeksd.com...

This manual is also suitable for:

Sd2460Sd2480
