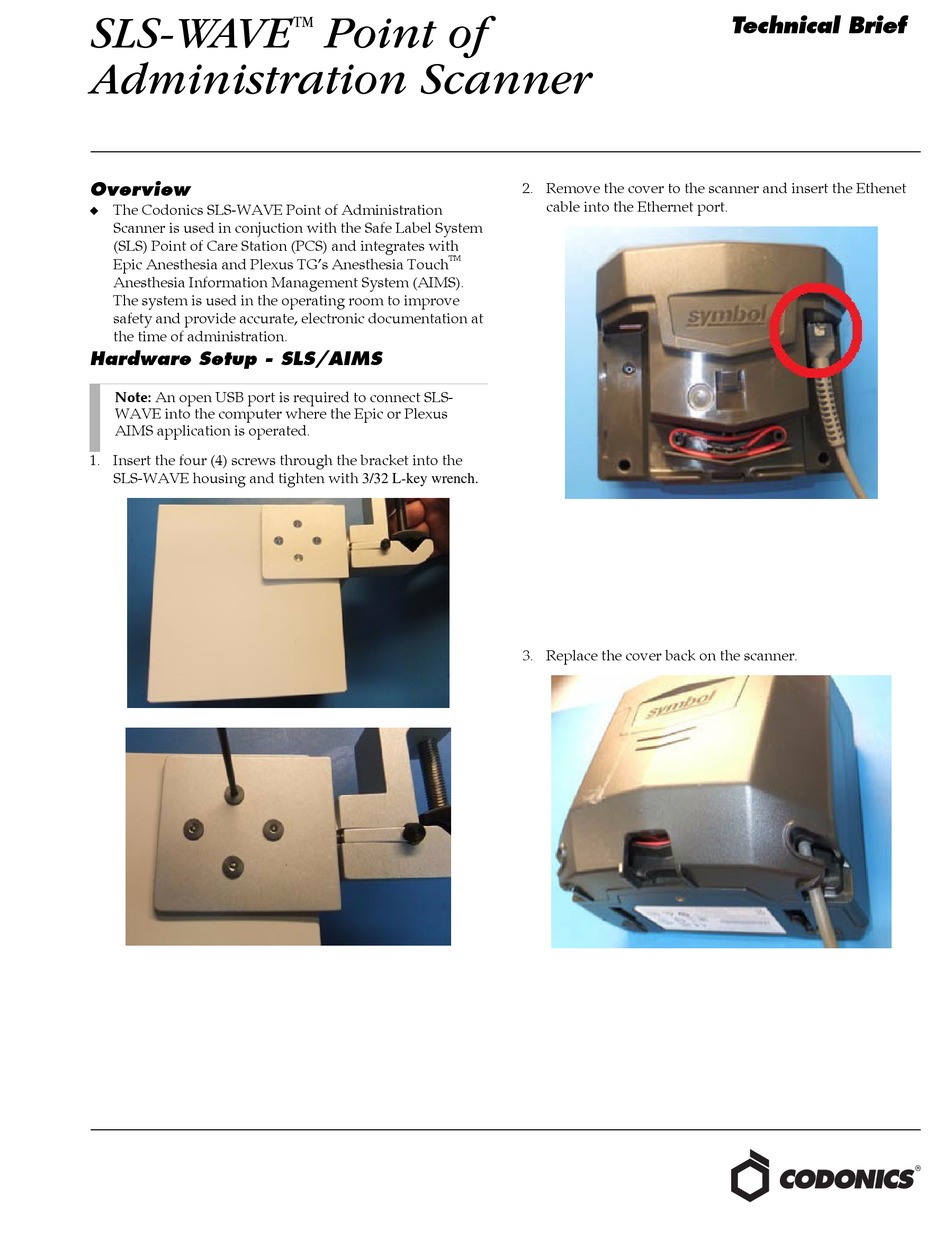

Codonics SLS-WAVE Technical Brief

Download this manual

SLS-WAVE

Administration Scanner

Overview

The Codonics SLS-WAVE Point of Administration

Scanner is used in conjuction with the Safe Label System

(SLS) Point of Care Station (PCS) and integrates with

Epic Anesthesia and Plexus TG's Anesthesia Touch

Anesthesia Information Management System (AIMS).

The system is used in the operating room to improve

safety and provide accurate, electronic documentation at

the time of administration.

Hardware Setup - SLS/AIMS

Note: An open USB port is required to connect SLS-

WAVE into the computer where the Epic or Plexus

AIMS application is operated.

1. Insert the four (4) screws through the bracket into the

SLS-WAVE housing and tighten with 3/32 L-key wrench.

Point of

2. Remove the cover to the scanner and insert the Ethenet

cable into the Ethernet port.

3. Replace the cover back on the scanner.

Technical Brief

Need help?

Do you have a question about the SLS-WAVE and is the answer not in the manual?

Page 1 WAVE into the computer where the Epic or Plexus AIMS application is operated. 1. Insert the four (4) screws through the bracket into the SLS-WAVE housing and tighten with 3/32 L-key wrench. 3. Replace the cover back on the scanner. ®...
Page 2 4. Insert the SLS-WAVE scanner into the SLS-WAVE 6. Connect the SLS-WAVE to the bracket that supports the housing. AIMS monitor or an IV pole near the patient as shown below. WARNING: The scanner should be pointing down and positioned to keep the scanner light from shining in the patient’s or user’s eyes.
Page 3 7. Insert the SLS-WAVE USB into the AIMS computer. 2. Select a Patient in Epic. Note: USB extension cords are available if required to reach from the SLS-WAVE to the AIMS computer. They can be ordered using Codonics’ Part Number SLS- 3.
Page 4 70% isopropyl alcohol Super sani cloth qÉÅÜåáÅ~ä=pìééçêí Note: The SLS-WAVE can be set to one of three levels of If problems occur during software installation or operation, beep volume when scanning; high, medium, or low. To contact Codonics Technical Support at any time.
