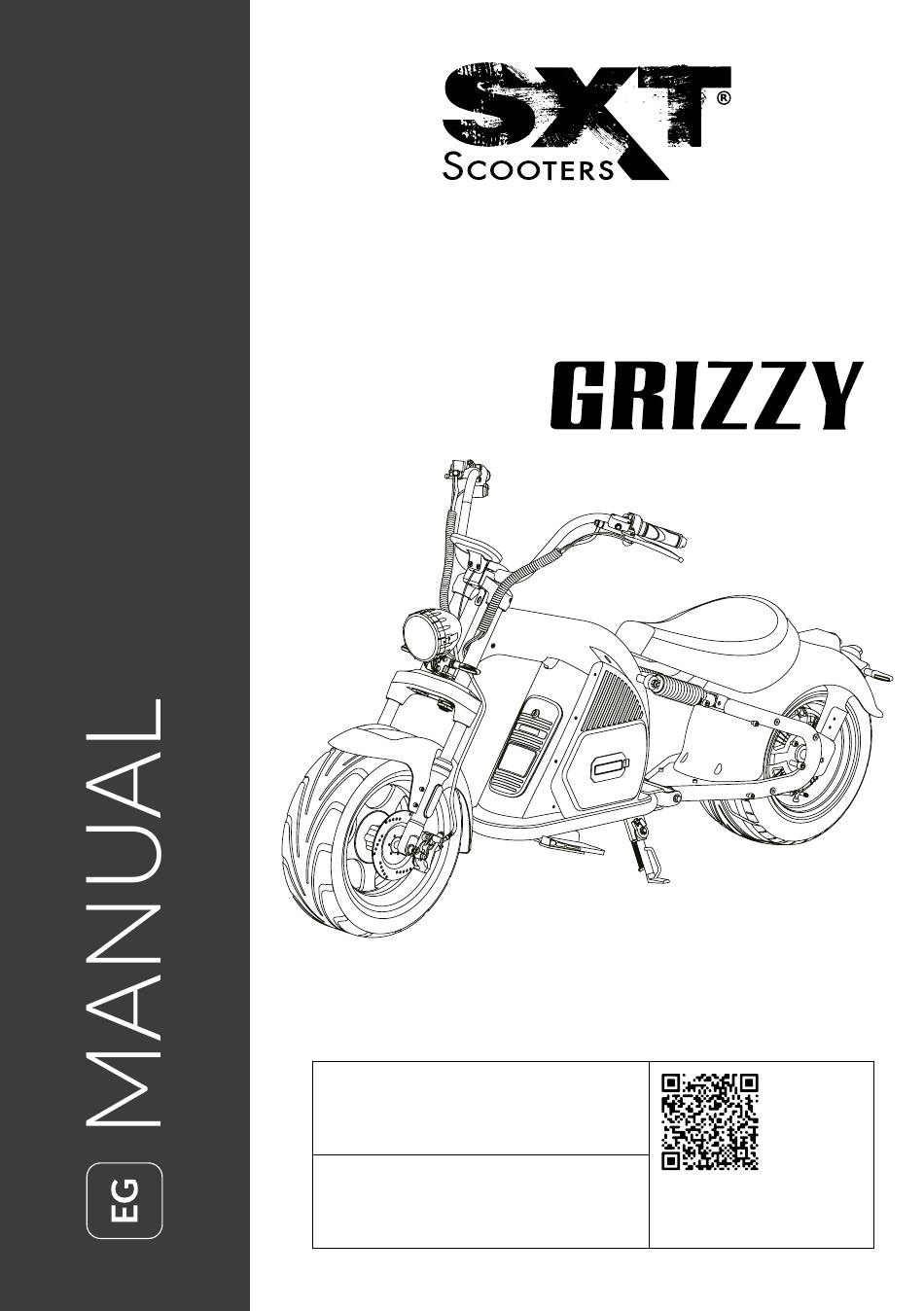

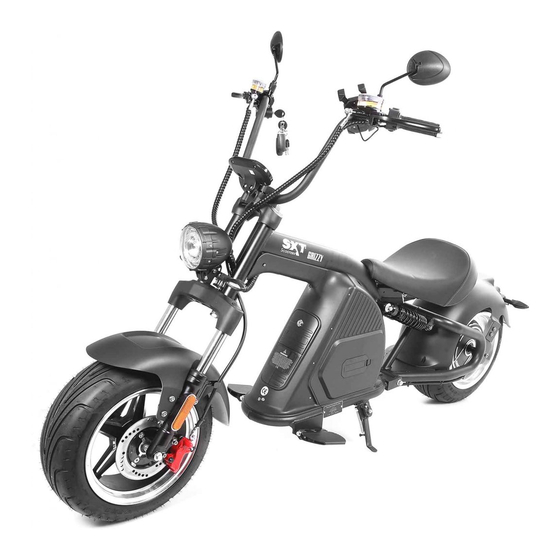

- Page 1 Modell SXT GRIZZY EEC Manual - Version Download SXT_MAGRZZY_V1.4_EN Current manual...
-
Page 2: Table Of Contents
CONTENT Page Scope of delivery Technical data Important information Before starting the journey Identifiation number Vehicle parts Handlebar controls Display Vehicle key Remote control Assembling mudguard Assembling front tire Assembling handlebar Assembling display Assembling battery Assembling cell phone holder Precautions/Handling Charging the battery Before using the battery Maintenance and care... -
Page 3: Scope Of Delivery
SCOPE OF DELIVERY E-Scooter Seat/Saddle Mirror Reflectors Tire and Mudguards Phone holder Battery charger Tool kit Manual COC/EEC Paper | 3 | MANUAL... -
Page 5: Technical Data
TECHNICAL DATA STVZO approved: yes Max. Range (at 22°C / load 70 kg): 70 km Max. Speed: 45 km/h Speed levels: 3 Max. Motor power: 2700 Watt Rated motor power: 2000 watts Max. torque: 100 Nm Drive type: brushless hub motor Max. -
Page 6: Important Information
This manual has been written to help you, the buyer, quickly and easily understand how to use and maintain the SXT GRIZZY EEC accurately & safely. It is important that you understand all the points and features of your new SXT GRIZZY EEC so that you can enjoy riding your new electric scooter from the very first minute. - Page 7 IMPORTANT INFORMATION 1. SXT GRIZZY EEC may be driven only from 16 years of age with a driver’s license class A1, AM. Never use the vehicle with 2 people at the same time. If you have any questions regarding the obligation to wear a helmet, the obligation to...
-
Page 8: Before Starting The Journey
If they do, please contact your dealer or technical support! Check the brakes and all mechanical functions before each ride. Get to know the SXT GRIZZY EEC - before you ride it. Familiarize yourself with its handling characteristics. Do not make tight turns, drive slowly and pay attention to your braking distance. -
Page 9: Identifiation Number
IDENTIFICATION NUMBER Make a note of the vehicle identification number of your e-scooter. Keep it in a safe place. Each SXT GRIZZY has a unique number. With this number your vehicle can be clearly identified, e.g. in case of theft. How to find the frame number: The number is located on the front part of the frame on the right side. -
Page 10: Vehicle Parts
VEHICLE PARTS Handlebar Speedometer Front lamp Front direction indicator Horn Battery | 10 | MANUAL... - Page 11 VEHICLE PARTS Mirror Stop lamp Rear lamp Rear direction indicator Motor Side stand | 11 | MANUAL...
-
Page 12: Handlebar Controls
HANDLEBAR CONTROLS Brake Display Brake Warning sight system Gear 1,2,3 High beam Daytime running light Light Directional indicator Horn | 12 | MANUAL... -
Page 13: Display
DISPLAY Warning moto control unit Throttle problem Warning motor Direction indicator Direction indicator left right Driving mode Driving beam Warning Brake Ready Battery Battery Undervoltage capacity Speed Trip Mileage | 13 | MANUAL... -
Page 14: Vehicle Key
VEHICLE KEY Key 1 The key is to start the scooter and for the steering wheel lock. Key 2 The key is for the front flap, behind it is the adjustment screw for the battery. | 14 | MANUAL... -
Page 15: Remote Control
REMOTE CONTROL Indicator It lights up when any button on the remote cont- rol is pressed, indicating that the remote control is working properly. Interlock Press this button to activate the alarm mode to be activated. Unlock Press this button to disable the alarm mode. deactivate. -
Page 16: Assembling Mudguard
ASSEMBLING MUDGUARD Scan the QR code and watch our watch our installation video! When the SXT GRIZZY is delivered, the front wheel as well as the mudguard is dis- mantled. To mount the mudguard and front wheel you need the following tools (tools are included). 1. -
Page 17: Assembling Fronttire
ASSEMBLING FRONTTIRE 3. Now fasten the front wheel with the thru axle, the two sleeves and the nut as shown in Fig. 3 - 4. 4. Place the front wheel in the correct posi- tion (Fig. 4). Remove the plastic plate in the brake caliper and make sure that the brake disc slides cleanly into the brake caliper (Fig. -
Page 18: Assembling Handlebar
ASSEMBLING HANDLEBAR Scan the QR code and watch our watch our installation video! When the SXT GRIZZY EEC is delivered, the handlebars as well as the display is dismant- led. When the SXT GRIZZY is delivered, the hand- lebars as well as the display is dismantled. -
Page 19: Assembling Display
ASSEMBLING DISPLAY Fasten the Dispaly with the 2 Allen screws. (Fig. 1) Then connect the plug contacts with each other. (Fig. 2) | 19 | MANUAL... -
Page 20: Assembling Battery
ASSEMBLING BATTERY Scan the QR code and watch our watch our installation video! INSERTING THE BATTERY 1. Insert the supplied battery into the opening provided (Fig. 1-2). 2. Now open the flap (Fig. 3) with the key provided for this purpose (see page 45, Key 2) and fix the battery with the adjustment screw located there (Fig. - Page 21 ASSEMBLING BATTERY | 21 | MANUAL...
-
Page 22: Assembling Cell Phone Holder
ASSEMBLING CELL PHONE HOLDER The scooter also comes with a cell phone holder. This can be easily attached to the handlebar (Fig. 1). After mounting, simply connect the red plug contacts (Fig. 2). To supply your cell phone with power, there is a USB port on the underside of the cell phone holder (Fig. -
Page 23: Precautions/Handling
PRECAUTIONS/HANDLING Please handle or move the vehicle by The seat is made of soft material and holding the frame with one hand as may deform or be damaged if strong shown in the figure above. force is applied; therefore, do not apply strong force when handling or moving the vehicle. -
Page 24: Charging The Battery
CHARGING THE BATTERY Fully charge the scooter before using it for the first time. As soon as the charger lights up green, the charging process is complete. Remove the charger after the charging process. TO AVOID DAMAGE TO THE BATTERY, USE ONLY THE CHARGER SUPPLIED BY THE DEALER! Charge your scooter after each use. - Page 25 CHARGING THE BATTERY Loading instructions: 1. First connect the charger to a conventional power outlet, then connect the charging cable to your SXT scooter. 2. The safety protection for the charging port should be replaced after the scooter has been charged. 3.
- Page 26 CHARGING THE BATTERY Charging instructions lithium batteries: Lithium batteries should never be deep discharged, this will irreparably damage the lithium cells. All lithium batteries should (if possible) always be stored at medium charge. If a battery is not needed for a long time, please do not fully charge it before- hand - this puts the lithium cells in unnecessary „stress“...
- Page 27 CHARGING THE BATTERY Charging instructions for lead-acid batteries (lead-acid battery): Lead-acid batteries should never be deep discharged, but should always be operated at the highest possible voltage. Lead-acid batteries that have been deeply discharged by running them completely „empty“ or by storing them for a long time without char- ging them (such as over the winter) will cause them to sulfate and damage the cells.
- Page 28 CHARGING THE BATTERY In the initial stage of charging, the amount of current increases rapidly, but in the later stage, it increases slowly; this is the procedure set for charging safety and is a normal phenomenon. During charging in winter, when the outdoor temperature is low and the ambient tem- perature is below 0°...
- Page 29 CHARGING THE BATTERY Loading environment When the battery is inserted into the vehicle, the work of the intelligent system and the alarm system of the vehicle consumes the electric quantity of the battery in real time. After the vehicle is parked for a certain time, the meter shows the decrease of the amount of electricity, which is a normal phenomenon.
- Page 30 CHARGING THE BATTERY Precautions for the battery Make sure that the battery was exhausted the first time you use it, then charge it and repeat this process two or three times to make sure that the actual capacity of the battery matches the capacity displayed on the dashboard.
-
Page 31: Before Using The Battery
BEFORE USING THE BATTERY Before use, please make sure that it is the original battery of the vehicle. Please do not use a battery of other brands or other models. Check that the battery is in good con- dition externally, and make sure there is no damage, leakage, heat generation, water ingress, smoke and other obvious phenomena to ensure the safety of transportation, the electrical quantity of the batteries from the factory is about 30%. -
Page 32: Maintenance And Care
Perform some braking in a roadworthy location with extreme caution. The water on the braking surfaces reduces the braking performance in the short term. Please keep your SXT GRIZZY EEC away from sun and rain. Regularly check the screws and small parts on your scooter. Do not use alcohol, gasoline, acetone or other chemical solvents to clean the scooter, otherwise it may corrode. - Page 33 MAINTENANCE AND CARE Maintenance Maintenance purpose parts Breake Check the brake function to avoid accidents due to brake to avoid dysfunctions. Tire Check the condition and pressure of the tires when the tires are flat, the power consumption while driving higher. Tire rim Check the rim conditions, clean the dirt if it gets stuck.
-
Page 34: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE The vehicle has no No power supply. power. The motor does not 1. the vehicle is braked. start. 2. the vehicle is parked. 3. the side stand is not retracted. 4. failure of the start switch. Inadequate performance. 1. - Page 35 TROUBLESHOOTING SOLUTION 1. Check that the power plug is connected correctly. 2. Undervoltage of the battery. Please charge it. 1. Check whether the brake lever is in the brake position. 2. Read the chapter „Commissioning“ in the operating manual. 3. Fold in the side stand. 4.
- Page 36 TROUBLESHOOTING PROBLEM The battery has no power and the light bar does not light up after pressing the button . After switching on, all light bars flash. When driving with low power, e.g. 5%, the power is off and the screen turns black. After parking, switching on within a short period of time, e.g.
- Page 37 TROUBLESHOOTING CAUSE SOLUTION The battery is empty. Charge battery. The battery is empty or has failed. Charge battery or contact the dealer to determine the error. The battery is empty. Charge battery. The internal calibration calculation of the Normal operation. electrical quantity of the battery cell is an addition to the inaccurate dynamic electri- cal quantity during driving.
-
Page 38: Recycling Battery
RECYCLING BATTERY When properly maintained and used (in accordance with the guidelines for loading and storage), the battery will have a normal life of two to three years. If the battery can not be recharged or charged properly, it should be removed from the Scooter and disposed of a recycling facility. -
Page 39: Warranty | Customer Service/Repair
WARRANTY Thank you for choosing one of our SXT GRIZZY EEC. You have a warranty of 24 months on your scooter from the date of purchase. Please note that there is no warranty if: 1. The warranty period has expired 2. - Page 40 POL-Planet GmbH & Co. KG. Marie-Curie Straße 2 79618 Rheinfelden • Tel: +49(0)7623 460 460 info@sxt-scooters.de www.sxt-scooters.de •...
