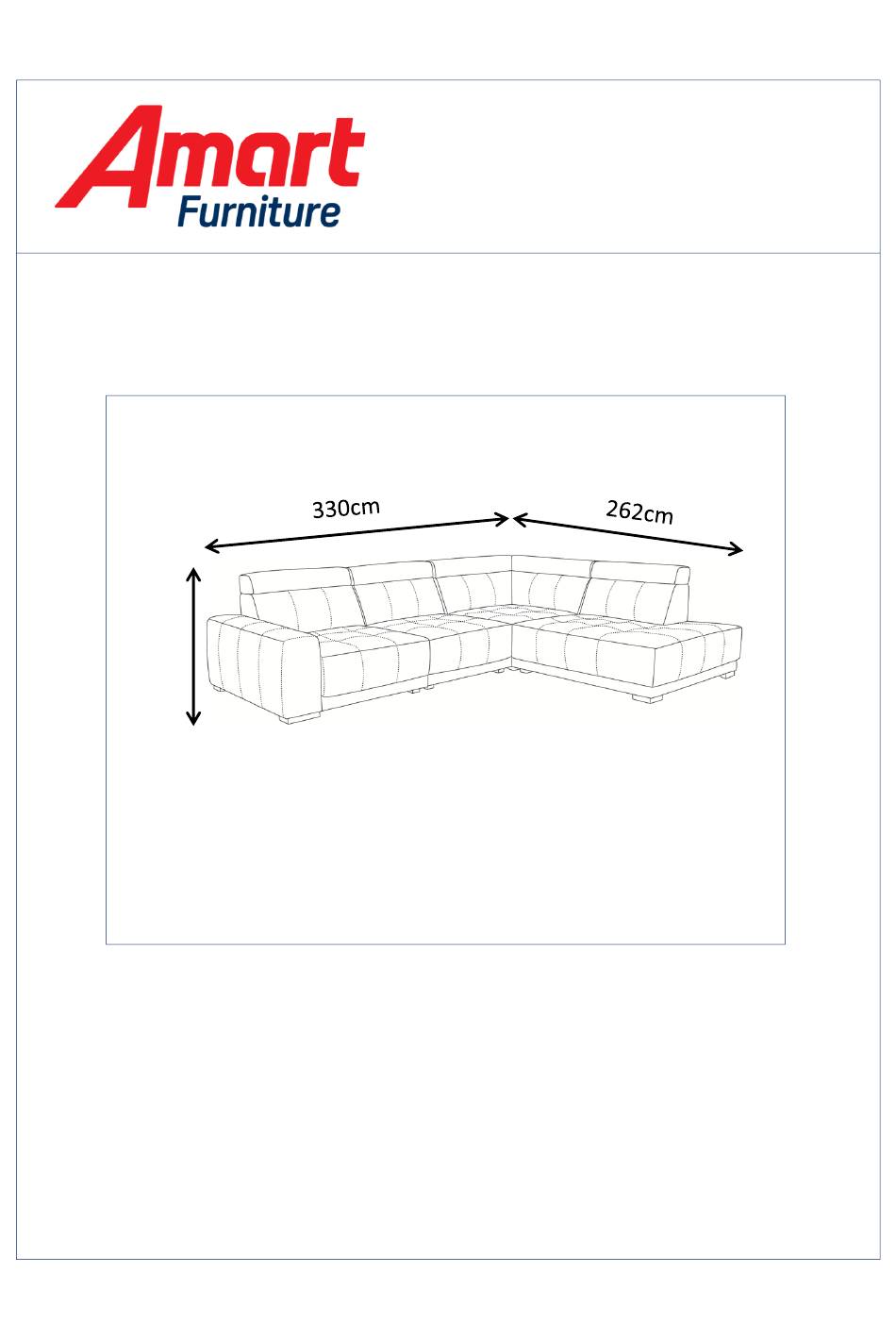

88cm
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
ASSEMBLY INSTRUCTION
MORRISON CORNER CHAISE
ITEM CODE 69015
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
1
69015
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture MORRISON 69015
Summary of Contents for Amart Furniture MORRISON 69015
- Page 1 ASSEMBLY INSTRUCTION MORRISON CORNER CHAISE ITEM CODE 69015 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 88cm Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 69015...
-
Page 2: Pre-Assembly Preparation
PRE‐ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly. - Page 3 Step1: Locate package of sofa legs with fittings and hardware for assembly of adjustable backrest that are placed into zipper pocket at the bottom of left hand facing chair. With 2 people carefully turn onto back on piece of cardboard or carpet to protect covering pocket b. Plastic leg a. Timber leg d. Washer c. Bolt M8X60 e. Allen key 18*8.5*2mm 4pcs 2pcs 4pcs 1pcs 2pcs f. Bolt M8X40 h. Wrench i. Washer g. Nut 25*8.5*2mm 4pcs 4pcs 1pcs 8pcs STEP2: Tighten the pair of timber leg (a) to the bottom of left hand facing chair at arm side with bolt (c) and washer (d) by Allen key (e). Front clockwise turning of Allen key for tighten of bolts Back 69015...
- Page 4 STEP3: Screw two plastic legs (b) into holes at bottom of armless side of the left hand facing chair. Front clockwise turning for tighten of the plastic leg with screw Back STEP4: Use wrench (h) to fix the adjustable backrest at the left hand facing chair seat with bolt (f), nut (g) and washer (i). Adjustable Backrest Washer Bolt Chair Seat 69015...
- Page 5 Step5: Locate package of sofa legs and hardware for assembly of adjustable backrest that are placed into zipper pocket at the bottom of armless chair. With 2 people carefully turn onto back on piece of cardboard or carpet to protect covering pocket f. Bolt M8X40 g. Nut i. Washer b. Plastic leg 25*8.5*2mm 4pcs 4pcs 4pcs 8pcs STEP6: Screw four plastic legs (b) into holes at bottom of the armless chair. clockwise turning for tighten of the plastic leg with screw 69015...
- Page 6 Step7: Use wrench (h) to fix the adjustable backrest at the armless chair seat with bolt (f), nut (g) and washer (i). Adjustable Backrest Washer Bolt Chair Seat STEP8: Locate package of sofa legs and hardware for assembly of backrest that are placed into zipper pocket at the bottom of wedge piece. With 2 people carefully turn onto back on piece of cardboard or carpet to protect covering pocket c. Bolt M8X60 d. Washer e. Allen key 18*8.5*2mm b. Plastic leg 6pcs 6pcs 1pcs 4pcs 69015...
- Page 7 Step9: Screw four plastic legs (b) into holes at bottom of the wedge piece. clockwise turning for tighten of the plastic leg with screw STEP10: Connect the two backrests of the wedge piece by slotting, then fix them at the wedge piece seat with bolt (c) and washer (d) by Allen key (e). Wedge Seat align the 3 holes at two sides of wedge seat with the same 3 holes at bottom of each backrest Completion Insert bolts from holes inside zipper pocket underneath, then go through holes at wedge seat and backrests, finally screwed by Allen Key at bolt head. 69015...
- Page 8 Step11: Locate package of sofa legs with fittings and hardware for assembly of adjustable backrest that are placed into zipper pocket at the bottom of right hand facing end chair. With 2 people carefully turn onto back on piece of cardboard or carpet to protect covering b. Plastic leg a. Timber leg d. Washer c. Bolt M8X60 18*8.5*2mm 4pcs 2pcs 4pcs 3pcs f. Bolt M8X40 g. Nut e. Allen key i. Washer 25*8.5*2mm 4pcs 1pcs 4pcs 8pcs STEP12: Tighten the pair of timber leg (a) to the bottom of right hand facing end chair at front with bolt (c) and washer (d) by Allen key (e). clockwise turning of Allen key for tighten of bolts Front Back 69015...
- Page 9 STEP13: Screw three plastic legs (b) into holes at the bottom of right hand facing end chair. clockwise turning for tighten of the plastic leg with screw STEP14: Use wrench (h) to fix the adjustable backrest at the right hand facing end chair seat with bolt (f), nut (g) and washer (i). Adjustable Backrest Washer Bolt Chair Seat 69015...
- Page 10 STEP15: Connect 4 pieces of the corner chaise by sliding foldable clips into slide way parts at the bottom of every piece. bottom view after connection Foldable clips Slide way parts To Separate Two Lounge Pieces Use two people to lift the lounge and move clear of the connection clips. piece offering slide way parts piece offering foldable clips 69015...
- Page 11 69015...
