Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please
phone Amart Furniture Ewing Road, Customer Service Free call 1800 351 084
ASSEMBLY INSTRUCTION

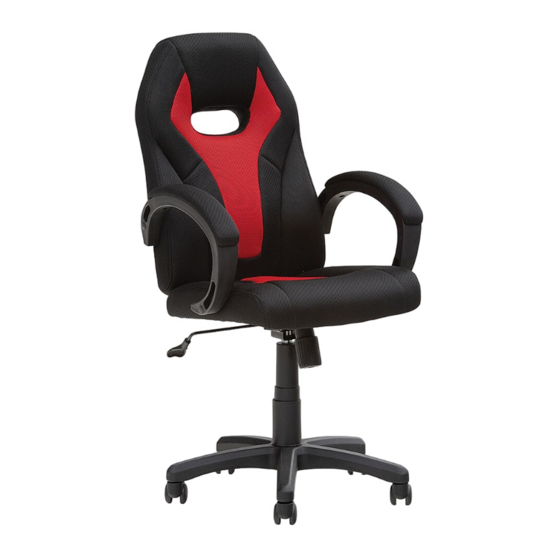

Verdana Office Chair
ITEM CODE:62908
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture Ewing Road, Customer Service Free call 1800 351 084

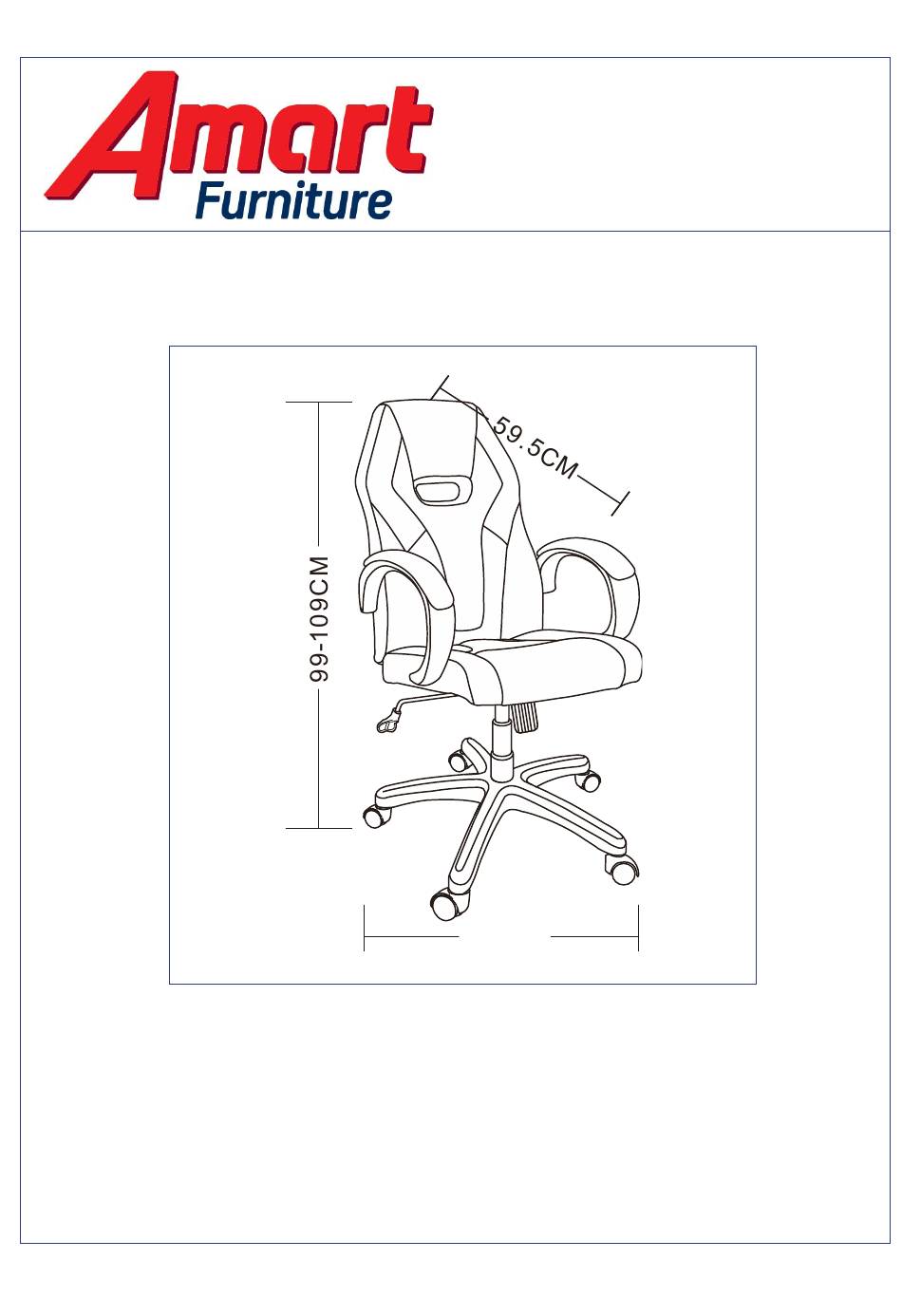

60CM
1-7
62908
Advertisement
Table of Contents
Related Manuals for Amart Furniture Verdana 62908
Summary of Contents for Amart Furniture Verdana 62908
- Page 1 Amart Furniture Ewing Road, Customer Service Free call 1800 351 084 60CM Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture Ewing Road, Customer Service Free call 1800 351 084 62908...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product. Take care when lifting.Product should be assembled as near as possible to the point of use. Ensure that you have all required contents for complete assembly. Always read the assembly instructions carefully before beginning assembly .
- Page 3 PARTS LIST BACK ARMREST (L)&(R) SEAT MECHANISM GAS LIFT GAS LIFT COVER BASE CASTOR bolt bolt bolt M6x25mm 4xPCS M8x45 4xPCS M6x16mm 4xPCS □ □ rubber plug Φ15mm 8XPCS Allen key 1PCS 62908...
- Page 4 STEP 1: STEP 1: Insert castor 8 to base 7 . STEP 2: Put gas lift 5 into base 7 as instruction shown, then put gas lift cover 6 on gas lift 5 .Remove gas lift cover before assembly. 62908...
- Page 5 STEP 3: Attach mechanism 4 to seat 3 using bolt A. Fasten by allen key. STEP 4: Attach back ① to seat ③ and mechanism ④ using bolt B.Fasten by allen key. 62908...
- Page 6 STEP 5: Attach armrest to seat ③ and back ① using bolt C. Fasten by allen key. Then put rubber plug D into the armrest bolt holes. STEP 6: Put chair body into armrest ⑤. 62908...
- Page 7 STEP 7: Assembly is complete. CARE AND MAINTENANCE OFFICE CHAIR DO NOT REMOVE THIS LABEL DO NOT STAND ON THIS CHAIR-DO NOT USE THIS CHAIR AS STEP LADDER. USE THIS PRODUCT ONLY FOR SEATING ONE PERSON AT A TIME. DO NOT USE THIS CHAIR UNLESS ALL BOLTS, SCREWS AND KNOBS ARE FIRMLY SECURED.
