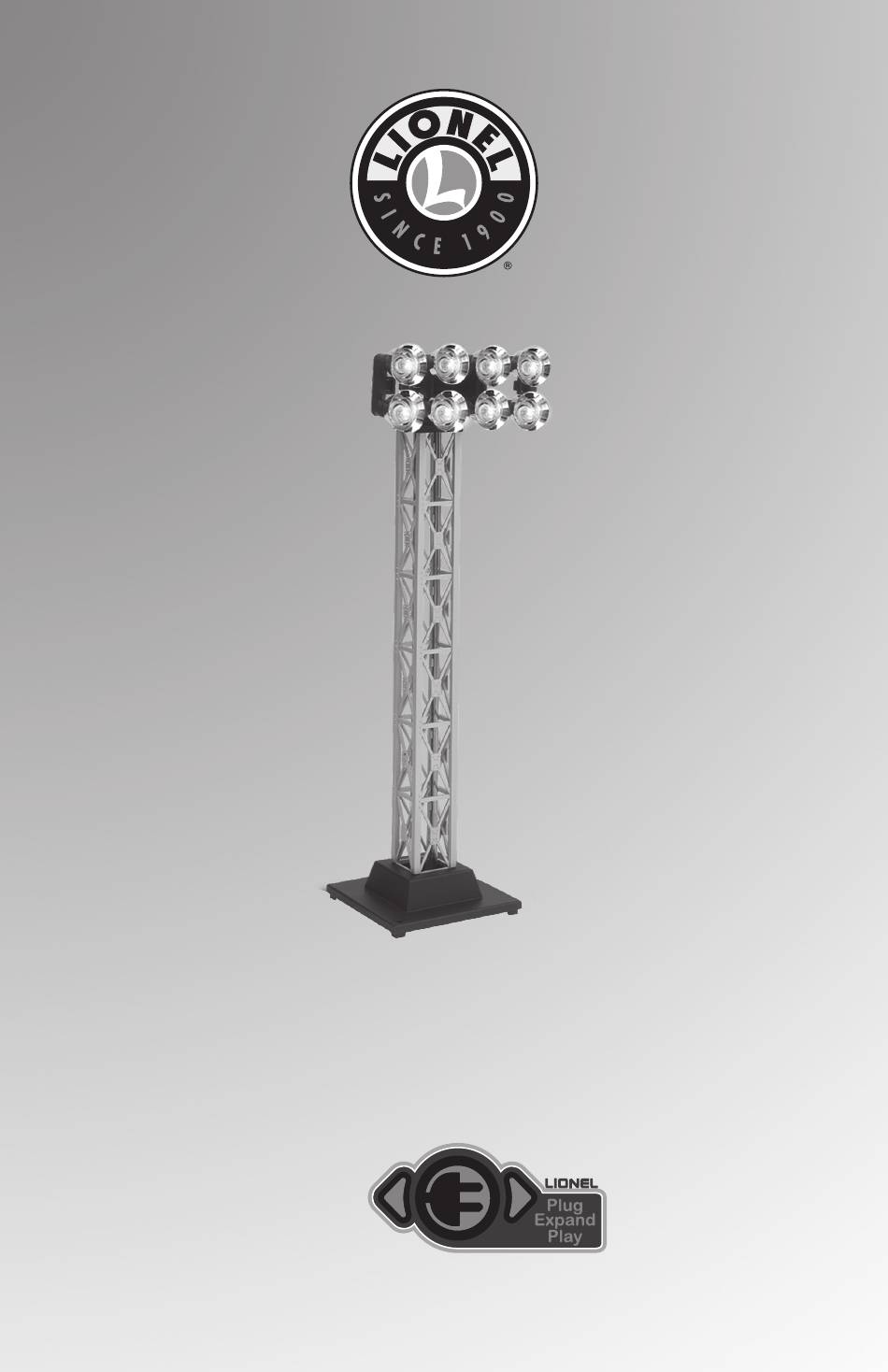

- Page 1 78-2012-250 2/22 Floodlight Tower Floodlight Tower Owner’s Manual Owner's Manual Featuring...
- Page 2 LED's for excellent illumination to your layout. Your floodlight tower will also allow you to tilt the lights to the direction of your liking. The floodlight tower can be placed on any Lionel three-rail layout and is designed to operate using the Plug-Expand- Play ®...
- Page 3 Wiring your Floodlight Tower Wiring your accessory to a Plug-Expand-Play lock-on our Plug-Expand-Play accessory connects to either a Plug-Expand-Play lock-on (6-81313) or a Plug-Expand-Play power block lock-on (6-81314) with the 3-pin male connector that is attached to its base. Simply plug this connector into the lock-on and apply track power.
- Page 4 Wiring your Floodlight Tower Connecting your accessory to FasTrack and tubular track ou are able to connect your accessory to FasTrack using an 8" 3-pin female pigtail (available separately, 6-82038). Plug in the 3-pin male connector from the accessory into the 3-pin female pigtail.
- Page 5 Wiring your Floodlight Tower Connecting your accessory to a transformer o power your accessory using a CW-80 Transformer (6-14198)or any other power supply, you will need an 8" 3-pin female pigtail (available separately, 6-82038) to connect to the transformer terminals. Make sure that all connections are secure. Loose connections can produce extremely high temperatures.

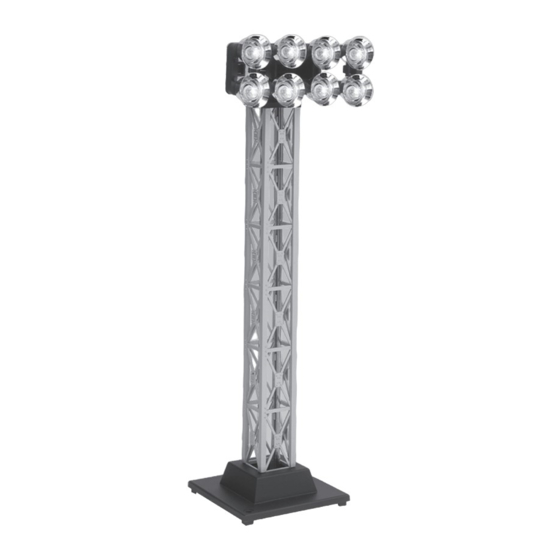

- Page 6 Maintaining and Servicing your Floodlight Tower Floodlight Tower Features our Floodlight Tower is capable of adjusting the light head according to your preference. The head tilts in order to give your layout more or less light. To move the head, manually move it up or down using the thumbscrew.
- Page 7 Replacing the LEDs our accessory is illuminated with several LEDs that are expected to last the life of the accessory. The LEDs are not user serviceable. If service is required, we recommend that you have your accessory serviced at Lionel Service.
- Page 8 Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
