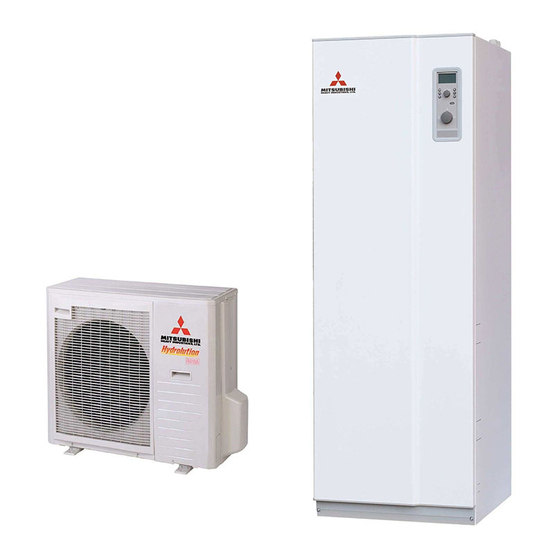

Mitsubishi Heavy Industries HMA60-S Technical Manual

Mitsubishi Heavy Industries HMA60-S Technical Manual

Air to water heat pump

Hide thumbs Also See for HMA60-S:

User manual (50 pages)

Table Of Contents

Table of Contents

Advertisement

Quick Links

TECHNICAL MANUAL

AIR TO WATER HEAT PUMP

INDOOR UNIT

(ALL IN ONE TYPE)

HMA60-S

HMA100-S

(SPLIT BOX)

HSB60-W

HSB100

HSB140

(TANK UNIT)

PT300

PT500

(CONTROLLER)

RC-HY20-W

RC-HY40-W

OUTDOOR UNIT

FDCW60VNX-A

FDCW71VNX-A

FDCW100VNX-A

FDCW140VNX-A

Service code

Outdoor unit

History of service code

FDCW60VNX-A

1

FDCW71VNX-A

1

L

FDCW100VNX-A

1

L

FDCW140VNX-A

1

L

Manual No. '19 • HM-T-340

updated July 21, 2020

Changes

1

: to add new unit

─

1

: L

o t

o

o c

o c

m

m

safety standard for LVD

M

N

L

M

:

o t

h c

n a

M

N

unit (PCB)

M

N : to change of connected

M

N

indoor unit

p

p

y l

y l

w

w

h t i

h t i

a

a

m

m

e

e

d n

d n

d e

d e

e g

o

c f

n o

r t

l o

#

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the HMA60-S and is the answer not in the manual?

Questions and answers

Summary of Contents for Mitsubishi Heavy Industries HMA60-S

Page 1 Manual No. '19 • HM-T-340 updated July 21, 2020 TECHNICAL MANUAL AIR TO WATER HEAT PUMP INDOOR UNIT (ALL IN ONE TYPE) HMA60-S HMA100-S (SPLIT BOX) HSB60-W HSB100 HSB140 (TANK UNIT) PT300 PT500 (CONTROLLER) RC-HY20-W RC-HY40-W Service code Outdoor unit...
Page 2 The new indoor unit HSB60-W replaces the HSB60. This unit was upgraded in order to be compatible with R410A and R32 outdoor units. Outdoor unit FDCW60VNX-A has the following compatibility: Indoor unit HSB 60 HMA60-S HSB 60-W HMK60 Outdoor ○...
Page 3: Table Of Contents
136 Expansion valve 286 Menu 3- Info 136 Low pressure sensor 286 Menu 4- My system 136 HMA60-S/HMA100-S 287 Menu 5- Service 137 HSB60/HSB100/HSB140 288 Temperature sensor 290 Data for sensor in outdoor unit ...
Page 4: Safety Precautions
‘19 • HM-T-340 When install the unit, be sure to check whether the selection of installation place, power source speciﬁ cations, usage limitation (piping length, height differences between indoor and outdoor units, power source voltage and etc.) and installation spaces. SAFETY PRECAUTIONS ...
Page 5 ‘19 • HM-T-340  Do not open the service valves for liquid line and gas line until completed refrigerant piping work, air tightness test and evacuation. If the compressor is operated in state of opening service valves before completed connection of refrigerant piping work, air can be sucked into refrigerant circuit, which can cause bust or personal injury due to anomalously high pressure in the refrigerant.
Page 6 ‘19 • HM-T-340 ・Locations with heavy snow. (If installed, be sure to provide base ﬂ ame and snow hood mentioned in the manual) ・Locations where the unit is exposed to chimney smoke. ・Locations at high altitude. (more than 1000m high) ・Locations with ammonic atmospheres.
Page 7: Technical Data
‘19 • HM-T-340 Technical data Technical data - 5 -...
Page 8: Technical Specifications
Technical data Technical specifications Technical speciﬁ cations Specifications ndoor units All in one type Model HMA60-S HMA100-S General conditions 230V AC / 400V 3NAC Power source 50 Hz Max current (A) 45 for 230V single-phase / 20 for 400V three-phase...
Page 9 ‘19 • HM-T-340 Technical data Technical specifications Model HMA60-S HMA100-S Top/side/front bottom Steel 0.7 mm Material Back Galvanized steel 275 g/m Top/side/front bottom RAL9016, shine 50, white Color (powder coated 1 layer) Back Untreated Isolation heat exchanger Armaflex Isolation tank Stand by heat loss 61.25 W EN12897...
Page 10 '19 • HM-T-340 Technical data Technical specifications Indoor unit RC-HY controller Electrical data Supply Voltage 230V – 50Hz Rated value for impulse voltage 4 kV Option connections Max number of air/water heat pumps Max number of sensors Max number of charge pumps with internal accessory cards Max number of charge pumps with external accessory cards...
Page 11 ‘19 • HM-T-340 Technical data Technical specifications Split box Model HSB60-W HSB100 HSB140 General conditions Power source 230V AC50 Hz Recommended fuse Gas: OD12.7, Gas: OD15.9, Pipe size refrigerant (ref) liquid: OD6.35 (1/2”; 1/4”) liquid: OD9.5 (5/8”; 3/8”) For up to 12 kW outdoor Capacity For 6 kW outdoor unit For 16 kW outdoor unit...
Page 12 '19 • HM-T-340 Technical data Technical specifications Tank unit Model PT300 PT500 Volume total 279 ℓ 476 ℓ Volume coil 9.4 ℓ 13 ℓ Area coil Material coil Steel - S235 33.7 × 2.6 mm Material tank Steel – S275g=3.0 mm Cabinet Side / Top / –...
Page 13 ‘19 • HM-T-340 Technical data Technical specifications Outdoor units Outdoor model FDCW60VNX-A Power source 1 phase 230V 50Hz condition 1 2.28 (0.50 – 8.00) Heating nominal capacity condition 2 2.67 (0.50 – 7.40) condition 1 0.63 Heating power consumption condition 2 0.50 condition 1 3.62...
Page 14 '19 • HM-T-340 Technical data Technical specifications Outdoor model FDCW71VNX-A Power source 1 phase 230V 50Hz condition 1 8.0 (3.0 – 8.0) Heating nominal capacity condition 2 8.3 (2.0 – 8.3) condition 1 2.40 Heating power consumption condition 2 2.03 condition 1 3.33 condition 2...
Page 15 ‘19 • HM-T-340 Technical data Technical specifications Outdoor model FDCW100VNX-A Power source 1 phase 230V 50Hz condition 1 9.0 (3.5 11.0) – Heating nominal capacity condition 2 9.2 (3.5 10.0) – condition 1 2.62 Heating power consumption condition 2 2.15 condition 1 3.44 condition 2...
Page 16 '19 • HM-T-340 Technical data Technical specifications Outdoor model FDCW140VNX-A Power source 1 phase 230V 50Hz condition 1 16.0 (5.8 16.0) – Heating nominal capacity condition 2 16.0 (4.2 – 16.0) condition 1 4.83 Heating power consumption condition 2 3.81 condition 1 3.31 condition 2...
Page 17 ‘19 • HM-T-340 Technical data Technical specifications Test conditions Water temperature Ambient temperature condition 1 45°C out / 40°Cin Heating 7°CDB / 6°CWB condition 2 35°Cout / 30°Cin condition 1 7°Cout / 12°Cin Cooling 35°CDB condition 2 18°Cout / 23°Cin *1: Test condition for sound power level Temperature condition: Heating condition 2 *2: Test condition for sound pressure level...
Page 18 '19 • HM-T-340 Technical data Technical specifications Seasonal space heating energy efficiency ( s) & Rated heat output (Prated) All in one Medium-temperature application Low-temperature application Split box Medium-temperature application Low-temperature application - 16 -...
Page 19 ‘19 • HM-T-340 Technical data Technical specifications Controller RC-HY20-W Electrical data Power source voltage 230V 50 Hz Enclosure class IP 21 Rated value for impulse voltage 4 kV Electrical contamination Option connections Max number of air/water heat pumps Max number of sensors Max number of charge pumps Max number of outputs for additional heat step Miscellaneous...
Page 20 '19 • HM-T-340 Technical data Technical specifications RC-HY40-W Electrical data Power source voltage 230V 50 Hz Enclosure class IP 21 Rated value for impulse voltage 4 kV Option connections Max number of air/water heat pumps Max number of sensors Max number of charge pumps with internal accessory cards Max number of charge pumps with external accessory cards Max number of outputs for additional heat step Miscellaneous...
Page 21: Installation Requirement
‘19 • HM-T-340 Technical data Technical specifications Installation requirements HMA60-S HMA100-S HMA100-S HSB140 Indoor unit HSB60-W HSB100 HSB100 FDCW60VNX-A FDCW71VNX-A FDCW100VNX-A FDCW140VNX-A Outdoor unit Max pressure, climate system 0.25MPa (2.5Bar) Max temperature, climate system 65 ℃ Max temperature in indoor unit 65 ℃...
Page 22: Operating Temperature Range
'19 • HM-T-340 Technical data Technical specifications Operating temperature range FDCW60VNX-A, 71VNX-A, 100VNX-A, 140VNX-A <Heating/Hot Water> with immersion heater olid line: Water Out temperature Two-dot chain line: Water In temperature Ambient temperature ( <Cooling> Solid line: Water Out temperature Two-dot chain line: Water In temperature Ambient temperature ( - 20 -...
Page 23 ‘19 • HM-T-340 Technical data Technical specifications NOTE 1. Avoid installing outdoor unit where wind blows stronger than 5m/s. In strong wind enviroment, operable temperature range is drastically narrowed if wind protection is not used. 2. In case outdoor unit is installed where outdoor air temperature drops below 10 ℃ and wind blows directly into the outdoor unit, install wind protection on outdoor unit.
Page 24: Capacity Diagram
'19 • HM-T-340 Technical data Technical specifications Capacity diagram HMA60-S —— FDCW60VNX HSB60-W —— FDCW60VNX Heating Maximum Minimum (Nominal capacity) Outdoor air temperature (°C) Condition Supply water temperature : 45ºC Water flow rate : 1447 ℓ /h Cooling Maximum (Nominal capacity) Minimum Outdoor air temperature (°C)
Page 25 ‘19 • HM-T-340 Technical data Technical specifications HMA100-S —— FDCW71VNX HSB100 —— FDCW71VNX Heating Maximum (Nominal capacity) Minimum Outdoor air temperature (°C) Condition Supply water temperature : 45ºC Water flow rate : 1376 ℓ /h Cooling Maximum (Nominal capacity) Minimum Outdoor air temperature (°C) Condition Supply water temperature : 7ºC...
Page 26 '19 • HM-T-340 Technical data Technical specifications HMA100-S —— FDCW100VNX HSB100 —— FDCW100VNX Heating Maximum (Nominal capacity) Minimum Outdoor air temperature (°C) Condition Supply water temperature : 45ºC Water flow rate : 1548 ℓ /h Cooling Maximum (Nominal capacity) Minimum Outdoor air temperature (°C) Condition Supply water temperature : 7ºC...
Page 27 ‘19 • HM-T-340 Technical data Technical specifications HSB140 —— FDCW140VNX Heating Maximum (Nominal capacity) Minimum Outdoor air temperature (°C) Condition Supply water temperature : 45ºC Water flow rate : 2838 ℓ /h Cooling Maximum (Nominal capacity) Minimum Outdoor air temperature (°C) Condition Supply water temperature : 7ºC Water flow rate : 2030 ℓ...
Page 28 '19 • HM-T-340 Technical data Technical specifications Capacity correction factor according to piping length and outlet water temperature in cooling HMA60-S —— FDCW60VNX-A HSB60-W —— FDCW60VNX-A Outlet water temperature 18℃ 15℃ 12℃ 10℃ 9℃ 8℃ 7℃ Piping length(m) HMA100-S —— FDCW71VNX HSB100 ——...
Page 29 ‘19 • HM-T-340 Technical data Technical specifications HMA100-S —— FDCW100VNX HSB100 —— FDCW100VNX Outlet water temperature 18℃ 15℃ 12℃ 10℃ 9℃ 8℃ 7℃ Piping length(m) HSB140 —— FDCW140VNX Outlet water temperature 18℃ 15℃ 12℃ 10℃ 9℃ 8℃ 7℃ Piping length(m) - 27 -...
Page 30 '19 • HM-T-340 Technical data Technical specifications How to calculate estimated capacity according to ambient temperature, water outlet temperature and piping length (1) Read the cooling capacity at 7degC outlet and required ambient temperature. i t c t e l .
Page 31: Dimensions
XL11 XL10 XL13 XL14 XL19 XL18 103mm 20-40 Meaning of symbol Content Symbol HMA60-S HMA100-S Connection, heating medium supply 22 mm φ Connection, heating medium return 22 mm φ Connection, cold water 22 mm φ Connection, hot water 22 mm φ...
Page 32 '19 • HM-T-340 Technical data Dimensions Split box HSB60-W/HSB100/ HSB140 XL13 XL14 Meaning of symbol Content Symbol HSB100 HSB140 HSB60-W Climate system supply 22 mm 28 mm φ φ Climate system return 22 mm 28 mm φ φ XL13 Connection, liquid line 1/4”...
Page 33 ‘19 • HM-T-340 Technical data Dimensions Tank unit PT300 Meaning of symbol PT300 Inspection opening i t a i t c ̋ ½ Thermometer enclosure 10 Female Hot water outlet ̋ 1 i t a ̋ ¾ Temperature sensor enclosure (BT7) 16 Female Coil supply ̋...
Page 34 '19 • HM-T-340 Technical data Dimensions PT500 Meaning of symbol PT500 Inspection opening i t a i t c ̋ ½ Thermometer enclosure 10 Female Hot water outlet ̋ 1 i t a ̋ ¾ Temperature sensor enclosure (BT7) 16 Female Coil supply ̋...
Page 35: Outdoor Units
‘19 • HM-T-340 Technical data Dimensions Outdoor units FDCW60VNX-A 2ー12 × Meaning of symbol - 33 -...
Page 36 '19 • HM-T-340 Technical data Dimensions FDCW71VNX-A Meaning of symbol - 34 -...
Page 37 ‘19 • HM-T-340 Technical data Dimensions FDCW100VNX-A Cable gland Meaning of symbol - 35 -...
Page 38 '19 • HM-T-340 Technical data Dimensions FDCW140VNX-A Meaning of symbol - 36 -...
Page 39: Controller
‘19 • HM-T-340 Technical data Dimensions (3) Controller Outside：RC-HY20/40 Controller Outside : RC-HY20/40-W Inside : RC-HY20-W Meaning of symbol Symbol Content Base card Display unit AA4-XJ3 USB socket AA4-XJ4 Service outlet (No func Extra relay circuit board Miniature circuit breaker Terminal block, incoming electrical supply Terminal block, control signal circula pump, sensors, AUX inputs and heat pump...
Page 40: Electrical Circuit Diagram
'19 • HM-T-340 Technical data Electrical circuit diagram Electrical circuit diagram Indoor units All in one type HMA60-S/HMA100-S - 38 -...
Page 41 ‘19 • HM-T-340 Technical data Electrical circuit diagram - 39 -...
Page 42 '19 • HM-T-340 Technical data Electrical circuit diagram - 40 -...
Page 43 ‘19 • HM-T-340 Technical data Electrical circuit diagram - 41 -...
Page 44 '19 • HM-T-340 Technical data Electrical circuit diagram - 42 -...
Page 45 ‘19 • HM-T-340 Technical data Electrical circuit diagram - 43 -...
Page 46 '19 • HM-T-340 Technical data Electrical circuit diagram - 44 -...
Page 47 ‘19 • HM-T-340 Technical data Electrical circuit diagram - 45 -...
Page 48 '19 • HM-T-340 Technical data Electrical circuit diagram - 46 -...
Page 49 ‘19 • HM-T-340 Technical data Electrical circuit diagram Split box HSB60-W - 47 -...
Page 50 '19 • HM-T-340 Technical data Electrical circuit diagram HSB100 - 48 -...
Page 51 ‘19 • HM-T-340 Technical data Electrical circuit diagram HSB140 - 49 -...
Page 52: Outdoor Units
'19 • HM-T-340 Technical data Electrical circuit diagram Outdoor units FDCW60VNX-A - 50 -...
Page 53 ‘19 • HM-T-340 Technical data Electrical circuit diagram FDCW 71VNX-A - 51 -...
Page 54 '19 • HM-T-340 Technical data Electrical circuit diagram FDCW 100VNX-A, 140VNX-A - 52 -...
Page 55: Controller
‘19 • HM-T-340 Technical data Electrical circuit diagram Controller RC-HY20-W - sheet 1 - 53 -...
Page 56 '19 • HM-T-340 Technical data Electrical circuit diagram RC-HY20-W - sheet 2 - 54 -...
Page 57 ‘19 • HM-T-340 Technical data Electrical circuit diagram RC-HY20-W - sheet 3 - 55 -...
Page 58 '19 • HM-T-340 Technical data Electrical circuit diagram RC-HY20-W - sheet 4 - 56 -...
Page 59 ‘19 • HM-T-340 Technical data Electrical circuit diagram RC-HY40-W- sheet 1 - 57 -...
Page 60 '19 • HM-T-340 Technical data Electrical circuit diagram RC-HY40-W- sheet 2 - 58 -...
Page 61 ‘19 • HM-T-340 Technical data Electrical circuit diagram RC-HY40-W- sheet 3 - 59 -...
Page 62 '19 • HM-T-340 Technical data Electrical circuit diagram RC-HY40-W- sheet 4 - 60 -...
Page 63 ‘19 • HM-T-340 Technical data Electrical circuit diagram RC-HY40-W- sheet 5 - 61 -...
Page 64 '19 • HM-T-340 Technical data Electrical circuit diagram RC-HY40-W- sheet 6 - 62 -...
Page 65: Installation
‘19 • HM-T-340 Installation Installation - 63 -...
Page 66: Outdoor Unit Installation
'19 • HM-T-340 Installation Outdoor unit installation Outdoor unit installation PSC012D066T 60VNX INSTALLATION MANUAL FOR OUTDOOR UNIT FDCW60VNX-A Designed for R410A refrigerant ◎This installation manual deals with outdoor units and general installation speciﬁcations only. For indoor units, refer to the respective installation manuals supplied with the units. ◎Read this manual carefully before you set to installation work and carry it out according to the instructions contained in this manual.
Page 67 ‘19 • HM-T-340 Installation Outdoor unit installation 1. TOOLS Locally procured parts Tools for installation work (a) Anchor bolt(M10-M12)×4 pcs Plus headed driver Spanner wrench Vacuum pump* (b) Putty Knife Torque wrench [14.0-62.0N/m(1.4-6.2kgf•m)] Gauge manifold * (c) Electrical tape Wrench key (Hexagon) [4mm] Charge hose * (d) Connecting pipe Vacuum pump adapter*...
Page 68 '19 • HM-T-340 Installation Outdoor unit installation 3. PREPARATION FOR WORK 1. Removing service cover 2. Removing terminal cover Remove the screw. Slide service cover downwards and remove it. Remove the screw and take out terminal cover. Screw Terminal cover Screw Service cover 4.
Page 69 Main fuse speciﬁ cation Speciﬁ cation Parts No. Code on LABEL,WIRING <Circuit diagram> 250V 20A SSA564A136A Indoor unit : HMA60-S Indoor unit : HSB60-W 1.Preparing cable (1) Selecting cable Outdoor unit Outdoor unit 1 2/N 3 1 2/N 3 Select the power source cable and connecting cable in accordance with the speciﬁ...
Page 70: Fdcw71,100,140Vnx-A
'19 • HM-T-340 Installation Outdoor unit installation FDCW71, 100, 140VNX-A PSC012D066V 71VNX, 100VNX, 140VNX INSTALLATION MANUAL FOR OUTDOOR UNIT Designed for R410A refrigerant ◎This installation manual deals with outdoor units and general installation speciﬁcations only. For indoor units, refer to the respective installation manuals supplied with the units.
Page 71 ‘19 • HM-T-340 Installation Outdoor unit installation 1. HAULAGE AND INSTALLATION (Take particular care in carrying in or moving the unit, and always perform such an operation with two or more persons.) When a unit is hoisted with slings for haulage, take into consideration the offset of its gravity center position. CAUTION If not properly balanced, the unit can be thrown off-balance and fall.
Page 72 '19 • HM-T-340 Installation Outdoor unit installation 4) On-site piping work 71VNX 100VNX (100VNX, 140VNX only) ● Take care so that installed pipes may not touch components within a unit. If touching with IMPORTANT an internal component, it will generate abnormal sounds and/or vibrations. Catch First remove the screw (s) ( mark) of the service panel or the side cover and push it...
Page 73 ‘19 • HM-T-340 Installation Outdoor unit installation PSC012D066V 4. ELECTRICAL WIRING WORK For details of electrical cabling, refer to the indoor unit installation manual. 71VNX 100VNX. 140VNX Electrical installation work must be performed by an electrical installation service provider qualiﬁed by a power provider of the country.
Page 74: Indoor Unit Installation
'19 • HM-T-340 Installation Indoor unit installation General information for installer For outdoor unit installation information, see nstallation manual for utdoor unit. Over view and design Over view and design Over view and design HSB60-W HSB100/140 Pipe connections Sensor, thermostats Valves etc.
Page 75 ‘19 • HM-T-340 Installation Indoor unit installation HMA series XL11 XL10 XL13 XL14 AA23 BT30 K1A-K3A AA27 AA2:X15 AA2:X4 BT64 GP12 QN12 BT12 BT63 BT15 QN10 BT71 BT25 - 73 -...
Page 76 '19 • HM-T-340 Installation Indoor unit installation Pipe connections Electrical elements Connection, heating medium, supply High voltage terminal block 400V ̶ /230V ̶ Connection, heating medium, return Low voltage terminal block 230V ̶ Connection, cold water Low voltage terminal block 230V ̶ Connection, hot water Low voltage terminal block 230V ̶...
Page 77 ‘19 • HM-T-340 Installation Indoor unit installation Side view of the PT300 storage tanks Section of the PT300 storage tanks Section of the PT storage tanks Side view of the PT storage tanks - 75 -...
Page 78 '19 • HM-T-340 Installation Indoor unit installation Transport and storage Assembly ■ It is recommended that indoor unit is installed in a room Indoor unit and tank unit must be transported and stored with existing ﬂ oor drainage, most suitably in a utility room vertically in dry conditions.
Page 79 ‘19 • HM-T-340 Installation Indoor unit installation HMA-S series 25-30 mm Recommendation for positioning on wall 800 mm IMPORTANT IMPORTANT For HMK60, leave 10 – 25 mm free space between the indoor When using an additional heat source, leave behind the module and the back wall for cables and piping.
Page 80 '19 • HM-T-340 Installation Indoor unit installation Hanging indoor unit Hanging control unit It is recommended that the split box is installed in a room with Use all mounting points and install control unit upright against existing ﬂ oor drainage, most suitably in a utility room or boiler a ﬂ...
Page 81 ‘19 • HM-T-340 Installation Indoor unit installation Dimensioning expansion vessel Recommended installation order 1. Han g indoor unit and control unit to appropriate position volume in the circulation system. 2. Connect indoor unit to climate cold and hot water vessel with a HMA-S heat sources.
Page 82: Pipe Installation
'19 • HM-T-340 Installation Indoor unit installation Pipe installation General Pipe installation must be carried out in accordance with current norms and directives. A following table shows plumbing necessary for each product. Refrigerant Plumbing Necessary Necessary HMA-S Necessary Necessary Necessary PC-HY This heat pump system is designed for low or medium temperature heating system.
Page 83 ‘19 • HM-T-340 Installation Indoor unit installation HMA-S series HMA-S indoor unit is equipped with coil water heater, expansion vessel, safety valve, electric heater, plate heat exchanger, sensors and gauge, circulation pump, and controller. Basic connection diagram -BT64 XL10 -BT25 -GP12 -QN12 -BT63...
Page 84 '19 • HM-T-340 Installation Indoor unit installation Scheme with the connection of an additional heat source XL18 XL19 -BT64 XL10 -BT25 -GP12 -QN12 -BT63 -QN10 -BT15 -BT71 -BT3 -BP4 -BT7 -BT1 -BT6 Outdoor unit Indoor unit Indoor HMA-S module Recommended order of assembly •...
Page 85 Indoor unit installation System requirements Pump capacity diagram HSB series alues le elow. series M65 and 75. Pressure [kPa] HSB60-W, HMA60-S HSB100, HMA100-S FDCW71VNX-A HSB100, HMA100-S FDCW100VNX-A HSB140 FDCW140VNX-A Overﬂow valve NOTE Flow [l / s] A free flow is required for all docking options, which...
Page 86 '19 • HM-T-340 Installation Indoor unit installation Pressure drop in indoor unit [kPa] HMA-S series [kPa] HMA60 HMA100 Connection of extra circulation pump NOTE Non-return valve must be installed in case extra circulation pump is used. The circlulation pump may become damaged. - 84 -...
Page 87 ‘19 • HM-T-340 Installation Indoor unit installation PT300/500 Meaning of symbol Connection PT300/500 Dimensions Inspection opening PT300 PT500 i t a i t c ̋ ½ ① Thermometer enclosure 10 Female ② 1325 1477 Hot water outlet ̋ 1 ③ i t a ̋...
Page 88 '19 • HM-T-340 Installation Indoor unit installation HMK series Water circuit HMA-S series XL11 XL10 XL13 XL14 Connection to heating system XL11 Connect XL1 to supply line and XL2 to return line XL10 from heating system. ■ All required safety devices and shut-off valves must be installed as close to the indoor unit as possible.
Page 89 ‘19 • HM-T-340 Installation Indoor unit installation Housing and thermal insulation disassembly ■ Tank unit can be aligned using the adjustable feet. Connecting hot water tank to indoor unit ■ i t c l l a CAUTION with the relevant regulations. Installation and commissioning of the storage tank ■...
Page 90 '19 • HM-T-340 Installation Indoor unit installation Connecting hot water tank to water main Information ■ Install a mixing valve if the temperature exceeds 60 °C. In order to minimize the flow of water from the safety valve ■ l l a c i t associated with the thermal expansion of the liquid, it is for stable temperature hot water supply.
Page 91 ‘19 • HM-T-340 Installation Indoor unit installation 3. Remove the plug from the circulation pipe (XL5). Hot water circulation circuit Hot water circulation function is available for HMA-S series and PT series. HMA-S series 4. Install the elbow, facing the rear housing, on the circulation pipe.
Page 92 '19 • HM-T-340 Installation Indoor unit installation Refrigerant circuit PT series If the system has the hot water circulation system, connect it to the port L (see page 82). Connecting refrigerant pipes Then install the Cut-oﬀ valves, circulation pump and strainer. See Installation manual for outdoor unit.
Page 93: Electrical Installation
‘19 • HM-T-340 Installation Indoor unit installation NOTE Electrical installation Electrical installation and service must be carried out under the supervision of a qualifi ed elec trician. General Turn off the circuit breaker before carrying out any servicing. Electrical installation and wiring must be carried out in HMA-S series accordance with the stipulations in force.
Page 94 (power cable) Power - HSB140 Power - FDCW60 3 cores, 2.0mm (power cable) Cable size Power - FDCW71 Power - HMA60-S 6 cores, 10.0mm 3 cores, 2.5mm (power cable) Power - FDCW100 Power - HMA100-S 6 cores, 10.0mm Power - FDCW140 3 cores, 6.0mm...
Page 95 ‘19 • HM-T-340 Installation Indoor unit installation Electrical components HMA-S series AA23 BT30 K1A-K3A Explanation Explanation Voltage terminal block 400V- Voltage terminal block 230V- Voltage terminal block 230V- Voltage terminal block 230V- Circuit breaker (to internal module) K1A-K3A Submersible heater contact BT30 Thermostat, standby mode Sensor card...
Page 96 '19 • HM-T-340 Installation Indoor unit installation Temperature limiter RC-HY20-W Temperature limiter (FD1) cuts off the power supply of the electrical heating module if the temperature increases to the range of approximately 98°C or decreases below −8°C, and can be reset manually. Important In the case of the thermal fuse, please report it to an authorized service facility to eliminate the possible cause.
Page 97 ‘19 • HM-T-340 Installation Indoor unit installation RC-HY40-W Accessibility, electrical connection for controller NOTE The cover to access the base board is opened using a Torx 25 screwdriver using a Torx 25 screwdriver. Explanation - 95 -...
Page 98 '19 • HM-T-340 Installation Indoor unit installation - 96 -...
Page 99 ‘19 • HM-T-340 Installation Indoor unit installation Cable lock , RC-HY20/40-W HMA-S series - 97 -...
Page 100 '19 • HM-T-340 Installation Indoor unit installation Power source System connection In case of HSB series, power source is made to indoor unit, outdoor unit and controller separately. 230V 1AC 50Hz is NOTE applied. To prevent interference, unscreened communication For indoor unit, incoming supply is connected on AA23-X1 and/or sensor cables to external connections must not terminal.
Page 101 ‘19 • HM-T-340 Installation Indoor unit installation <HSB100 with FDCW100VNX> <HSB60-W with FDCW60VNX> FDCW60 FDCW100 3 (AMS 10:TB) 3 (AMS 10:TB) HSB60-W HSB100 AA23-X100 AA23-X100 AA23-X100 AA23-X100 Communication Communication Communication Communication Electrical distribution Electrical distribution Central Central unit unit <HSB100 with FDCW71VNX> <HSB140 with FDCW140VNX>...
Page 102 '19 • HM-T-340 Installation Indoor unit installation <HSB series with RC-HY20-W> Cascade connection setting Connect the port 19(A), 20(B) and 21(GND) on X2 terminal In case of cascade connection system, it is necessary to allot on RC-HY20-W to the port 1, 2 and 3 on X4 terminal on unique address to each indoor unit.
Page 103 ‘19 • HM-T-340 Installation Indoor unit installation 3-way valve (QN10/QN12) Sensor 3-way valve is used for switching heating / hot water Sensor connection is diﬀ erent according to the combination of production (QN10), or switching heating / cooling (QN12). indoor unit and controller. Refer to the appropriate combination Install appropriate valves according to the system structure on mentioned below.
Page 104 '19 • HM-T-340 Installation Indoor unit installation • Temperature sensor BT63, outlet at additional heater Option connections This sensor is used in case electric heater is placed before Room sensor BT50 3-way valve (QN10) for switching heating/hot water (see page Room sensor can be connected to controller.
Page 105 ‘19 • HM-T-340 Installation Indoor unit installation Step controlled additional heat Relay output for emergency mode NOTE NOTE Mark up any junction boxes with warnings for Mark up any junction boxes with warnings for external voltage. external voltage. External step controlled additional heat can be controlled by up to three potential-free relays in the control module (3-step When the switch (SF1) is in "...
Page 106 '19 • HM-T-340 Installation Indoor unit installation Select the appropriate function in menu 5.4. • Emergency mode thermostat In the emergency mode, the supply temperature is set using a soft in/outputs thermostat (T1). It must be set according to the demand of the circuits in operation.
Page 107 ‘19 • HM-T-340 Installation Indoor unit installation Choose two external input circuits and connect potential-free • AUX outputs switches, and set “SG Ready A” and “SG Ready B” in menu External output is available on the port 15 to 17 on X4 terminal 5.4.
Page 108 '19 • HM-T-340 Installation Indoor unit installation For details of connecting the pump, refer to External pump control (GP10). AA23-X4 AA23-X4 NOTE Mark up any junction boxes with warnings for external voltage. RC-HY40-W myUpway™ Connect the network connected cable (straight, Cat.5e UTP) with RJ45-contact (male) to contact AA4-X9 on the display unit (as illustrated).
Page 109 ‘19 • HM-T-340 Installation Indoor unit installation RC-HY40-W can connect and control up to two pumps. Connect 3-way valve (QN10/QN12) the port 12, 13 and 15 on X4 terminal on AA2 board on RC- 3-way valve is used for switching heating / hot water HY40-W to the port PE, N and L on second circulation pump production (QN10), or switching heating / cooling (QN12).
Page 110 '19 • HM-T-340 Installation Indoor unit installation • Hot water sensor BT7 (tank top) Sensor A temperature sensor for hot water top (BT7) can be connected Sensor connection is diﬀerent according to the combination of to RC-HY40-W to show the water temperature at the top of indoor unit and controller.
Page 111 ‘19 • HM-T-340 Installation Indoor unit installation Room sensor BT50 Option connection Refer to Room sensor BT50 for RC-HY20-W for function Load monitor and installation place. In case many power electrical appliances are connected in the Connect the room sensor to terminal block X6:3 and X6:4 on property and the electric heater is energised at the same time, the input board (AA3).
Page 112 '19 • HM-T-340 Installation Indoor unit installation AUX inputs AUX outputs Up to 6 other external inputs are available on RC-HY40-W. External output is available on the port NC, NO and C on X7 terminal on AA3 board on RC-HY40-W. The relay output AUX1 through 3 correspond to the port 9/10, 11/12, 13/14 can have a max load of 2A at resistive load.
Page 113 The recommended fuse size shown in the following table is reference value. Choose appropriate size according to local laws and regulations. Cable size 6 cores, 10mm Power - HMA60-S (power/communication cable) 6 cores, 10mm Power - HMA100-S (power/communication cable) HMA60-S - FDCW60 5 cores, 2.5mm...
Page 114 230V single phase and 400V three phase as speciﬁ ed on the clamp (X0). A removable <HMA60-S with FDCW60VNX> connection which is included with the unit must be connected between L1 and L2, when power source is 230V single phase.
Page 115 ‘19 • HM-T-340 Installation Indoor unit installation <HMA100-S with FDCW100VNX> FDCW100 HMA100-S External temperature sensor The outdoor temperature sensor (included in the kit) should be connected to the HMA-S unit on the AA3-X6:1 and AA3-X6:2. HMA-S AA3-X6 - 113 -...
Page 116: Commissioning And Adjusting
'19 • HM-T-340 Installation Indoor unit installation Commissioning and adjusting CAUTION Preparations Open the hot water intake valves before heating the system up for the first time or after a longer break in its operation in order to check whether the storage tank is filled with ...
Page 117 ‘19 • HM-T-340 Installation Indoor unit installation Start-up and inspection Cooling mode In case the climate system contains a cooling circuit, activate Before start-up cooling function in menu 5.11.1.1. After that, you can choose In case of cascade connection, check if each indoor unit has a cooling mode indication in menu 5.4 for the AUX output.
Page 118 '19 • HM-T-340 Installation Indoor unit installation Start guide Operation in the start guide Page Name and menu number NOTE Fill in the climate system with water before the switch is set language 4.6 to " " 1. Set the control module's switch to " ". 2.
Page 119 ‘19 • HM-T-340 Installation Indoor unit installation Factory setting: Presettings – Start guide – RC-HY20-W Radiator Setting range: This menu is shown at the ﬁ rst time that the heat pump is started. - Presettings It ensures that commissioning is carried out correctly and all •...
Page 120 '19 • HM-T-340 Installation Indoor unit installation Setting range: 8/17 - Addition - Aux 1-6: Set addition settings here. • Temperature sensor, cooling/heating (BT74) • Temperature sensor, external return line (BT71) • Temperature sensor, ﬂ ow line cooling (BT64) • Contact for external tariﬀ blocking •...
Page 121 ‘19 • HM-T-340 Installation Indoor unit installation 11/17 - Min. flow line temperature 14/17 - Op. mode Set minimum ﬂ ow line temperature of climate system. Set operating mode of the heat pump. Factory setting: 20°C Factory setting: Auto Setting range: 5° ̶ 70°C Setting range: - Auto 12/17 - Max flow line temperature...
Page 122 '19 • HM-T-340 Installation Indoor unit installation Additional configuration: cooling function Start guide – RC-HY 40-W This menu is shown at the ﬁ rst time that the heat pump is Enable cooling started. Set cooling permitted on menu 5.11.1 It ensures that commissioning is carried out correctly and all If you are using a 4-pipe system you have to enable to it on necessary steps are followed.
Page 123 ‘19 • HM-T-340 Installation Indoor unit installation Factory setting: Presettings – Radiator Setting range: Setting range: - Aux 1-6: • Temperature sensor, cooling/heating (BT74) - Presettings • Radiator • Temperature sensor, external return line (BT71) • Floor heating • Temperature sensor, ﬂ ow line cooling (BT64) •...
Page 124 '19 • HM-T-340 Installation Indoor unit installation 8/18 - Addition 9/18 - Installed slaves Set addition settings here. Search for installed slaves and enabled them (if connected) here. If everything is correct the units are automatically selected after searching for installed slaves. Factory setting: - Add.
Page 125 ‘19 • HM-T-340 Installation Indoor unit installation 12/18 - Min. flow line temperature 15/18 - Op. mode Set minimum ﬂ ow line temperature of each climate system. Set operating mode of the heat pump. Factory setting: 20°C Factory setting: Auto Setting range: 5°...
Page 126 '19 • HM-T-340 Installation Indoor unit installation Additional configuration: cooling function Start guide HMA60/100-S This menu is shown at the ﬁ rst time that the heat pump is Enable cooling started. Set cooling permitted for each slave on menu 5.11.1.x It ensures that commissioning is carried out correctly and all If you are using a 4-pipe system you have to enable to it on necessary steps are followed.
Page 127 ‘19 • HM-T-340 Installation Indoor unit installation Factory setting: Presettings – Radiator • Switch for “SG ready” • Contact for activation of “external adjustment” Setting range: -Presettings • Switch for external alarm • Switch for external blocking • Radiator • Floor heating - AA3-X7: •...
Page 128 '19 • HM-T-340 Installation Indoor unit installation 9/19 - Addition Set addition settings here 11/19 – Docking Set how each slave will work regarding piping (heating, cooling and DHW…) Factory setting: - Add. type: Step controlled - Positioning: Before QN10 - Max.
Page 129 ‘19 • HM-T-340 Installation Indoor unit installation 13/19 - Min. flow line temperature 16/19 - Op. mode Set minimum ﬂ ow line temperature of each climate system . Set operating mode of the heat pump. Factory setting: 20°C Factory setting: Auto Setting range: 5°-70°C Setting range: - Auto...
Page 130 '19 • HM-T-340 Installation Indoor unit installation Indoor unit installation The optimum slope depends on the climate conditions in your Heating/cooling curve setting heating) and how well insulated the house is. system CAUTION In the event of making fine adjustments of the indoor temperature, the curve must be offset up or down instead, this is done in menu 1.
Page 131 ‘19 • HM-T-340 Installation Indoor unit installation Hot water circulation setting oﬀ hot water recirc operating time To select another curve (slope): 1. downtime 2. 3. To read off a curve: oﬀ and read oﬀ Press OK or Back button to exit read oﬀ...
Page 132 '19 • HM-T-340 Installation Indoor unit installation SG Ready tariﬀ tariﬀ affect room temperature oﬀ oﬀ the indoor temperature is increased by " +2". affect hot water be aﬀ affect cooling (accessory required) operation should be aﬀ indoor temperature is not aﬀ oﬀ...
Page 133: Control
‘19 • HM-T-340 Control Control - 131 -...
Page 134: Control
'19 • HM-T-340 Control Control Control Display unit Display Status lamp OK button Back button Control knob Switch USB port A Display F Switch (SF1) Instructions, settings and operational information are shown The switch shows three positions: on the display. The easy-to-read display and menu system, ■...
Page 135: Menu System
‘19 • HM-T-340 Control Control Menu system Symbols in the display The following symbols can appear in the display during operation. Outdoor Indoor temperature tempeature (if room sensors are installed) Symbol Description This symbol appears when there is informa- tion to be noticed in menu 3.1. Hot water temperature INDOORCLIMATE These two symbols indicate whether the...
Page 136 '19 • HM-T-340 Control Control Menu number – marked sub-menu Name and menu number – main menu Symbol – main menu INDOOR CLIMATE 1 temperature 25.0 INDOORCLIMATE scheduling HOTWATER MYINSTALLATION advanced INFO Marked main menu Name – sub-menus Status information – sub-menus Symbols –...
Page 137 ‘19 • HM-T-340 Control Control Control Use the virtual keyboard Help menu In many menus there is a symbol that indicates that extra help is available. To access the help text: 1. U se the control knob to select the help symbol. 2.
Page 138 '19 • HM-T-340 Control Control Control Menu list "* Accessories are needed. ** Heat pump with cooling function required. 40" MENU RC-HY20-W RC-HY40-W 1 INDOOR CLIMATE 1.1 - temperature 1.1.1 heating ✔ ✔ 1.1.2 cooling ** ✔ ✔ 1.3 - scheduling 1.3.1 heating ✔...
Page 139 ‘19 • HM-T-340 Control Control "* Accessories are needed. ** Heat pump with cooling function required. 40" MENU RC-HY20-W RC-HY40-W 4.6 language ✔ ✔ 4.7 holiday setting ✔ ✔ 4.9 advanced 4.9.1 op. prioritisation ✔ ✔ 4.9.2 auto mode setting ✔...
Page 140 '19 • HM-T-340 Control Control RC-HY20/40-W – at your service Menu 1.1 - temperature If the house has several climate systems, this is indicated on Set the indoor climate the display by a thermometer for each system. Overview Choose heating or cooling and then set the desired temperature in the next menu "temperature heating/cooling"...
Page 141 ‘19 • HM-T-340 Control Control The number of steps the value has to be changed to achieve a Menu 1.3 - temperature scheduling degree change of the indoor temperature depends on the In the menu scheduling indoor climate (heating/cooling) is heating installation.
Page 142 '19 • HM-T-340 Control Control Time period: The start and stop time for the selected day for Time period: The start and stop time for the selected day for scheduling are selected here. scheduling are selected here. Adjusting: How much the heating curve is to be offset in Adjusting: Here, you set when active cooling will not be relation to menu 1.1 during scheduling is set here.
Page 143 ‘19 • HM-T-340 Control Control The prescribed heating curve for your house can be viewed in Menu 1.9 - advanced the menu "heating curve". The task of the heating curve is to advanced 1.9 give an even indoor temperature, regardless of the outdoor temperature, and thereby energy eﬃ...
Page 144 '19 • HM-T-340 Control Control Flow line temperature – maximum and minimum values This function is used in order to limit max-min supply Wait 24 hours before making a new setting, so that the room temperature has time to stabilise. temperature.
Page 145 ‘19 • HM-T-340 Control Control Menu 1.9.3 - min. flow line temp. Menu 1.9.4 - room sensor settings factor system min. flow line temp. heating 1.9.3.1 room sensor settings 1.9.4 climate system 1 °C control room sensor syst 1 climate system 2 °C heating factor system climate system 3...
Page 146 '19 • HM-T-340 Control Control Menu 1.9.5 - cooling settings time betw. switch heat/cool Setting range: 0 – 48 h cooling 1.9.5 Factory setting: 2 delta at +20 °C °C You can use RC-HY20/40-W and HMA-S to cool the house during hot periods of the year.
Page 147 ‘19 • HM-T-340 Control Control step difference compressors (RC-HY40-W/HMA-S only) CAUTION Curve 0 in menu 1.9. 1 must be selected for own curve to CAUTION apply. This setting option only appears if cooling is activated in menu 5.2.4. Menu 1.9.8 - point offset The degree minute difference for controlling when the next point offset 1.9.8 compressor is to start is set here.
Page 148 '19 • HM-T-340 Control Control When hot water requirement has temporarily increased this Set the hot water capacity menu can be used to select an increase in the hot water temperature to lux mode for a selectable time. Overview Sub-menus CAUTION This menu only appears if a water heater is docked to the heat If comfort mode "luxury"...
Page 149 ‘19 • HM-T-340 Control Control Menu 2.3 - scheduling Menu 2.9 - advanced Two different periods of hot water comfort per day can be Menu "advanced" has orange text and is intended for the scheduled here. advanced user. This menu has several sub-menus. Scheduling is activated/deactivated by ticking/unticking"...
Page 150 '19 • HM-T-340 Control Control Menu 2.9.2 - hot water recirc. (accessory required) hot water recirc. 2.9.2 operating time downtime period 1 period 2 period 3 operating time Setting range: 1 – 60 min Default value: 60 min downtime Setting range: 0 – 60 min Default value: 0 min Set the hot water circulation for up to three periods per day here.
Page 151 ‘19 • HM-T-340 Control Control Menu 3.1 - service info Get information Information about the actual operating status of the installation Overview (e.g. current temperatures etc.) can be obtained here. But no changes can be made. Sub-menus The information is on several pages. Turn the control knob to For the menu "INFO"...
Page 152 '19 • HM-T-340 Control Control Menu 3.3 - add. heat info Menu 3.5 - indoor temp. log Information about the additional heat's settings, operating Here you can see the average temperature indoors week by status and statistics can be obtained here. But no changes can week during the past year.
Page 153 ‘19 • HM-T-340 Control Control Menu 4.1 - plus functions Adjust the heat pump Settings for any additional functions installed in RC- Overview HY20/40-W and HMA-S can be made in the sub-menus. Sub-menus Menu 4.1.3 - internet For the menu "MY SYSTEM" there are several sub-menus. Here you make settings for connecting RC-HY20/40-W Status information for the relevant menu can be found on the and HMA-S to the internet.
Page 154 '19 • HM-T-340 Control Control Disconnect all users Menu 4.1.3.9 - proxy settings s “ ﬀ l l a " s You can set proxy settings for your installation here. 2. T he installation now communicates with myUpway™ to Proxy settings are used to give connection information to a release your installation from all users connected via the intermediate server (proxy server) between the installation and...
Page 155 ‘19 • HM-T-340 Control Control Menu 4.1.5 - SG Ready Menu 4.1.6 - Smart price adaption™ This function can only be used in SG Ready 4.1.5 mains area networks that support the "SG Ready"-standard . In this menu you state where the heat pump is located and how Make settings for the function "SG Ready"...
Page 156 '19 • HM-T-340 Control Control Menu 4.1.8.1 - settings Menu 4.1.8 - smart energy source™ (RC-HY40-W/HMA- S only) settings 4.1.8.1 SMART ENERGY SOURCE 4.1.8 settings set. price smart energy source tariff periods, electricity control method price per kWh tariff per, ext. shunt add tariff per, ext.
Page 157 ‘19 • HM-T-340 Control Control Menu 4.1.8.3 - CO2 impact set. price 4.1.8.2 CO2 impact 4.1.8.3 price, extern step add. tariff price per kWh, low tariff CO2, electricity price per kWh, high tariff CO2, ext. shunted contr. add. CO2, ext. step contr. add. tariff set.
Page 158 '19 • HM-T-340 Control Control Menu 4.1.8.6 - tariff per, ext. shunt add Menu 4.2 - op. mode Here you can use tariff control for the external shunted addition- op. mode 4.2 al heat. Set the lower tariﬀ periods. It is possible to set two diﬀ erent date periods per year.
Page 159 ‘19 • HM-T-340 Control Control Functions Menu 4.7 - holiday setting "compressor" is that which produces heating and hot water To reduce energy consumption during a holiday you can for the accommodation. If "compressor" is deselected, a schedule a reduction in heating and hot water temperature. symbol is displayed in the main menu on the symbol for the Cooling can also be scheduled if the functions are connected.
Page 160 '19 • HM-T-340 Control Control stop heating Menu 4.9 - advanced Setting range: -20 – 40 °C Menu "advanced" has orange text and is intended for the Default values: 17 advanced user. This menu has several sub-menus. stop additional heat advanced 4.9 Setting range: -25 –...
Page 161 ‘19 • HM-T-340 Control Control Factory setting: 400 Day: Select which day or days of the week the schedule is to apply to here. To remove the scheduling for a particular day, diff. between additional steps the time for that day must be reset by setting the start time to Setting range: 10 –...
Page 162 '19 • HM-T-340 Control Control Schedule: The period to be changed is selected here. Activated: Scheduling for the selected period is activated here. Set times are not aﬀ ected at deactivation. Day: Select which day or days of the week the schedule is to apply to here.
Page 163 ‘19 • HM-T-340 Control Control Sub-menus Menu 5.1 - operating settings Menu SERVICE has orange text and is intended for the Operating settings can be made for the control module in the advanced user. This menu has several sub-menus. sub-menus. Status information for the relevant menu can be found on the Menu 5.1.1 - hot water settings display to the right of the menus.
Page 164 '19 • HM-T-340 Control Control <Add. Type: shunt controlled (RC-HY40-W only)> Menu 5.1.3 - max diff flow line temp. max diff compressor prioritised additional heat Setting range: 1 – 25 °C Setting range: on/oﬀ Default value: 10 °C Factory setting: oﬀ max diff addition minimum running time Setting range: 1 –...
Page 165 ‘19 • HM-T-340 Control Control Factory setting dT at DOT: 10.0 Menu 5.2 - system settings Setting range DOT: -40.0 – 20.0 °C Make diﬀ erent system settings for your installation here, e.g. Factory setting DOT: -20.0 °C activate the connected heat pump and which accessories are Select the type of heating distribution system.
Page 166 '19 • HM-T-340 Control Control Menu 5.3 - accessory settings Symbol Description The operating settings for accessories that are installed and Compressor (blocked) activated are made in the sub-menus for this. Menu 5.3.2 - shunt controlled add. Heat Compressor (standard) prioritised additional heat Setting range: on/oﬀ...
Page 167 ‘19 • HM-T-340 Control Control that you have selected. If this function is activated, you can set Default value: 55 °C "cooling flow temp. at +20°C" and "cooling flow temp. at mixing valve amplifier +40°C" for each climate system where the function is Setting range: 0.1 –...
Page 168 '19 • HM-T-340 Control Control Menu 5.4 – soft in/outputs Menu 5.9 - floor drying function You can set the function of in/output for each terminal (AUX1- length of period 1 – 7 6 and output). Setting range: 0 – 30 days Position of the terminal depends on the type of controller.
Page 169 ‘19 • HM-T-340 Control Control speed during operation heating, hot water, Menu 5.11 - heat pump settings cooling Settings for installed heat pump can be made in the submenus. Setting range: auto / manual Default value: auto Menu 5.11.1 - EB101 - EB108 Make settings specifically for the installed heat pump and Manual setting charge pump here.
Page 170: Service
‘19 • HM-T-340 Service Service - 168 -...
Page 171: Operation Control Function By The Indoor Unit Control
‘19 • HM-T-340 Service Operation control function by the indoor unit control Operation control function by the indoor unit control Operation mode General The modes mentioned below can be chosen from the control panel. Mode Function (1) Auto ● The mode is automatically switched over between (3) Heating mode and (4) Cooling mode. Automatic switching rule is mentioned below.
Page 172 ‘19 • HM-T-340 Service Operation control function by the indoor unit control - 170 -...
Page 173 ‘19 • HM-T-340 Service Operation control function by the indoor unit control Mode transition in Auto mode Change-over of Heating/Cooling operation is controlled by detection with outdoor air temperature sensor (BT1) of the indoor unit. Threshold value depends on setting on Menu 4.9.2. Start cooling If outdoor air temperature is above setting value on Menu 4.9.2, cooling mode is chosen.
Page 174 ‘19 • HM-T-340 Service Operation control function by the indoor unit control Supply water temperature control in heating Target supply water temperature can be seen in Menu 1.1. Heating curve Supply temperature Heating/cooling curve setting °C heating curve 1.9.1.1 system flow temperature °C - 10 - 20...
Page 175 ‘19 • HM-T-340 Service Operation control function by the indoor unit control Flow line temperature – maximum and minimum values Wait 24 hours before making a new setting, so that the This function is used in order to limit max-min supply room temperature has time to stabilise.
Page 176 ‘19 • HM-T-340 Service Operation control function by the indoor unit control Water temperature control when deviated from the target When the DM value is signiﬁ cantly small, supply water temperature must be controlled higher than target temperature to reduce the deﬁ...
Page 177 ‘19 • HM-T-340 Service Operation control function by the indoor unit control Cooling thermo-ON / OFF control Principle of the control such as DM value is the same as heating operation. DM (Degree-Minutes) value DM value is limited in Menu 1.9.5 and does not exceed the limit. Operation state transition according to DM value According to the DM value, operating state is changed.
Page 178 ‘19 • HM-T-340 Service Operation control function by the indoor unit control Hot water operation control Protection control ON/OFF control Current protection Regardless of the DM value, hot water operation when tank Maximum current limit control for the outdoor unit (by indoor water temperature (BT6) lowers below Start temp HW in unit control) Menu5.1.1.
Page 179: Operation Control Function By The Outdoor Unit Control
‘19 • HM-T-340 Service Operation control function by the outdoor unit control Operation control function by the outdoor unit control Determination of compressor speed (frequency) Maximum and minimum frequency under normal operating conditions (rps) Model FDCW60VNX FDCW71VNX FDCW100VNX FDCW140VNX Operation mode Cooling Heating Cooling...
Page 180 ‘19 • HM-T-340 Service Operation control function by the outdoor unit control Minimum required frequency under high condensing saturated temperature condition. According to the outdoor heat exchanger temperature (Tho-R) , minimum required frequency in cooling mode is changed as per A or B in below table. And according to the condensing saturated temperature (CST) detected by indoor unit pressure sensor (BP4) or liquid pipe temperature (Thi-L) detected by indoor unit temperature sensor (BT15), whichever is higher, minimum required frequency in heating mode is changed as per C or D in below table.
Page 181 ‘19 • HM-T-340 Service Operation control function by the outdoor unit control Compressor soft start control ＜ FDCW60VNX ＞ The pattern 1 Normally, the outdoor unit starts a compressor with this control except the condition mentioned in (2) pattern 2. ・...
Page 182 ‘19 • HM-T-340 Service Operation control function by the outdoor unit control Compressor soft start control ＜ FDCW71,100,140VNX ＞ The pattern 1 [Control condition] Normally, the compressor operation frequency is raised in following start pattern. [Control contents] a) It starts the compressor at 55rps as target frequency. b) Compressor speed acceleration ﬁ...
Page 183 ‘19 • HM-T-340 Service Operation control function by the outdoor unit control Outdoor fan control ＜ FDCW60VNX ＞ 1) Relations between Fan speeds and revolutions Fan speed (rpm) Cooling FDCW60VNX Revolutions Heating 2) Control of fan motor speed (a) Starting fanmotor speed is ﬁ xed by the fanmotor speed excepted below case (i) (i) Operation mode is “cooling”...
Page 184 ‘19 • HM-T-340 Service Operation control function by the outdoor unit control b) Ambient air temperature (Tho-A) is above 41 ℃ . Fan motor speed operates the Up control according to ambient air temperature (Tho-A). Increased by 3 speed Ambient air temperature Tho-A(℃) 5) Fan speed control during heating operation a) Ambient air temperature (Tho-A) is below 4 ℃...
Page 185 ‘19 • HM-T-340 Service Operation control function by the outdoor unit control ＜ FDCW71,100,140VNX ＞ Outdoor fan speed a) Upper limit According to the relation between the heat exchanger temperature and outdoor air temperature, maximum fan speed is limited as follows. i) Cooling (rpm) (rpm)
Page 186 ‘19 • HM-T-340 Service Operation control function by the outdoor unit control Fan speed control during cooling operation Fan speed is controlled every 15 seconds according to the outdoor heat exchanger temperature (Tho-R1,-R2), whichever the higher. Tho-R Fan speed Less than 30°C Reduced by 10 rpm 30°C or higher but 45°C or lower Retained...
Page 187 ‘19 • HM-T-340 Service Operation control function by the outdoor unit control Defrosting ＜ FDCW60VNX ＞ Defrosting start conditions Deafrosting operation can be started only when all of the following condition are met. a) After start of heat operation When it elapsed 35 minutes.(Accumulated compressor operating time) b) After end of defrosting operation When it elapsed 35 minutes.(Accumulated compressor operation time) c) Outdoor heat exchanger sensor (Tho-R) temperature...
Page 188 ‘19 • HM-T-340 Service Operation control function by the outdoor unit control Model 71-140 ＜ FDCW71,100,140VNX ＞ Defrosting start conditions If all of the following defrosting condition A or condition B are met, the defrosting operation starts. For model 140, SV1 is open when 4-way valve switches, and closed when low pressure keeps 0.55MPa or higher for 5 seconds or longer.
Page 189 ‘19 • HM-T-340 Service Operation control function by the outdoor unit control Protective control/ anomalous stop control by compressor speed (frequency) Compressor discharge pipe temperature protection Protective control If the discharge pipe temperature (detected with Tho-D) exceed the setting value, the compressor speed (frequency) is controlled in order to suppress the rise of discharge pipe temperature.
Page 190 ‘19 • HM-T-340 Service Operation control function by the outdoor unit control Anomalous stop control i) If the outdoor heat exchanger temperature (Tho-R) exceeds the setting value, the compressor stop. ii) Whe n the outdoor heat exchanger temperature anomaly is detected 5times within 60 minutes, or 60 minutes continuously including the time of compressor stopping, coolinf overload error is displayed and E35 is recorded in the Error Log and it enters the anomalous stop mode.
Page 191 ‘19 • HM-T-340 Service Operation control function by the outdoor unit control Heating high pressure protection ＜ FDCW60VNX ＞ Protective control If the liquid line temperature of water heat exchanger (BT15=Thi-L) or the condensing saturated temperature (CST), whichever the higher. Exceeds the setting value, the compressor speed (frequency) is controlled at every 10 seconds to suppress the rise of high pressure.
Page 192 ‘19 • HM-T-340 Service Operation control function by the outdoor unit control Anomalous stop control i) When a value detected by the low pressure sensor (LPT) satisﬁ es any of the following conditions, compressor stops. ① When the low pressure drops to 0.079MPa or lower for 15 seconds continuously. ii) Under any of the following conditions, LP alarm is displayed and E49 is recorded in Error Log, and it enters the anomalous stop mode.
Page 193 ‘19 • HM-T-340 Service Operation control function by the outdoor unit control Anomalous power transistor current If the current value of power transistor exceeds the setting value, the compressor stops in order to prevent from overcurrent of inverter. When the current value of power transistor exceeds the specified value and compressor stops 4 times within 30 minutes, Inverter error is displayed and E42 is recorded in the Error Log.
Page 194 ‘19 • HM-T-340 Service Operation control function by the outdoor unit control ＜ FDCW71, 100, 140VNX ＞ Anomaly detection control by the high pressure switch (63H1) i) If the high pressure rises and activates the high pressure switch (opens at 4.15MPa/close at 3.15MPa), the compressor stops.
Page 195 ‘19 • HM-T-340 Service Operation control function by the outdoor unit control Pump down control ＜ FDCW60VNX ＞ This function can only be started when operation mode is set to addition heat only on menu 4.2. : op. mode 4.2 auto manual add.
Page 196 ‘19 • HM-T-340 Service Operation control function by the outdoor unit control ＜ FDCW71, 100, 140VNX ＞ It is possible to recover the refrigerant on the piping into the outdoor unit by this function. Pump-down operation starts when the following conditions are fulﬁ lled. Within ten minutes since the operation mode is changed to Add heat.
Page 197: Alarm List
‘19 • HM-T-340 Service Alarm list Alarm list Alarm with automatic reset Alarm Alarm text on the Triggers alarm Resets alarm display Low lp cooling When the low pressure is less than 0.65MPa in When the low pressure is higher than 0.83MPa cooling mode.
Page 198: Indoor Unit Alarm
‘19 • HM-T-340 Service Alarm list Indoor unit alarm Alarm Alarm text on the Description May be due to display High pressure alarm The high pressure switch (63H1) deployed - Insuﬃ cient air circulation or blocked 5 times within 60 minutes. heat exchanger 2HP model: BP4 has been above 4,15MPa 5 - Open circuit or short circuit on input...
Page 199: Outdoor Unit Alarm
‘19 • HM-T-340 Service Alarm list Outdoor unit alarm Alarm Alarm text on the Description May be due to display Com. flt from the heat Communication between the control - Any circuit breakers for FDCW oﬀ pump board and the communication board is - Incorrect cable routing interrupted.
Page 200 ‘19 • HM-T-340 Service Alarm list Alarm Alarm text on the Description May be due to display Communication error Communication between circuit board - Open circuit in connection between boards with Inverter. for inverter and control board broken. - Defective circuit board for inverter in FDCW - Defective control board in FDCW Inv.
Page 201: Troubleshooting Guide
‘19 • HM-T-340 Service Troubleshooting guide Troubleshooting guide 220 - High pressure alarm Are the service valves fully open? Open the service valves. Is the connection of the pressure Correct it. sensor (BP4) OK? Defective the pressure Is the characteristics of the pressure sensor (BP4) →...
Page 202: 228 - Failed Defrosting
'19 • HM-T-340 Service Troubleshooting guide 228 - Failed defrosting Is the refrigerant charged Is the water flow rate bigger than Charge correct amount of correctly according to piping minimum flow rate refrigerant length? Are the characteristics of the condenser Replace the sensor.
Page 203: 294 - Incompatible Heat Pump
‘19 • HM-T-340 Service Troubleshooting guide 294 - Incompatible heat pump Is the indoor unit and the outdoor unit Replace indoor unit or outdoor unit. an appropriate combination? Replace the indoor unit or outdoor unit board. Indoor unit : AA23 Outdoor unit : PCB - 201 -...
Page 204: 404 - S. Fault Hp
'19 • HM-T-340 Service Troubleshooting guide Troubleshooting guide 404 - S. fault HP Is the pressure sensor (BP4) Connect it correctly. correctly connected? Is the saturated temperature of Does the pressure (external meter) balanced pressure same or similar Replace the refrigerant. correspond with the value to the outdoor air temperature displayed in the indoor unit?
Page 205: 403,412,415-Sensor Fault From Pca154
‘19 • HM-T-340 Service Troubleshooting guide 403, 412, 415, - Sensor fault from PCA154 Is the actual sensor correctly Connect it correctly. connected? Are the characteristics for the sensor OK? (See “Temperature Defective sensor - replace. sensor” section) Replace the RC-HY board (AA22). - 203 -...
Page 206: E35 - High Hx Temp
'19 • HM-T-340 Service Troubleshooting guide E35 - High HX temp Are the characteristics of the heat Replace defective sensor. exchanger sensor (Tho-R1, R2) - Is the air circulation at the outdoor Is the air circulation around the unit obstructed? outdoor unit done properly? - Is the installation space sufficient? - Is the heat exchanger clogged?
Page 207: E36 - Hot Gas Alarm
‘19 • HM-T-340 Service Troubleshooting guide E36 - Hot gas alarm Are the characteristics of the Replace defective sensor. hot gas sensor (Tho-D) OK? Does the fault also occur during Insufficient amount of refrigerant. cooling? Recharge it. Check the operation data with Does the discharge pipe temperature protection control work properly? logging tool.
Page 208: E37 - S. Fault Tho-R
'19 • HM-T-340 Service Troubleshooting guide E37 - S. fault Tho-R Is the heat exchanger’s temperature sensor (Tho-R1, R2) correctly Connect it correctly. connected? Are the characteristics of the heat exchanger’s temperature sensor Defective sensor - replace. (Tho-R1, R2) OK? Replace the control PCB.
Page 209: E38 - S. Fault Tho-A
‘19 • HM-T-340 Service Troubleshooting guide E38 - S. fault Tho-A Is the outdoor sensor (Tho-A) Connect it correctly. correctly connected? Are the characteristics of the Defective sensor - replace. outdoor sensor (Tho-A) OK? Replace the control PCB. - 207 -...
Page 210: E39 - S. Fault Tho-D
'19 • HM-T-340 Service Troubleshooting guide E39 - S. fault Tho-D Is the hot gas sensor (Tho-D) Connect it correctly. correctly connected? Are the characteristics of the hot Defective sensor - replace. gas sensor (Tho-D) OK? Replace the control PCB. - 208 -...
Page 211: E40 - High Pressure Alarm
‘19 • HM-T-340 Service Troubleshooting guide E40 - High pressure alarm If the power source voltage to the outdoor unit is switched off and on too quickly, E40 may be displayed. This is normal. Are the service valves fully open? Open the service valves.
Page 212: E42 - Current Cut
'19 • HM-T-340 Service Troubleshooting guide E42 - Current cut Is the power source voltage OK? Check power source voltage. Open the service valves. Are the service valves open? Is the high pressure during Check the amount of refrigerant. operation OK? Check the refrigerant circuit.
Page 213: E45 - Inverter Communication Error
‘19 • HM-T-340 Service Troubleshooting guide E45 - Inverter communication error Is the communication between Correct the connection. the control PCB and the inverter PCB OK? Are JSW10, 11 on the inverter Set JSW10, 11 correctly. PCB all set correctly ? Note (1): See pages 183 &...
Page 214: E47 - Inverter A/F Module Over Current
'19 • HM-T-340 Service Troubleshooting guide E47 - Inverter A/F module over current Does the phenomenon persist after resetting power source? Is the IC2 crocked or burn? Does the compressor operate? Is the voltage within DC380-390V between T26 and T27? Normal.
Page 215: E48 - Fan Alarm
‘19 • HM-T-340 Service Troubleshooting guide E48 - Fan alarm Is there any foreign material Remove foreign material. obstructing the fan propeller? Replace the fan motor. If the Does the fan rotate freely when it is resistance between turned by hand? (Vm):red-(GND):blue is 1 kΩ...
Page 216: E49 - Lp Alarm
'19 • HM-T-340 Service Troubleshooting guide E49 - LP alarm Is the low pressure sensor Correct it. correctly connected? Check the value on the low pressure sensor, via indoor unit, in: (1) stationary compressor, (2) compressor operation. Is the value around 0 MPa, without significant change, both in states (1) and (2)? Check the insulation resistance on...
Page 217 ‘19 • HM-T-340 Service Troubleshooting guide From previous page Are the service valves fully open? Open the service valves. Are the connections to the low pressure sensor and sensor for Connect it. suction gas temperature OK? Defective low pressure sensor Are the characteristics of the low or sensor for suction gas pressure sensor and sensor for...
Page 218: E51 - Inverter And Fan Motor Error(For Fdcw60Vnx)
'19 • HM-T-340 Service Troubleshooting guide E51 - Inverter and fan motor error (for FDCW60VNX) Check soldered surfaces on the Remove foreign material. outdoor unit control PCB for foreign material like dust, fouling, etc. Isn’t F fuse (250V, 50A) blown? Replace fuse.
Page 219: E51 (E41) - Inverter And Fan Motor Error(For Fdcw71,100,140Vnx)
‘19 • HM-T-340 Service Troubleshooting guide E51(E41) - Inverter and fan motor error (for FDCW71, 100, 140VNX) (1) (2) Replace Inverter PCB Is the voltage 15VDC detected If not solved yet, replace between ② and ③ of CNI3 on noise filter PCB as well. the control PCB side? Note (1): Under anomalous conditions, Note (2): How to check voltage...
Page 220: E53 - S. Fault Tho-S
'19 • HM-T-340 Service Troubleshooting guide E53 - S. fault Tho-S Is the sensor for the suction gas temperature (Tho-S) correctly Connect it. connected? Are the characteristics for the Replace the sensor. suction gas sensor OK? Replace the control PCB. - 218 -...
Page 221: E54 - S. Fault Lpt(For Fdcw71,100,140Vnx)
‘19 • HM-T-340 Service Troubleshooting guide E54 - S. fault LPT (for FDCW71, 100, 140VNX) Is the low pressure sensor Connect it. correctly connected? Does the pressure (external meter) Check the amount of refrigerant. correspond with the value Check the refrigerant circuit. displayed in the indoor unit? Replace the low pressure sensor.
Page 222: E57 - Low Refrigerant
'19 • HM-T-340 Service Troubleshooting guide E57 - Low refrigerant Are the service valves fully open? Open the service valves. Is the connecton of the sensor for indoor heat exchanger Correct it. temperature (BT15) or for inlet water temperature (BT3) OK? Defective the sensors for Are the characteristics of the indoor heat exchanger...
Page 223: E59 - Inverter Error
‘19 • HM-T-340 Service Troubleshooting guide E59 - Inverter error Is power source voltage OK? Check power source. (1) (2) Is the voltage 15VDC detected Replace Inverter PCB If not solved yet, replace between of CNI3 on the control PCB side? noise filter PCB as well.
Page 224: Dip Switch Setting
'19 • HM-T-340 Service DIP switch setting DIP switch setting FDCW71VNX (1) Control PCB Control PCB Factory setting Remark Switch Parts No. CNTH SW3-1* * See below table CNI1 * See below table SW3-2* CNW2 Keep OFF SW3-3 CNIP Keep ON SW3-4 Keep ON CNG1...
Page 225: Fdcw100Vnx, 140Vnx
‘19 • HM-T-340 Service DIP switch setting FDCW100VNX, 140VNX (1) Control PCB Control PCB Factory setting Switch Remark 100VNX 140VNX Keep as factory setting JSW1-1 CNA2 Keep as factory setting JSW1-2 Keep as factory setting JSW1-3 Keep as factory setting JSW1-4 Keep as factory setting SW4-1...
Page 226: Component Replacement
'19 • HM-T-340 Service Component replacement Component replacement Indoor unit HMA60-S/HMA100-S Open HMA 1. Remove 2 screws from the bottom part of the HMA. Screws 2. Remove front cover. When front cover is pulled an earth cable is connected to it so it needs to be disconnected.
Page 227 ‘19 • HM-T-340 Service Component replacement Unit without front cover Replace display 1. Unlock display on the top part. Display - 225 -...
Page 228 '19 • HM-T-340 Service Component replacement 2. While unlocking it pull it up and remove it. 3. Remove communication cable (X1) and Ethernet cable (X9) from the connectors. Ethernet cable (X1) Communication cable (X9) Replace AA23 communication card 1. Disconnect all wiring and remove AA23 card by unlock- ing plastic PCB holders.
Page 229 ‘19 • HM-T-340 Service Component replacement Plastic holders 2. Place the new AA23 communication card, lock in on plastic holders, connect all cabling and close unit. Replace AA3 Card 1. Remove all cabling and screw to replace AA3 card. AA3 card - 227 -...
Page 230 '19 • HM-T-340 Service Component replacement Screw 2. Place the new AA3 card, connect all cabling and close controller. Replace AA2 Card 1. Disconnect circulation pump(s) and valve(s) cabling placed on AA2-X4. 2. Open front part by removing two screws in order to access AA2 card.
Page 231 ‘19 • HM-T-340 Service Component replacement AA2 card 3. Disconnect all cabling, remove AA27 card relay card from AA2 and remove AA2 card by removing screw. Screw AA27 Relay card 4. Place the new AA2 card, connect AA27 relay card again, connect all cabling and close controller.
Page 232 '19 • HM-T-340 Service Component replacement AA27 Relay card 2. Disconnect cabling from AA27, remove it, place new AA27 relay card, connect all cabling and close controller. AA27 Relay card Replace AA7 Card 1. Open front part by removing two screws in order to access AA7 card.
Page 233 ‘19 • HM-T-340 Service Component replacement AA7 card 2. Disconnect cabling from AA7, and remove screw release Screw 3. Place the new AA7 relay card again, connect all cabling and close controller. Replace AA8 Card 1. Open front part by removing two screws in order to access AA8 card.
Page 234 '19 • HM-T-340 Service Component replacement AA8 card 2. Disconnect cabling from AA8, remove it, place new AA8 relay card, connect all cabling and close controller. Replace T1 thermostat or F3 Limiter 1. Remove screws in order to access back part of T1 or F3. T1 thermostat F3 Limiter - 232 -...
Page 235 ‘19 • HM-T-340 Service Component replacement Screws 2. Disconnect all wiring from T1 or F3 and capillary from electrical heater and remove it. T1 or F3 Cabling T1 or F3 Capillary 3. Place the new T1 or F3, connect all cabling and capillary on the electrical heater and close unit.
Page 236 '19 • HM-T-340 Service Component replacement Replace K1-K3 subm. heater contact 1. Disconnect all wiring from K1 or K2 or K3 and remove K1-K3 submersible heater contact 2. Place the new K1 or K2 or K3 submersible heater con- tact, connect all the wiring and close unit. Access service parts of HMA 1.
Page 237 ‘19 • HM-T-340 Service Component replacement Release pressure of heating circuit 1. Close valves of heating circuit and release pressure from the system, opening safety valve until pressure reaches zero bar. This must be done when an hydraulic part needs to be replaced.
Page 238 '19 • HM-T-340 Service Component replacement Replace CM1 expansion vessel 1. Remove expansion vessel. Before remove it see “Release pressure of heating circuit” chapter. Expansion vessel Untie it from here 2. Place new expansion vessel, ﬁ ll the heating system, check if there are no leaks and close the unit.
Page 239 ‘19 • HM-T-340 Service Component replacement Header from QN10 2. Remove valve from QN10. Before remove it see “Release pressure of heating circuit”. Valve from QN10 3. Place new valve from QN10, ﬁ ll the heating system, check if there are no leaks, place QN10 header and close the unit.
Page 240 '19 • HM-T-340 Service Component replacement 2. Release header from QN10 by pulling up bracer and then pushing header to the right. QN 10 valve Header from QN10 3. Place QN10 header, connect cabling again to AA2 card, terminal X4. (see 1 step.) Replace QN12 valve 1.
Page 241 ‘19 • HM-T-340 Service Component replacement 2. Remove valve from QN12. Before remove it see “Release pressure of heating circuit” chapter and remove insulation. Insulation and valve from QN12 3. Place new valve from QN12, ﬁ ll the heating system, check if there are no leaks, place again insulation, place QN12 header, and close the unit.
Page 242 '19 • HM-T-340 Service Component replacement 2. Release header from QN12 by pulling up bracer and then pushing header to the back and up. It is possible to access it from the top of the unit. QN 12 valve 3. Place QN12 header, connect cabling again to AA2 card, terminal X4.
Page 243 ‘19 • HM-T-340 Service Component replacement 3. Place new circulation pump, ﬁ ll the heating system, check if there are no leaks, place again insulation and close the unit. Replace safety valve 1. Remove safety valve. Before remove it see “Release pressure of heat- ing circuit”.
Page 244 '19 • HM-T-340 Service Component replacement HSB60-W/100/140 Unit of HSB series 1. Remove 2 screws from the bottom part of the unit Screws s are located here (bottom) Screws 2. Remove the lid by pulling it and pushing it up On HSB60-W component position might be different but method is the same - 242 -...
Page 245 '19 • HM-T-340 Service Component replacement Unit of HSB series Replace AA23 communication card d 1. Disconnect all wiring and remove AA23 card by unlocking plastic PCB holders AA23 23 communication card Plastic holders On HSB60-W component position might be different but method is the same - 242-1 -...
Page 246 '19 • HM-T-340 Service Component replacement Unit of HSB series 2. Place the new AA23 communication card, lock in on plastic holders, connect all cabling and close unit Replace pressure sensor BP4 Before removing pressure the pressure sensor make sure that you pump down the unit and that outdoor unit valves are closed! 1.
Page 247 '19 • HM-T-340 Service Component replacement Unit of HSB series Replace temperature sensor BT12 and BT3 As temperature sensors BT12 (heating medium flow) and BT3 (heating medium return) are installed on the water pipes (back of the unit) and covered with insulation there is limitation to access, so it is not possible to remove damaged sensors.
Page 248 ‘19 • HM-T-340 Service Component replacement PT300/500 Tank of PT series 1. Remove the top panel of the tank. Tank: PT series 2. Remove the styrofoam. 3. See the tank. 4. (Details) (1)Remove the temperature gauge, plug of the heating element connector pipe and blanking plate of the inspection opening.
Page 249 '19 • HM-T-340 Service Component replacement RC-HY20-W Opening controller 1. Remove 2 screws from the bottom part of the controller. Screws 2. Remove the lid. - 244 -...
Page 250 ‘19 • HM-T-340 Service Component replacement Replacing display 1. Unlock display on the top part. 2. While unlocking it pull it up and remove it. - 245 -...
Page 251 '19 • HM-T-340 Service Component replacement 3. Remove communication cable (X1) and Ethernet cable (X9) from the connectors. Ethernet cable (X1) Communication cable (X9) 4. Connect cabling on the new display and place in on the controller and close it. Replace AA2 Card 1.
Page 252 ‘19 • HM-T-340 Service Component replacement 3. Disconnect all wiring, remove AA27 card relay card from AA2 and remove AA2 card by removing screw. Screw AA27 Relay card 4. Place the new AA2 card, connect AA27 relay card again, connect all cabling and close controller. - 247 -...
Page 253 '19 • HM-T-340 Service Component replacement Replace AA27 Card 1. Open front part by removing two screws in order to access AA27 card. Screws 5. Disconnect cabling from AA27, and remove it. AA27 Relay card - 248 -...
Page 254 ‘19 • HM-T-340 Service Component replacement 6. Place the new AA27 relay card again, connect all cabling and close controller. Replace AA7 Card 2. Open front part by removing two screws in order to access AA7 card. Screws 7. Disconnect wiring from AA7, and remove screw release Screw 8.
Page 255 '19 • HM-T-340 Service Component replacement RC-HY40-W Opening controller 1. Remove 2 screws from the bottom part of the controller. Screws 2. Remove the lid. - 250 -...
Page 256 ‘19 • HM-T-340 Service Component replacement Replacing display 1. Unlock display on the top part. 2. While unlocking it pull it up and remove it. 3. Remove communication cable (X1) and Ethernet cable (X9) from the connectors. - 251 -...
Page 257 '19 • HM-T-340 Service Component replacement Ethernet cable (X1) Communication cable (X9) 4. Connect cabling on the new display and place in on the controller and close it. Replace AA2 Card 1. Disconnect circulation pump(s) and valve(s) cabling placed on AA2-X4. 2.
Page 258 ‘19 • HM-T-340 Service Component replacement 3. Disconnect all cabling, remove AA27 card relay card from AA2 and remove AA2 card by removing screw. Screw AA27 Relay card 4. Place the new AA2 card, connect AA27 relay card again, connect all cabling and close controller. - 253 -...
Page 259 '19 • HM-T-340 Service Component replacement Replace AA27 Card 1. Open front part by removing two screws in order to access AA27 card. Screws 5. Disconnect cabling from AA27, and remove it. AA27 Relay card - 254 -...
Page 260 ‘19 • HM-T-340 Service Component replacement 6. Place the new AA27 relay card again, connect all cabling and close controller. Replace AA7 Card 2. Open front part by removing two screws in order to access AA7 card. Screws 7. Disconnect cabling from AA7, and remove screw release Screw 8.
Page 261 '19 • HM-T-340 Service Component replacement Replace AA3 Card (only RC-HY40-W) 1. Remove all cabling and screw to replace AA3 card. AA3 card Screw 2. Place the new AA3 card, connect all cabling and close controller. Replace AA5 accessory card (only RC-HY40-W) 1.
Page 262 ‘19 • HM-T-340 Service Component replacement Screw 2. Place the new AA5 card, connect all cabling, conﬁ gure dip switch and close controller. DIP switch - 257 -...
Page 263: Fdcw60Vnx
'19 • HM-T-340 Service Component replacement Outdoor unit FDCW60VNX FDCW71VNX - 258 -...
Page 264: Fdcw100Vnx
‘19 • HM-T-340 Service Component replacement FDCW100VNX FDCW140VNX - 259 -...
Page 265 '19 • HM-T-340 Service Component replacement FDCW60VNX Fan and fan motor (FMo1) 1. Loosen the screw and remove the top panel and service panel first. Top panel (6 screws) 2. Loosen 7 screws and remove the panel including fan grills. Front panel Service panel (3 screws)
Page 266 ‘19 • HM-T-340 Service Component replacement Fan and fan motor (FMo1) 5. Remove band and fan cable. Fan cable Control box 6. Release 2 metal clamps. 7. Loosen 4 screws and remove fan motor. 2 metal clamps 4 screws Compressor (CM) 1.
Page 267 '19 • HM-T-340 Service Component replacement Compressor (CM) 2. Remove the top and inner insulations. Remove a top 3. Take off sprig leaf and pull out insularion Tho-D sensor (Tho-D). Inner insularion Remove a inner insularion This unit doesn't attachment the crankcase heater.
Page 268 ‘19 • HM-T-340 Service Component replacement Compressor (CM) 7. Disconnect the pipes for Discharge pipe suction and discharge. 8. Remove the compressor. Suction pipe Control PCB (PWB) 1. Open the top panel. 2. Open the control box cover. Control box Note ：...
Page 269 '19 • HM-T-340 Service Component replacement Control PCB (PWB) 1. Disconnect all connectors and remove the control PCB. CNHEAT CNFAN CNEEV (Connector) CNHEAT CNTH CN20S CNROM CN20S CNEEV CNROM CNFAN CNTH S.IN R.IN 2. Disconnect all terminals on the terminal block. (Terminal block) C-2(Herness color:RED) S.IN(Herness color:WHITE)
Page 270 ‘19 • HM-T-340 Service Component replacement FDCW71VNX Fan and fan motor (FMo1) 1. Loosen the screws and Top panel (5 screws) remove the top panel and service panel first. 2. Loosen 5 screws and remove the front panel including fan grille. Front panel Service panel Service panel...
Page 271 '19 • HM-T-340 Service Component replacement Fan and fan motor (FMo1) 6. Remove tapes and fan cable. Control box Tapes Fan cable 7. Release 2 metal clamps. 8. Loosen 4 screws and remove fan motor. 2 metal clamps 4 screws Compressor (CM) 1.
Page 272 ‘19 • HM-T-340 Service Component replacement Compressor (CM) 2. Remove the top and inner insulations. 3 Cut off the strap and pull Tho-D out the sensor (Tho-D). Top insulation Inner insulation 4. Remove the terminal cover. 5. Disconnect the fasten terminal connectors from compressor.
Page 273 '19 • HM-T-340 Service Component replacement Control PCB (PWB1) 1. Open the top panel. 2. Open the control box cover. Control box Note: Be sure to do this work after elapsing 3 minutes from power OFF. 3. Loosen 4 screws. Control PCB 4.
Page 274 ‘19 • HM-T-340 Service Component replacement Inverter PCB (PWB2) 1. Remove control PCB first. Note: Be sure to do this work after elapsing 3 minutes from power OFF. 2. Disconnect the connectors. 3. Pinch the head of locking support and remove inverter Inveter PCB PCB.
Page 275 '19 • HM-T-340 Service Component replacement Noise filter PCB (PWB3) 1. Remove control PCB first. Note: Be sure to do this work aftter elapsing 3 minutes from power OFF. 3. Cut straps. CNW2 4. Disconect the connectors Noise filter PCB CNA2 and CNO2 on the noise filter PCB.
Page 276 ‘19 • HM-T-340 Service Component replacement FDCW100VNX Fan and fan motor (FMo1) 1. Loosen 4 screws and remove the fan grille. 4 screws 2. Loosen the nut and remove the fan propeller. 1 nut 3. Detach the clamps and cut Clamps off the straps.
Page 277 '19 • HM-T-340 Service Component replacement Fan and fan motor (FMo1) 5. Loose 4 screws. 6. Remove the fan motor. 4 screws Compressor (CM) 1. Loosen screws and remove the service panel and top 4 screws (short) panel. 2. Loosen 4 short screws and 4 long screws and then remove the bar for easy access to the compressor.
Page 278 ‘19 • HM-T-340 Service Component replacement Compressor (CM) 4. Remove the top insulation. 5. Remove the terminal cover. 6. Disconnect the fasten terminal connectors from compressor. U: Red cable V: White cable W: Blue cable Terminal cove r Top insulation Tho-D 7.
Page 279 '19 • HM-T-340 Service Component replacement Compressor (CM) 9. Untie the strings and remove the insulations. 10. Unscrew and disconnect the grounding cable. 11. Loosen 3 nuts of Upper insulation compressor fixing bolts. 3 nuts of compressor Lower insulation Screw for 3 nuts of compressor grounding fixing bolts...
Page 280 ‘19 • HM-T-340 Service Component replacement Control PCB (PWB1) 3. Disconnect all connectors. Control PCB CNA2 CNW2 CNA1 CNT3 CNFAN1 CNT1 CNEEV2 CNEEV1 CNTH CNIP CNPS 4. Pinch the head of locking supports and remove the control PCB. 6 locking supports.
Page 281 '19 • HM-T-340 Service Component replacement Inverter PCB (PWB2) 1. Loosen 7 screws and remove the control PCB layer. 1 screw Note: Be sure to do this work after elapsing 3 minutes from power OFF. 6 screws 2. Disconnect the connectors Control PCB layer 9 screws of CNI2, CNI4 and CNACT1.
Page 282 ‘19 • HM-T-340 Service Component replacement Noise filter PCB (PWB3) 1. Loosen 6 screws and disconnect the cables. 2. Disconnect the connector. Note: Be sure to do this work after elapsing 3 minutes from power OFF. Noise filter PCB Control PCB layer 6 screws Connector 3.
Page 283 '19 • HM-T-340 Service Component replacement FDCW140VNX Fan and fan motor (FMo1& FMo2) 1. Loosen the screws and remove the fan grille for upper fan (FMo1) and/or lower fan (FMo2). 4 screws each 2. Loosen the nut and remove the fan propeller for upper fan (FMo1) and/or lower fan (FMo2).
Page 284 ‘19 • HM-T-340 Service Component replacement Fan and fan motor (FMo1& FMo2) 4. Detach the clamps and cut Clamps off the straps. Straps 5. Loosen 4 screws. 6. Remove the fan motor (FMo1 and/or FMo2). 4 screws Compressor (CM) 1. Loosen 5 screws and remove the service panel.
Page 285 '19 • HM-T-340 Service Component replacement Compressor (CM) 2. Untie the strings and remove the top and side insulations. Tho-D 3 Cut off the strap and pull out the sensor (Tho-D). Insulation (top section) Outer insulations (side section) Inner insulations (side section) 4.
Page 286 ‘19 • HM-T-340 Service Component replacement Control PCB (PWB1) 1. Unscrew and disconnect the cable. 2. Cut the strap and take the cable out from CT hole as shown in the photo. Note: Be sure to do this work after elapsing 3 minutes from power OFF.
Page 287 '19 • HM-T-340 Service Component replacement Inverter PCB (PWB2) 1. Loosen 2 screws on the bar. 2. Loosen 7 screws and remove side pannel. 2 screws (small) 6 screws (short) 1 screws (long) 3. Loosen 4 screws and remove the bar for easy access to the inverter PCB layer.
Page 288 ‘19 • HM-T-340 Service Component replacement Inverter PCB (PWB2) 4. Loosen a screw on the capacitor and disconnect the red and blue cables which are connected to the control PCB. 5. Disconnect the fasten terminals of red and white cables which are connected to the control PCB.
Page 289 '19 • HM-T-340 Service Component replacement Noise filter PCB (PWB3) 1. Loosen 6 screws and disconnect the cables. 2. Disconnect the connector. Note: Be sure to do this work after elapsing 3 minutes from power OFF. Noise filter PCB Control PCB layer 6 screws Connector 3.
Page 290: Components
‘19 • HM-T-340 Components Components - 285 -...
Page 291: Compressor
‘19 • HM-T-340 Components Outdoor unit Outdoor unit Compressor Expansion valve Coil (stator) Discharge gas Suction gas Terminal block Permanent magnet (rotor) Rotor (motor) Needle valve Stator (motor) Refrigerant Crankshaft Cylinder Accumulator Rotor Refrigerant 4-way valve Low pressure sensor From discharge Electric signal Valve Pressure sensitive...
Page 292: Hma60-S/Hma100-S
‘19 • HM-T-340 Components Outdoor unit HMA60-S/HMA100-S Installation with indoor unit HMA60-S/HMA100-S for hot water and cooling function (4-pipe system) XL18 XL19 -BT64 XL10 -BT25 -GP12 -QN12 -BT63 -QN10 -BT15 -BT71 -BT3 -BP4 -BT7 -BT1 -EB101 -BT6 Outdoor unit Indoor unit...
Page 293 ‘19 • HM-T-340 Components Outdoor unit HSB60-W/HSB100/HSB140 Installation with indoor unit HSB60-W/HSB100/HSB140, tank PT300/PT500, controller RC-HY20/40-W with step controlled additional heat before reversing valve for hot water and cooling function (4-pipe system) -EQ1 RC-HY20/40 -AA25 -AA25 -RN10 -CP6 -CP6 -AA25-QN10 -EB1 -EB1 -FL2...
Page 294 ‘19 • HM-T-340 Components Outdoor unit Installation with indoor unit HSB60-W/HSB100/HSB140, tank PT300/PT500, controller RC-HY20/40-W with step controlled additional heat after reversing valve for hot water and cooling function (4-pipe system) -EB1 -EB1 -KA1 -AA25 -CP5 -BT25 -GP10 -BT71 -EQ1 -AA25 -CP6 -CP6...
Page 295: Temperature Sensor Data For Sensor In Outdoor Unit
‘19 • HM-T-340 Components Temperature sensor Temperature sensor Data for sensor in outdoor unit Temperatur Resistance Voltage (°C) (VDC) (kΩ) Tho-D 351.0 3.256 200.0 251.6 3.240 180.0 182.5 3.218 133.8 3.189 160.0 99.22 3.150 140.0 74.32 3.105 120.0 56.20 3.047 100.0 ThO-D 42.89...
Page 296: Component Positions
‘19 • HM-T-340 Components Component positions Component positions Indoor unit HMA60-S/HMA100-S XL11 XL10 XL13 XL14 AA23 BT30 K1A-K3A AA27 AA2:X15 AA2:X4 BT64 GP12 QN12 BT12 BT63 BT15 QN10 BT71 BT25 - 291 -...
Page 297 ‘19 • HM-T-340 Components Component positions HMA60-S/HMA100-S LEGEND Pipe connections Electrical elements Connection, heating medium, supply High voltage terminal block 400V~/230V~ Connection, heating medium, return Low voltage terminal block 230V~ Connection, cold water Low voltage terminal block 230V~ Connection, hot water...
Page 298 ‘19 • HM-T-340 Components Component positions HSB60-W/HSB100/HSB140 HSB60-W HSB100/140 Symbol Pipe connection Symbol Electrical components Climate system supply φ22 mm (60), AA23 Communication board (Red mark) φ28 mm (100, 140) AA23-F3 Fuse for external heating cable Climate system return φ22 mm (60), AA23-S3 DIP switch, addressing of outdoor unit (Blue mark)
Page 299 ‘19 • HM-T-340 Components Component positions HSB60-W/HSB100/HSB140 AA23-X1 AA23-F3 AA23 AA23-X4 AA23-S3 AA23-X100 Explanation AA23 Communication board AA23-F3 Fuse for external heating cable AA23-S3 DIP switch, addressing of outdoor unit AA23-X1 Terminal block, incoming supply AA23-X4 Terminal block, communication with indoor module / control module AA23-X100 Terminal block, communication outdoor module FDCW...
Page 300 ‘19 • HM-T-340 Components Component positions PT300 - 295 -...
Page 301 ‘19 • HM-T-340 Components Component positions PT300 PT300 A(mm) 1634 B(mm) C(mm) - 296 -...
Page 302 ‘19 • HM-T-340 Components Component positions PT500 - 297 -...
Page 303 ‘19 • HM-T-340 Components Component positions PT500 PT500 A(mm) 1835 B(mm) C(mm) - 298 -...
Page 304 ‘19 • HM-T-340 Components Component positions RC-HY20-W AA4 -XJ3 AA4 -XJ4 Explanation Base card Display unit AA4-XJ3 USB socket AA4-XJ4 Service outlet (No function) Extra relay circuit board Miniature circuit-breaker Terminal block, incoming electrical supply Terminal block, control signal circulation pump, sensors AUX inputs and heat pump Switch Serial number plate...
Page 305 ‘19 • HM-T-340 Components Component positions RC-HY40-W The cover of the control module is opened using a Torx 25 screwdriver. Assembly takes place in the reverse order. Explanation Base card Input circuit board Display unit AA4-XJ3 USB socket AA4-XJ4 Service outlet (No function) Accessory card Extra relay circuit board Miniature circuit-breaker...
Page 306 ‘19 • HM-T-340 Components Component positions 4. Secure the display on the panel. 1. Press in the catch on the upper rear side of the display unit 5. When the electrical connection is ready the display must be towards you (a) and move the display unit upwards (b) so reinstalled with three mounting points again, otherwise the that the mountings unhook from the panel.
Page 307 ‘19 • HM-T-340 Components Component positions Outdoor unit Component image FDCW60VNX-A FMo1 QM35 QM36 FDCW71VNX-A PCB2 PCB1 List of components Solenoid for 4-way valve PCB3 Compressor Expansion valve FMo1 Fan motor 63H1 Inverter & control PCB FMo1 QM35 Service valve, liquid side QM36 Service valve, gas side EEV-H...
Page 308 ‘19 • HM-T-340 Components Component positions FDCW100VNX-A FDCW140VNX-A PCB3 PCB1 PCB3 PCB1 PCB2 PCB2 FMo1 63H1 63H1 FMo1 QM35 QM36 EEV-C EEV-C QM35 EEV-H QM36 FMo2 EEV-H List of components Solenoid for 4-way valve High pressure switch 63H1 Compressor motor EEV-C Expansion valve, cooling EEV-H...
Page 309 ‘19 • HM-T-340 Components Piping system Piping system Indoor units All in one type HMA60-S/HMA100-S XL18 XL19 -BT64 XL10 -BT25 -GP12 -QN12 -BT63 -QN10 -BT15 -BT71 -BT3 -BP4 -BT7 -BT1 -EB101 -BT6 Outdoor unit Indoor unit Meaning of symbol XL1 (...
Page 310 ‘19 • HM-T-340 Components Piping system Split box HSB60-W/HSB100/HSB140 A: Refrigerant flow B: Refrigerant return C: Space heating return D: Space heating flow 1: Condenser 2: Filter 3: Pressure sensor 4: Temp. sensor, refrigerant return 5: Temp. sensor, space heating return 6: Temp.
Page 311 ‘19 • HM-T-340 Components Piping system Outside units FDCW60VNX THo-A THo-D THo-R - 306 -...
Page 312 ‘19 • HM-T-340 Components Piping system FDCW71VNX 4-way valve Temperature sensor Temperature sensor Temperature sensor Temperature sensor Accumulator Temperature sensor - 307 -...
Page 313 ‘19 • HM-T-340 Components Piping system FDCW100VNX 4-way valve Temperature sensor Temperature sensor Temperature sensor Temperature sensor Accumulator Accumulator Temperature sensor - 308 -...
Page 314 ‘19 • HM-T-340 Components Piping system FDCW140VNX 4-way valve Temperature sensor Temperature sensor Temperature sensor Temperature sensor Accumulator Temperature sensor - 309 -...
Page 315 MITSUBISHI HEAVY INDUSTRIES THERMAL SYSTEMS, LTD. 2-3, Marunouchi 3-chome, Chiyoda-ku, Tokyo, 100-8332, Japan http://www.mhi-mth.co.jp/en/ Because of our policy of continuous improvement, we reserve the right to make changes in all specifications without notice. Copyright MITSUBISHI HEAVY INDUSTRIES THERMAL SYSTEMS, LTD.

This manual is also suitable for:

Hma100-s Hsb60-w Hsb100 Hsb140 Pt300 Pt500 ... Show all
