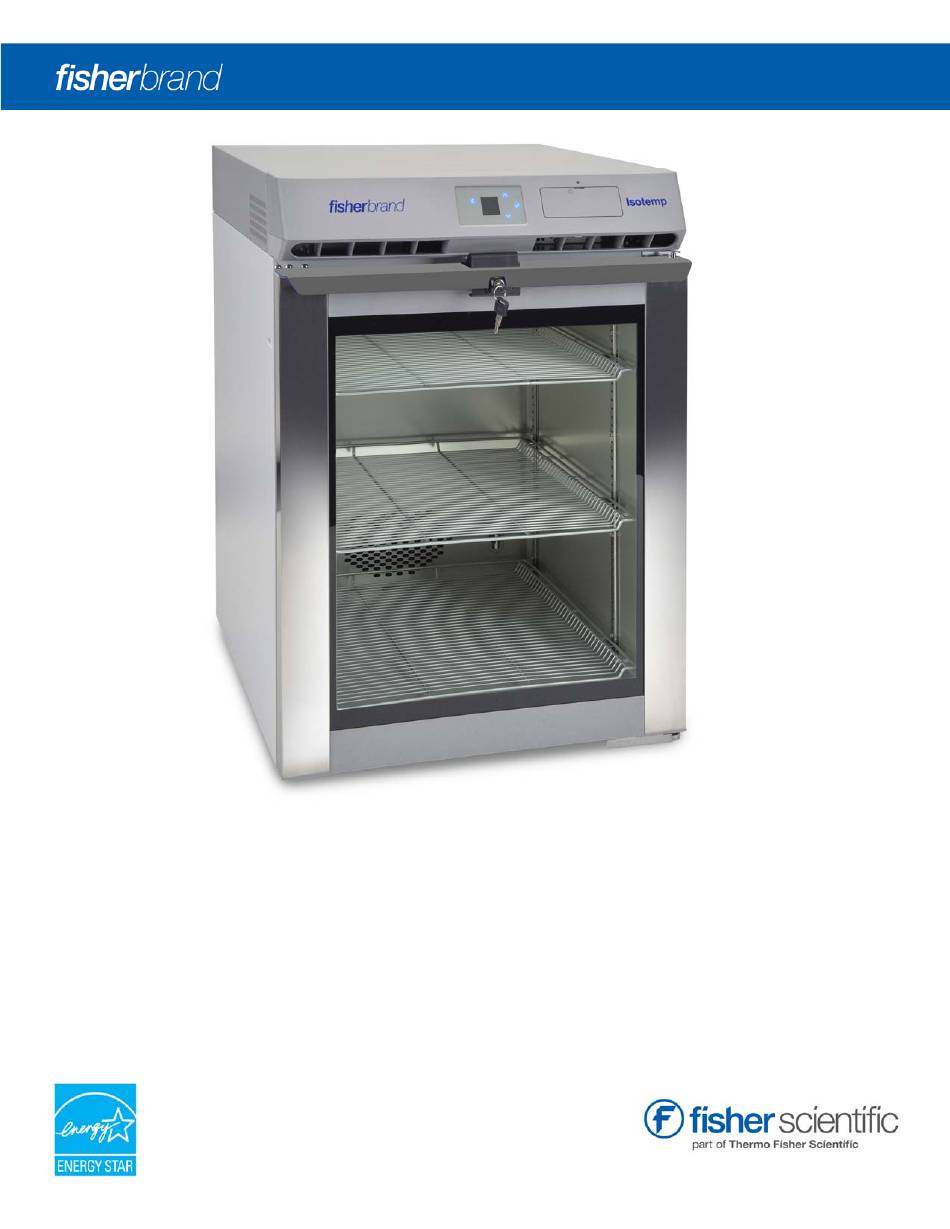

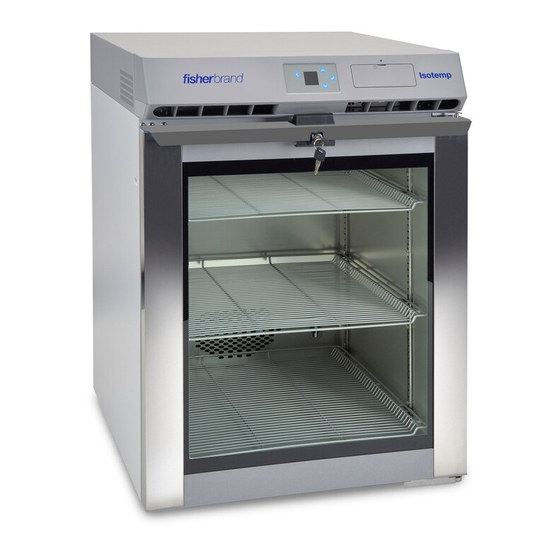

- Page 1 5.5 cu.ft. Undercounter Refrigerator Isotemp Series Installation and Operation 329153H01 • Revision A • April 2018...
- Page 2 Fisher Scientific makes no representations or warranties with respect to this manual. In no event shall Fisher Scientific be held liable for any damages, direct or incidental, arising from or related to the use of this manual.
-
Page 3: Table Of Contents
Contents Product Specifications ..........1 Models ..............1 General Specifications and Features......1 Physical Dimensions..........1 Environmental Operating Conditions......2 ENERGY STAR® Certification ........2 Safety Precautions ............3 System Block Diagram..........4 Unpacking the Isotemp Refrigerator ......5 Inspecting for Damage ..........5 Unboxing and Locating .......... - Page 4 Getting To Know Your Product ........10 Product Exterior - Front..........10 Product Exterior – Rear ..........11 Product Interior ............11 Navigating Isotemp 5.5 Cu.Ft. Refrigerator Controls..12 System Alerts ............12 System Alert Values ..........12 Reading the LCD (Temperature) Display ....12 Access the Main Menu..........
-
Page 5: Product Specifications
Product Specifications Models Model Description FBG505SA FBG Series Solid Door Refrigerator, NEMA 5-15P FBG505GA FBG Series Glass Door Refrigerator, NEMA 5-15P FBG505SD FBG Series Solid Door Refrigerator, NEMA 6-15P FBG505GD FBG Series Glass Door Refrigerator, NEMA 6-15P General Specifications and Features Model Style 5.5 cu.ft. -
Page 6: Environmental Operating Conditions
Internal Dimensions (W x D x H) 496 mm x 521 mm x 585 mm 19.5" x 20.5" x 23" ADA Height Compliant Stability Leveling feet Environmental Operating Conditions Ambient Operating Temperature 10°C to 32°C at a set-point of 5°C Humidity Requirements No more than 65% RH non-condensing. -
Page 7: Safety Precautions
Safety Precautions All electrical appliances present some risk of injury. Your WARNING: Hazardous voltages are present: To Isotemp refrigerator is designed to meet safety standards. reduce the risk of electric shock and danger to personal health, follow the instructions provided Take care to carry and move your refrigerator with caution. -
Page 8: System Block Diagram
International Civil Aviation Organization (ICAO), CAUTION: Any modifications made to this device International Maritime Dangerous Goods (IMDG) Code, that are not approved by Fisher Scientific may void Transport of Dangerous Goods (TDG). the authority granted to you by the FCC to operate equipment. -
Page 9: Unpacking The Isotemp Refrigerator
Unpacking the Isotemp Refrigerator Inspecting for Damage Identifying all Parts Please take a moment to inspect your new refrigerator for damages that may have occurred during shipping. For any damage done to the refrigerator, please contact the delivery carrier directly. Isotemp service line does not resolve packaging damage issues. -
Page 10: Installation
Installation Leveling WARNING: Fan has moving parts, product has uninsulated live parts and hot parts. Do not remove the top panel or attempt repairs. For Adjust the leveling feet located underneath the refrigerator by repairs or operating issues call Customer Care at turning clockwise to extend the feet, counter clockwise to 866-984-3766 for guidance and instructions. -
Page 11: Uninterruptable Power Supply (Ups)
Be careful not to plug into a wall outlet controlled by a wall switch to avoid accidentally switching off the refrigerator. To function properly the refrigerator must continually receive power. CAUTION: Risk of electrical shock. If the cord or plug becomes damaged, replace with a cord and plug of the same type and rating. -
Page 12: Operation
Operation LED Indicator Set Point Temperature When you turn on your refrigerator, verify that the LED When you first turn on the unit, the fan will run and the indicator is working. The LED indicator appears on the front refrigerator will work to reach the default set point control panel above the battery. -
Page 13: Automatic Defrost Cycles
limit this effect, there are a few simple steps you can follow to reduce the number of times the door is opened as well as the duration it is left opened: • List a detailed inventory of the refrigerator’s contents on a chart posted outside the unit to reduce the time spent searching for items when the door is opened. -
Page 14: Getting To Know Your Product
Getting To Know Your Product Backup Battery Product Exterior - Front Activating the Battery: The included battery is shipped with a protective tab so that its power doesn’t drain. To activate it you must remove the tab from its location inside the I/O Dock panel. -
Page 15: Product Exterior - Rear
Product Exterior – Rear Product Interior Access Port The Access Port (located on the back of the unit) is shipped sealed with a foam plug that must be removed prior to use. Additionally, the gray plastic knock-out must be removed. After inserting your device, we recommend reinserting the foam plug as snug and flush as possible to insulate against cooling loss. -
Page 16: Navigating Isotemp 5.5 Cu.ft. Refrigerator Controls
Navigating Isotemp 5.5 Cu.Ft. Refrigerator Controls System Alerts Reading the LCD (Temperature) Display Color Display Scroll Up Back Select Scroll Down System Alert Values Access the Main Menu 12 | Navigating Isotemp 5.5 Cu.Ft. Refrigerator Controls 5.5 cu.ft. Undercounter Refrigerator... - Page 17 Alarms Alarm Settings The Alarm Settings menu allows you to Select the high and Active Alarms low temperature alarms. It also lets you choose to activate the low battery alarm. To clear an alarm state, you can touch any blue button to go to a screen that lists each alarm triggered.
- Page 18 Temperature Set Point Temperature Set Point is where you can select the desired unit set point. Using the up and down arrows scroll through the preset temperature settings. The temperature is set once the Select button is confirmed. Temperature settings are in 0.5 degree increments whether the display is set to Celsius or Fahrenheit.
- Page 19 System Information This displays the current settings which includes set temperature, high/low temp alarms and calibration. Model Information This displays the model number, UI FW version, UI FW date and TEC FW version of your unit. 5.5 cu.ft. Undercounter Refrigerator Navigating Isotemp 5.5 Cu.Ft.
-
Page 20: Maintenance
Maintenance Suitable products for cleaning interior/exterior: The interior may be cleaned, when needed, using a mild detergent and a damp cloth. IMPORTANT: Avoid the use of chlorides (clean- ers with bleach) as well as abrasive cleaners and scrubbers such as steel wool. They will degrade the protective coating on the painted steel (product exterior) and leave it vul- nerable to rust. -
Page 21: Frequently Asked Questions
What is the product warranty? Fisher Scientific offers a 13-month product warranty on parts and labor and a 5-year warranty on the solid-state heat pump part. -
Page 22: Troubleshooting
Troubleshooting Troubleshooting Problems Customer Resolution Unit doesn't power on Check for proper installation of the power plug. Did you just power up the refrigerator and is the system pulling down to set point temperature? Alarm will not sound until the set point is met. -
Page 23: Warranty And Service
Fisher Scientific are not covered by this warranty. 4. Fisher Scientific may require any parts covered under this warranty be returned to Fisher Scientific freight prepaid, and this warranty shall apply only if Fisher Scientific verifies the applicable defect upon examination. - Page 24 Ulteriori informazioni sulla conformità di Fisher Scientific con queste Direttive, l’elenco delle ditte di riciclaggio nel Vostro paese e informazioni sui prodotti Fisher Scientific che possono essere utili alla rilevazione di sostanze soggette alla Direttiva RoHS sono disponibili sul sito www.thermofisher.com/WEEERoHS in Servizi e Supporto.
- Page 25 IF YOU NEED ASSISTANCE: Fisher Scientific products are backed by a global technical support team ready to support your applications. We offer cold storage accessories, including remote alarms, temperature recorders, and validation services. Visit fishersci.com or call: Pays Ventes Prestations de service...
- Page 26 Fisher Scientific Inc. 275 Aiken Road Asheville, NC 28804 United States Find out more at fishersci.com © 2018 Fisher Scientific Inc. All rights reserved. All trademarks are the property of Fisher Scientific and its subsidiaries unless otherwise specified. 329153H01 0418...
