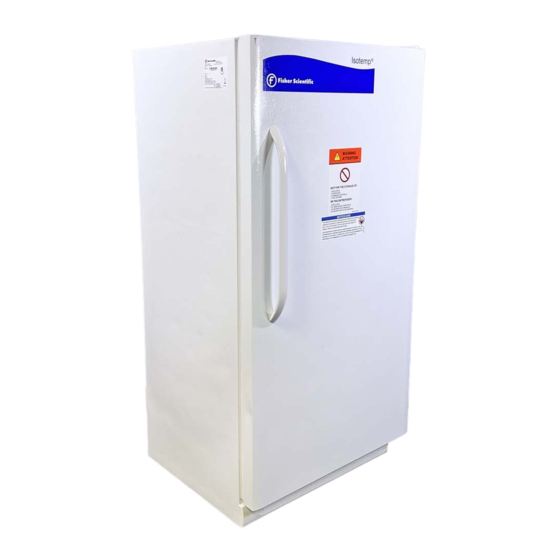

- Page 1 Isotemp General Purpose Refrigerator Model # 17LREEFSA 326723H01 • Rev. A...
-
Page 2: Table Of Contents
Table of Contents ..........................Safety Information ..........................Alert Signals ............................Unpacking ........................Visible Loss or Damage ......................Concealed Loss or Damage ........................ . Performance Characteristics ........................Temperature Ranges ........................Temperature Stability ........................Electrical Requirements ............................ -
Page 3: Safety Information
Safety Information Your satisfaction and safety are important to Fisher Scientific and a complete understanding of this unit is necessary to attain these objectives. As the ultimate user of this apparatus, it is your responsibility to understand its proper function and operational characteristics. -
Page 4: Alert Signals
Alert Signals Important operating instructions. To reduce the risk of injury Safety Alert or poor performance of the unit read the user manual before putting the equipment into operation. Indicates an immediately hazardous situation, which if not DANGER avoided, will result in death or serious injury. Danger Indicates an immediately hazardous situation, which if not WARNING... -
Page 5: Unpacking
Unpacking Save all packing material if apparatus is received dam- aged. This merchandise was carefully packed and thor- oughly inspected before leaving our factory. Responsibility for its safe delivery was assumed by the carrier upon acceptance of the shipment; therefore, claims for loss or damage sustained in transit must be made upon the carrier by the recipient as follows: Visible Loss or Damage... -
Page 6: Performance Characteristics
Performance Characteristics Temperature Ranges 1° to 12°C (34° to 54°F) Temperature Stability ±3°C for temperature range Electrical Requirements 115 Volts ±10%, 60 Hz, 6.5Amps... -
Page 7: Installation
Installation Selecting a Location Choose a location for the refrigerator that will provide at least three inches of clearance between the cabinet and any adjacent vertical surface at the sides and one inch at the rear. Three inches of clearance is required above the top surface of the refrigerated cabinet. - Page 8 NSTALLATION voltage is often the cause of service complaints. With the Warning unit running, check that the line voltage is within ±10% of For personal safety this unit must be that specified on the data plate. properly grounded. The power cord of this instrument is equipped with a three prong (grounding) plug (NEMA 5-15P).
-
Page 9: Operation
Operation Initial Startup Warning Turn power on and verify that the interior light is on. If the If the unit is tilted in excess of 30 evaporator fan is not running, adjust the thermostat to the middle setting (4). degrees, do not apply electrical power for a minimum of 12 hours. -
Page 10: Material Compatibility
PERATION Material Compatibility The interior cabinet of this unit is constructed of High impact poly styrene. Care must be exercised when determining which chemicals may be stored in the refrigerator and freezer sections and which type of storage materials should be employed. HIPS(High Impact Poly styrene) Plastic deteriorates when exposed to, but not limited to the following: Amines( Aromatic), Aldehydes ( Aromatic , Aliphatic),... -
Page 11: Troubleshooting
Troubleshooting This table is intended to assist in resolving user-correctable Refrigerator problems by relating symptoms to their likely causes. If service beyond the scope of this table is required, contact your nearest Fisher Scientific Service Office. Symptom Probable Cause Action... -
Page 12: Maintenance
Maintenance Cabinet Cleaning Caution The cabinet interior should be cleaned frequently. Any When servicing the unit, discon- spilled liquid should be wiped off immediately. Stains nect from the electrical power resulting from some spills can be permanent if not quickly source. -
Page 13: Warranty
Warranty Laboratory instruments and equipment manufactured by Fisher Scientific Company L.L.C. – Laboratory Equipment Division (hereinafter called “the Company”) are warranted only as stated below. Subject to the exceptions and upon the conditions specified below, the Company agrees, at its election, to... - Page 14 WEEE Compliance. This product is required to comply with the European Union’s Waste Electrical & Electronic Equipment (WEEE) Directive 2002/96EC. It is marked with the following symbol. Thermo Fisher Scientific has contracted with one or more recycling/disposal companies in each EU Member State, and this product should be disposed of or recycled through them.
