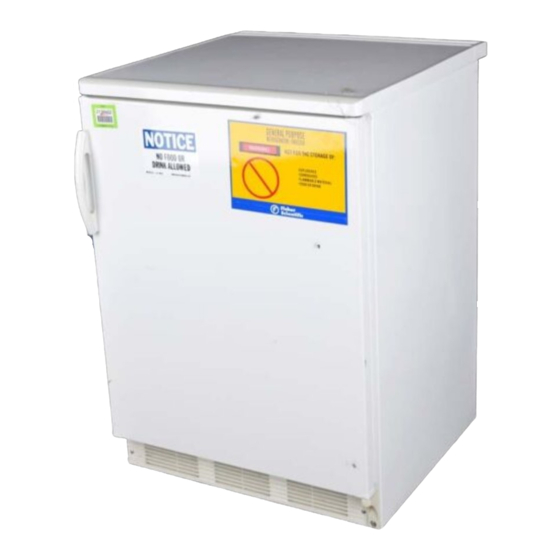

- Page 1 ISOTEMP ® Refrigerators, Refrigerator-Freezers and Freezers Operation Manual and Parts List MODEL NO. 97-920-1 97 938-1 97-950-1 97-915-1 97-960-1 97-935-1 97-952-1 97-926-1 97-925-1 97-928-1...
-
Page 2: Table Of Contents
Table of Contents Introduction ..................................3 Installation ..................................4 Shipping Carton ..............................4 Location ................................4 Electrical ................................4 Be Advised ................................5 Sealing Killark Box Conduit to Help Protect Against Explosions ................6 Operation..................................9 Environmental Operating Conditions ........................9 Child Entrapment Warning ............................9 Start-Up Procedure..............................9 Restart Procedure..............................10 Manual Defrost Procedure ..........................10 How to Save Energy ............................11 Safety Tips ................................11... -
Page 3: Introduction
Introduction At Fisher Scientific, we invite you to think of us as your laboratory partner. Meeting all the needs of todayʼs labo- ratories, whether industrial, educational or government, large or small, is our sole objective. Our 3,000 employees and 1,200 suppliers build on a long... -
Page 4: Installation
Installation Shipping Carton This should be inspected upon delivery. When received, carefully examine for any shipping damage before unpacking. If damage is discovered, the delivering carrier should both specify and sign for the damage on your copy of the delivery receipt. Open the carton carefully making certain that all parts are accounted for before packaging materials are discarded. -
Page 5: Be Advised
INSTALLATION Be Advised DANGER: RISK OF CHILD ENTRAPMENT. BEFORE YOU THROW AWAY YOUR OLD REFRIGERATOR OR FREEZER: • TAKE OFF DOORS • LEAVE THE SHELVES IN THE PLACE SO THAT CHILDREN MAY NOT EASILY CLIMB INSIDE. DANGER: UNLESS UNIT IS SPECIFICALLY DESIGNED FOR COMBUSTIBLE OR FLAMMABLE ATMOSPHERES DO NOT USE IN THE PRESENCE OF FLAMMABLE OR COMBUSTIBLE MATERIALS OR EXPLOSIVE GASES. -
Page 6: Sealing Killark Box Conduit To Help Protect Against Explosions
NSTALLATION How to Seal Killark Box Conduit with Fiber and ® Sealing Compound to Help Protect Against Explosions (Explosion-Proof Units Only): The purpose of the procedure that follows is to build fiber rope dams on the left and right hubs of the horizontal conduit. The fiber rope damns will surround conduit wiring that is housed inside the horizontal conduit. - Page 7 NSTALLATION Figure 2: Horizontal Conduit, Cutaway Wiring Left Hub Right Hub • Insert fiber rope material down into horizontal conduit opening. Pressing down firmly, work the material into the left hub and—most importantly—being sure the material COMPLETELY SURROUNDS THE WIRING, from the top to the bottom, completely blocking this end of the horizontal conduit.
- Page 8 NSTALLATION • Pour sealing compound down in between the two fiber rope dams filling the remaining space. Pour slowly, being careful not to trap air bubbles. Immediately wipe off any spilled sealing compound. • Screw conduit domed-cover back onto conduit opening. NOTE: INITIAL SETUP OF SEALING COMPOUND WILL OCCUR IN APPROXIMATELY 30 MINUTES HOW- EVER, THE SEALING COMPOUND REQUIRES A MINIMUM OF 8 HOURS ABOVE 32ºF TO DEVELOP SUFFICIENT STRENGTH TO WITHSTAND EXPLOSIONS.
-
Page 9: Operation
Operation Environmental Operating Conditions POLLUTION DEGREE*: INSTALLATION CATEGORY*: ALTITUDE: 2000 Meters MSL (Mean Sea Level) HUMIDITY: 80% maximum, non-condensing ELECTRICAL SUPPLY: 120VAC or 240VAC VOLTAGE TOLERANCE: ±10% of normal rated line TEMPERATURE: 15ºC to 40ºC PRODUCT USAGE: This product is intended for use indoors only *Refer to IEC 664-1 Child Entrapment Warning DANGER: RISK OF CHILD ENTRAPMENT! Before you discard your old refrigerator or freezer:... -
Page 10: Restart Procedure
PERATION Restart Procedure If unit is unplugged or turned off, allow 3 minutes before restarting or plugging it back in. Manual Defrost Procedure (Where Applicable) Do not use any sharp instrument, blade or scraper to remove ice and frost on refrigerator surfaces because of the very real danger of puncturing the cooling coil. -
Page 11: How To Save Energy
PERATION How to Save Energy • Be sure to follow location suggestions as men- tioned in the previous INSTALLATION section. • Wipe moisture from glassware or other materials before placing them in a unit. • Don't overcrowd the unit. Too many items can increase electrical energy demand in order to keep everything cool. -
Page 12: Reversing The Front Door (Model 97-920-1)
PERATION Reversing the Front Door (Model 97-920-1) • Remove bolts and plugs using a screwdriver. • Unscrew the bolts connecting the upper hinges to the upper platform. Remove the upper platform by first pulling it forward and then lifting it upward. •... -
Page 13: General Purpose Laboratory Units
General-Purpose Laboratory Units MODEL 97-920-1 Features: • 5.6 cubic ft. undercounter refrigerator. • Manual defrost. • Adjustable hydraulic thermostat control. • Three adjustable wire shelves. • Key lock. • UL listed. 97-920-1 NOTE: THESE UNITS ARE DESIGNED FOR FREE STANDING INSTALLATION ONLY. THEY MAY BE INSTALLED UNDER A COUNTER ONLY IF SUFFICIENT SPACE FOR AIRFLOW IS PROVIDED. -
Page 14: Model 97-915-1
ENERAL URPOSE ABORATORY NITS MODEL 97-915-1 Features: • 1.7 cubic ft. bench top refrigerator with ice compartment. • Single door. • One removable shelf included. • Manual defrost. • UL listed. 97-915-1 NOTE: ALLOW THE FOLLOWING CLEARANCE TOP: 12”, BACK: 5”, SIDES: 1/2” Exterior Dimensions Freezer Chamber Dimensions Total Vol. -
Page 15: Model 97-960-1
ENERAL URPOSE ABORATORY NITS MODEL 97-960-1 Features: • 5.6 cubic ft. undercounter refrigerator/freezer. • Adjustable thermostatic control. • Three wire shelves, three door shelves. • ABS plastic interior with enameled steel exterior. • Manual defrost. • UL listed. 97-960-1 NOTE: THESE UNITS ARE DESIGNED FOR FREE STANDING INSTALLATION ONLY. -
Page 16: Model 97-926-1
ENERAL URPOSE ABORATORY NITS MODEL 97-926-1 Features: • 5.0 cubic ft. undercounter freezer. • Hydraulic thermostat. • Two fixed shelves and three door shelves. • Manual defrost. • UL listed. Model Freezer Chamber Dimensions Total Vol. Exterior Dimensions H x W x D inches (cm) Cu. -
Page 17: Flammable Materials Storage Units
Flammable Materials Storage Units Overview These Fisher units will prevent potentially destructive explosions in any facility. They meet the standards estab- lished by Underwritersʼ Laboratory, Inc., OSHA and National Fire Protection Association for storage of haz- ardous materials. They also are designed to comply with National Fire Protection Association Standards No. -
Page 18: Model 97-925-1
LAMMABLE ATERIALS TORAGE NITS MODEL 97-925-1 Features: • 5.0 cubic ft. undercounter freezer. • Hydraulic thermostat. • Two fixed wire shelves, three door shelves. • Aluminum evaporator coil. • Manual defrost. • UL listed. Model Freezer Chamber Dimensions Total Vol. Exterior Dimensions H x W x D inches (cm) Cu. -
Page 19: Model 97-938-1
LAMMABLE ATERIALS TORAGE NITS MODEL 97-938-1 Features: • 5.6 cubic ft. undercounter refrigerator. • Hydraulic thermostat. • Three adjustable wire shelves. • Aluminum evaporator coil. • Manual defrost. • Key locking door. • UL listed. NOTE: THIS UNIT IS DESIGNED FOR FREE STAND- ING, RECESSED OR UNDER THE COUNTER INSTAL- LATION. -
Page 20: Model 97-935-1
LAMMABLE ATERIALS TORAGE NITS MODEL 97-935-1 Features: • 5.6 cubic ft. undercounter refrigerator/freezer. • Hydraulic thermostat. • Two adjustable wire shelves. • Manual defrost. • UL listed. 97-935-1 NOTE: THESE UNITS ARE DESIGNED FOR FREE STANDING INSTALLATION ONLY. THEY MAY BE INSTALLED UNDER A COUNTER ONLY IF SUFFICIENT SPACE FOR AIRFLOW IS PROVIDED. -
Page 21: Explosion-Proof Units
Explosion-Proof Units MODEL 97-952-1 Features: • 5.6 cubic ft. undercounter refrigerator/freezer. • Hydraulic thermostat. • Two adjustable wire shelves, three door shelves. • ABS plastic interiors with enameled steel exterior. • Manual defrost. • UL listed. Model Refrigerator Chamber Dimensions Freezer Chamber Dimensions Total Vol. -
Page 22: Model 97-928-1
XPLOSION ROOF NITS MODEL 97-928-1 Features: • 5.0 cubic ft. undercounter freezer. • Hydraulic thermostat. • Two fixed shelves, three door shelves. • Aluminum evaporator coil. • UL listed. • Manual defrost. Model Freezer Chamber Dimensions Total Vol. Exterior Dimensions H x W x D inches (cm) Cu. -
Page 23: Model 97-950-1
XPLOSION ROOF NITS MODEL 97-950-1 Features: • 5.6 cubic ft. undercounter refrigerator. • Hydraulic thermostat. • Three adjustable wire shelves. • Manual defrost. • UL listed. Model Refrigerator Chamber Dimensions Total Vol. Exterior Dimensions H x W x D inches (cm) Cu. -
Page 24: Options
Options Optional Dolly • 2,000 lb. capacity • Simple wing nut adjustment shortens or length- ens the rollers to fit refrigerators/freezers of vari- ous sizes • 18” to 28” adjustable length • 32 ea. 1-1/4” nylon rollers • Non-skid foam rubber corner pads hold unit firmly in place •... -
Page 25: Optional Buzzer Alarm
PTIONS Optional Buzzer Alarm ALARM STATUS LAMP POWER ALARM DELAY ADJUST ADJUST HIGH ALARM ALARM DISPLAY DISPLAY TEMPERATURE DISPLAY (4): Digital devices generally do not round off a reading. In the case of this temperature monitor, when the display reports, say a value of 10 degrees, that “10” can repre- sent any temperature from 10.0 to 10.9 degrees. - Page 26 PTIONS ALARM CONDITIONS: • HIGH SETPOINT ALARM: If the probe tempera- ture exceeds the HIGH setpoint (or falls below the LOW setpoint on dual setpoint models), the audio alarm will sound the red ALARM status lamp (6) will flash. The unitʼs audio alarm can temporarily be silenced by depressing the DELAY button (7).
-
Page 27: Maintenance
Maintenance Be Advised Make no attempt to service or repair a Fisher Scientific product under warranty before consulting Fisher Scientific. After the warranty period, such consultation is still advised, especially when the repair may be technical- ly sophisticated or difficult. -
Page 28: Troubleshooting
Troubleshooting In the event that your unit is not operating properly, check the following before calling for service assistance. This may save you the cost of unnecessary service calls. Symptom Possible Cause of Problem Unit not operating Make certain that the unit is connected to a grounded outlet. Make certain that temperature control knob is ON. -
Page 29: Replacement Parts
Replacement Parts To obtain replacement parts information and pricing, please call the Fisher Scientific Customer Relations Department at 1-800-438-4851 and have the unitʼs model, serial and code numbers available. This information is located on data plates on the rear of the unit. - Page 30 Conformité WEEE. Ce produit doit être conforme à la directive européenne (2002/96EC) des Déchets d’Equipements Electriques et Electroniques (DEEE). Il est marqué par le symbole suivant. Thermo Fisher Scientific s’est associé avec une ou plusieurs compagnies de recyclage dans chaque état membre de l’union européenne et ce produit devraitêtre collecté...
-
Page 31: Warranty
Warranty Laboratory instruments and equipment manufactured by Fisher Scientific Company L.L.C. – Laboratory Equipment Division (hereinafter called “the Company”) are warranted only as stated below. Subject to the exceptions and upon the conditions specified below, the Company agrees, at its election, to... - Page 32 Important For your future reference and when contacting the factory, please have the following information readily available: Model Number: Serial Number: Date Purchased: The above information can be found on the dataplate attached to the equipment. If available, please provide the date purchased, the source of purchase (manufacturer or specific agent/rep organization), and purchase order number.
- Page 33 275 Aiken Road Asheville, NC 28804 United States 057-155-00 Rev. A...
